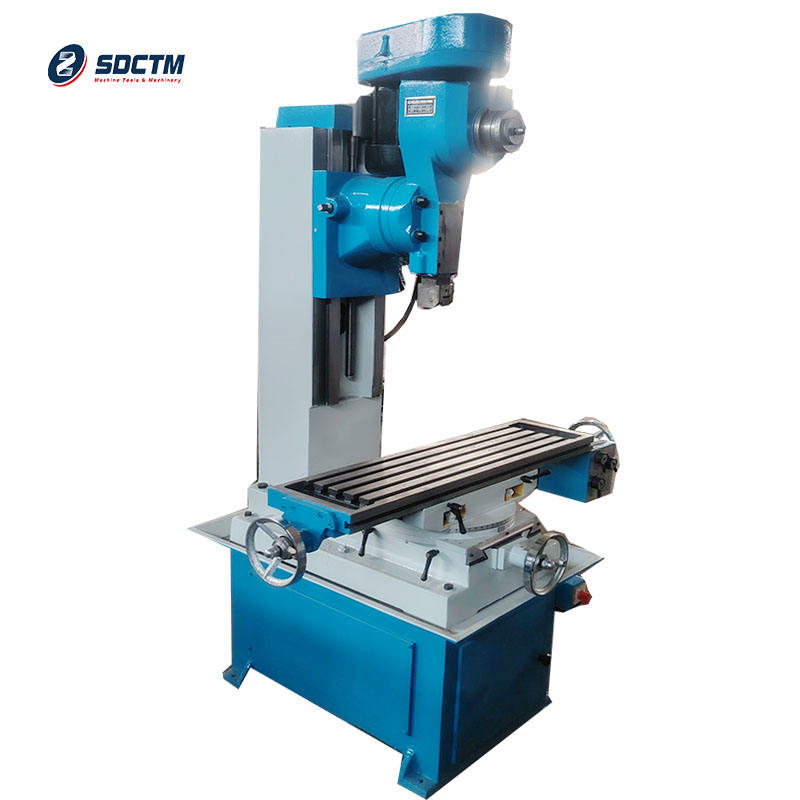

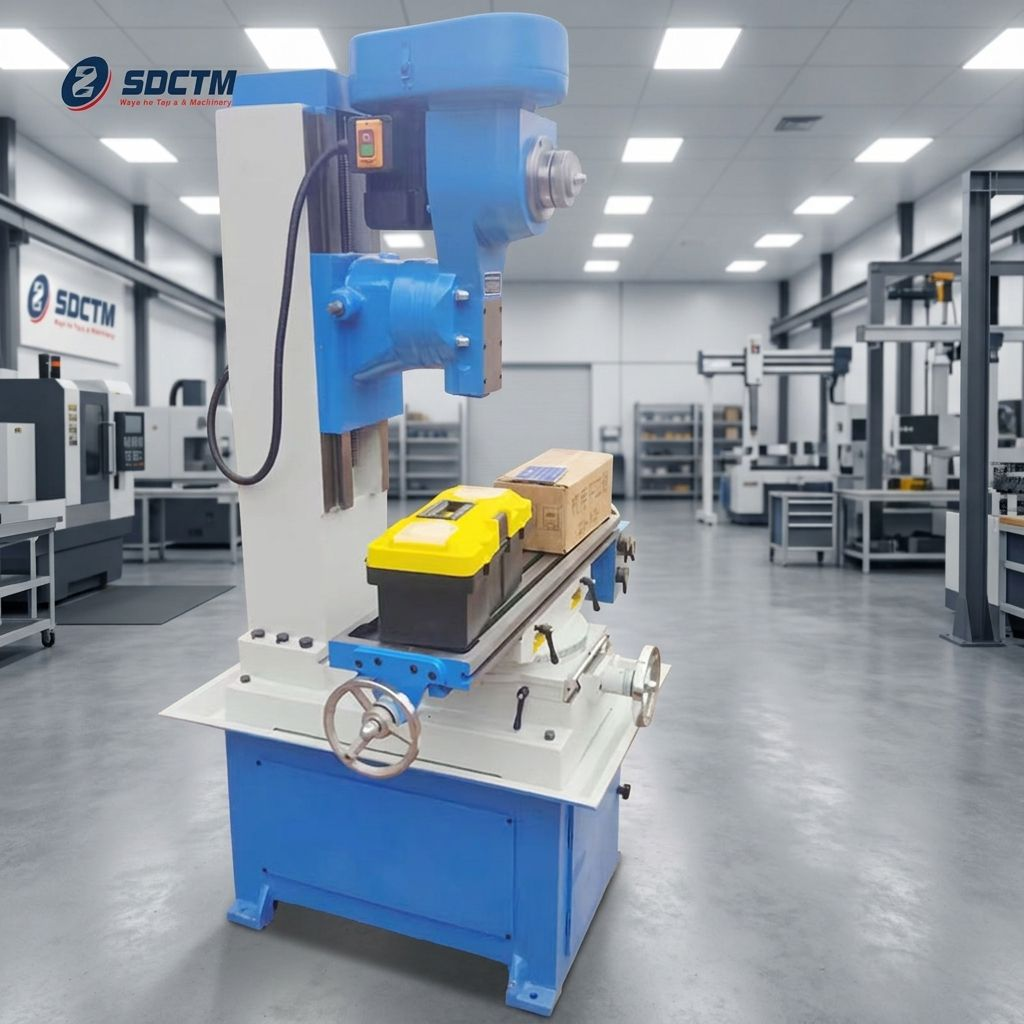

Vertical Keyway Slotting Machine YT125 XC125 Slotting Machine for Metal

PRODUCT HIGHLIGHTS
Versatile Slotting Machine: Suitable for metal workpieces of various shapes.
High-Precision Gearbox: Ensures smooth and efficient operation.
Durable Motor: Provides powerful performance for long-term use.
380V/415V/230V/220V Power Supply: Compatible with standard household electricity.
Comprehensive Warranty: 1-Year guarantee included for peace of mind.

Availability:

Quantity:



Inquire Add to Basket

Model:
XC125 XC100

Product Description

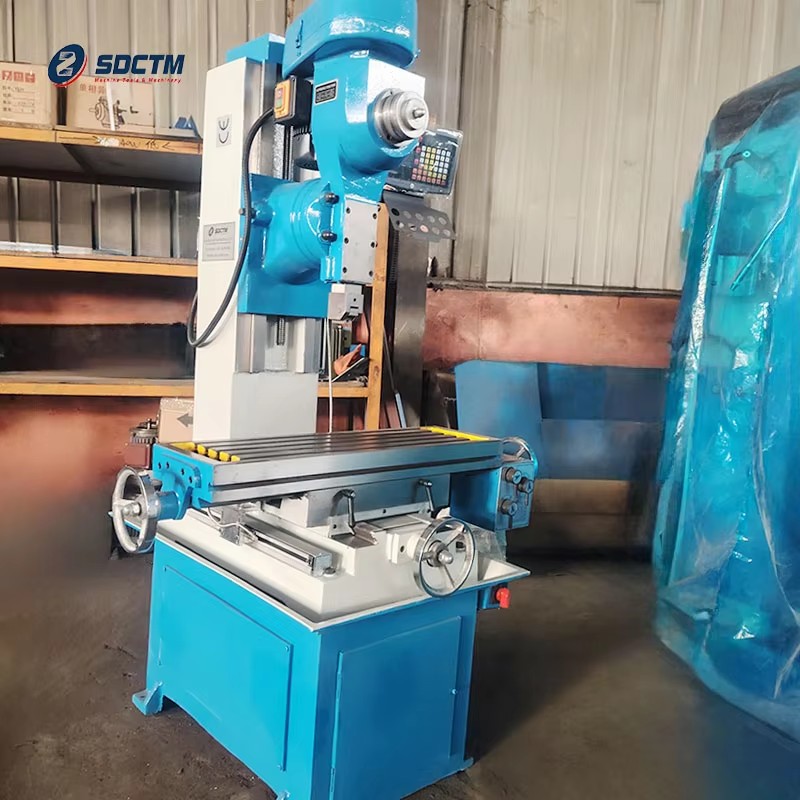

Vertical Keyway Slotting Machine YT125 XC125 Slotting Machine for Metal

Machine tool type	XC-100	XC-125
Max. slotting stroke	100mm	125mm
XYZ axis working stroke	380240450mm	380240450mm
X-axis working mode	X-axis automatic feed	X-axis automatic feed
Spindel speed steps	6 steps	6 steps
Head rotary angle	90°	90°
Motor power	0.37kw	0.37kw

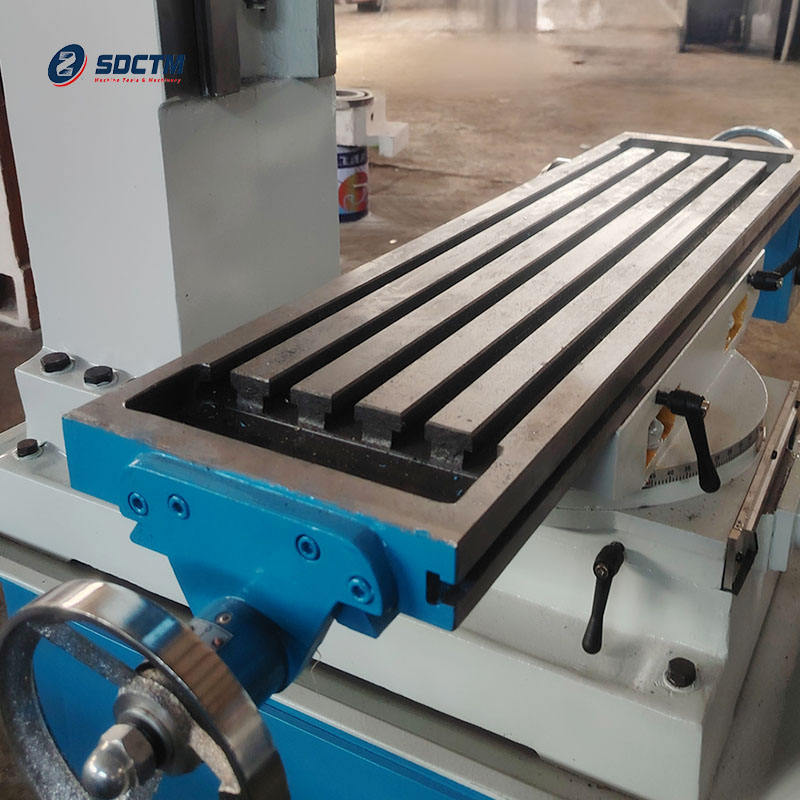

Table size	800x240 mm	800x240 mm
Overall dimension(approximate)	1295x950x1900 mm	1295x950x1900 mm
Weight(approximate)	480/580kg	500/600 kg
