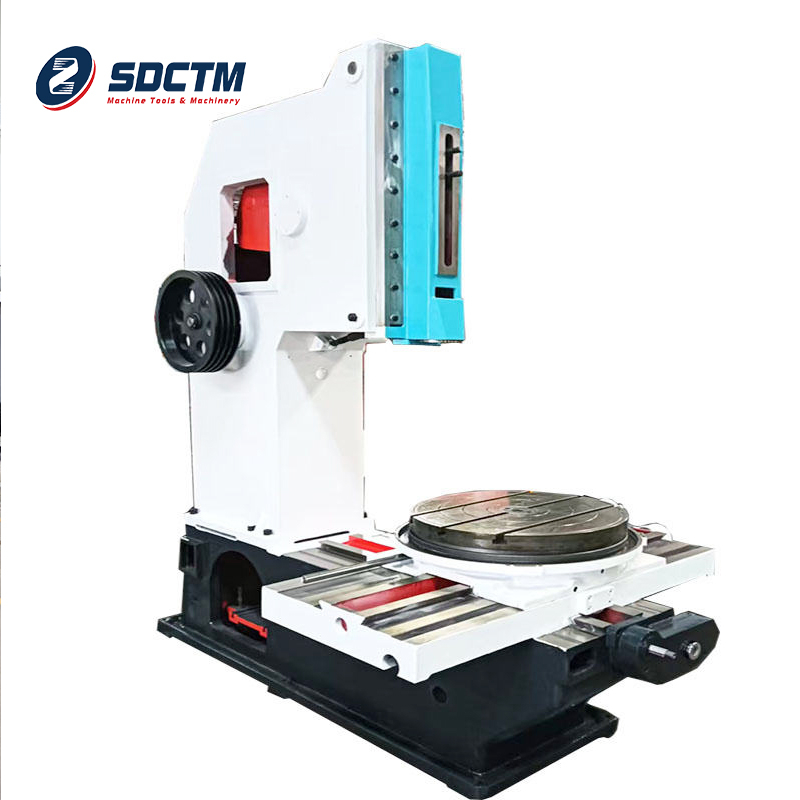

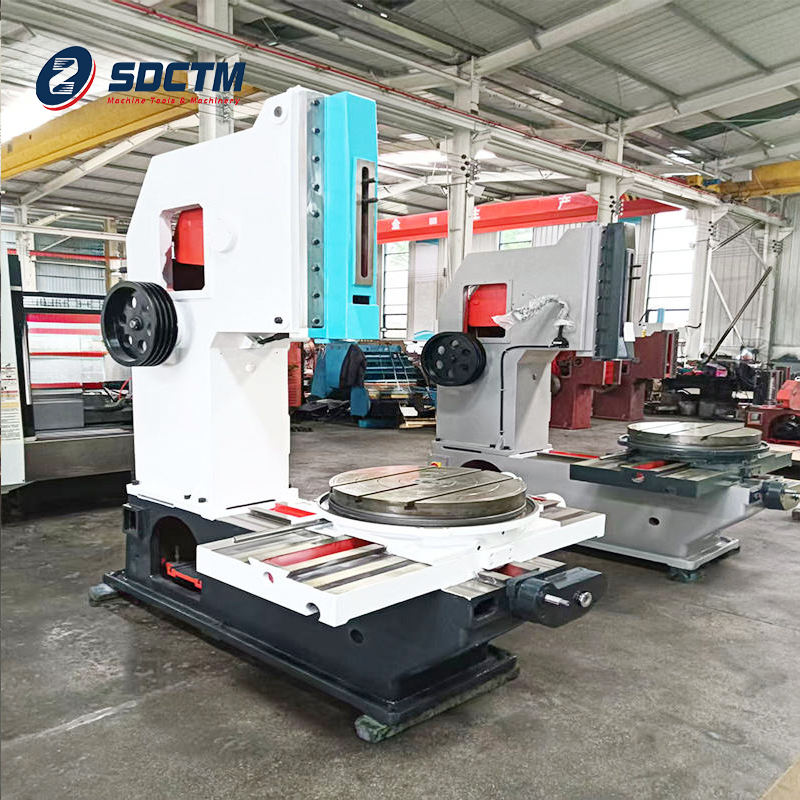

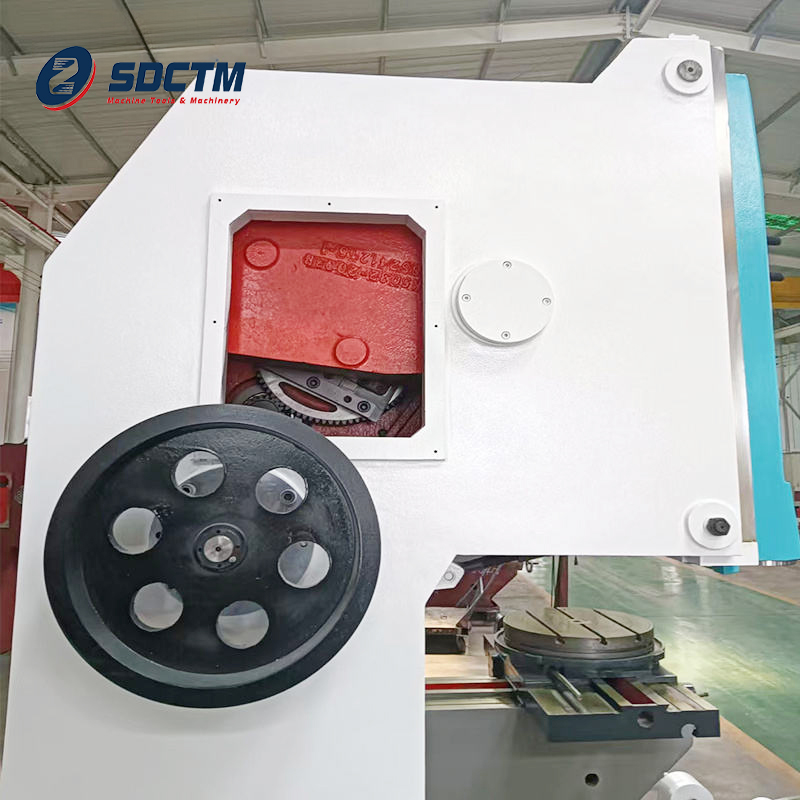

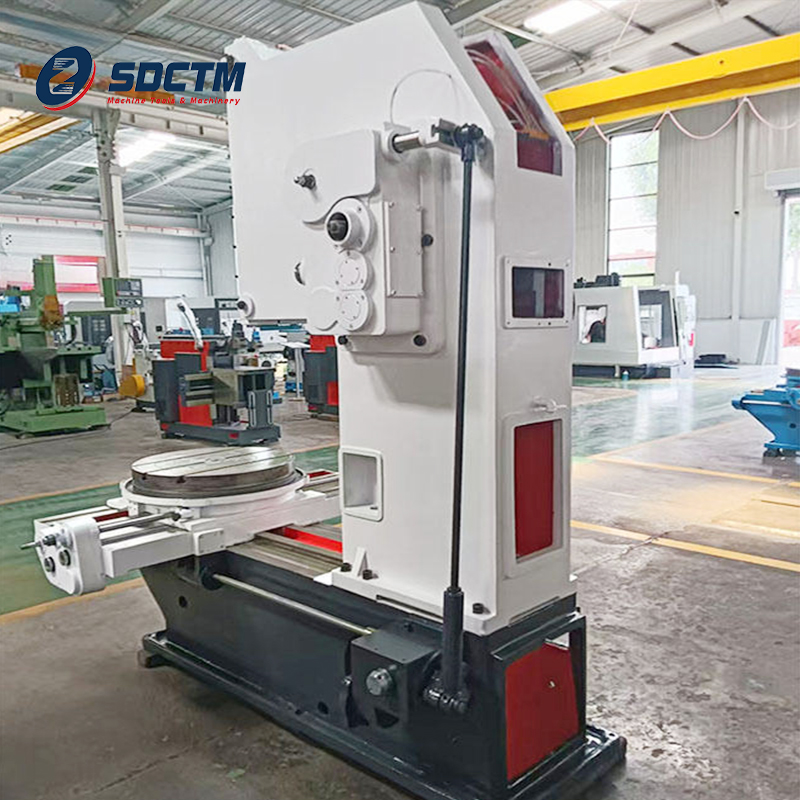

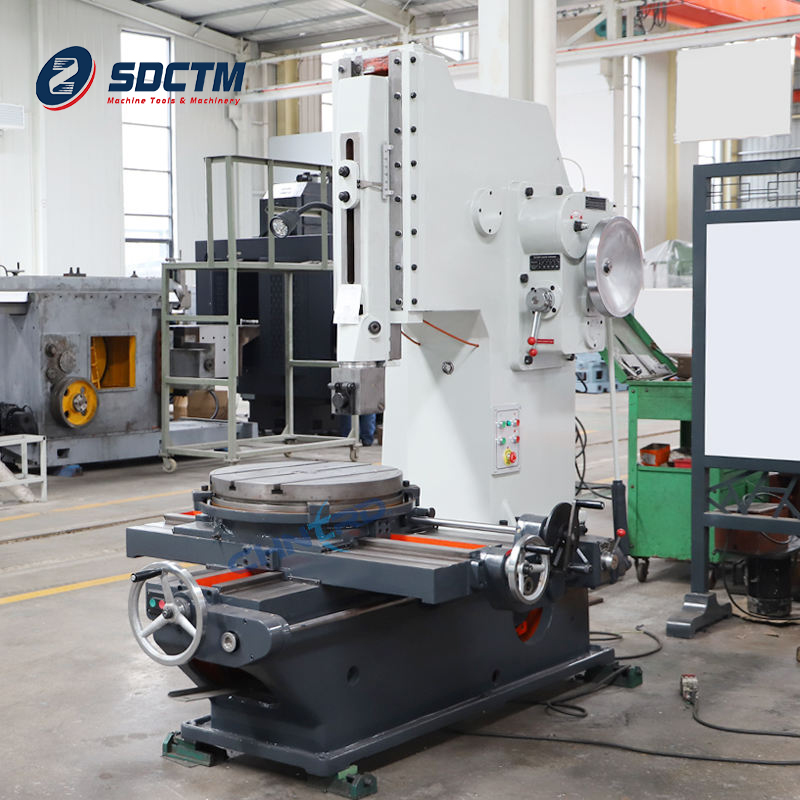

BQ5040 Slotting Machine Is Used for Metal Slotting

Machine tool type

BQ5040

Maximum cutting length

400mm

Maximum weight of work

500kg

Maximum cutting force

7500N

Number of trips per minute of the ram

20;32;50;80

The distance of the ram is adjusted vertically

315mm

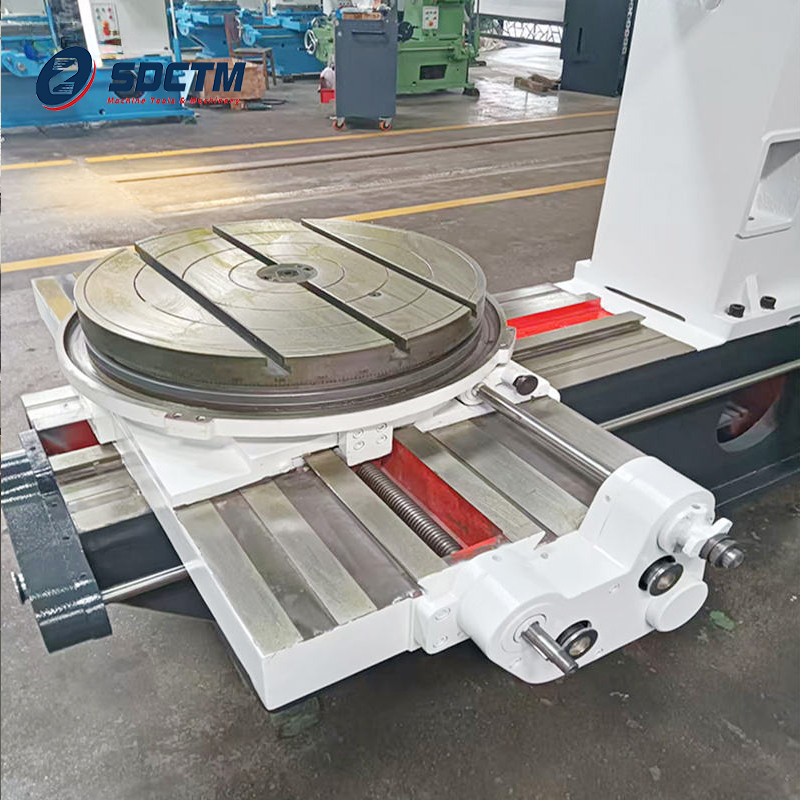

Table diameter

630mm

Distance between tool head support surface and front wall of bed

600mm

Distance between workbench and lower end of slide frame

690mm

Maximum longitudinal travel distance of table

620mm

Maximum lateral movement distance of table

560mm

Table vertical and horizontal maneuvering feed range

0.08-1.21mm

Table rotary maneuver feed range

0.052-0.783deg

Main motor power

4kw

Main motor speed

960r.p.m

Machine profile dimensions(L x W x H)

2290x1525x2485mm

Machine weight (approx.)

3700kg
