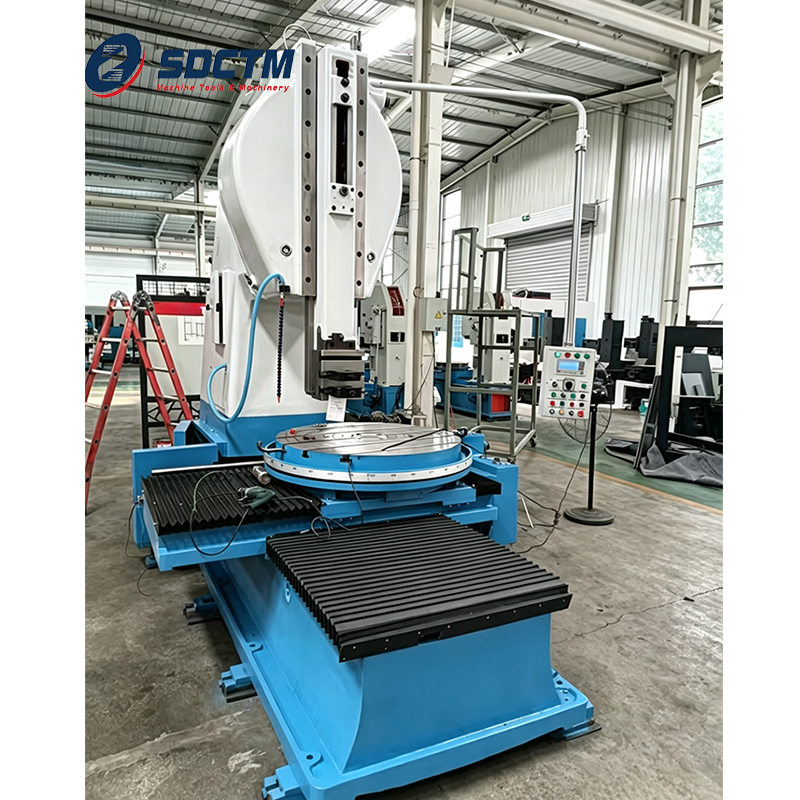

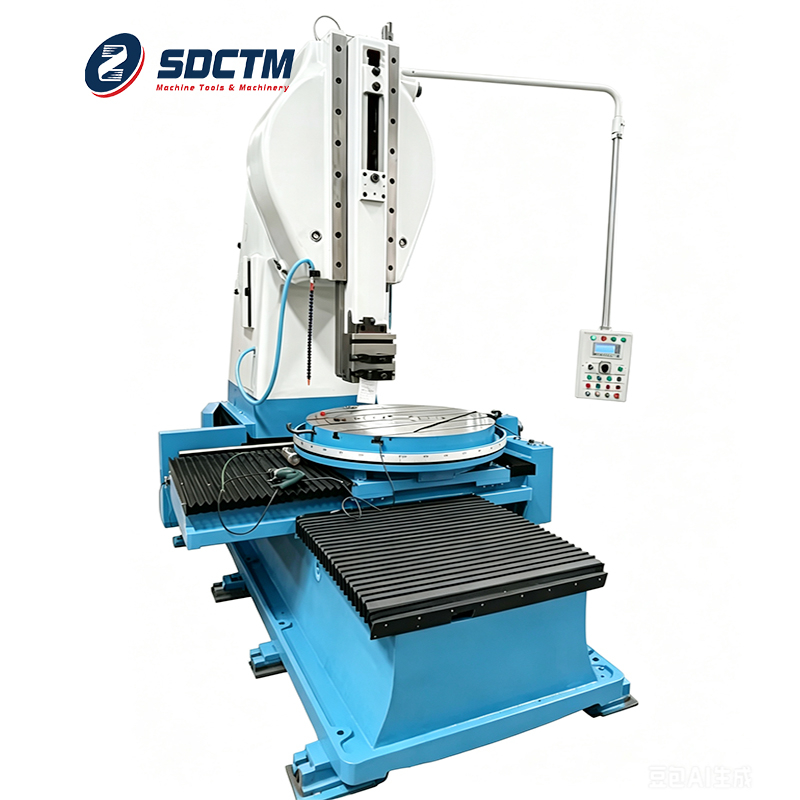

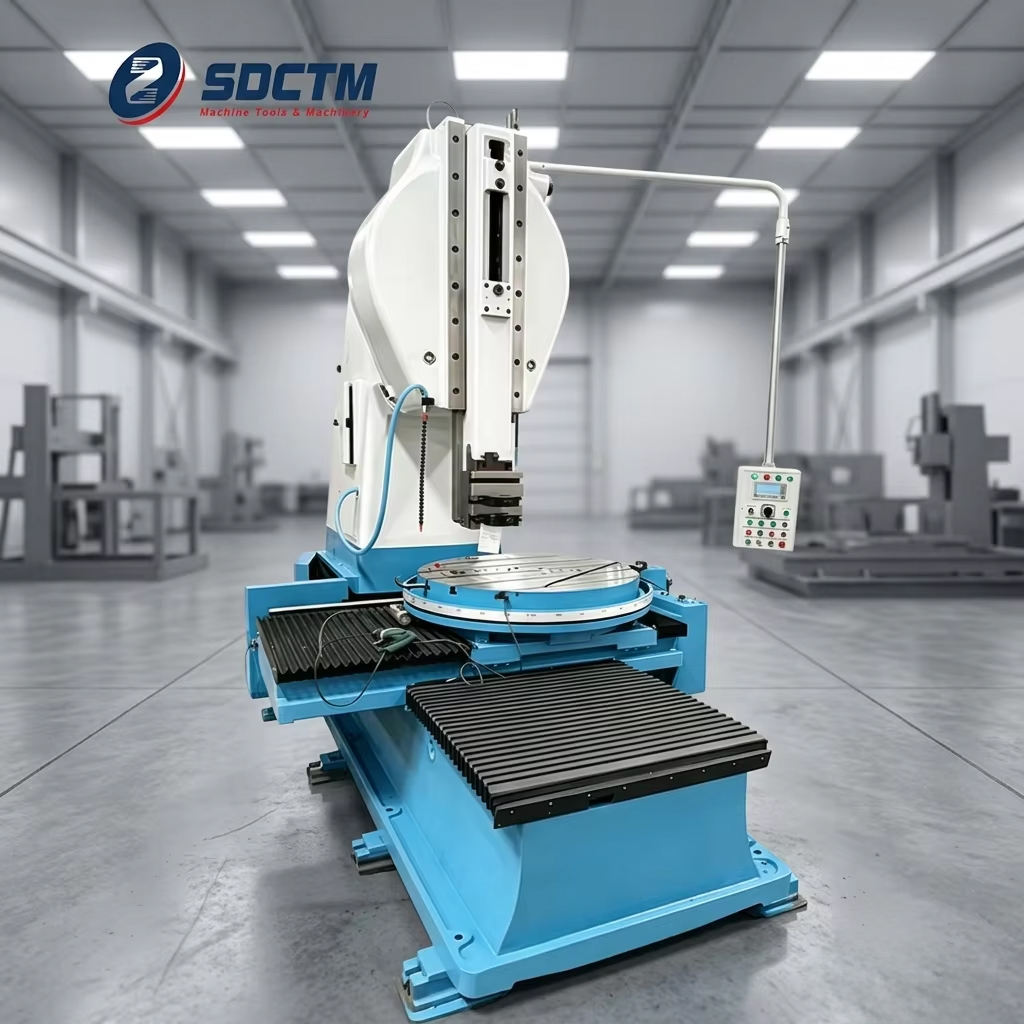

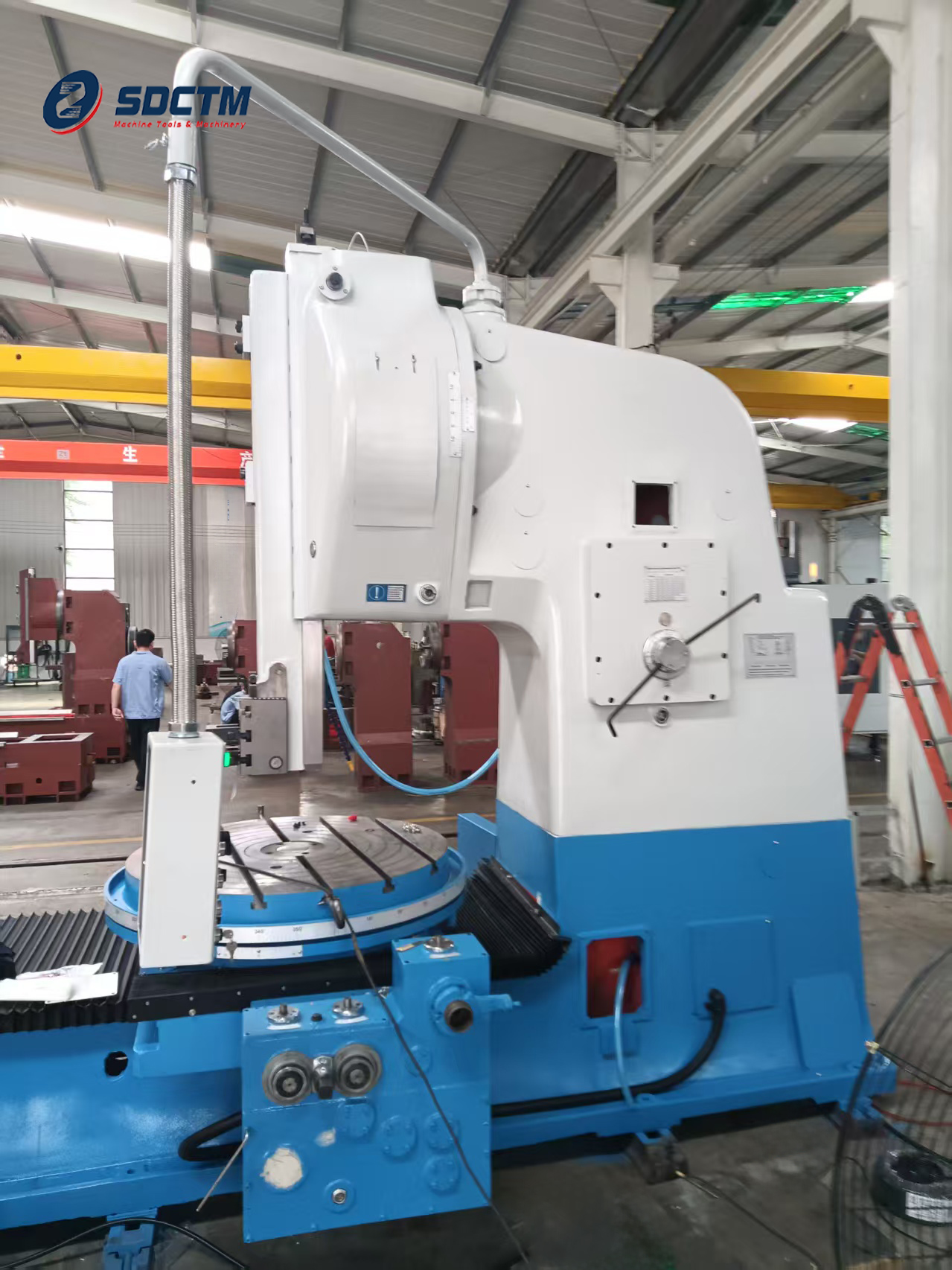

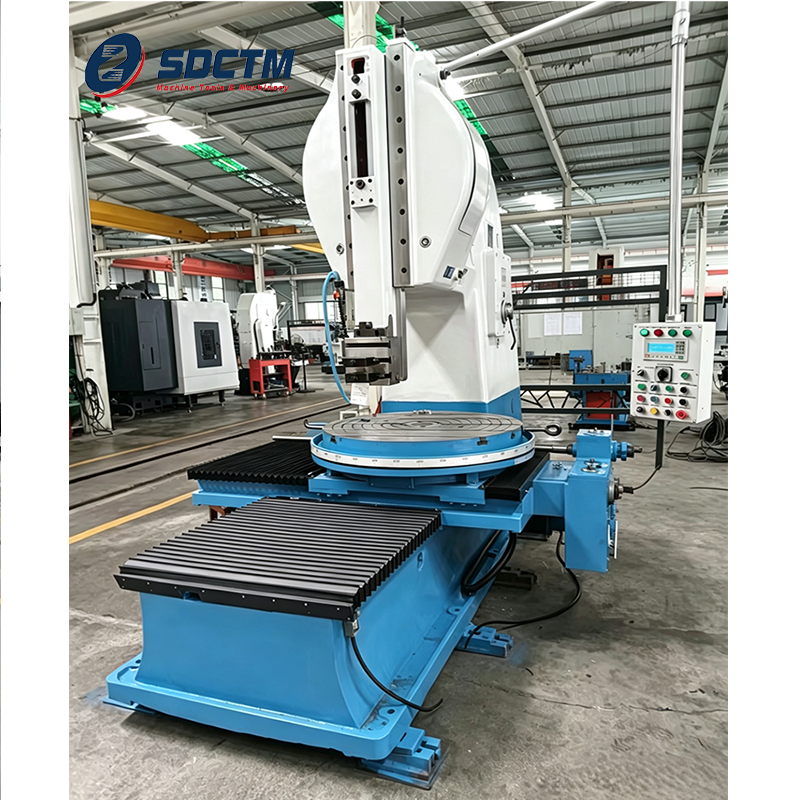

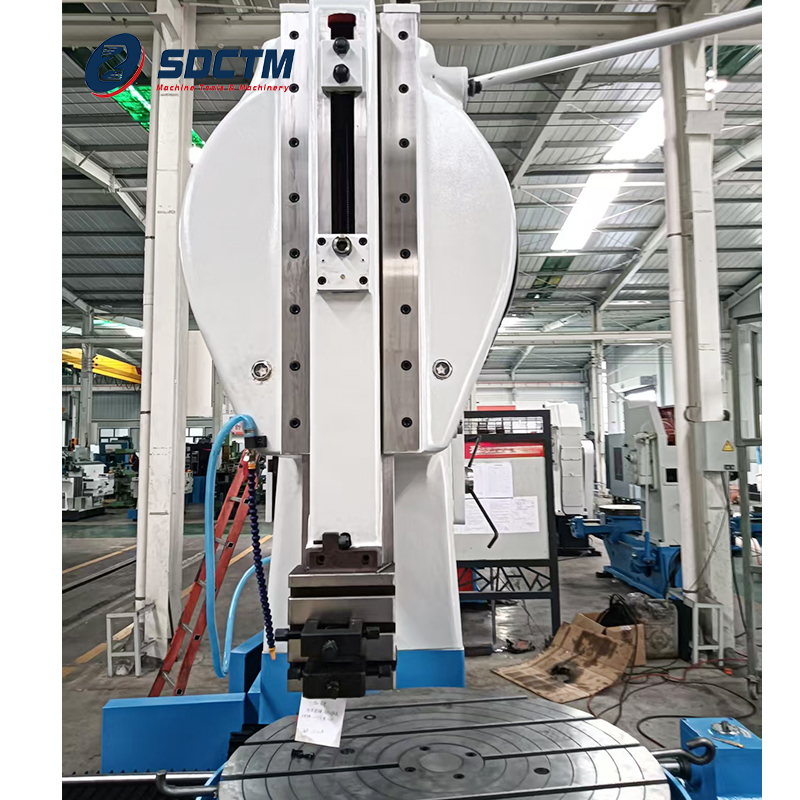

High Precision Shaping Slotting Machines B5050 Vertical Keyway Slotting Machine Used for Metal Slotting

Machine tool type

B5050

Maximum cutting length

500mm

Maximum weight of work

2000kg

Maximum cutting force

16000N

Number of trips per minute of the ram

9,12.5,18,25,36,50,8,12,20,30 r.p.m

The distance of the ram is adjusted vertically

430mm

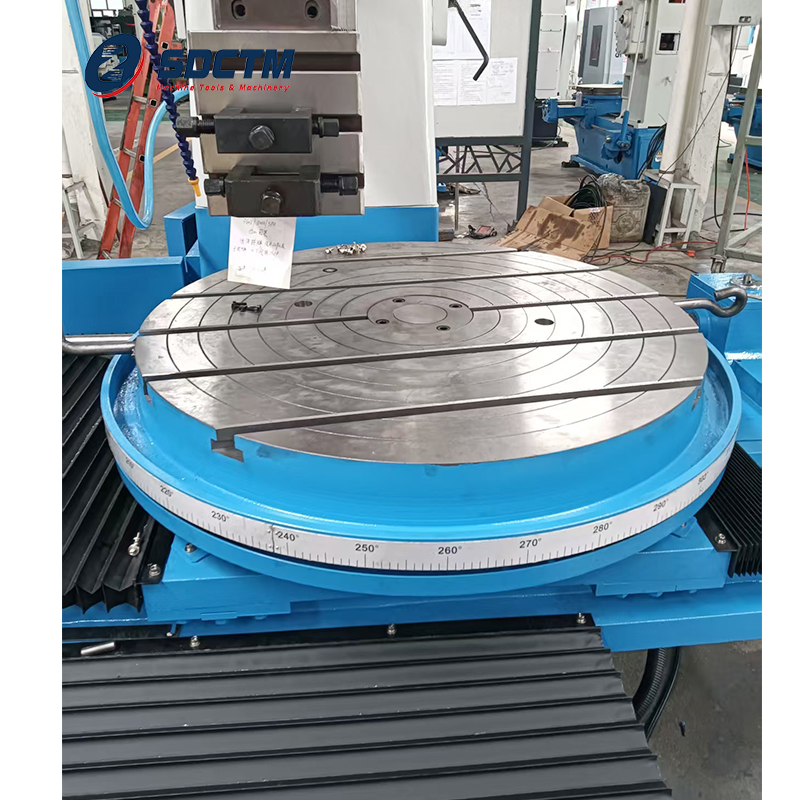

Table diameter

1000mm

Distance between tool head support surface and front wall of bed

990mm

Distance between workbench and lower end of slide frame

740mm

Maximum longitudinal travel distance of table

660mm

Maximum lateral movement distance of table

1000mm

Table vertical and horizontal maneuvering feed range

0.1-1.2mm/per

Table rotary maneuver feed range

3'-36' deg/per

Main motor power

7.5kw

Main motor speed

1400r.p.m

Machine profile dimensions(L x W x H)

3480x2085x3307 mm

Machine weight (approx.)

10300kg
