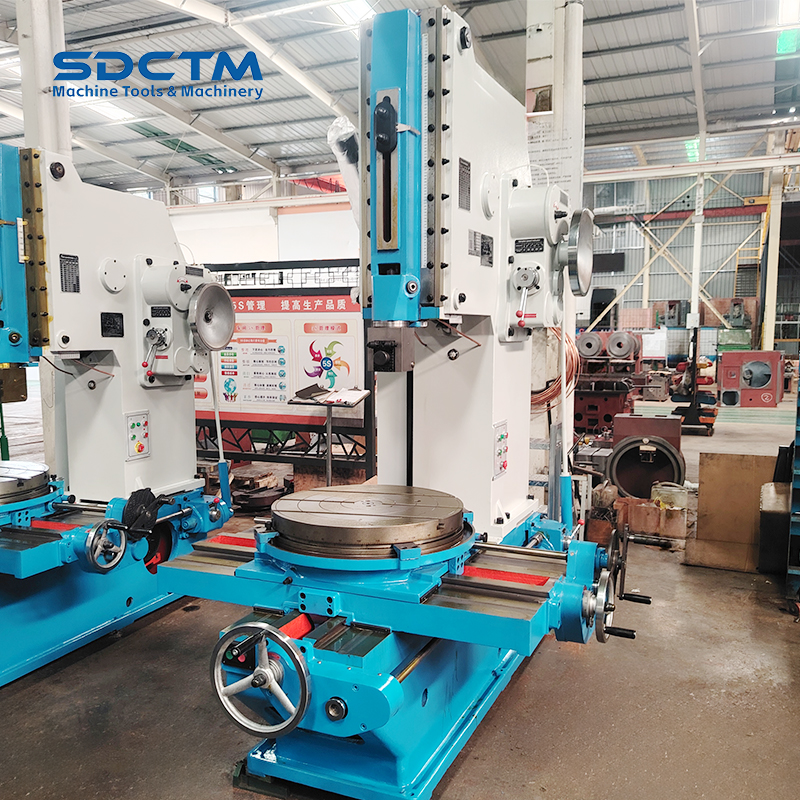

B5040
PRODUCT HIGHLIGHTS
Powerful 4kW Motor: Ensures efficient metal cutting and shaping operations.
Compact Design: Measuring 3580*2390*3660 mm, ideal for space-constrained environments.
High Cutting Force: 7500N provides robust performance for heavy-duty slotting tasks.
Durable Construction: Built to withstand industrial wear and tear.
Competitive Pricing: Offers excellent value for your investment.
Machine tool type | B5040 |
Maximum cutting length | 400mm |
Maximum weight of work | 500kg |
Maximum cutting force | 7500N |
Number of trips per minute of the ram | 20;32;50;80 |
The distance of the ram is adjusted vertically | 315mm |

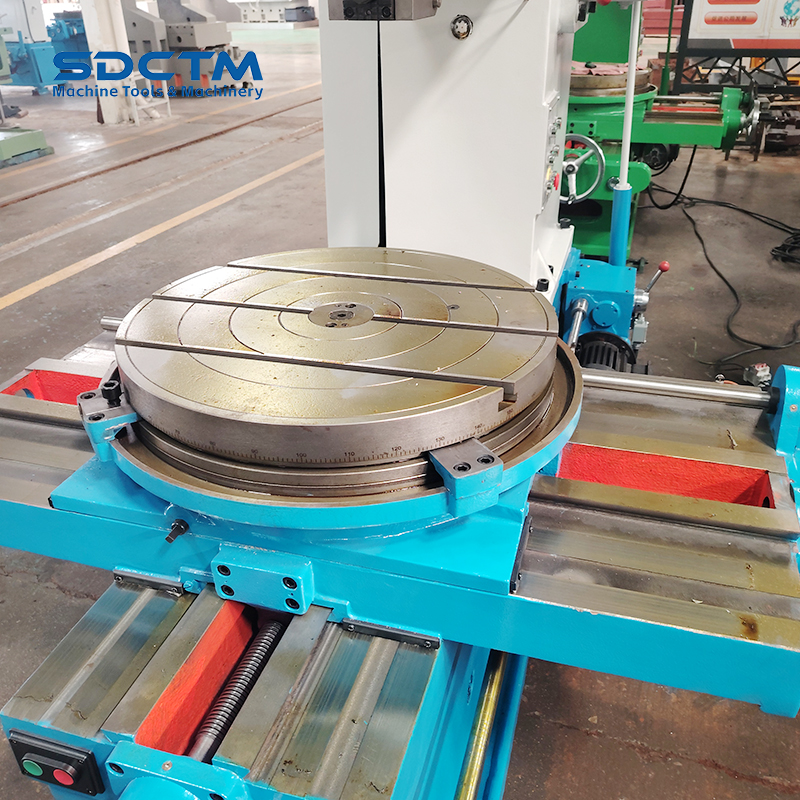

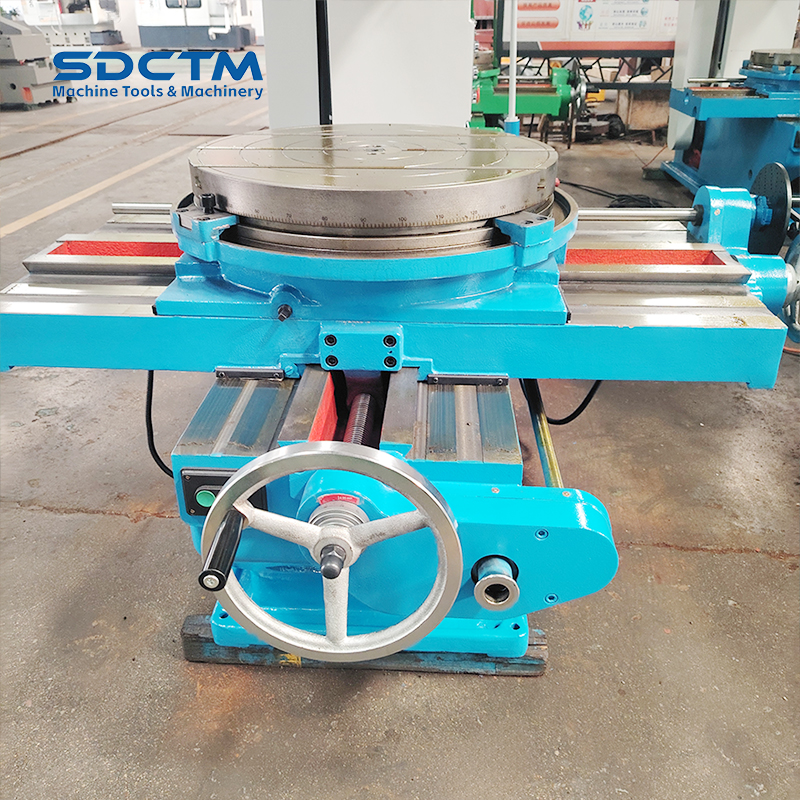

Table diameter | 630mm |
Distance between tool head support surface and front wall of bed | 600mm |
Distance between workbench and lower end of slide frame | 690mm |
Maximum longitudinal travel distance of table | 620mm |
Maximum lateral movement distance of table | 560mm |
Table vertical and horizontal maneuvering feed range | 0.08-1.21mm |
Table rotary maneuver feed range | 0.052-0.783deg |
Main motor power | 4kw |
Main motor speed | 960r.p.m |
Machine profile dimensions(L x W x H) | 2290x1525x2485mm |
Machine weight (approx.) | 3700kg |
