Machine tool type

B5020

B5032

Maximum cutting length

200mm

320mm

Maximum weight of work

400kg

500kg

Maximum cutting force

5500N

7500N

Number of trips per minute of the ram

32;50;80;125

20;32;50;80

The distance of the ram is adjusted vertically

230mm

315mm

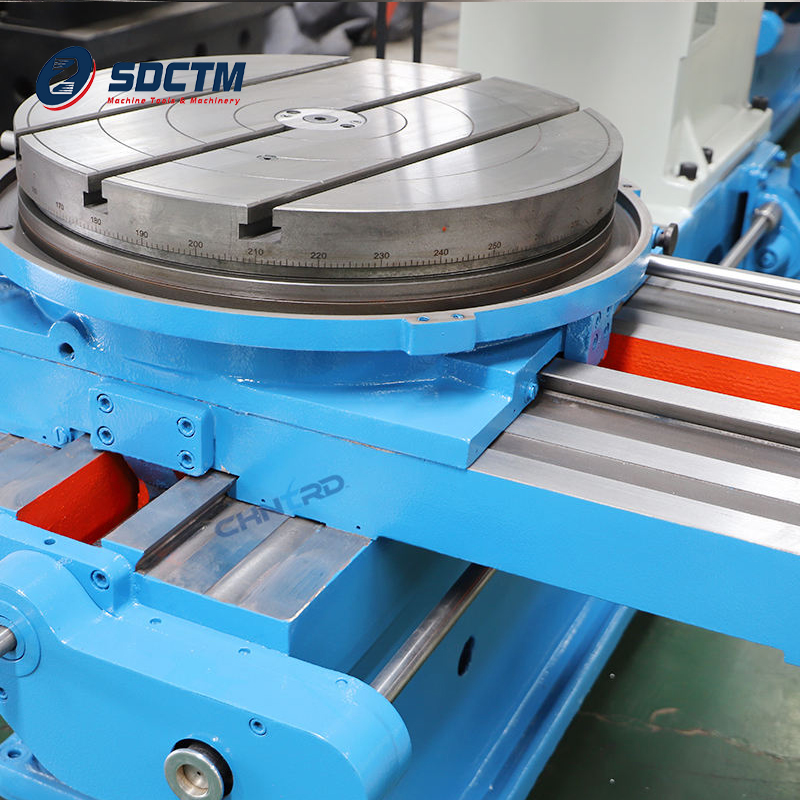

Table diameter

500mm

630mm

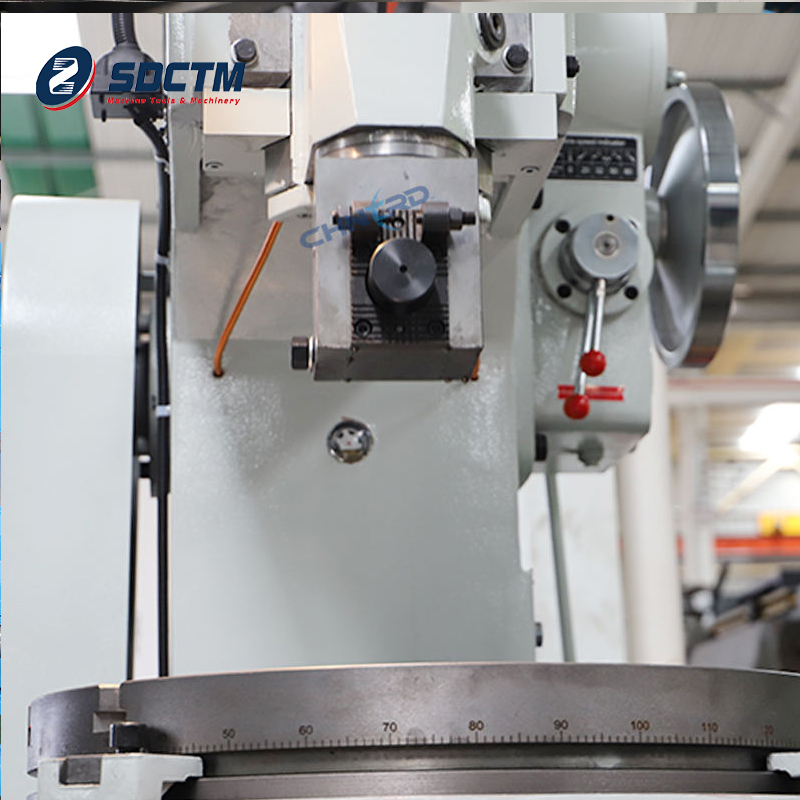

Distance between tool head support surface and front wall of bed

485mm

600mm

Distance between workbench and lower end of slide frame

320mm

490mm

Maximum longitudinal travel distance of table

400mm
(machinery)
450mm
(manual)

480mm
(machinery)
620mm
(manual)

Maximum lateral movement distance of table

450mm
(machinery)
500mm
(manual)

480mm
(machinery)
560mm
(manual)

Table vertical and horizontal maneuvering feed range

0.08-1.21mm

0.08-1.21mm

Table rotary maneuver feed range

0.052-0.783deg

0.052-0.783deg

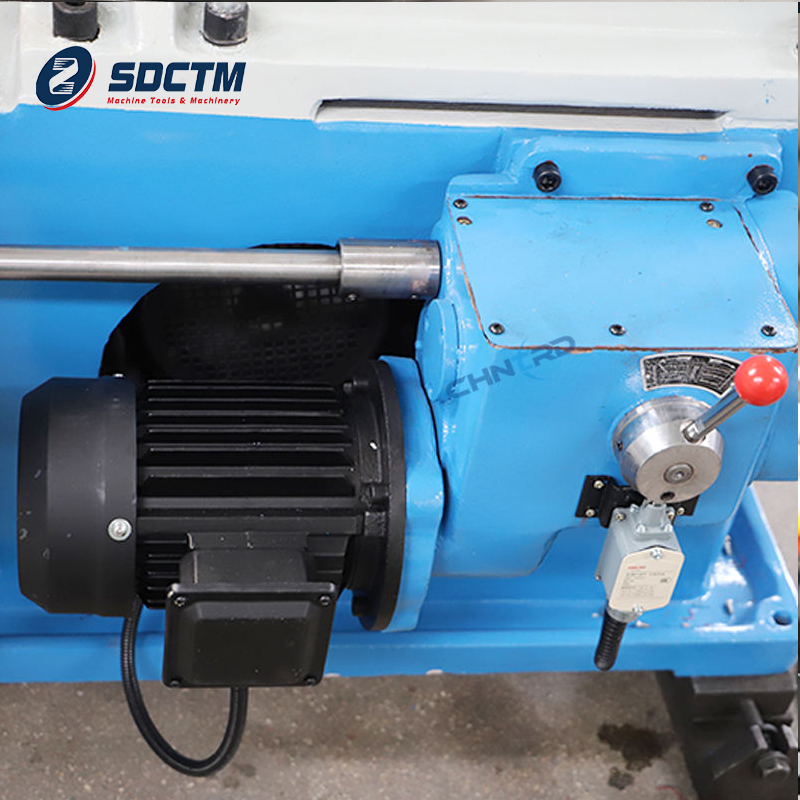

Main motor power

3kw

4kw

Main motor speed

1430r.p.m

960r.p.m

Machine profile dimensions(L x W x H)

1916x1305x1995mm

2180x1505x2285mm

Machine weight

2200kg

3200kg
