Machine tool type

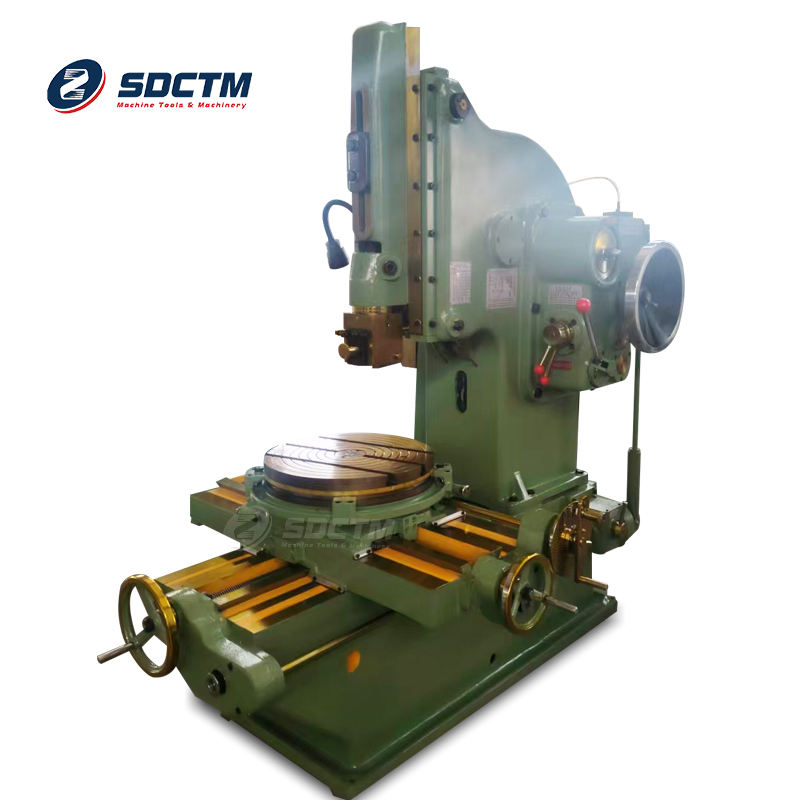

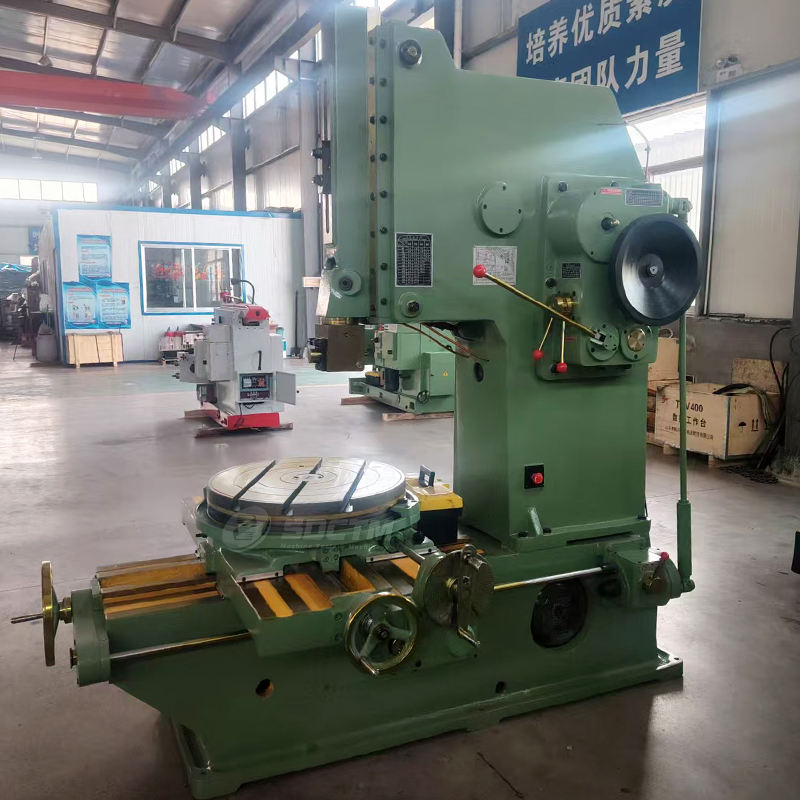

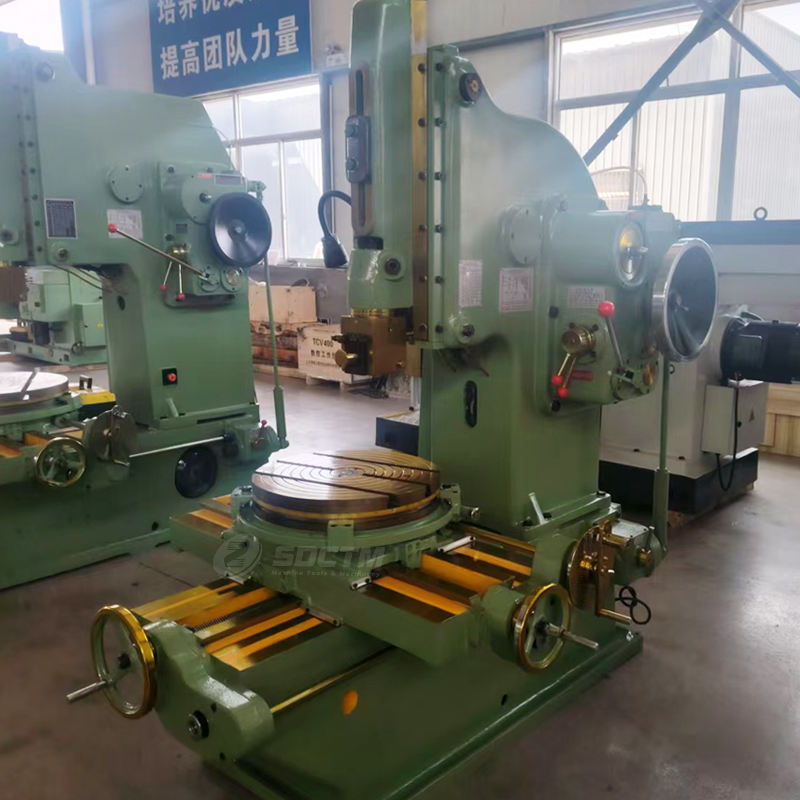

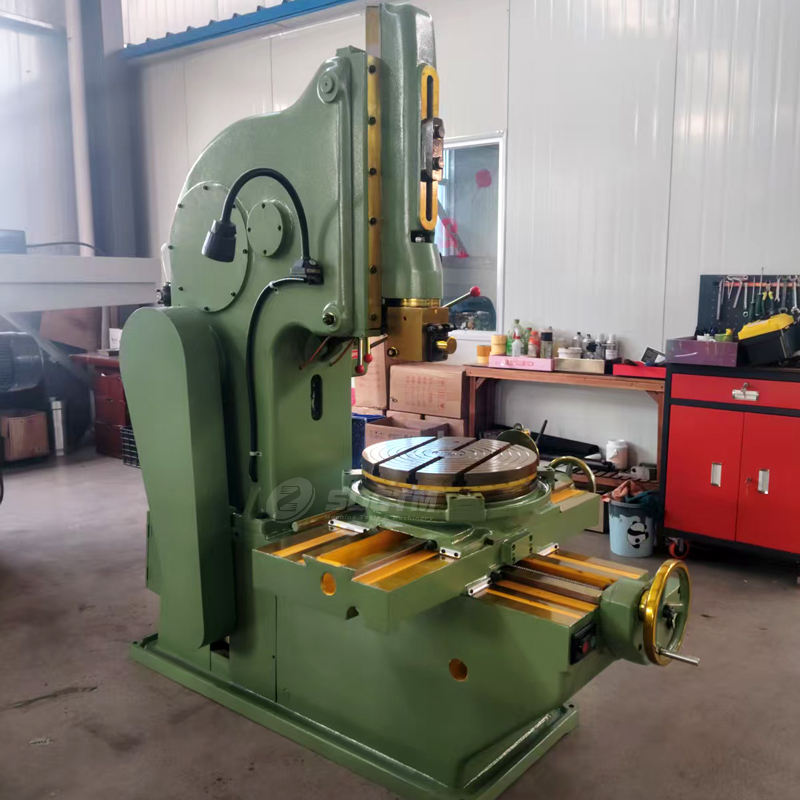

B5032

Maximum cutting length

320 mm

Maximum weight of work

500 kg

Maximum cutting force

7500 N

Number of trips per minute of the ram

32 ; 50 ; 80

The distance of the ram is adjusted vertically

315 mm

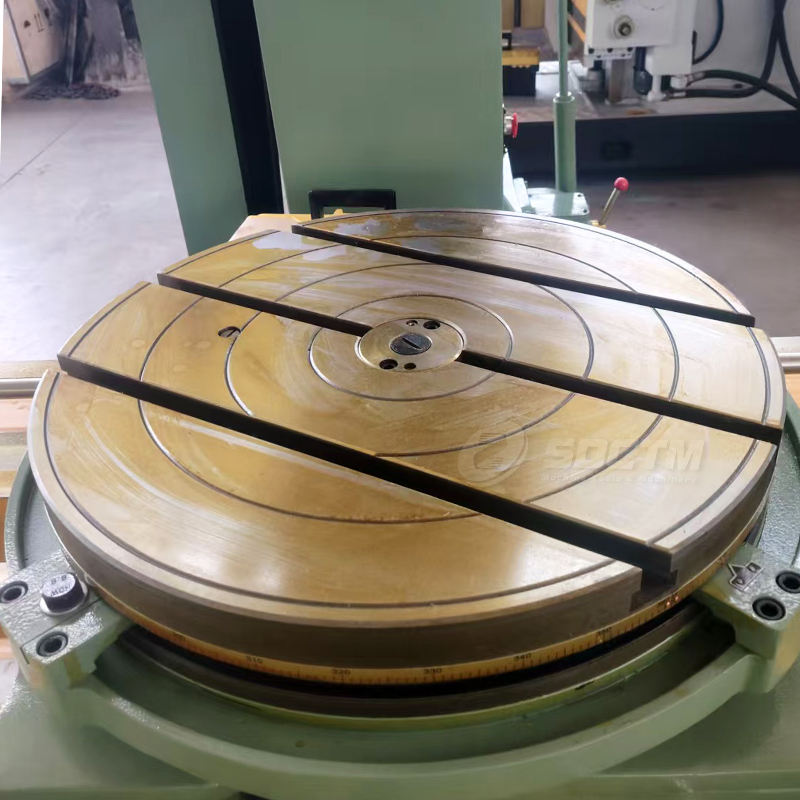

Table diameter

630 mm

Distance between tool head support surface and front wall of bed

600 mm

Distance between workbench and lower end of slide frame

490 mm

Maximum longitudinal travel distance of table

480 mm (machinery) / 620 mm (manual)

Maximum lateral movement distance of table

480 mm (machinery) / 560 mm (manual)

Table vertical and horizontal maneuvering feed range

0.08-1.21 mm

Table rotary maneuver feed range

0.052-0.783 deg

Main motor power

4 kw

Main motor speed

960 r.p.m

Machine profile dimensions(L W H)

2180*1505*2285 mm

Machine weight (approx.)

3200 kg
