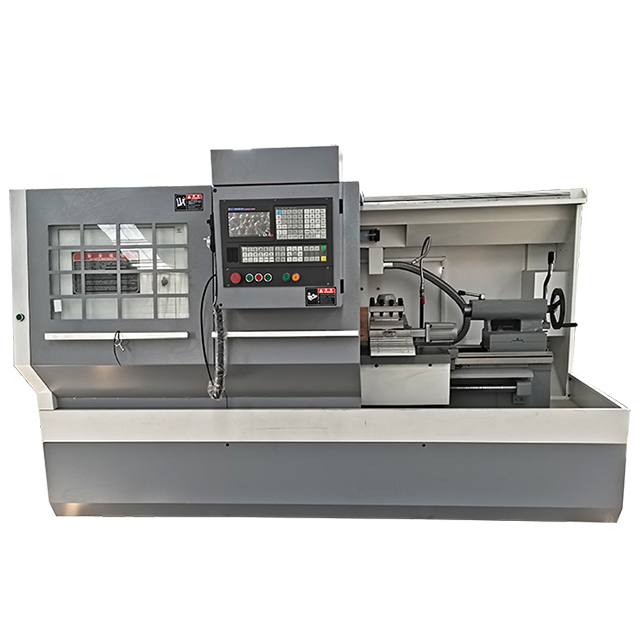

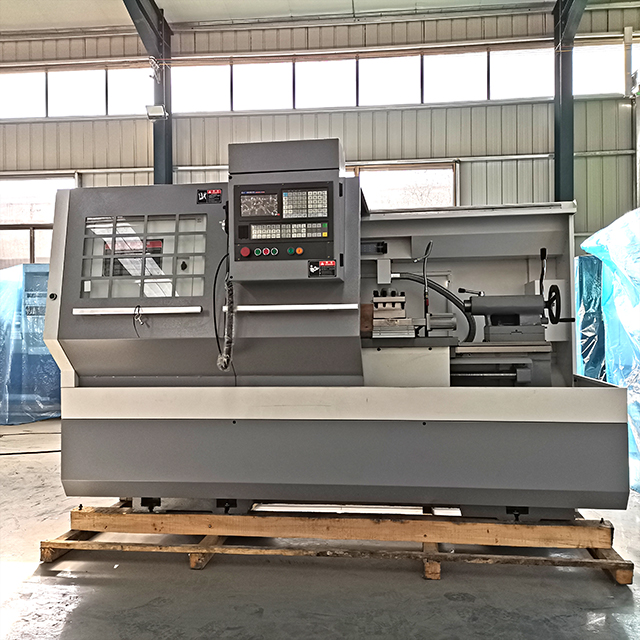

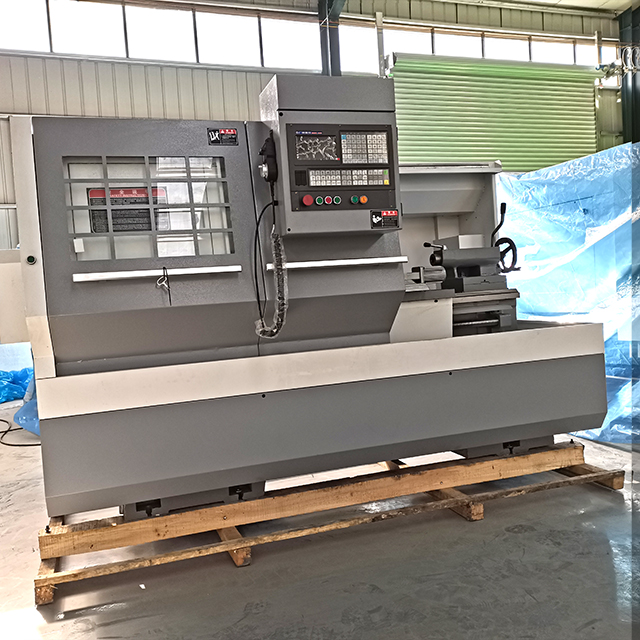

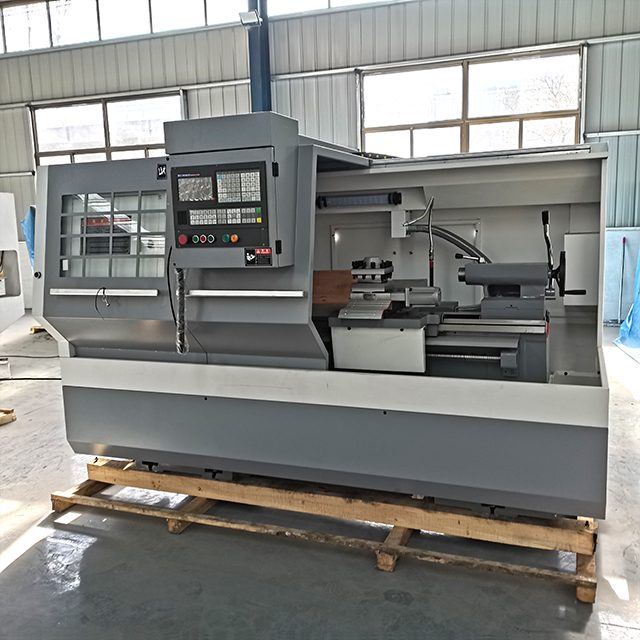

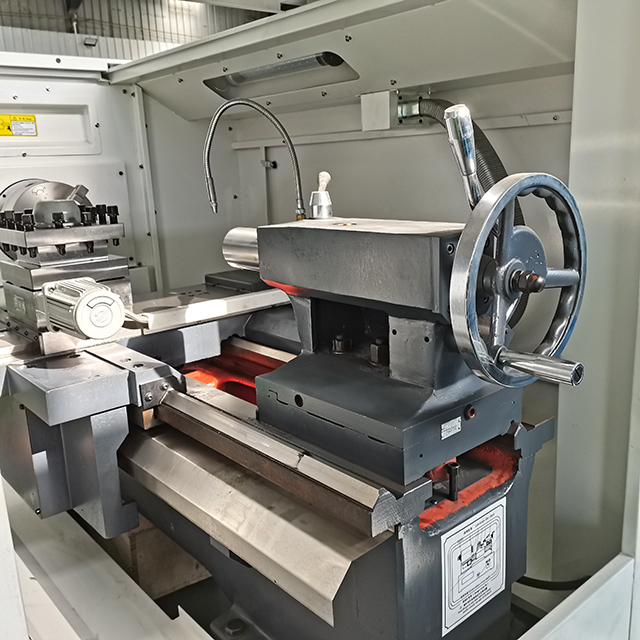

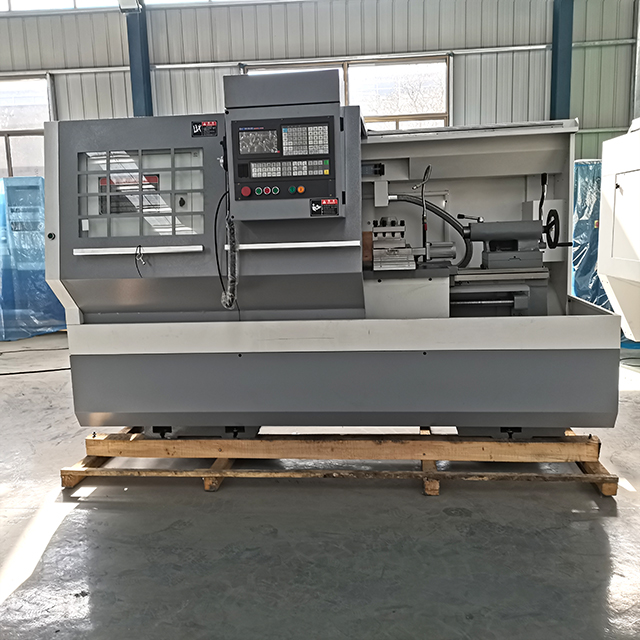

CNC Lathe Machine Center CK6150 Small Metal Turning

Availability:

Quantity:



Inquire Add to Basket

Model:
CK6150

Product Description

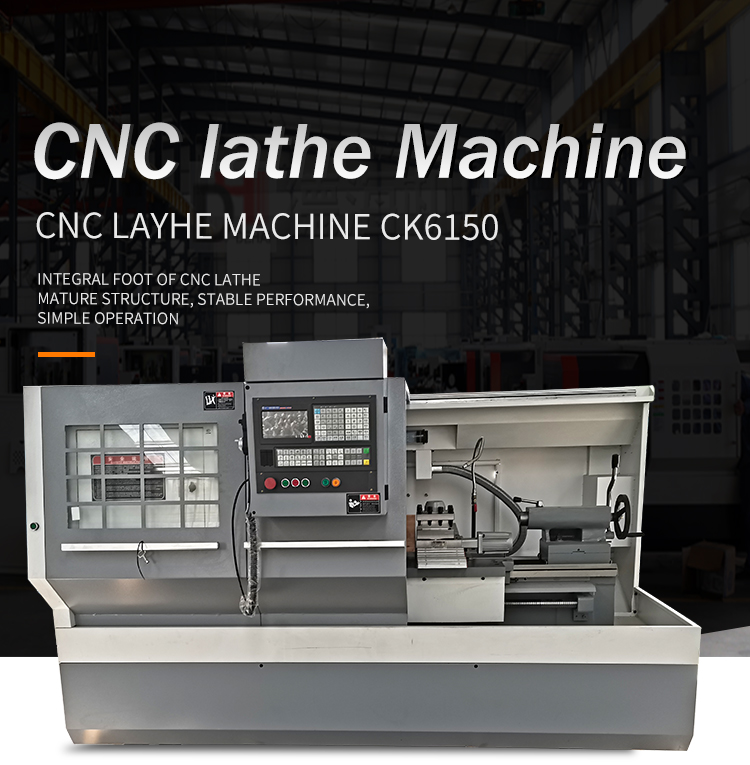

6150.(2)jpg_01

  Product description:

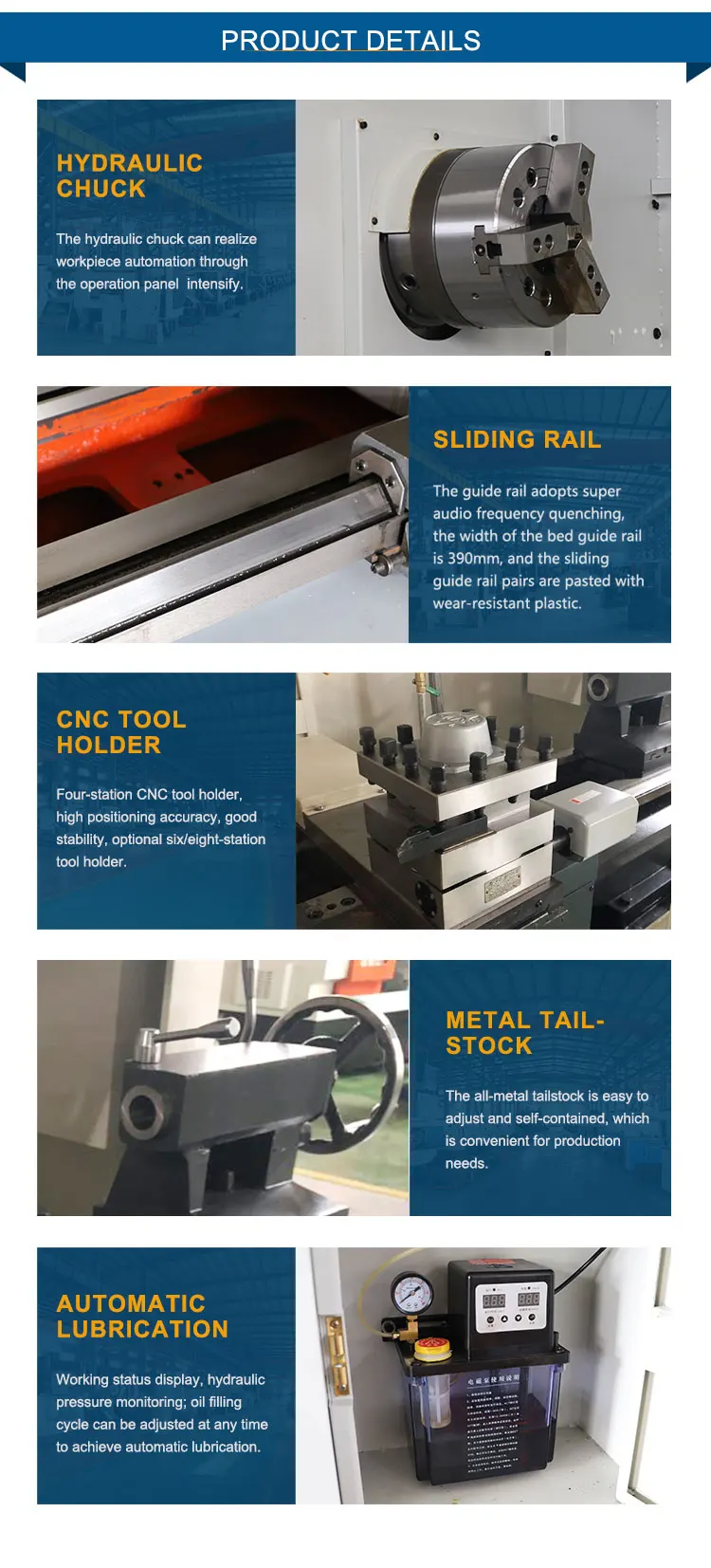

1.Spindle adopts high precision rolling bearings, high precision rotary plate aspect to adopt high precision ball screw
transmission, good dynamic performance, precision positioning.
2. The machine tool guide with wear-resistant cast iron and after the audio quenching, the hardness of the HRC45 above, can ensure
the long-term stability of processing accuracy.

Product main technical Specifications:

Item	Specifications	Units	CK6150
Processing capacity	Swing over bed	mm	Φ500
	Max swing diamension	mm	280
	Maximum length of workpiece	mm	750/1000/1500/2000
Spindle	Spindle bore	mm	Φ52
	Spindle end face size	mm	ISO-C6( C8）
	Spindle taper	mm	MT6
	Spindle speed range	rpm	60-500-1600 Stepless frequency control
Feed	Z axis travel	mm	600/850/1350/1850
	X axis travel	mm	250
	Fast moving speed X/Z	m/min	5/10
	Minimum input unit X/Z	mm	0.001
Tool holder	Number of tools	pcs	4(6)
	Tool body size	mm	25*25
	Tool change time	s	2
Tailstock	Diameter of tailstock sleeve	mm	Φ65
	Taper of tailstock sleeve	mm	MT5
	Tailstock sleeve stroke	mm	130
Position accuracy	Repeat positioning accuracy X/Z	mm	0.001
	Main motor	kw	7.5
Machine size	overall dimentions for 750mm	mm	220015001600
	overall dimentions for 1000mm	mm	245015001600
	overall dimentions for 1500mm	mm	295015001600
	overall dimentions for 2000mm	mm	345015001600
weight	weight for 750mm	kg	2100
	weight for 1000mm	kg	2300
	weight for 1500mm	kg	2600
	weight for 2000mm	kg	2900

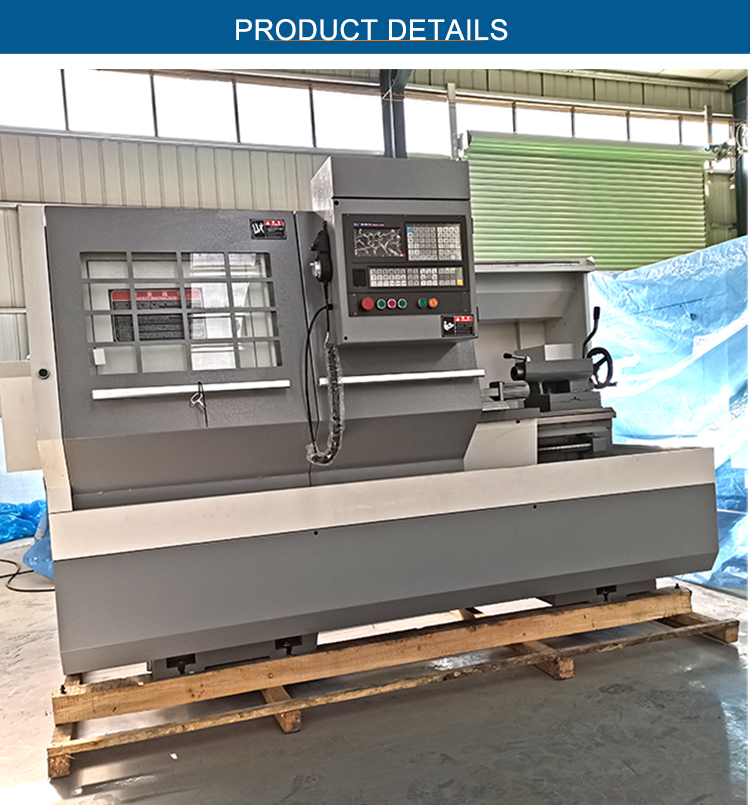

6150.(2)jpg_03

FAQ：
1. How can I choose the most suitable machines?
Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the product drawing, we will choose the most suitable machines for you.
2. What are the main products of your company?
We specialized in CNC Machining Center, Milling Machine, Drilling Machine, Lathe Machine, Sawing Machine, Presses and Shears, Shaping Machine, Slotting Machine, Gear Hobbing Machine, Air Forging Hammer, Surface Grinder, Universal Cylindrical Grinder and so on.
3. Where is our factory located?
Our factory is located in Tengzhou City, Shandong Province, China. You are warmly welcomed to visit us.
4. How long is the delivery time?
For standard machines, it would be around 30 days; For customized machines according to the client’s requirements, it would be a little longer.
5. How can I make the payment?
 We can make the deal online platform, you can pay by T/T or Credit card. You can also pay for my company's business bank account. You can also choose L/C or other ways.
6. What's the MOQ?
1 set. (Only some low-cost machines will be more than 1 set )
