cnc horizontal lathe machine ck6140 cnc lathes for metal

Availability:
Quantity:
  • CK6140

Product Description

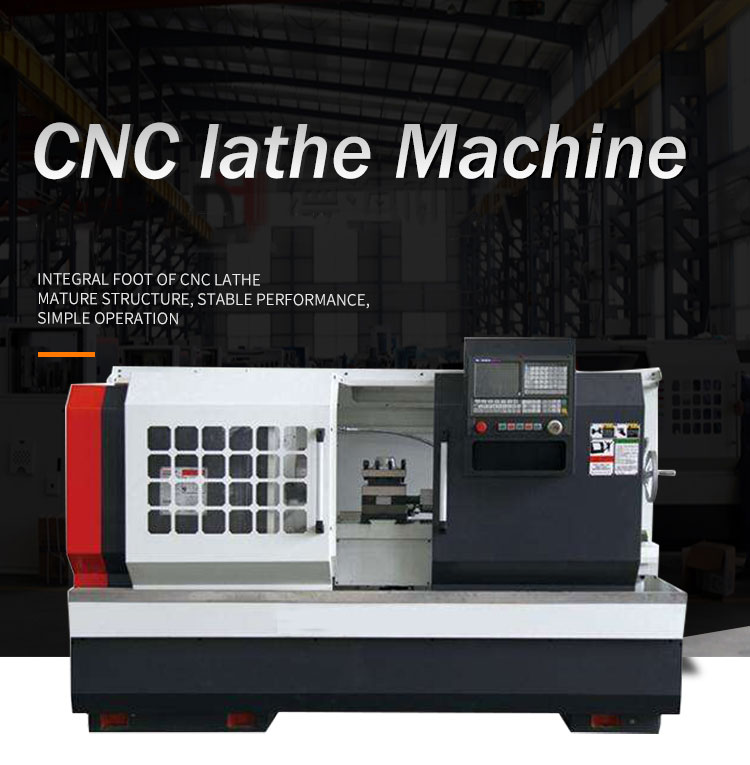

CK6140 Flat Bed CNC Lathe Machine With good quality

CK6140

Machine Model
Unit
CK6140
Swing over bed
mm
400
Swing over cross slide
mm
210
Distance between centers
mm
750/1000/1500/2000
Spindle bore
mm
52(Optional 80)
Spindle bore taper
-
MT6
Spindle nose type
-
C6
Spindle speed steps
-
Manual 2 steps
Spindle speed range
rpm
L:100-500 H:500-1800 (Optional 90-1800 stepless)
Turret/tool post
-
Electric 4 position
Tool size
mm
25 x 25
X axis travel
mm
230
Z axis travel
mm
750/1000/1500/2000
X axis rapid traverse
mm/min
6000
Z axis rapid traverse
mm/min
8000
Tailstock quill diameter
mm
65
Tailstock quill taper
-
MT4
Tailstock quill travel
mm
130
Main spindle motor
kw
4
Coolant pump motor
kw
0.09
Weight for 750
kg
1800
Weight for 1000
kg
1900
Weight for 1500
kg
2100
Weight for 2000
kg
2300
Dimension for 750
mm
2200x1500x1600
Dimension for 1000
mm
2450x1500x1600
Dimension for 1500
mm
2950x1500x1600
Dimension for 2000
mm
3450x1500x1600


FAQ

1. How can I choose the most suitable machines?
Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the product drawing, we will choose the most suitable machines for you.
2. What are the main products of your company?
We specialized in CNC Machining Center, Milling Machine, Drilling Machine, Lathe Machine, Sawing Machine, Presses and Shears, Shaping Machine, Slotting Machine, Gear Hobbing Machine, Air Forging Hammer, Surface Grinder, Universal Cylindrical Grinder and so on.
3. Where is our factory located?

Our factory is located in Tengzhou City, Shandong Province, China. You are warmly welcomed to visit us.

4. How long is the delivery time?
For standard machines, it would be around 30 days; For customized machines according to the client’s requirements, it would be a little longer.

5. How can I make the payment?

 We can make the deal online platform, you can pay by T/T or Credit card. You can also pay for my company's business bank account. You can also choose L/C or other ways.

6. What's the MOQ?
1 set. (Only some low-cost machines will be more than 1 set )
