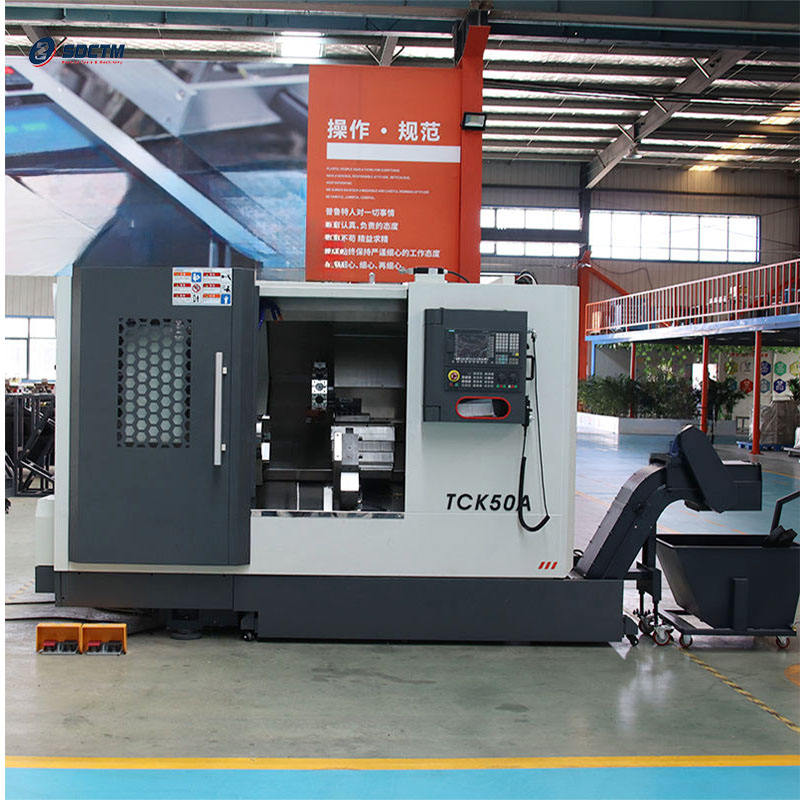

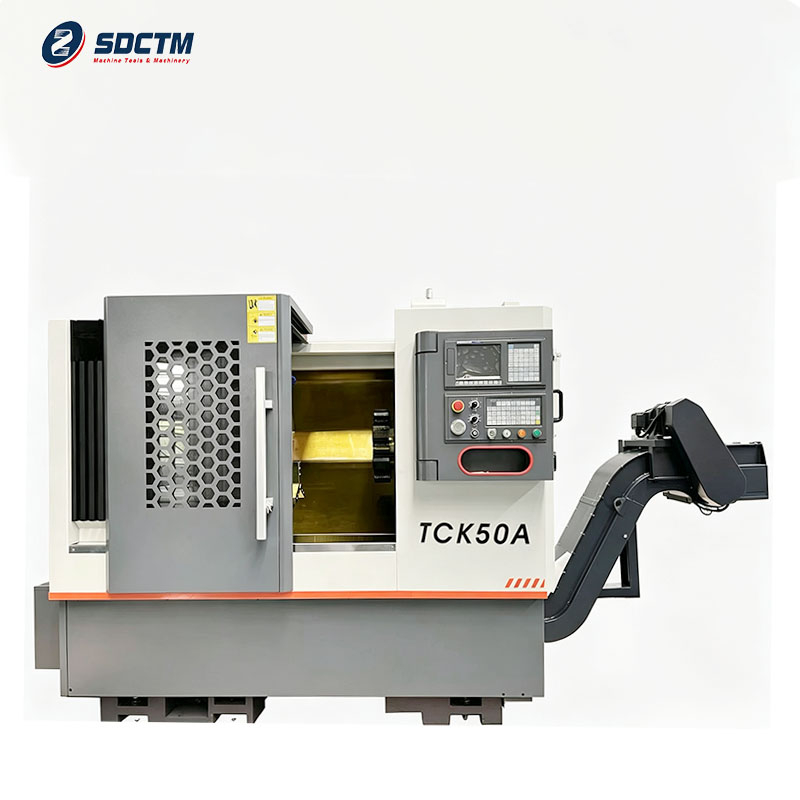

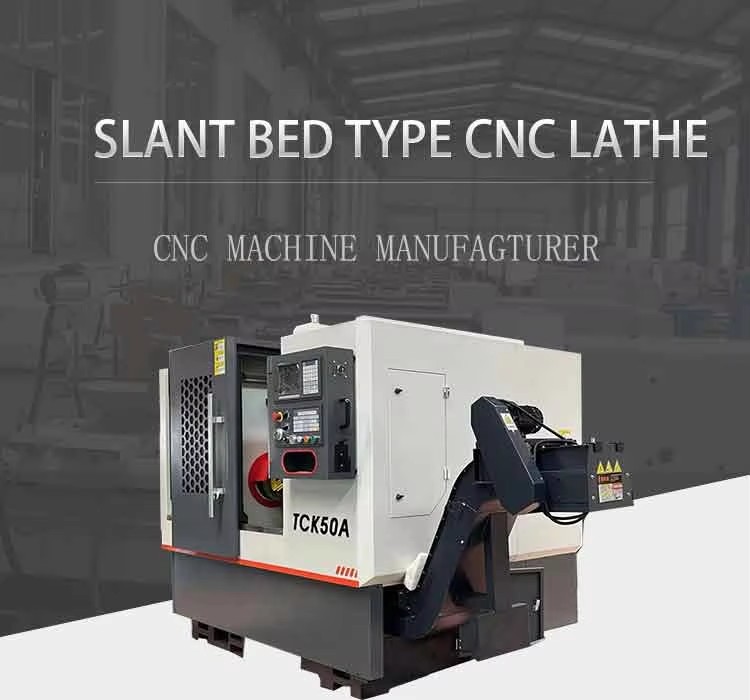

TCK50A Slant Bed CNC Lathe Machine High-Speed Horizontal Turning Center with Taiwan Linear Guide Rail Inclined Bed

Share to:

TCK50A Slant Bed CNC Lathe Machine High-Speed Horizontal Turning Center with Taiwan Linear Guide Rail Inclined Bed

The Functional Features of TCK50A
The TCK series Slant Bed Cnc Lathe Machine is a popular export product with a compact structure, beautiful appearance, high spindle torque, high rigidity, stable and reliable performance, and excellent precision retention.
CNC lathe Characteristics
1.High precision Taiwan linear guide rail.
2.High speed spindle unit.
3.High strength cast ironAutomatic centralized lubrication.

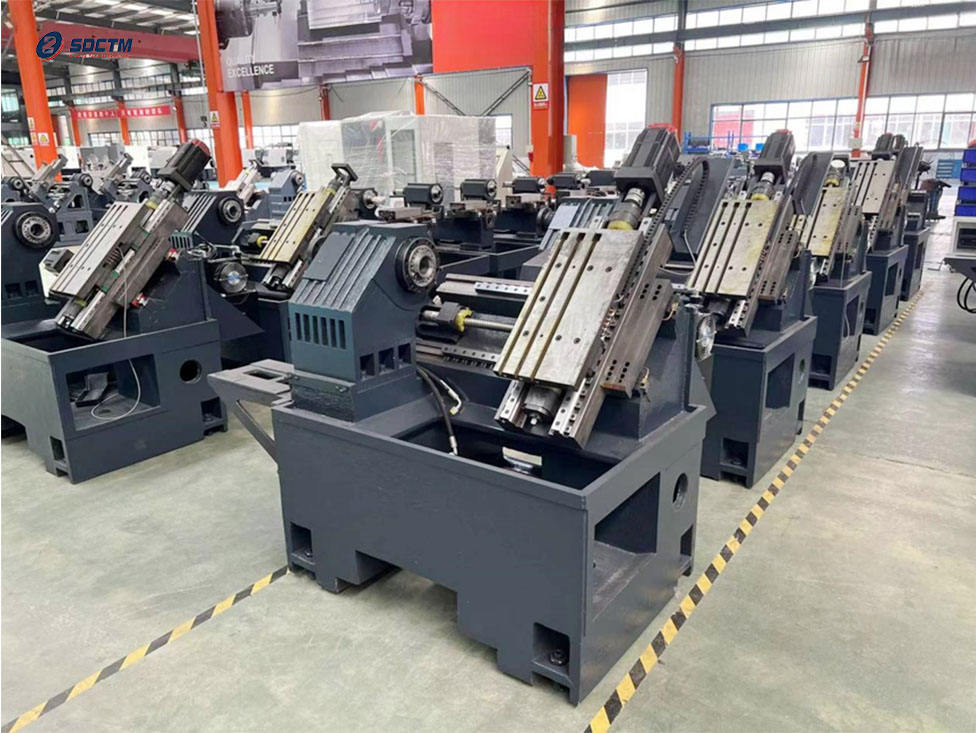

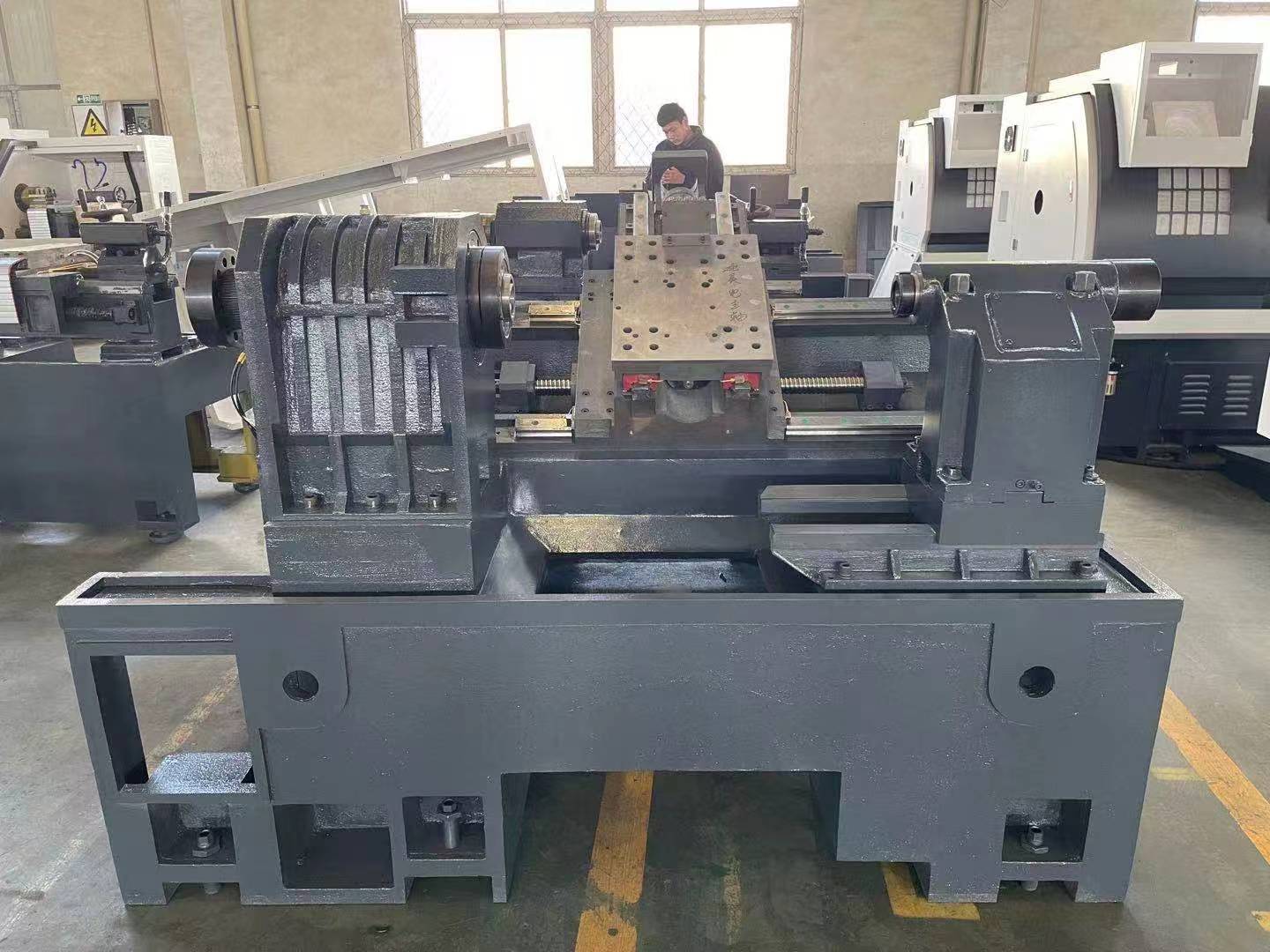

4.Integrated slant machine bed
Optional power turret

CNC LATHE:	TCK50A
Availability:

Quantity:



Inquire Add to Basket

Model:
TCK50A*500

Product Description

PRODUCT HIGHLIGHTS

The Functional Features of TCK50A

The TCK series Slant Bed Cnc Lathe Machine is a popular export product with a compact structure, beautiful appearance, high spindle torque, high rigidity, stable and reliable performance, and excellent precision retention. CNC lathe Characteristics 1.High precision Taiwan linear guide rail. 2.High speed spindle unit. 3.High strength cast ironAutomatic centralized lubrication. 4.Integrated slant machine bed Optional power turret

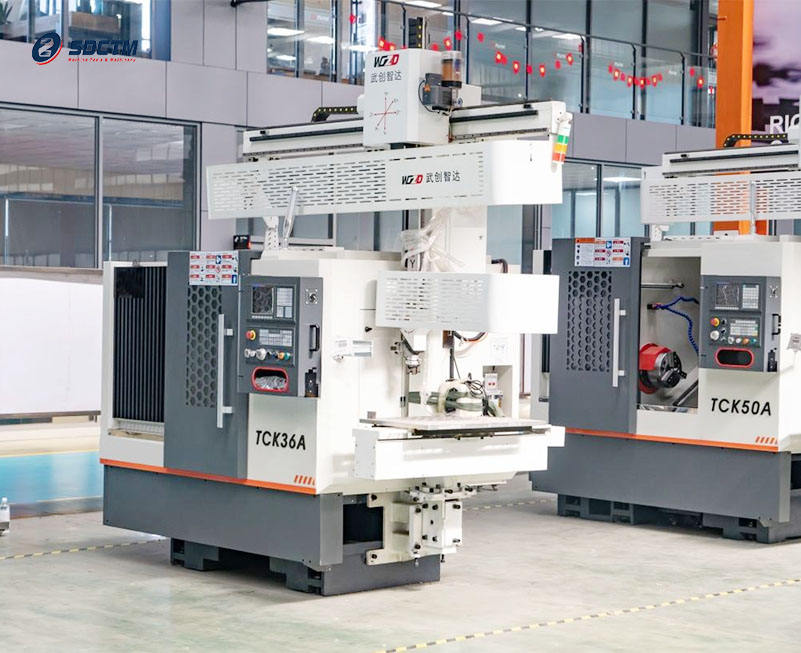

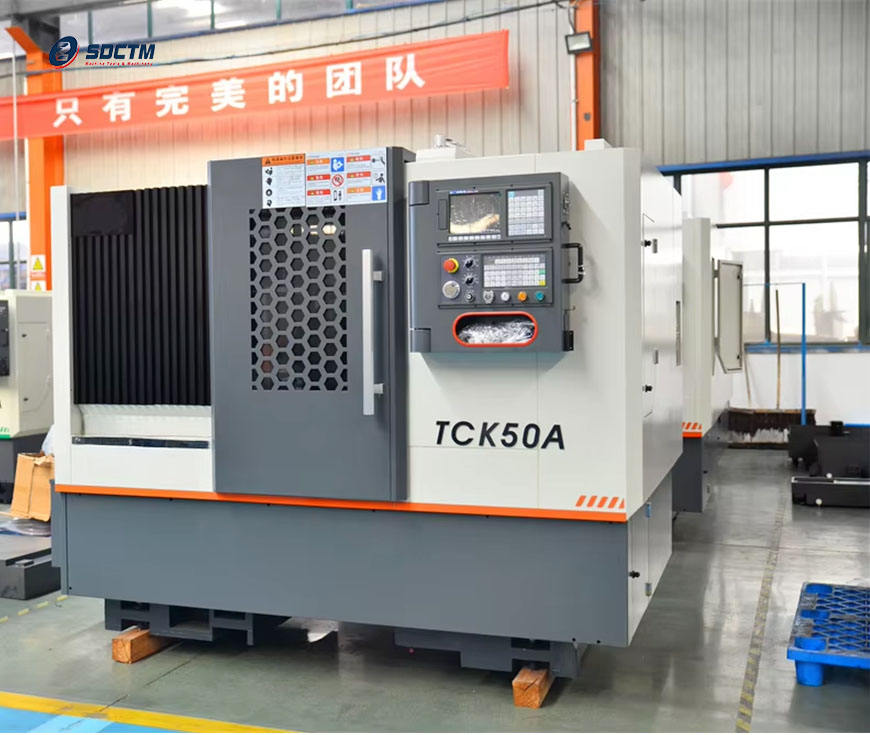

SCENE IMAGE

Specifications	Units	TCK50A
Swing over bed	mm	560
Swing over cross slide	mm	300
Max.processing length	mm	350/500/800/1500
max.processing diameter(disc)	mm	440/400
Spindle nose type	-	A2-6/8
Spindle bore	mm	66/66/86
max.bar capacity	mm	54/74
Spindle speed steps	-	Stepless
Spindle speed range	rpm	50-3000
Main motor power	kw	11/11/15

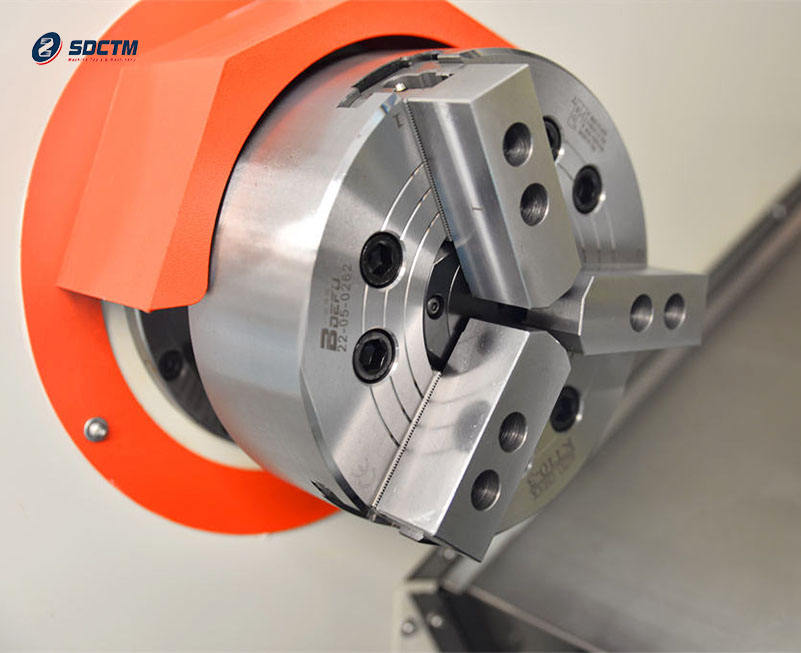

Chuck type	-	hydraulic chuck
Chuck size	inch	10

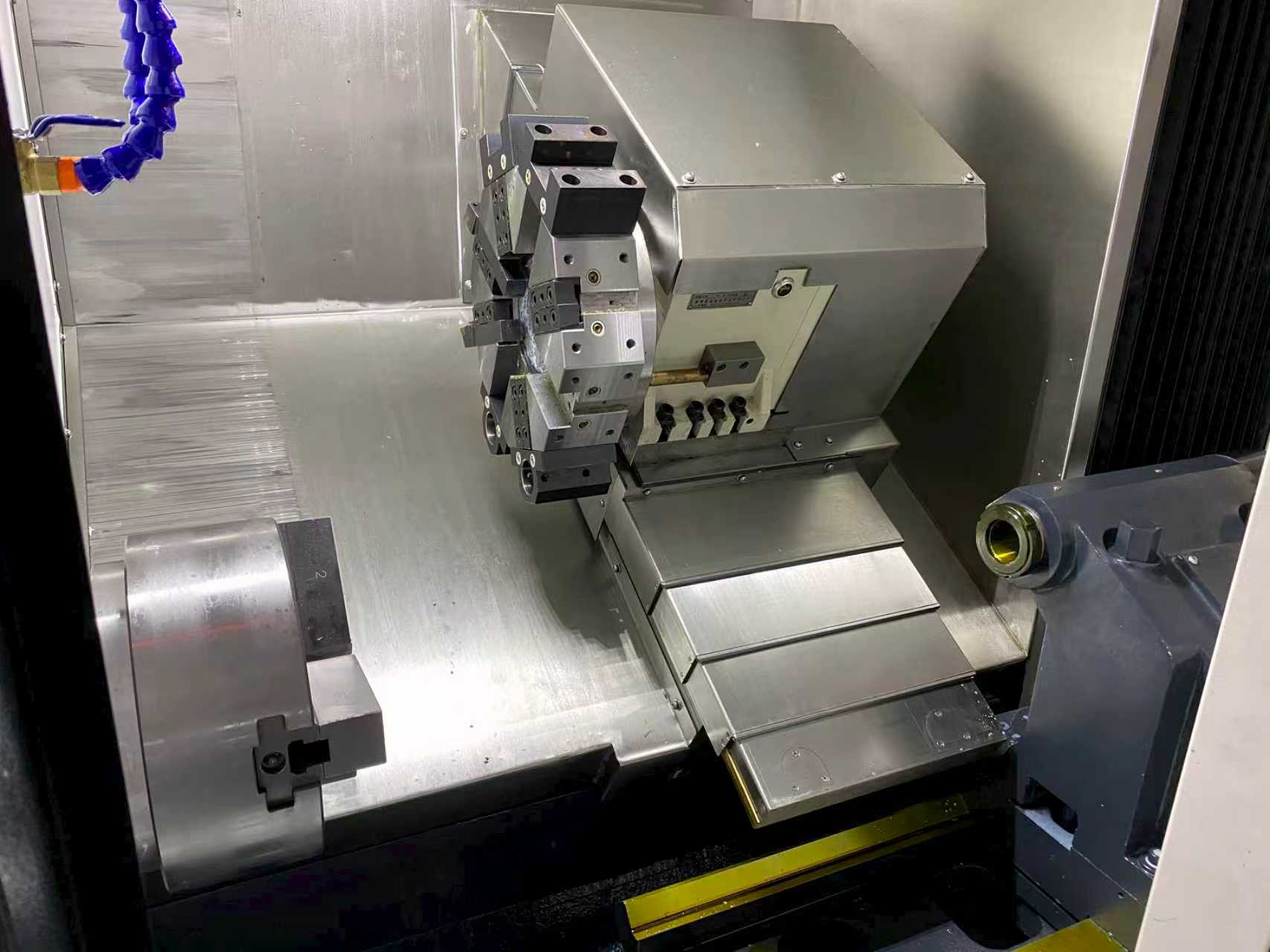

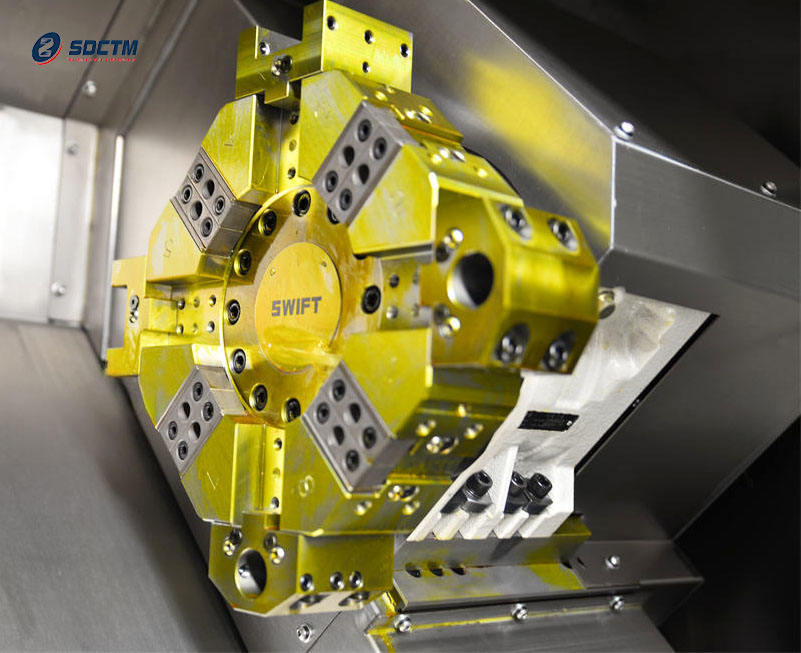

Turret	-	8/12 station servo
Tool shank size	mm	25*25/φ32
X axis travel	mm	240
Z axis travel	mm	400/540/860/1560
X axis rapid traverse	m/min	18
Z axis rapid traverse	m/min	18
Guideway type	mm	Linear guideway
Tailstock type	-	Hydraulic
Tailstock quill diameter	mm	70/90
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	80
Total rated power	kw	14/18/26
Machine weight	kg	3100/3300/4600/6000
Overall dimension(WHL)	mm	2600/2700/3300/400021702200

DETAIL SHOT

CNC lathe Slant Bed Lathe Machine Automatic Horizontal Slant Bed Automatic Metal Lathe Machine Horizontal Cnc Turning Center Slant Bed Lathe Machine TCK50A High Precision Turning Metal Working Fanuc/GSK/SIEMENS CNC Controller CNC Lathe Machin
