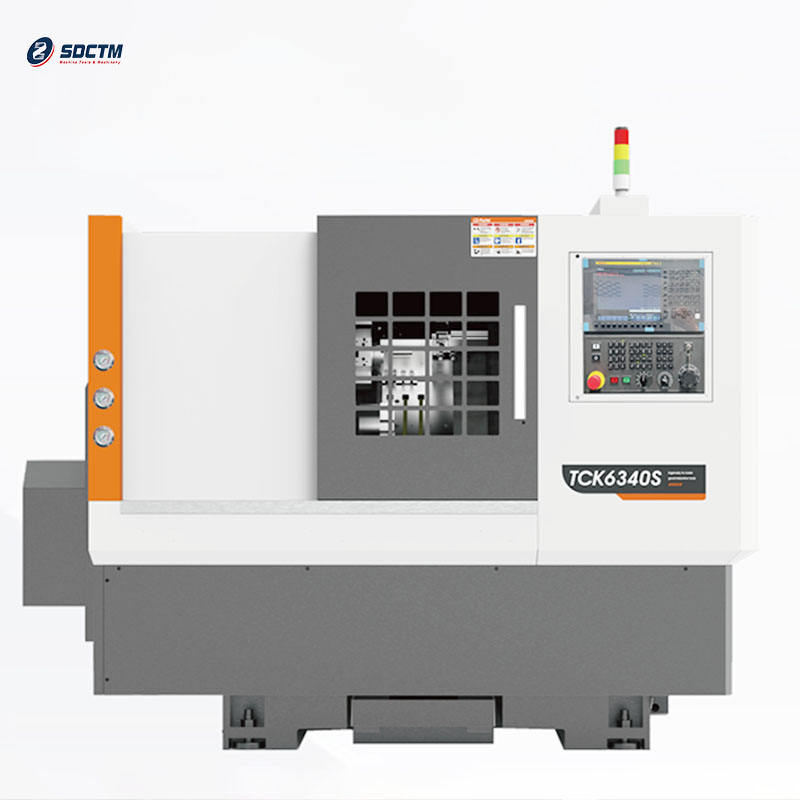

Brand New Cnc Lathes TCK6340 TCK6340S Chinese Horizontal Cnc Turning Center Slant Bed Lathe Machine Price
The Functional Features of TCK6340 The TCK series Slant Bed Cnc Lathe Machine is a popular export product with a compact structure, beautiful appearance, high spindle torque, high rigidity, stable and reliable performance, and excellent precision retention. Features:
● 45 degrees slant bed CNC lathe,higher accuracy Taiwan linear. ● Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back. ● Screw pre-stretching structure. ● Gang type tool post.
The TCK6340 series Slant Bed Cnc Lathe Machine is a popular export product with a compact structure, beautiful appearance, high spindle torque, high rigidity, stable and reliable performance, and excellent precision retention. Features:
45 degrees slant bed CNC lathe,higher accuracy Taiwan linear.
.Chip conveying capacity is large and convenient, customer could choose chip conveying in the front or in the back.
Screw pre-stretching structure.

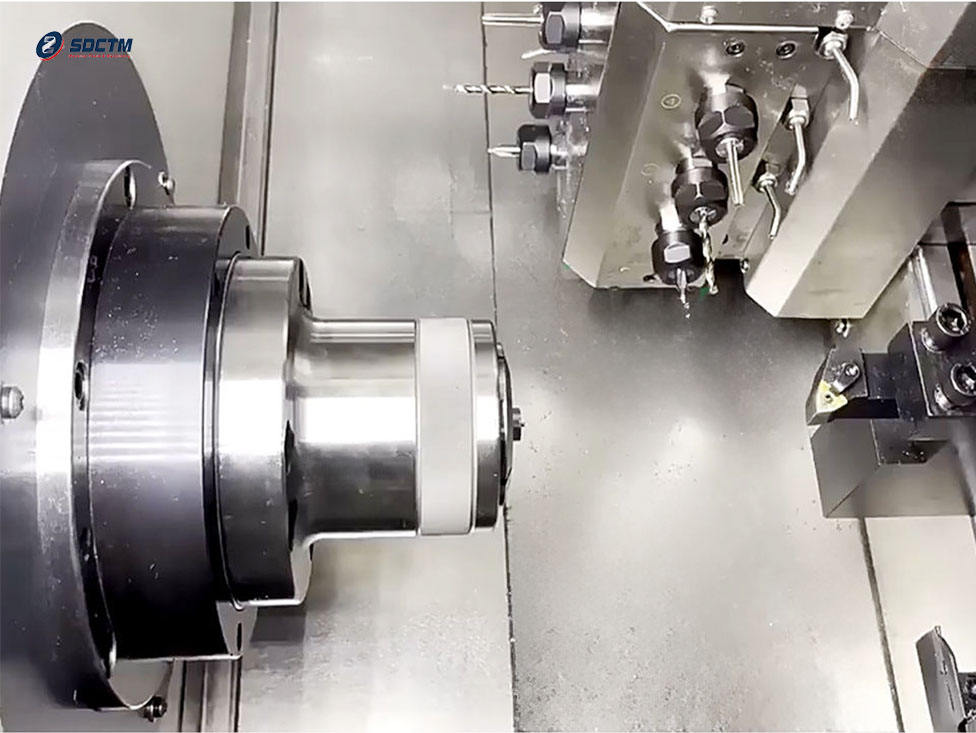

Gang type tool post..

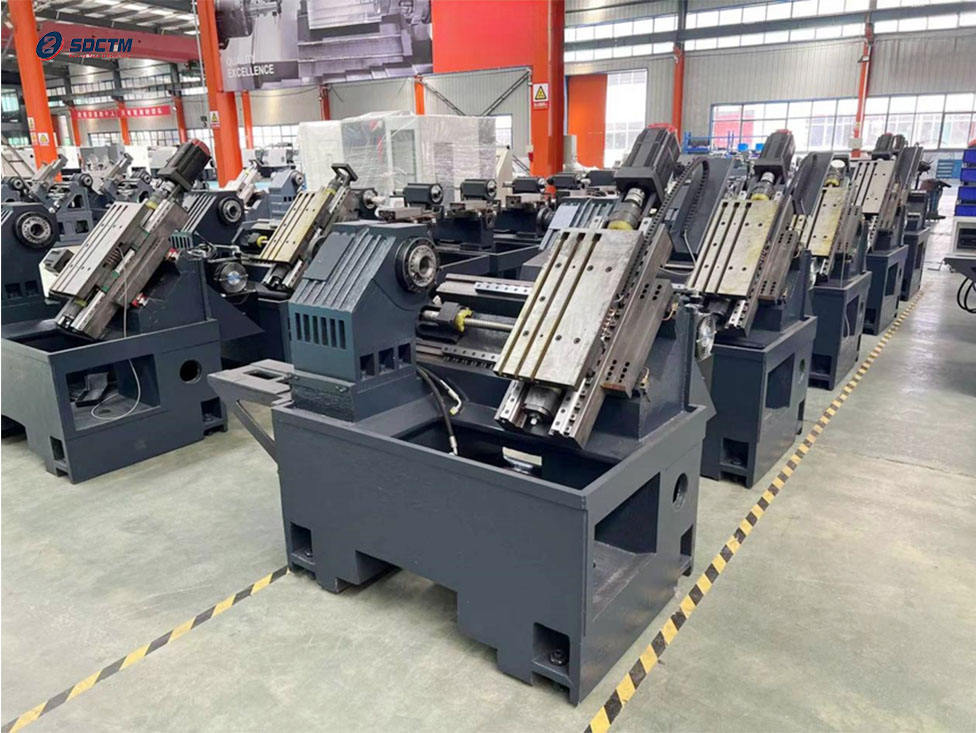

SCENE IMAGE
SPECIFICATIONS
Units
TCK6340
TCK6340S
Swing over bed
mm
400
400
Swing over cross slide
mm
140
140
Distance between centers
mm
200
500
Spindle bore
mm
49/56
56
Spindle nose type
-
A2-5
A2-5
Max. Bar capacity
mm
39(140 spindle unit) 44(170 spindle unit as optional)
39(140 spindle unit) 44(170 spindle unit as optional)
