CK6136 CNC LAthe 500mm Small Low Cost Cnc Lathe Machine Cnc Automatic Lathe for Price
The machine can process precisely interal or extermal diameter, face,aper, are and threading with high efficieney.
Standard toolpost is 4-stations, also 6-stations loolpost can beoptional selection .
Spindle speed changed by frequency .
Induction harden bed-way. Bed saddle with plastic sticker ecan improvethe accuracy and service life of the machine
The spindle is supported by imported precision bearings.
Normally machine is provided with 3-jaw chuck,Accordingto eustomer'soptional selection,hydrawlic chuck or pnewmaticchuck also. can be suplied.

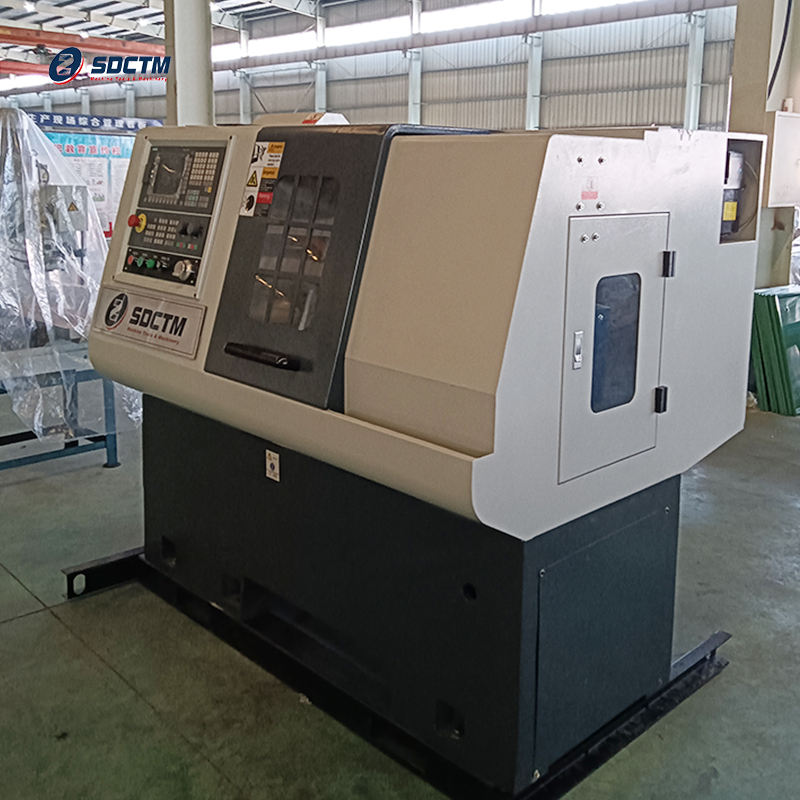

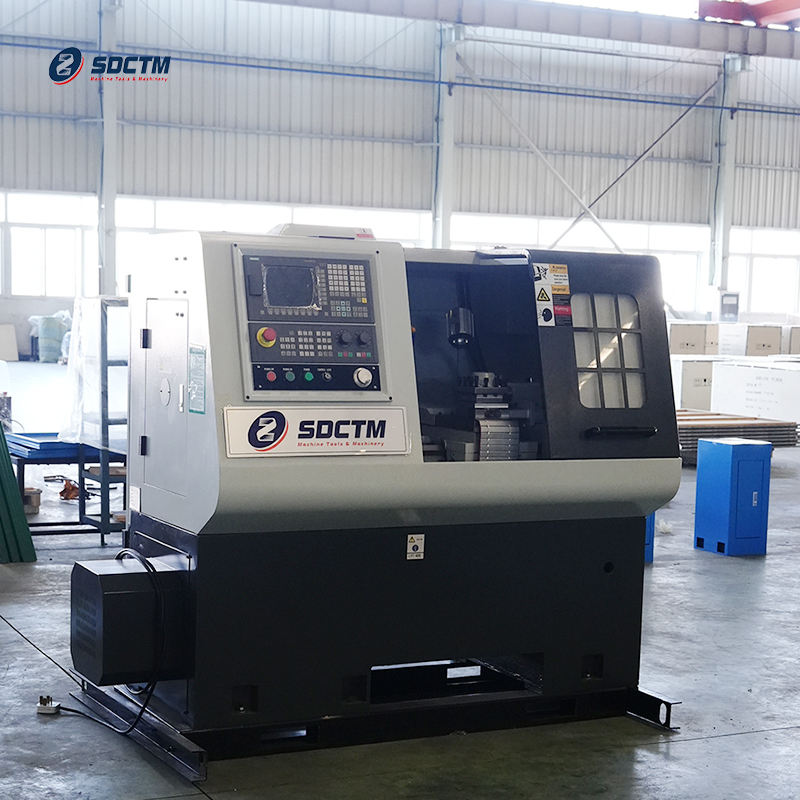

SCENE IMAGE

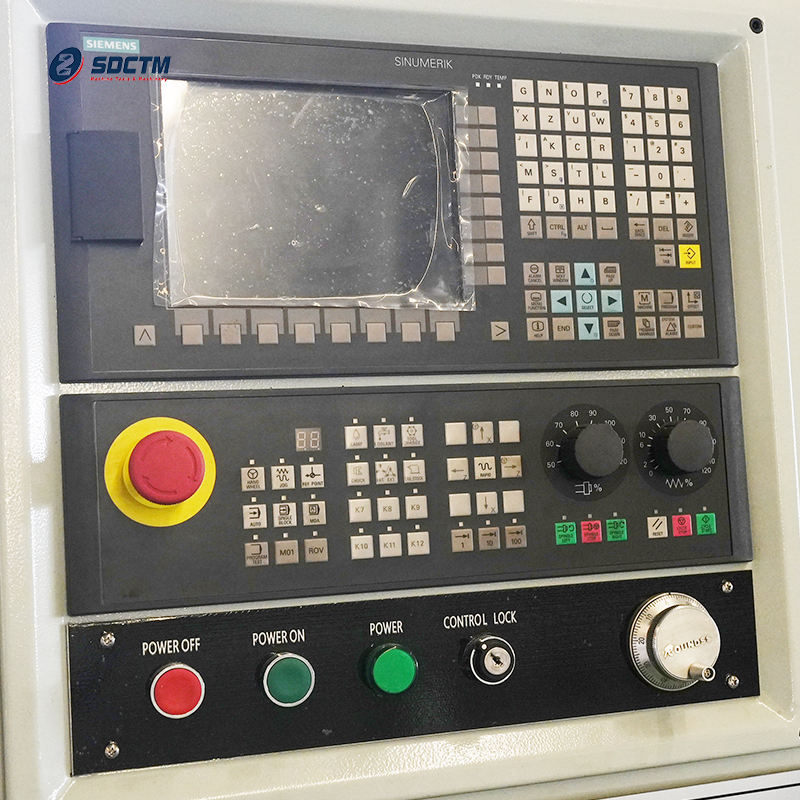

DETAIL SHOT
Model
CK6136*500mm
Swing over bed
mm
Ф360
Swing over camiage
mm
Ф130
Dislance belween centers
mm
500/750/1000
Spindle taper
through hole
Spindle bore
mm
Ф51
Range of speed ( variable)
r/min
100-2500
Feed motor power(XZ)
4 N.M/6N.M
X rapid traverse ( mimin )
m/min
6
Z rapid traverse ( mimin )
m/min
6
Wax. travel of X axis(mm)
m/min
170
Max. travel of Z axis(mm)
mm
400/650/900
Molor power ( Kw )
kw
3
Tocl-post
4 stations
Max.tool size(mm)
mm
16x16
Repeatability accuracy(X')(mm)
mm
0.016

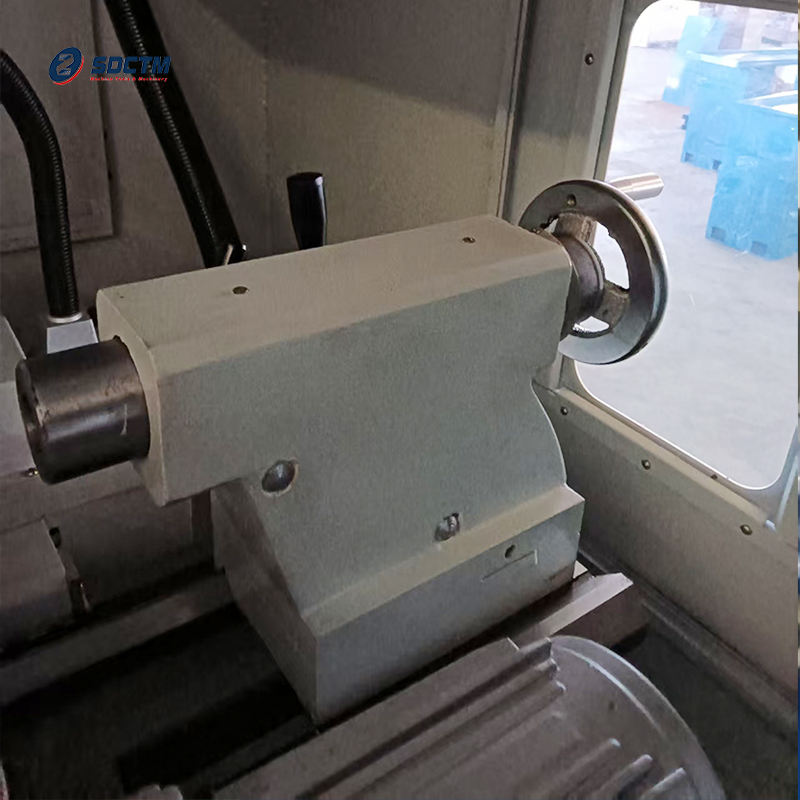

Barrel travel of tailstock(mm)
mm
130
Barrel taper of tailstock
M.T.3
Overall size(L×W×H)(mm)
mm
1850x1200x1650 mm
N.W/G.W
kg
1400
Loading amount/20" Container
4 set
TRADE SHOW PARTICIPATION
PACKAGING & SHIPPING SPECIFICATIONS
FAQs
Q: How should I choose the appropriate model of machine?
A: Please tell me your specifications and other required configuration parameters so that we can choose the best model for you.You can also send us the product drawings, and we will choose the most suitable machine for you.
Q: What is your trade terms?
A: EXW,FOB, CFR and CIF all acceptable.
Q: When is the delivery time?
A: Our delivery time is approximately 30 days. The shipping company will call you before the machine arrives at the port.
Q: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
Q: What are the requirements for becoming a distributor?
A: Please feel free to contact us and we will answer your questions. We sincerely welcome your joining!
