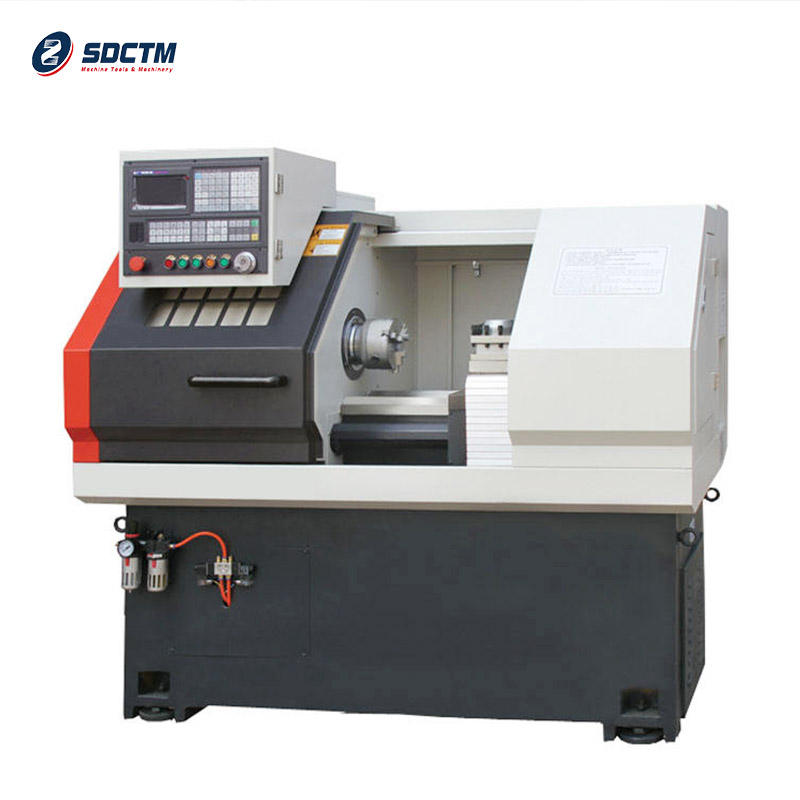

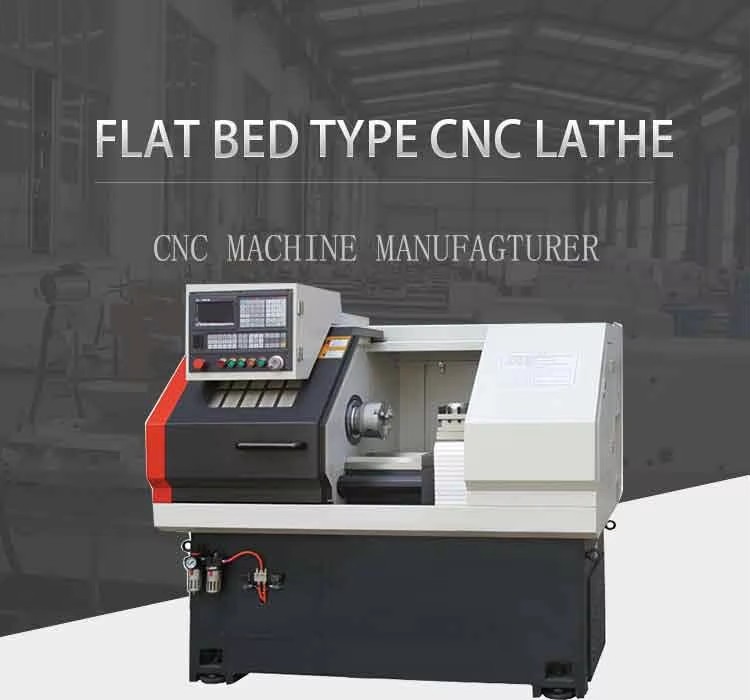

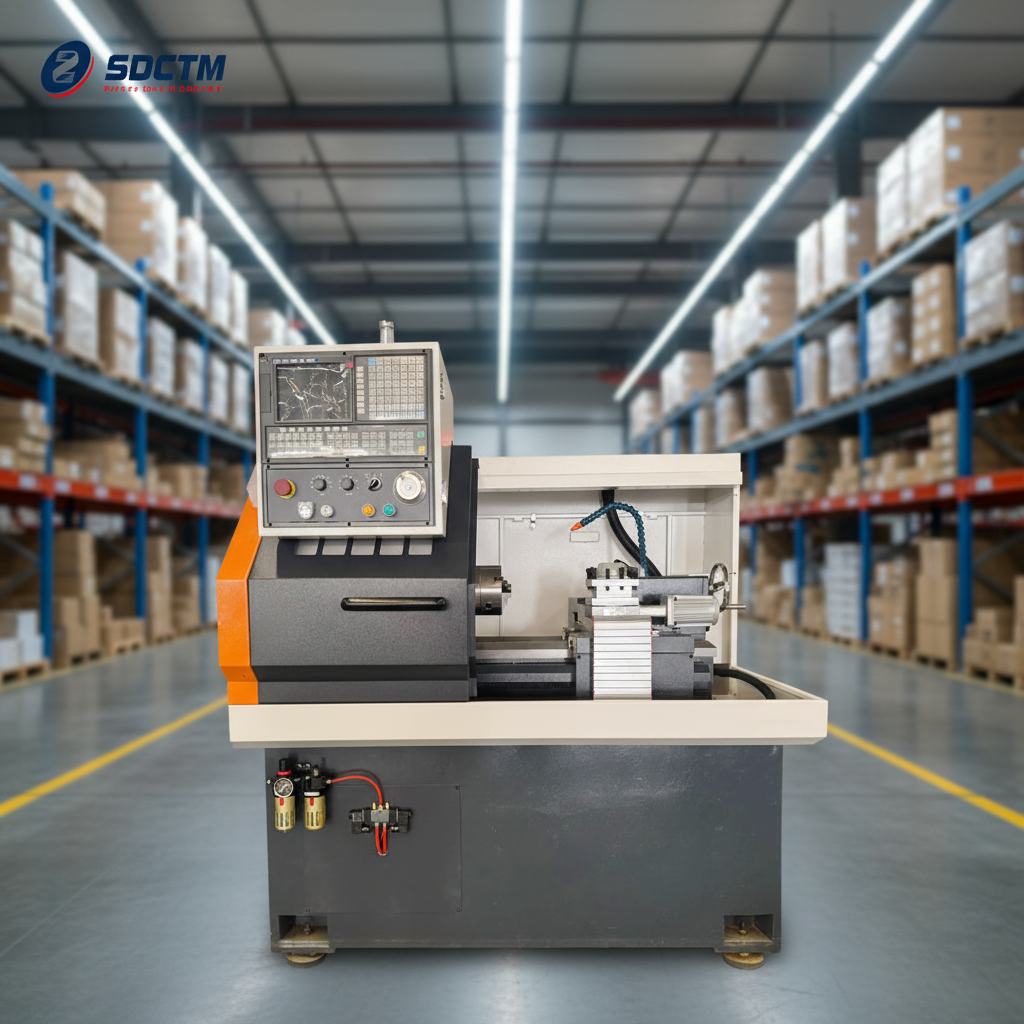

HOT Sales Mini Cnc Lathe CK6130 Cnc Lathe Benchtop Cnc Mini Metal Lathe for Price
mini Cnc Lathe CK6130 Cnc Lathe Benchtop Cnc Mini Metal Lathe for Price High Precision: Achieves ±0.005mm positioning accuracy for precise machining. Efficient Processing: Processes internal and external diameters, faces, apertures, and threads efficiently. Durable Structure: Induction-hardened bed and way ensure accuracy and longevity. User-Friendly: Comes with an electric 4-station toolpost for easy setup. Reliable Warranty: Offers a 1-year warranty for peace of mind.
HOT Sales Mini Cnc Lathe CK6130 Cnc Lathe Benchtop Cnc Mini Metal Lathe for Price
High Precision: Achieves ±0.005mm positioning accuracy for precise machining.
Efficient Processing: Processes internal and external diameters, faces, apertures, and threads efficiently.
Durable Structure: Induction-hardened bed and way ensure accuracy and longevity.
User-Friendly: Comes with an electric 4-station toolpost for easy setup.
Reliable Warranty: Offers a 1-year warranty for peace of mind.

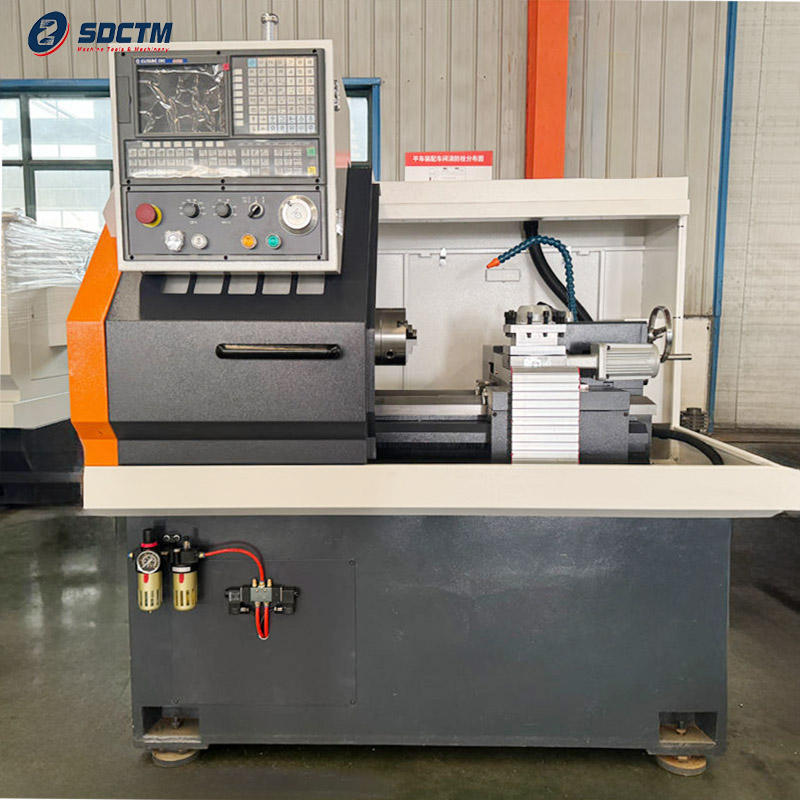

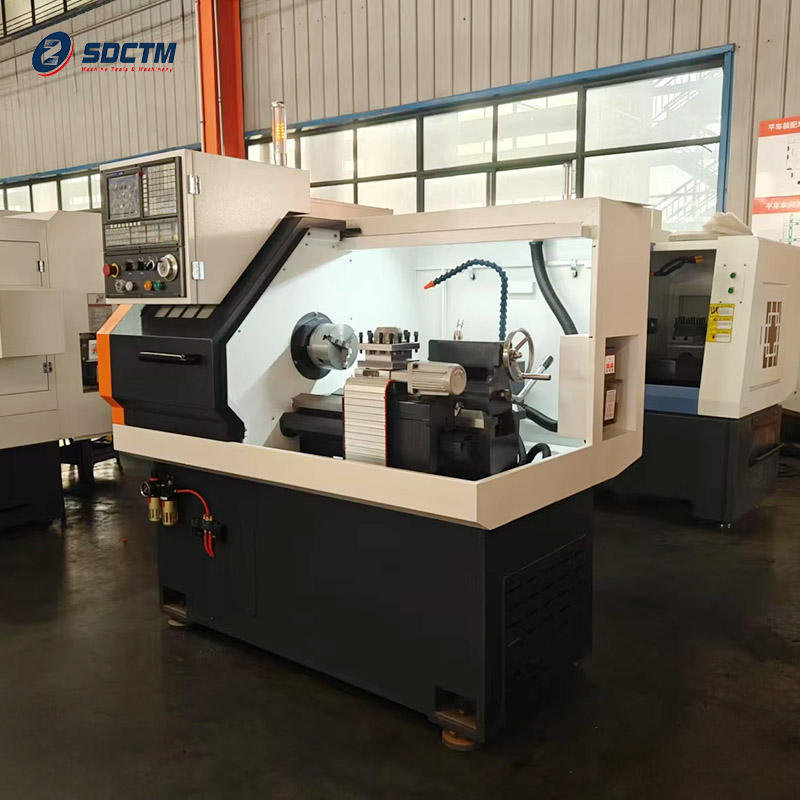

SCENE IMAGE

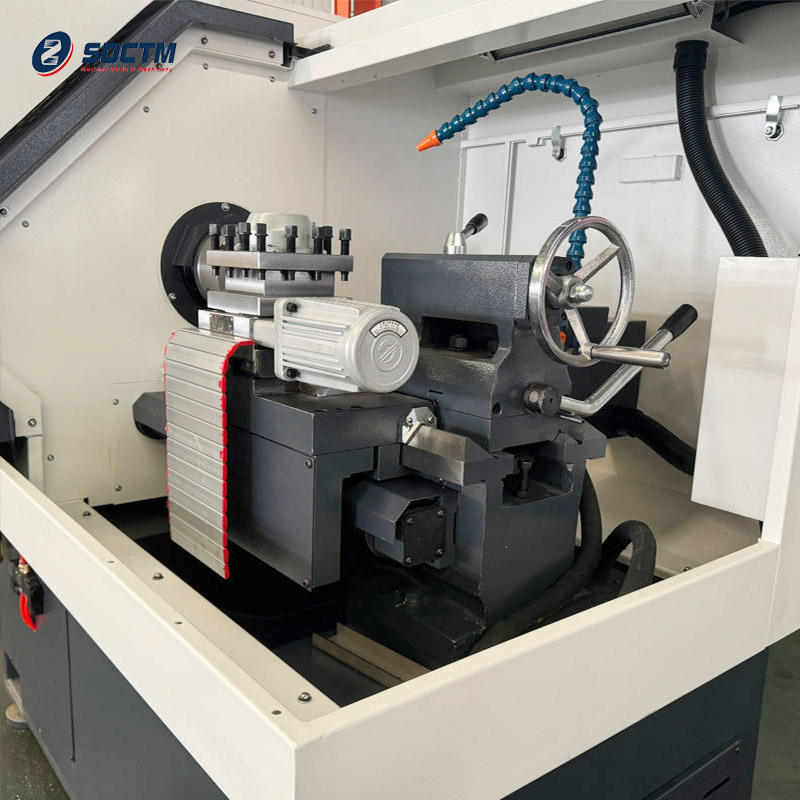

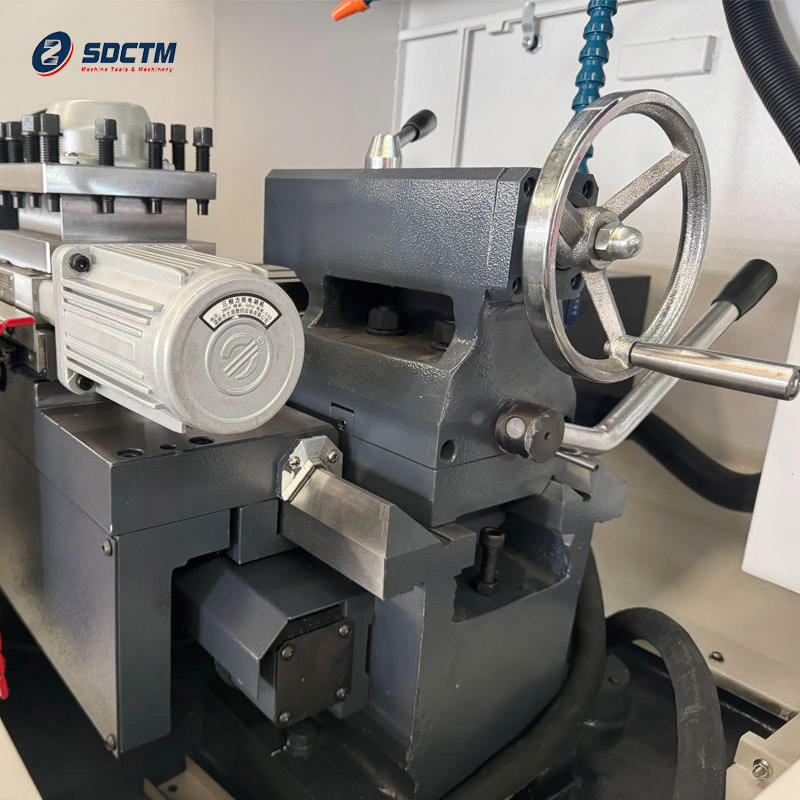

DETAIL SHOT
pecifications
Unit
CK6130
Max. Swing over Bed
mm
Φ300
X-direction rail span
mm
160
Z-direction rail span
mm
240
Max. turning diameter of the slide
mm
Φ100
Distance between centers
mm
320
Max. turning length
mm
230
Center High
From the bed
mm
150
From the ground
mm
1065
Spindle through hole diameter
mm
Φ48
Bar diameter
mm
Φ45
Optional hollow chuck tie rod through hole
mm
Φ40
Spindle end type
A2-5
chuck
mm
6’’ pneumatic chuck
Spindle taper taper
No
Chuck
Spindle limit speed
rpm
2500
Tail stock sleeve diameter
mm
Φ52
Tail stock sleeve inner hole taper
No
MT4#
Tail stock sleeve stroke
mm
80
Tail stock form
Pneumatic tailstock
Number of electric tool holders
Position
4
Knife square size
mm
20×20(4- stations)
Screw model
X Axis
mm
FDC2506-P3
Z Axis
mm
FDC3210-P3
X/Z rapid traverse speed
m/min
6/10
X travel
mm
280
Minimum setting unit
mm
0.001
main motor power
KW
4
total power
KW
10
Machine net weight
Kg
1300
Dimensions (L×W×H)
mm
1600×1160×1620
TRADE SHOW PARTICIPATION
PACKAGING & SHIPPING SPECIFICATIONS
FAQs
Q: How should I choose the appropriate model of machine?
A: Please tell me your specifications and other required configuration parameters so that we can choose the best model for you.You can also send us the product drawings, and we will choose the most suitable machine for you.
Q: What is your trade terms?
A: EXW,FOB, CFR and CIF all acceptable.
Q: When is the delivery time?
A: Our delivery time is approximately 30 days. The shipping company will call you before the machine arrives at the port.
Q: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
Q: What are the requirements for becoming a distributor?
A: Please feel free to contact us and we will answer your questions. We sincerely welcome your joining!
