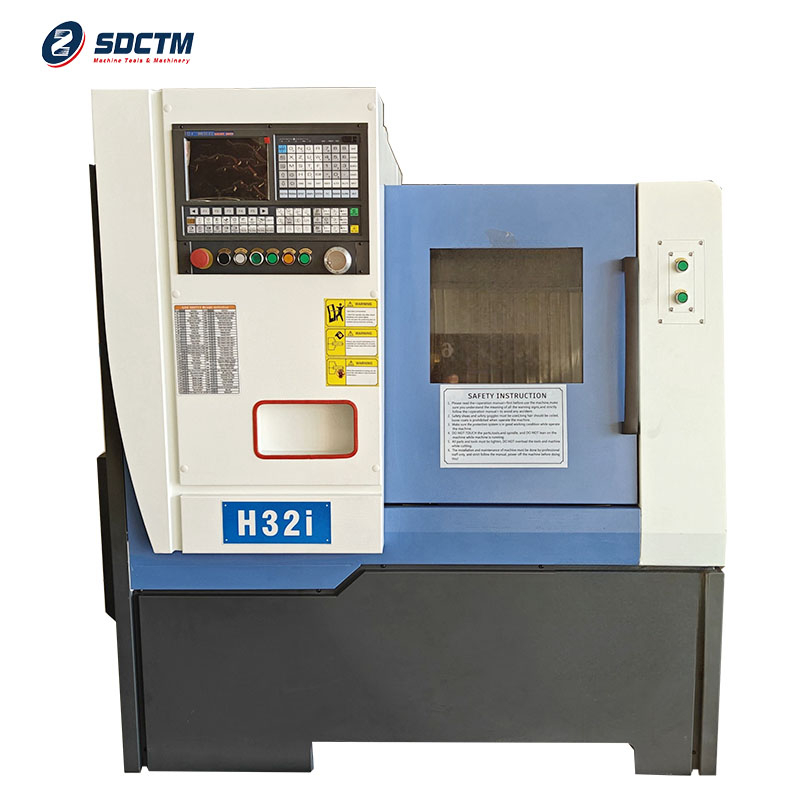

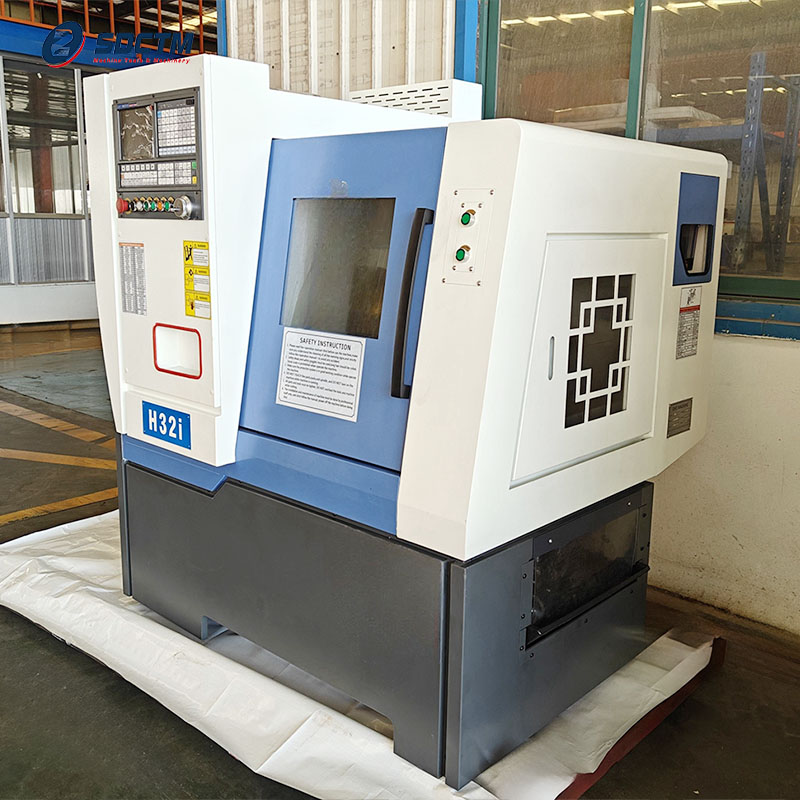

H32I CNC LATHE

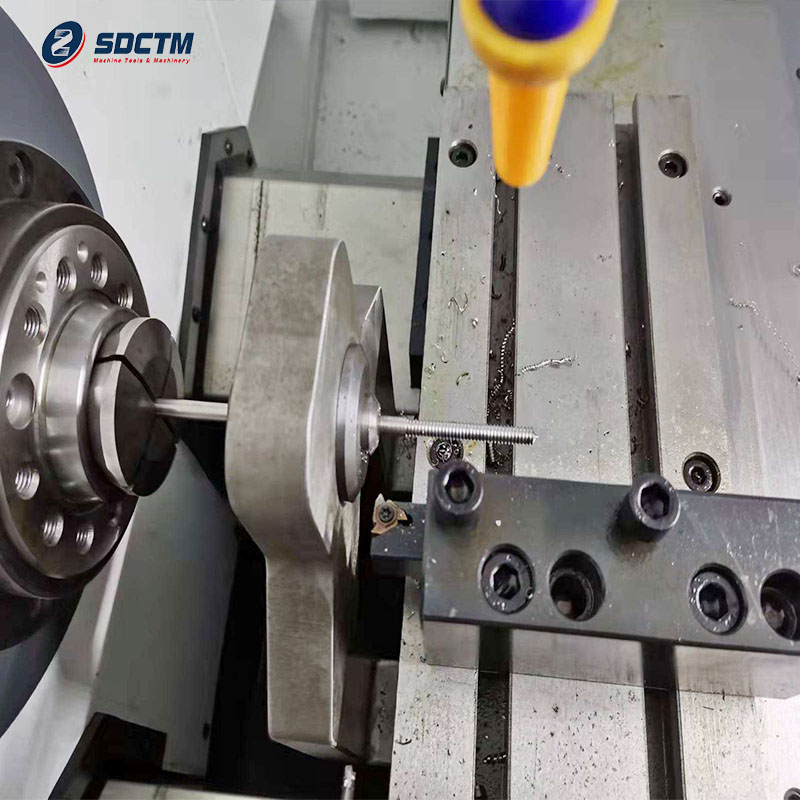

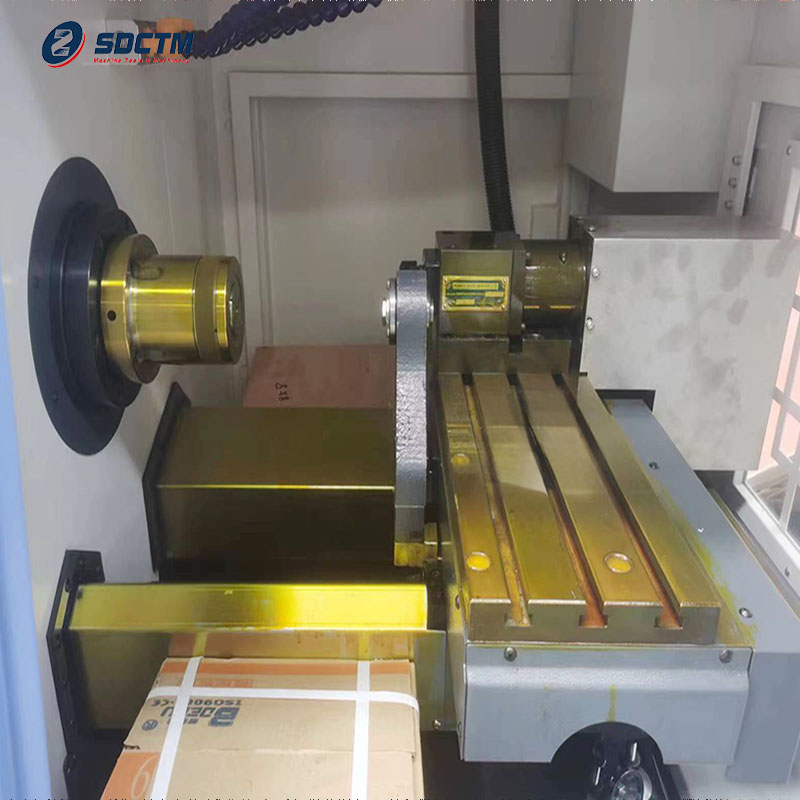

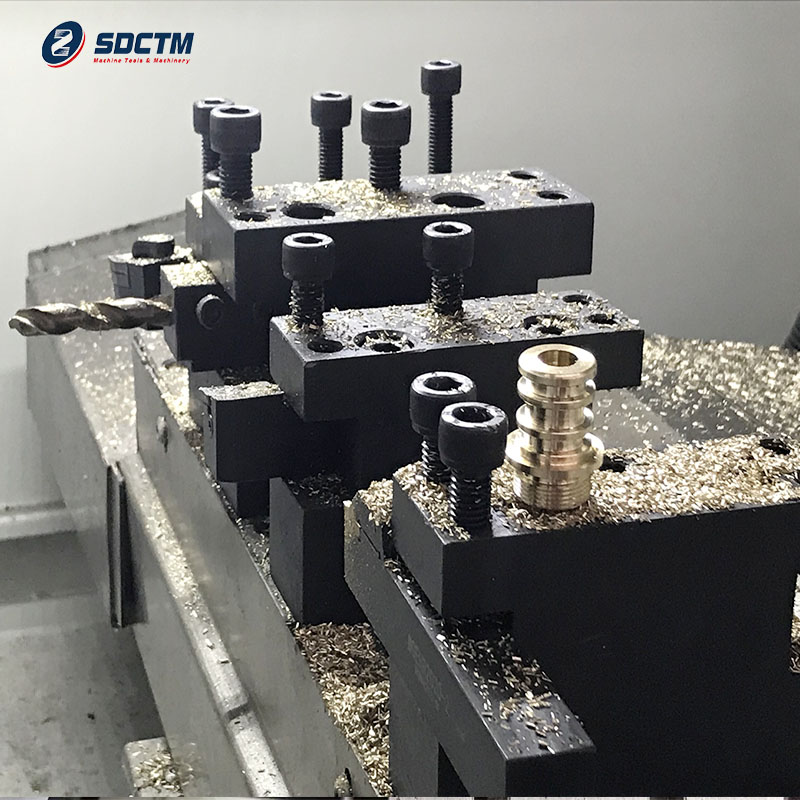

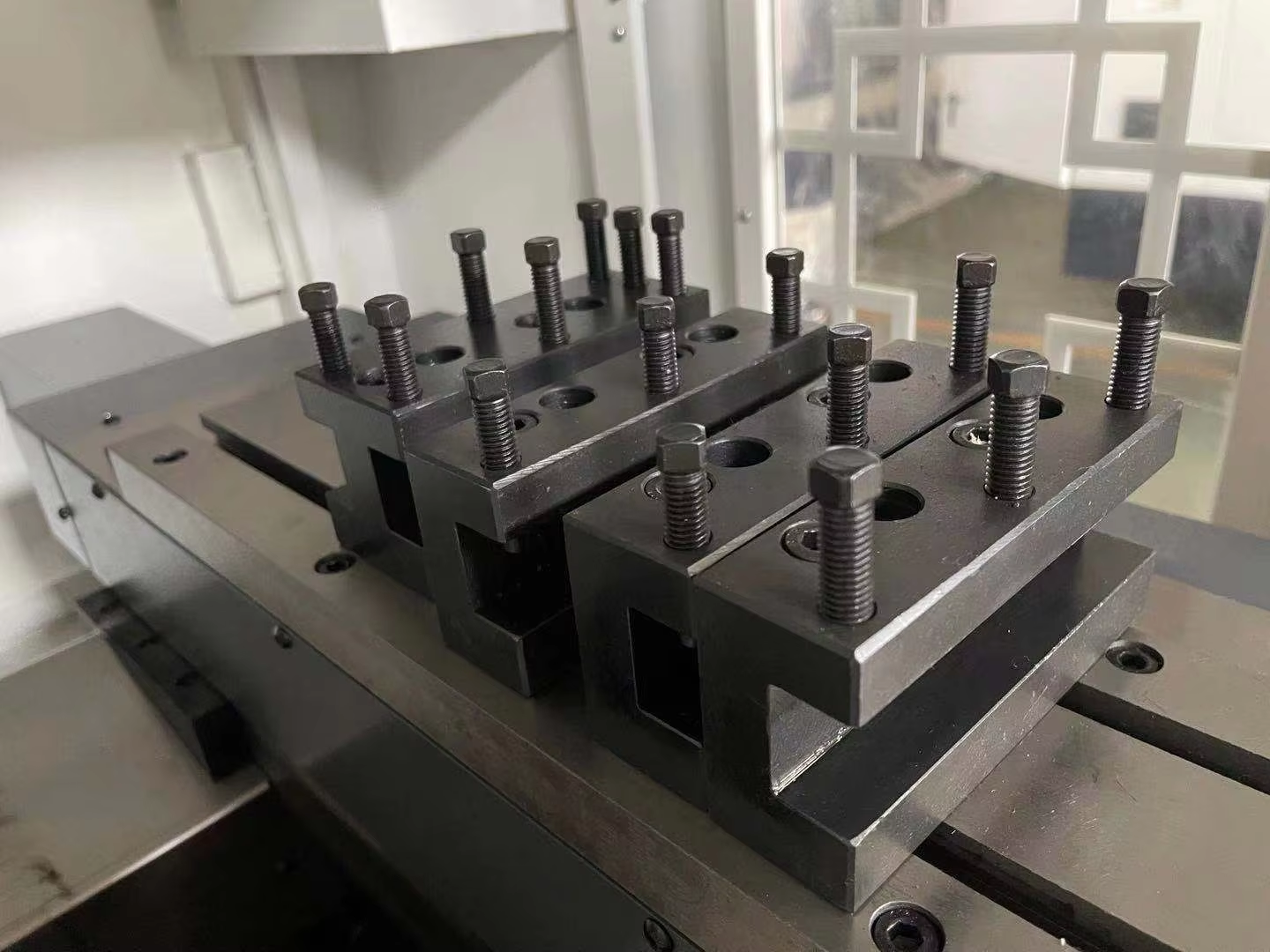

H32I gang tool automatic cnc lathe has Taiwan HIWIN or PMI linear guides on X and Z axes with fastest feeding speed, 4 or more gang type tool posts for the tool exchanging with the quickest and the shorest time, the higher spindle speed providing the best machining smoothness. H32I hobby teaching small linear guide CNC lathe machine tool is the best machine for processing small copper valves.
| H32I cnc lathe teaching lathe small CNC lathe machine tool | H32I | H36 | H46 |
| Max. swing over bed mm | 320 | 360 | 460 |
| Max. swing over cross slide mm | 70 | 110 | 140 |
| Max. Processing diameter of plate mm | 320 | 350 | 460 |
| Max. turning length mm | 280(collect and gang tool) | 250 (collect)180(chuck) | 250 (chuck and turret)180(chuck ang gang tool) |
| Spindle bore mm | 48 | 48 | 56 |
| Spindle speed rpm | 4000 | 2500 | 3500 |
| Spindle motor power kw | 3.7 | 4 | 5.5 |
| X axis travel mm | 280 | 320 | 360 |
| Z axis travel mm | 330 | 250 | 330 |
| Tool shank size mm | 20X20/φ25 | ||
| LXWXH m | 1.6X1.3X1.7 | 2X1.4X1.6 | 2.4×1.8×1.6 |
| Machine weight KGS | 900 | 1500 | 2200 |
