| Quantity: | |
|---|---|
MY618

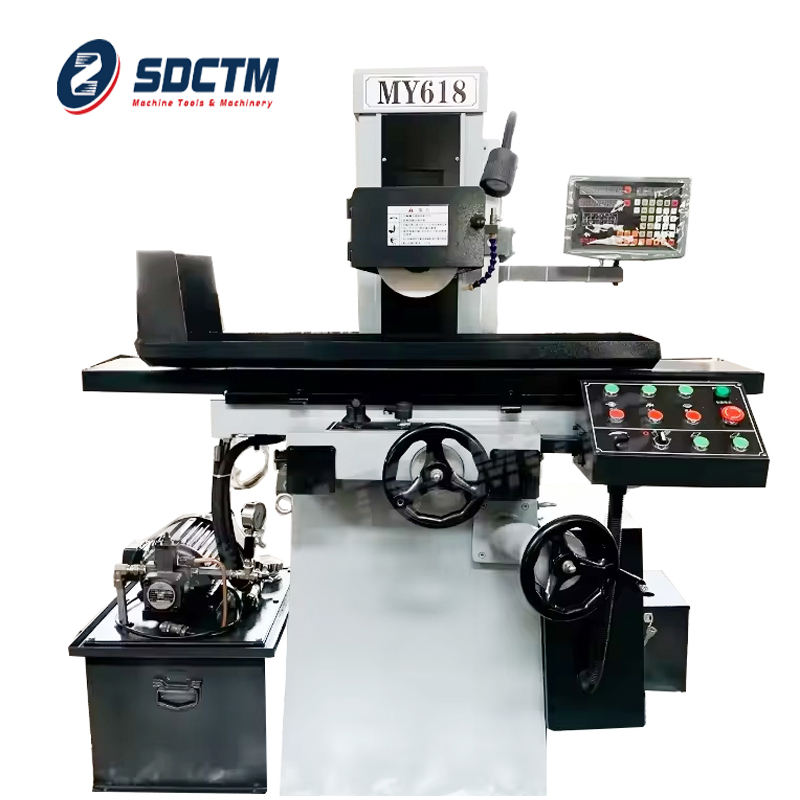

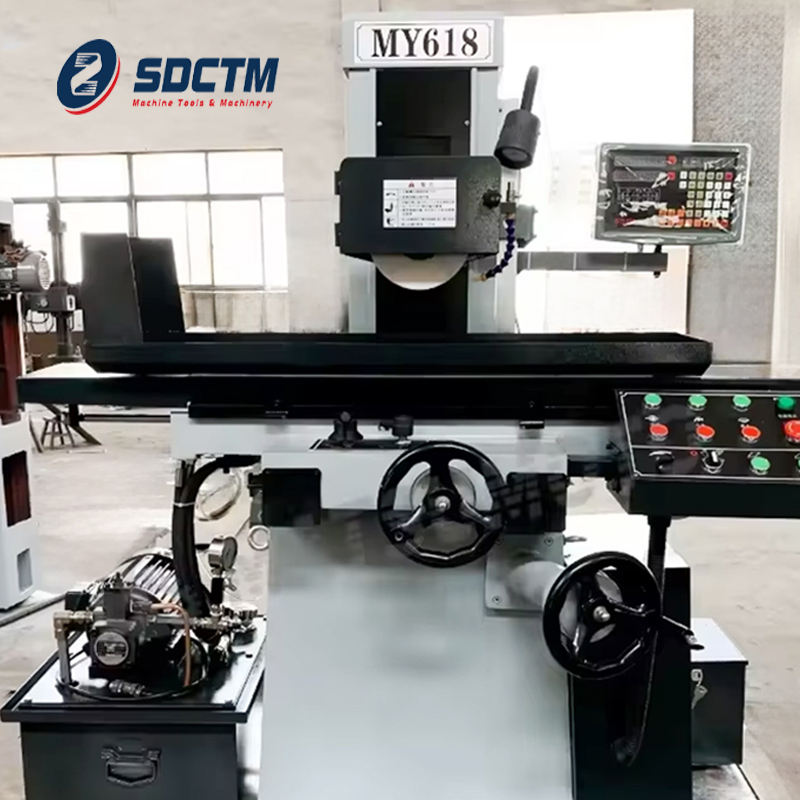

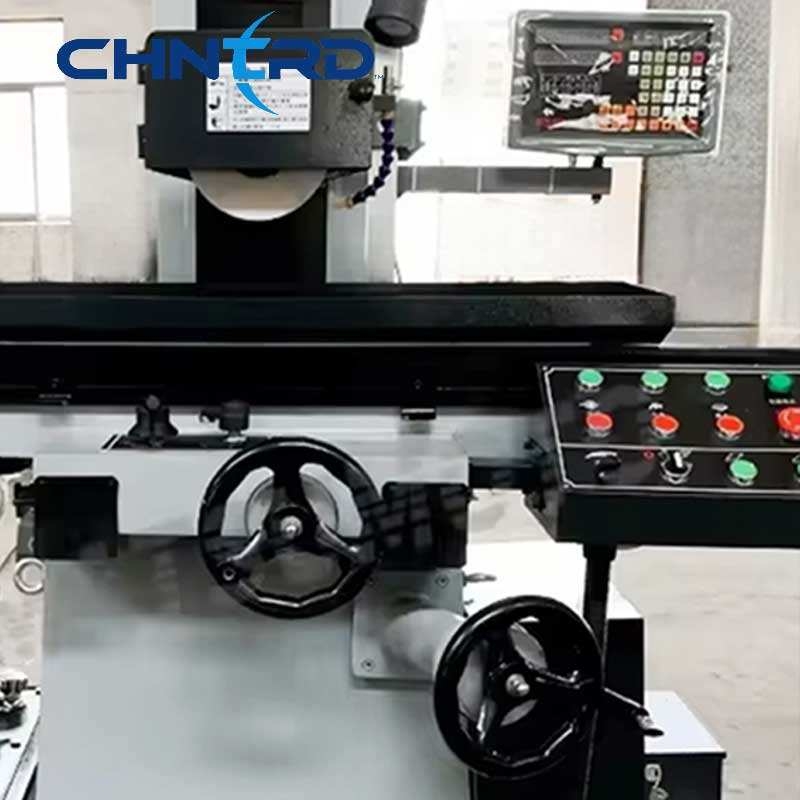

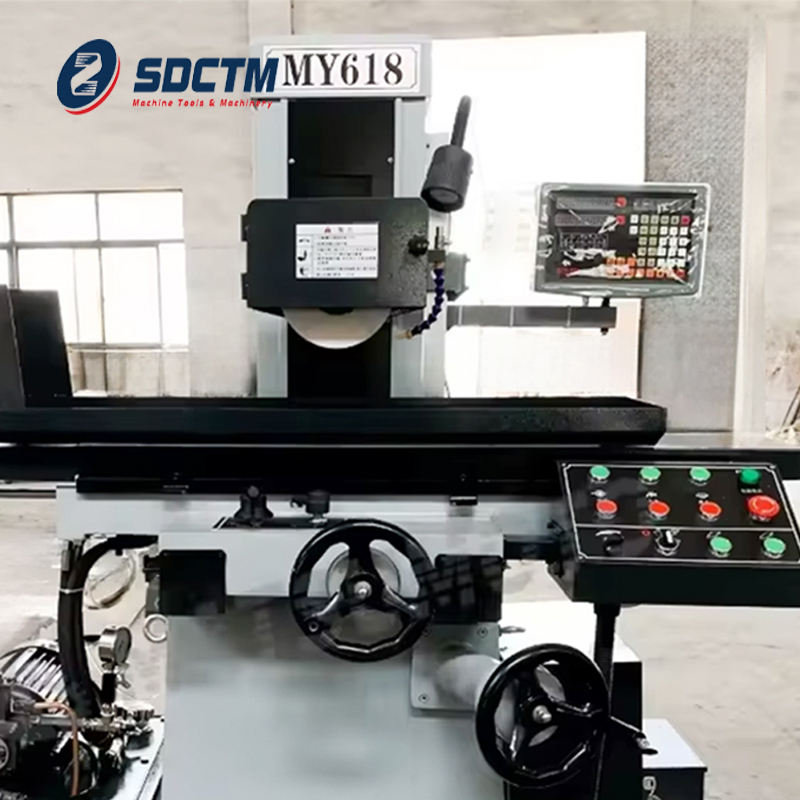

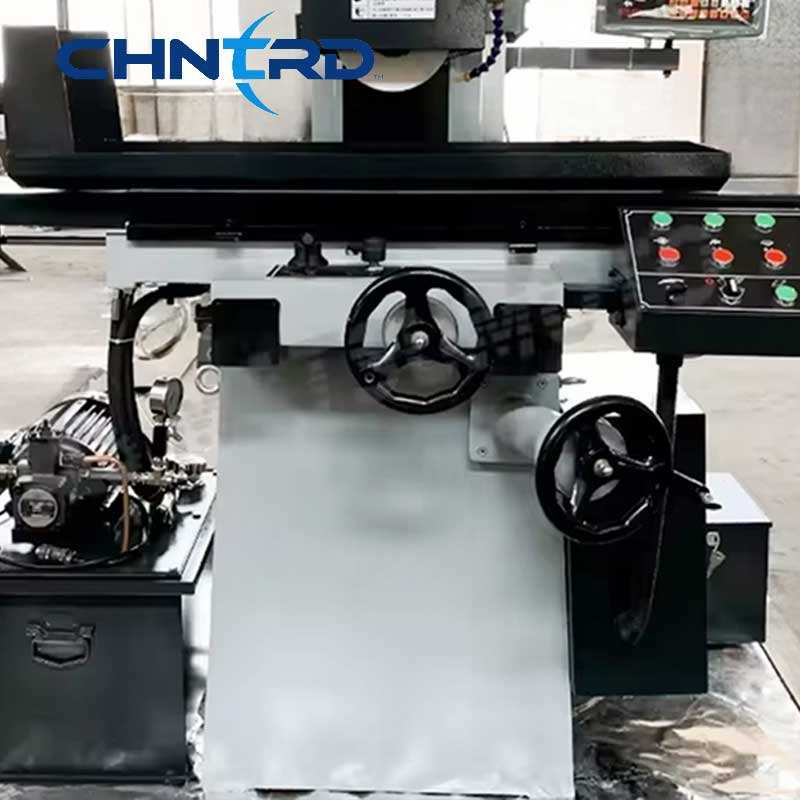

Model | MY618/MD618 Surface Grinding Machine |
Maximum stroke of workbench (length and width)(mm) | 175*500 |
Maximum distance from countertop to spindle center(mm) | 360 |
Maximum bearing capacity of the workbech (kg) | 100 |
Table top size (length and width) (MM) | 150*450 |
Workbench T-type groove(mm×n) | 14*1 |
Bench with longitudinal (left and right) speed (m/min) | 4-26 |
Wheer size (outer diameter width inner diameter) | ￠175×13×￠31.75 |
Spindle motor (kw) | 1.1 |
cooling pump (kw) | 0.012~0.04 |
External dimensions of the machine tool (length, width and height) | 1700×1250×1900 |
Box size (length, width and height) | 850 |
1.The MY618 surface grinding machine is a high-precision grinding tool designed for industrial applications, offering exceptional accuracy and efficiency in material removal. It is widely used in manufacturing, toolmaking, and precision engineering industries for tasks such as surface grinding, cylindrical grinding, and tool sharpening.
2. Precision Grinding: surface grinding machine with a surface roughness of 0.32 um, this machine ensures precise grinding, meeting the demands of high-quality products in various sectors.
3.Durable Construction: surface grinding machine with a robust motor and a 1-year warranty on core components, this machine is designed to withstand heavy usage and provide long-term reliability.

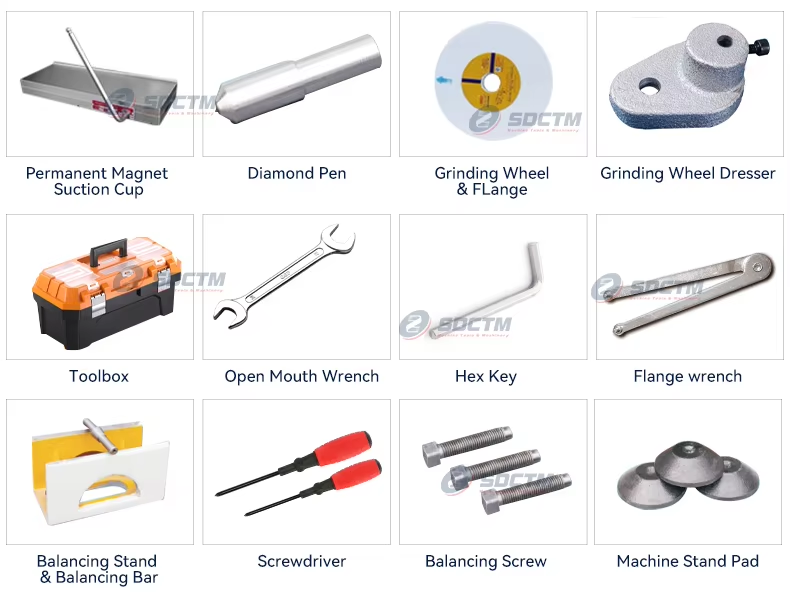

standard configuration of surface grinding machine

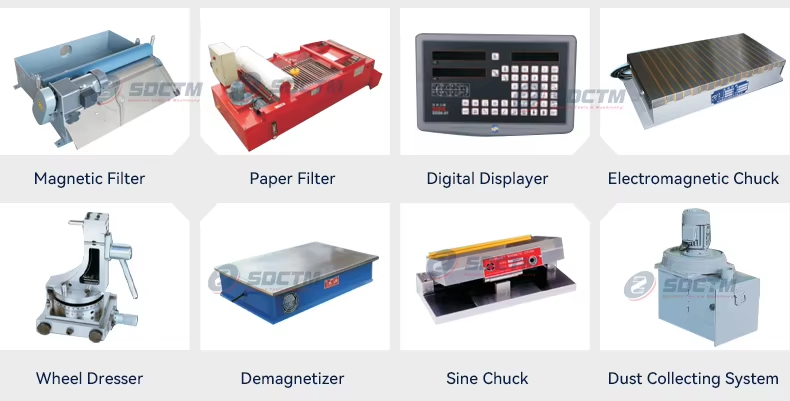

Special accessories for surface grinding machines
