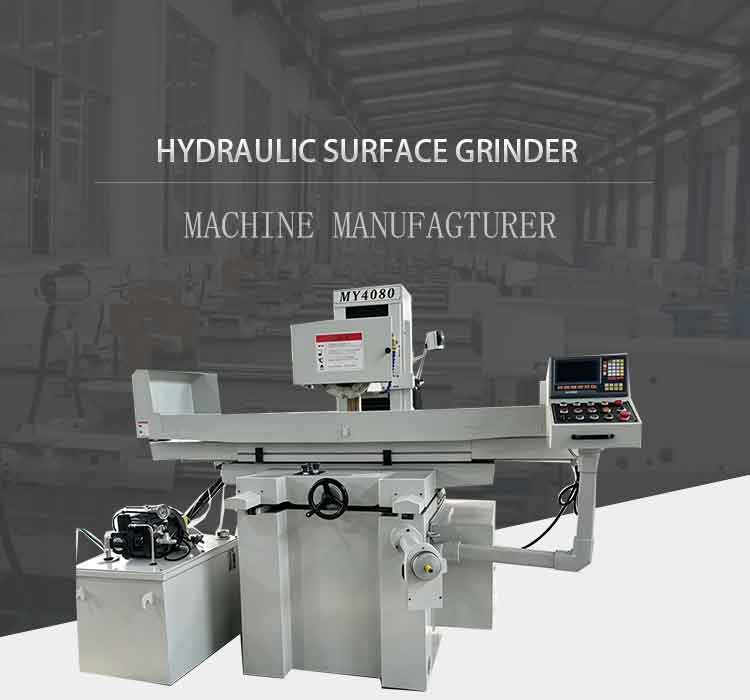

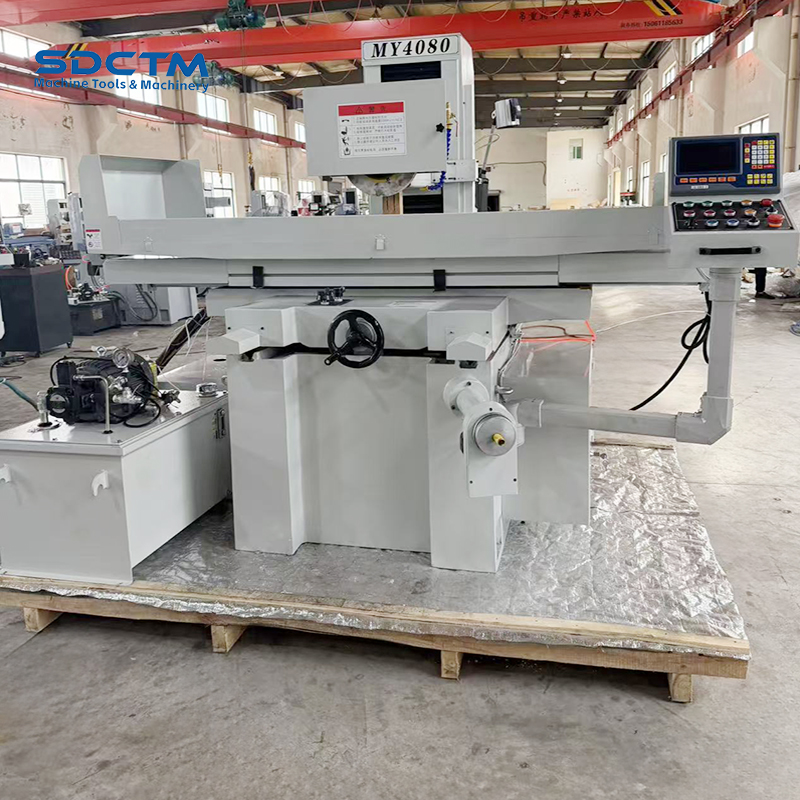

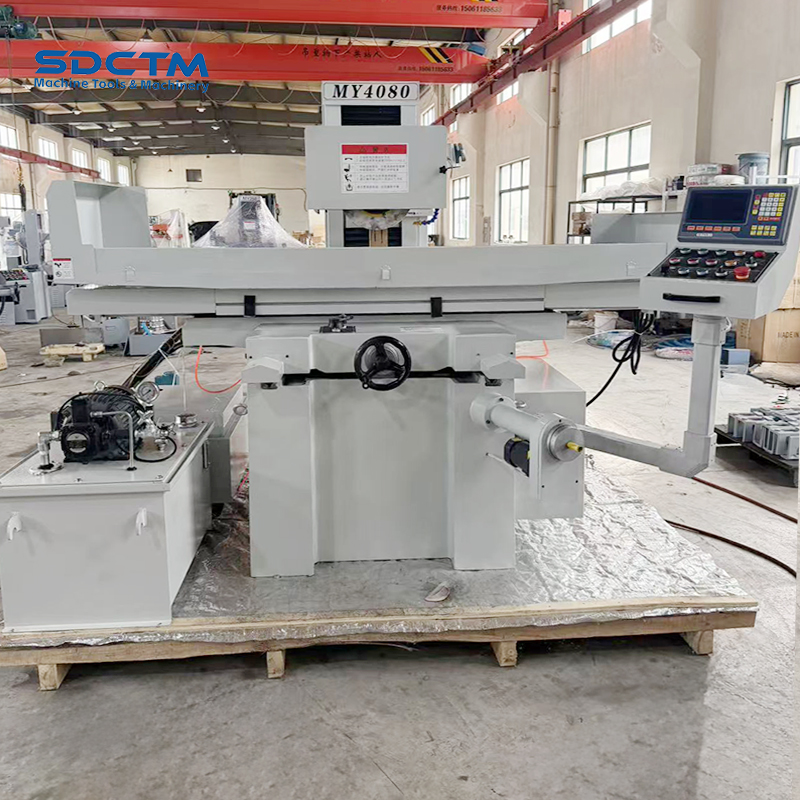

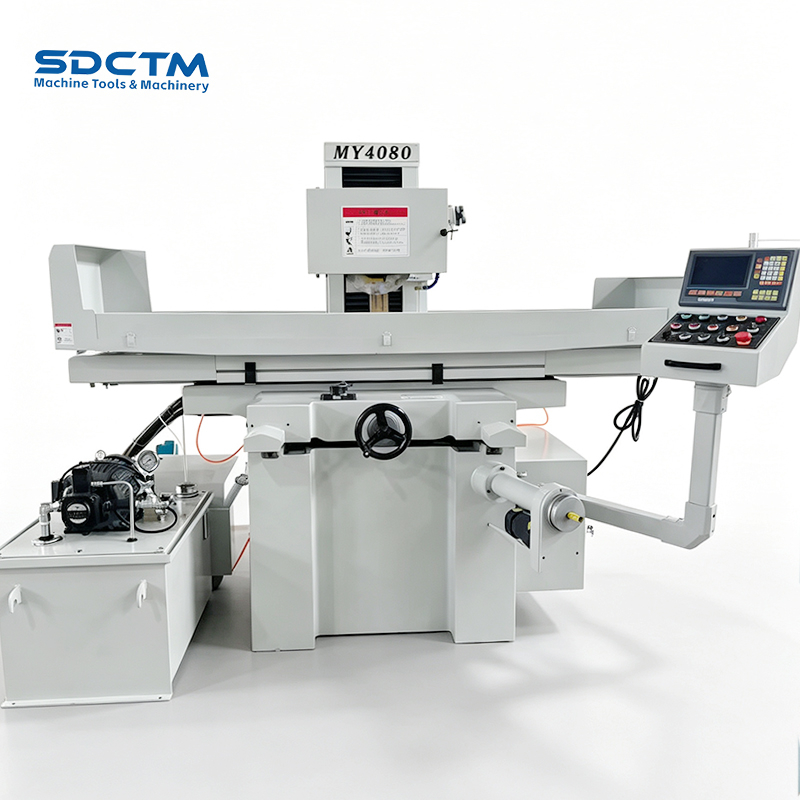

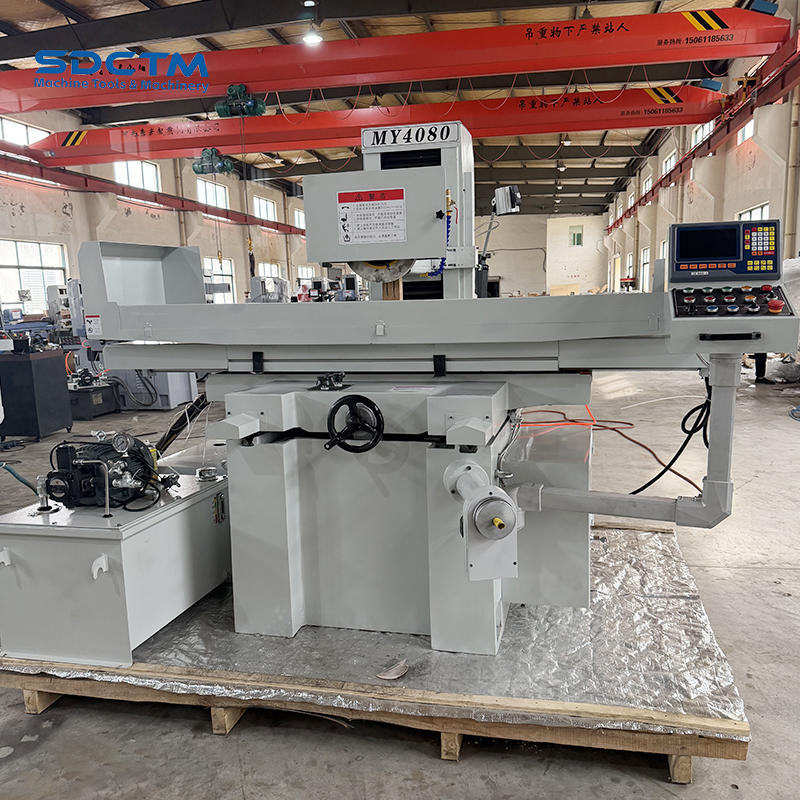

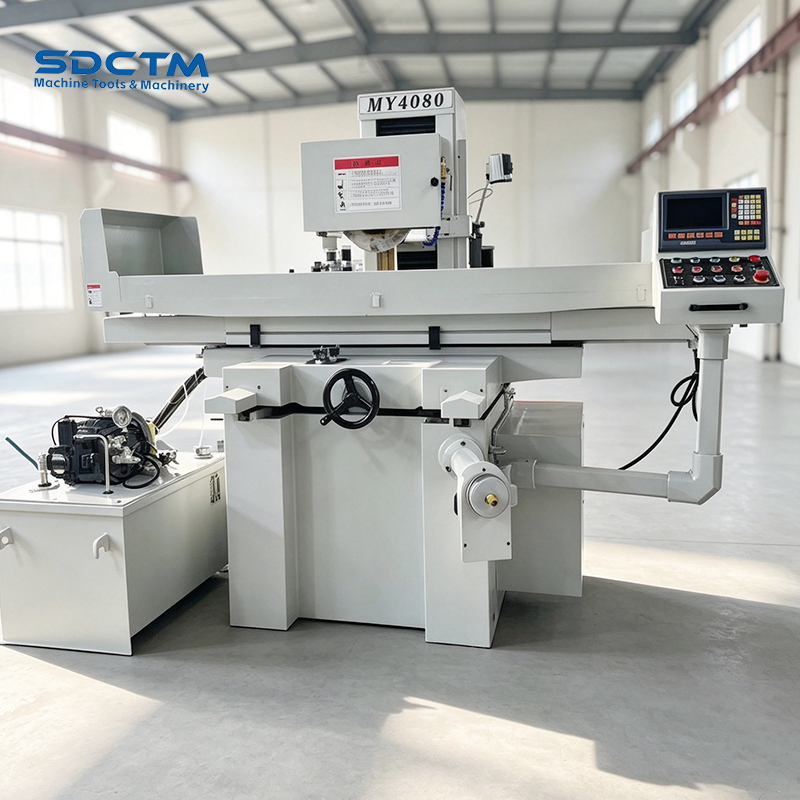

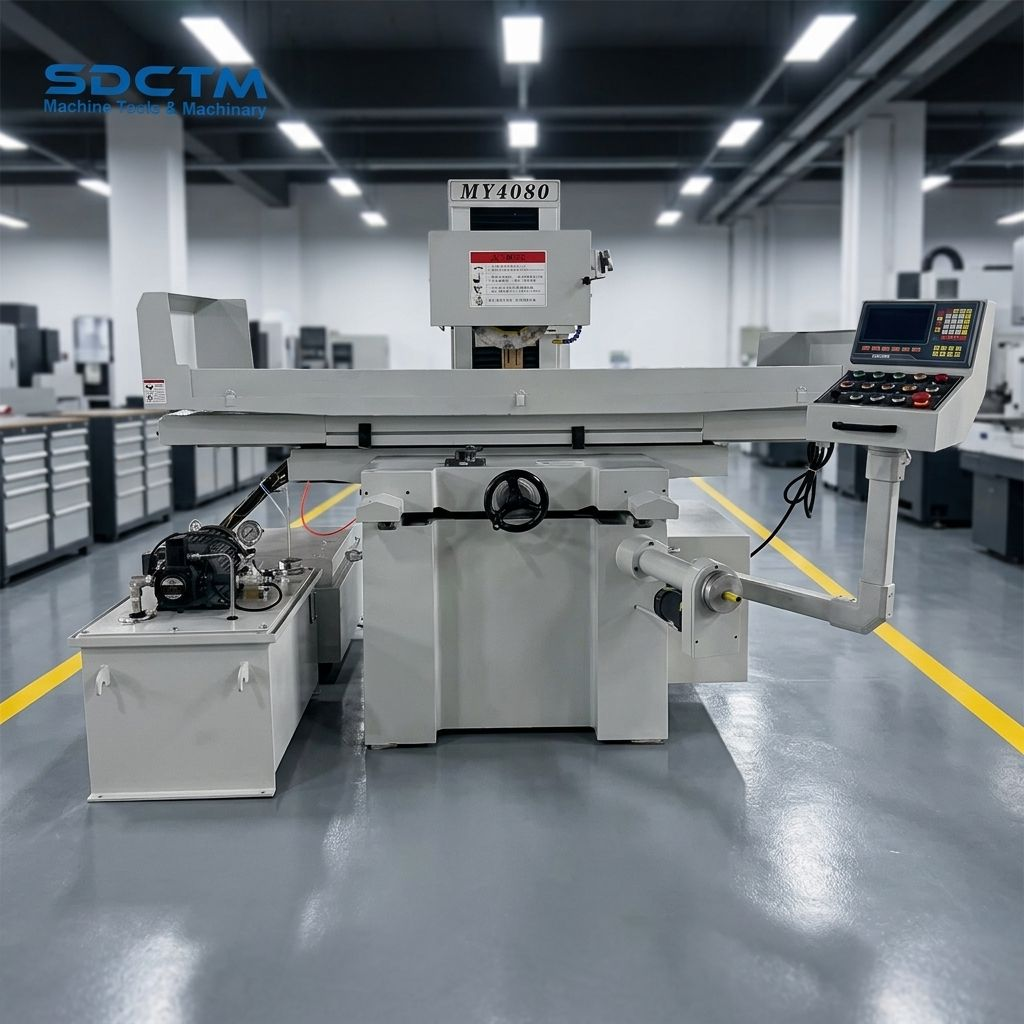

Hydraulic Surface Grinding Machine MY4080 Automatic Competitive Price High Productivity Bearing 480V 415V 230V

Model

MY4080

Table size(W×L)(mm)

400*800

Max.Grinding Length(mm)

830

Max.Grinding width(mm)

420

Max.distance from spindle center to table(mm)

480

Magnetic chuck size(mm)

400*800

Workbench T-shaped slot

1*14

Maximum capacity of Table kg

200

Table speed m/min

16

Front and rear handwheel feed rate mm

0.02/Graduation 4/revolution

Up and down MPG feed rate mm

0.001/0.01/0.1/Graduation

0.1/1/10/Eevolution

Grinding wheel Speed (rpm)

50Hz 1440
60Hz 1750

Grinding wheel Size(mm)

300×32×127

Surface roughness (μm)

≤Ra0.63

The machined surface of the base of
parallelism (MM)

300：0.005

Spindle Motor(kw)

4

Hydranlic Motor(kw)

2.2

Cooling pump motor(kw)

0.09

Cross feed motor(kw)

0.06

Max.loading capacity of table(include magnetic chuck)(kg)

200

Packing size(L×W×H)(mm)

2760*2200*2220

Total rated power(kw)

7.5

Gross、Net (KG)

2650/2500
