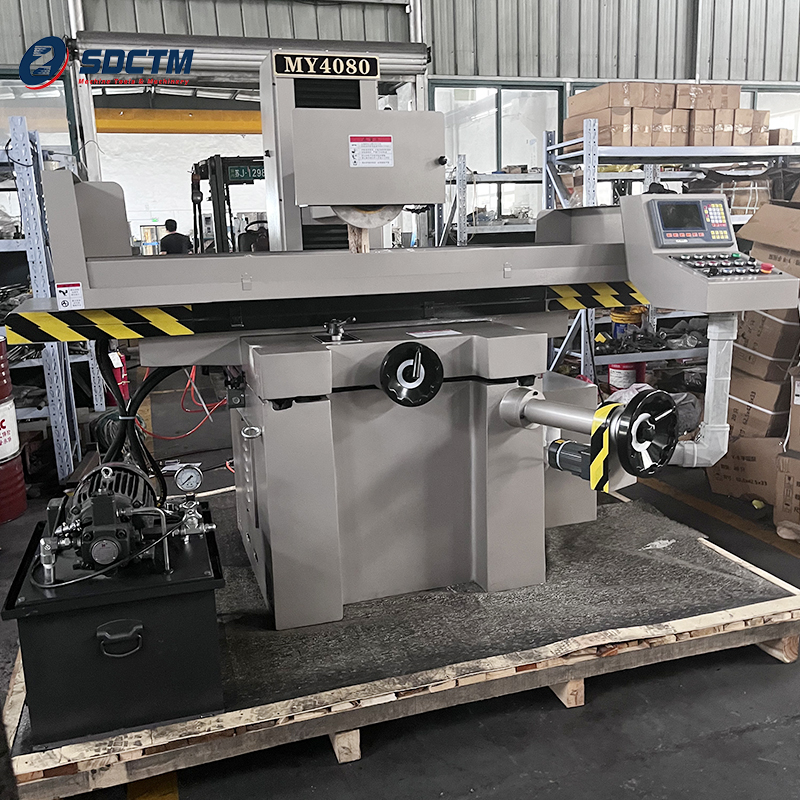

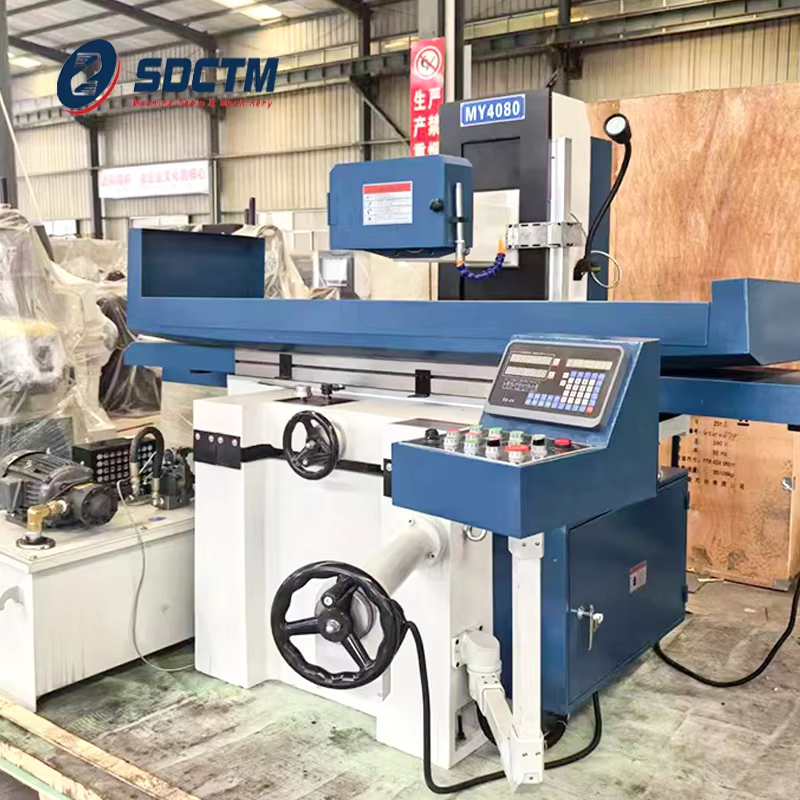

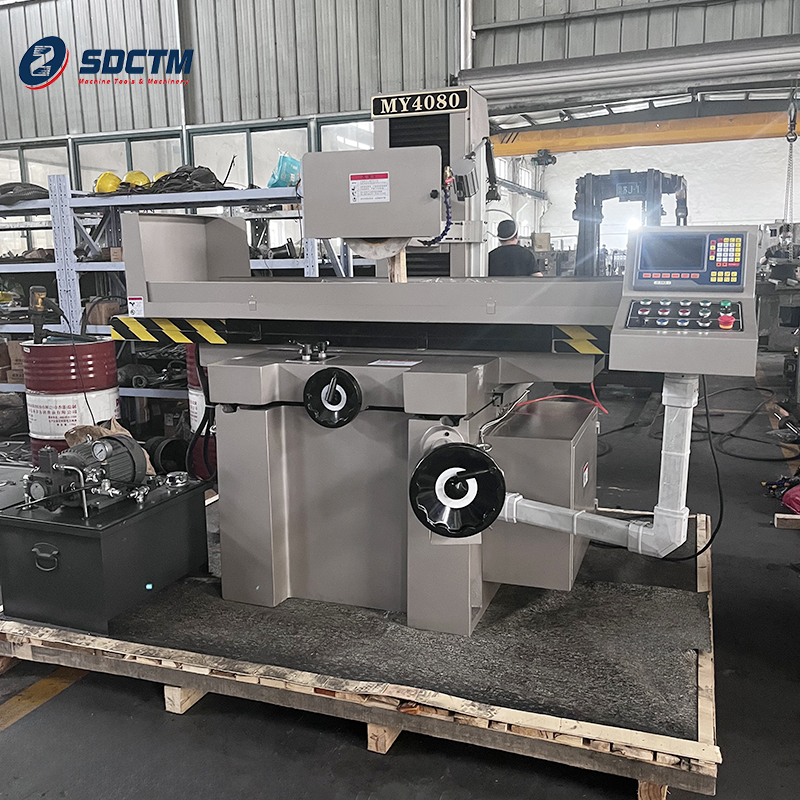

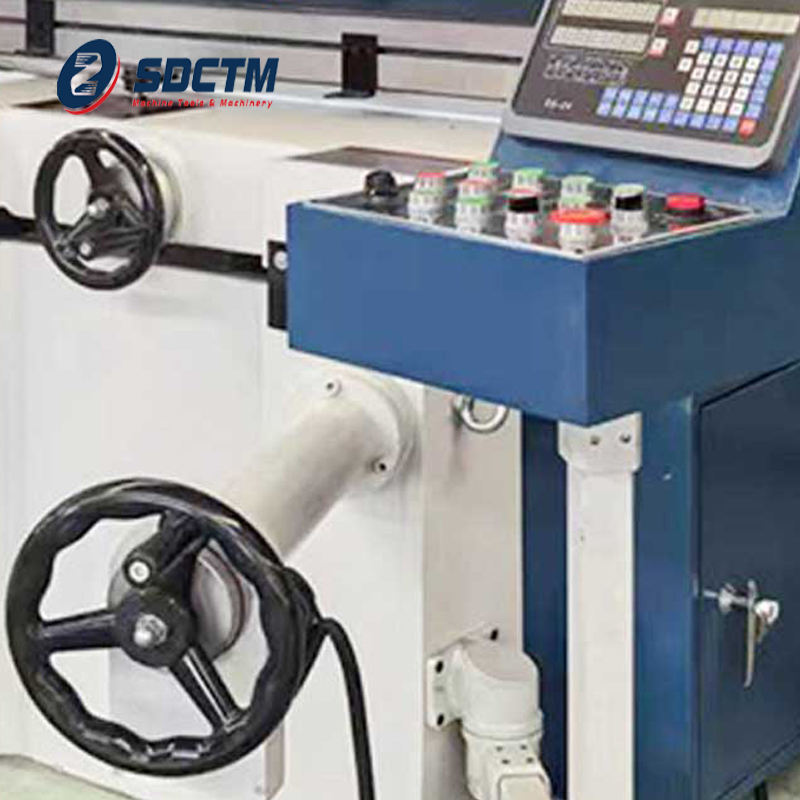

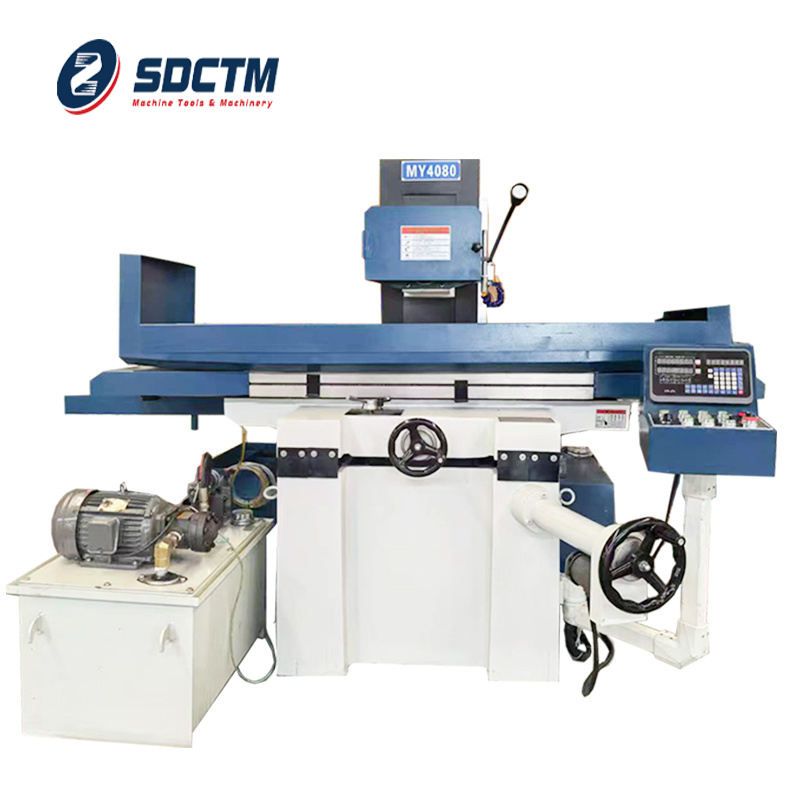

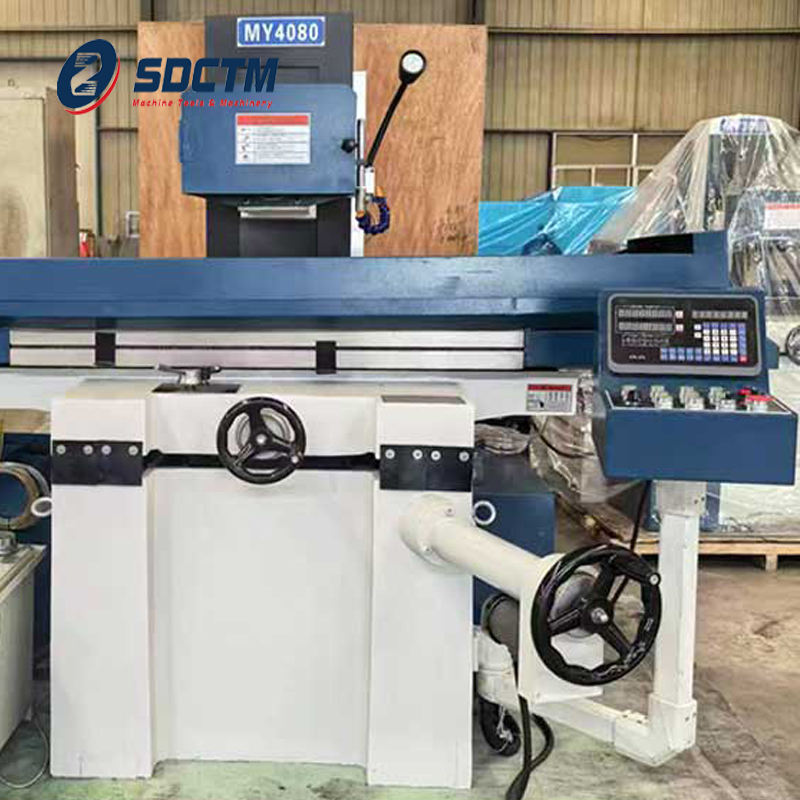

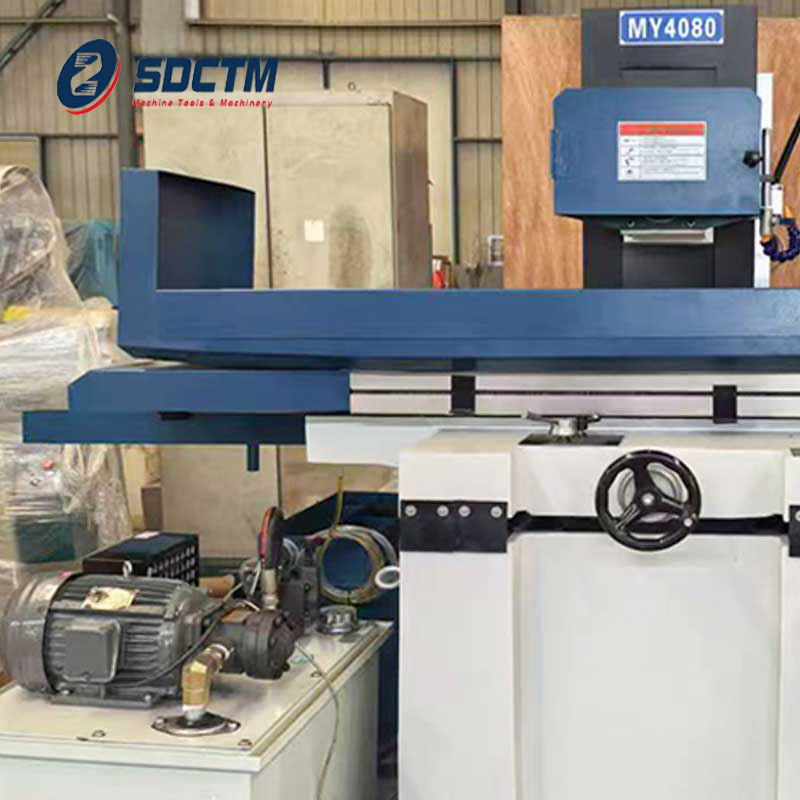

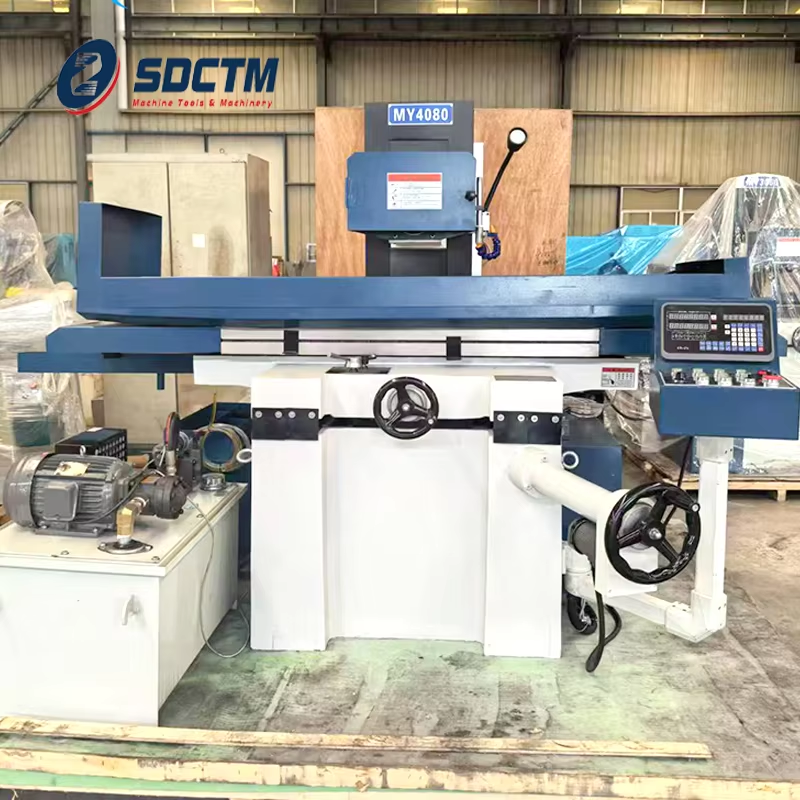

High Precision MY4080 Hydraulic Flat Grinder Fully Automatic Metal Processing Surface Grinding Machine

Model

MY4080 surface grinding machine

Table size(W×L)(mm)

400*800

Max.Grinding Length(mm)

830

Max.Grinding width(mm)

420

Max.distance from spindle center to table(mm)

500

Magnetic chuck size(mm)

400*800

Table transverse movement auto feed(mm/min)

0.10-8

Table transverse movement Rapid speed(m/min)

990

Table transverse movement Feed of handwheel(mm/div.)

0.02

Wheelhead vertical movement Rapid speed (mm/min)

610

Wheelhead vertical movement Rapid speedFeed of handwheel (mm/div.)

0.01

Grinding wheel Speed (rpm)

50Hz 1450
60Hz 1750

Grinding wheel Size(mm)

300×30×75

Surface roughness (um)

≤Ra0.63

The machined surface of the base of parallelism (MM)

300：0.005

Spindle Motor(kw)

4

Hydranlic Motor(kw)

2.2

Cooling pump motor(kw)

0.09

Cross feed motor(kw)

0.06

Max.loading capacity of table(include magnetic chuck)(kg)

200

Packing size(L×W×H)(mm)

2300*1900*2170

Total rated power(kw)

7

Gross、Net (KG)

2000
