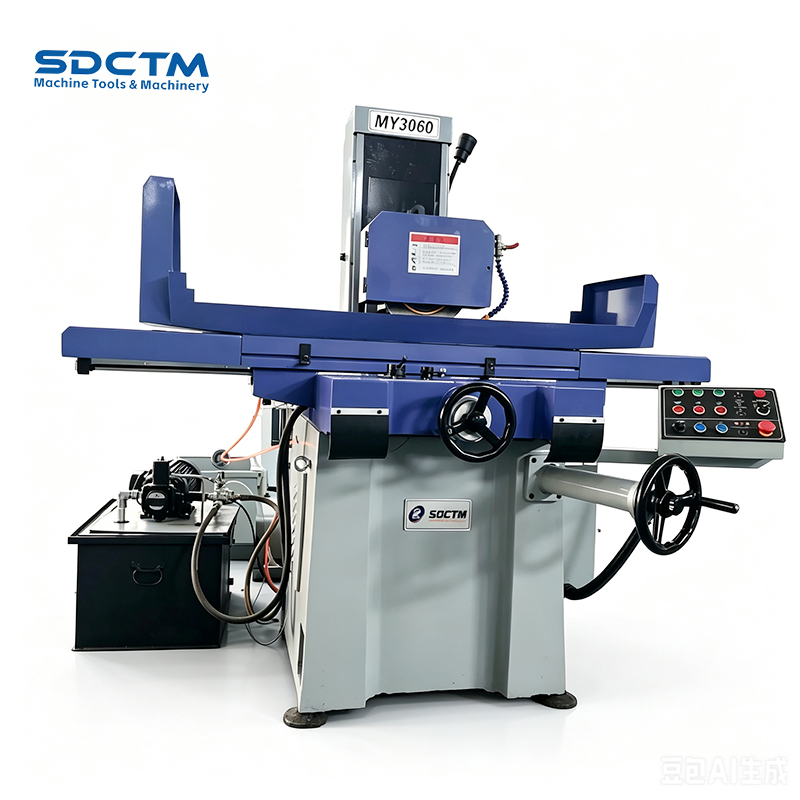

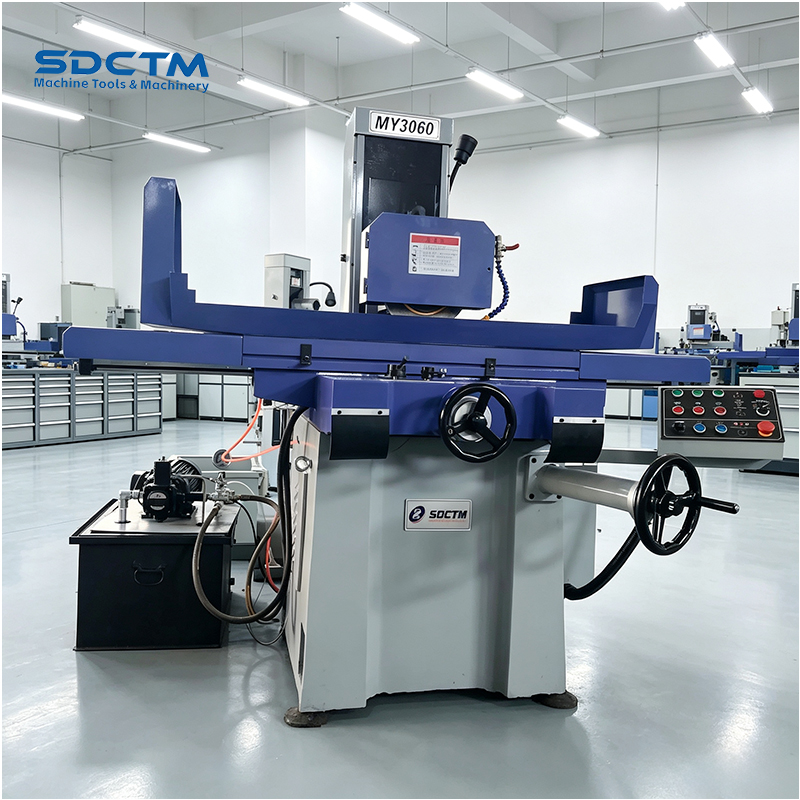

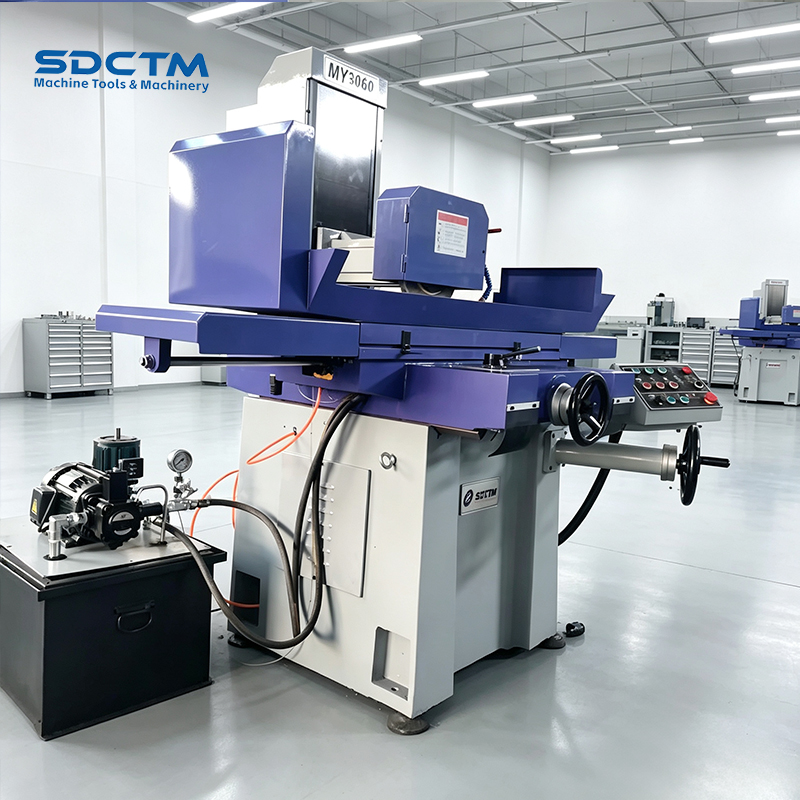

MY3060 Precision Hydraulic Surface Grinder 600*300 Surface Grinding Machine for Metal

Model

MY3060

Maximum stroke of workbench (length an* width*hight)(mm)

600*300*270

Max.Grinding Length

620

Max.Grinding width

320

Maximum bearing capacity of the workbech (kg)

200

Table top size (length and width) (MM)

600*300

Workbench T-type groove(mm×n)

14*1

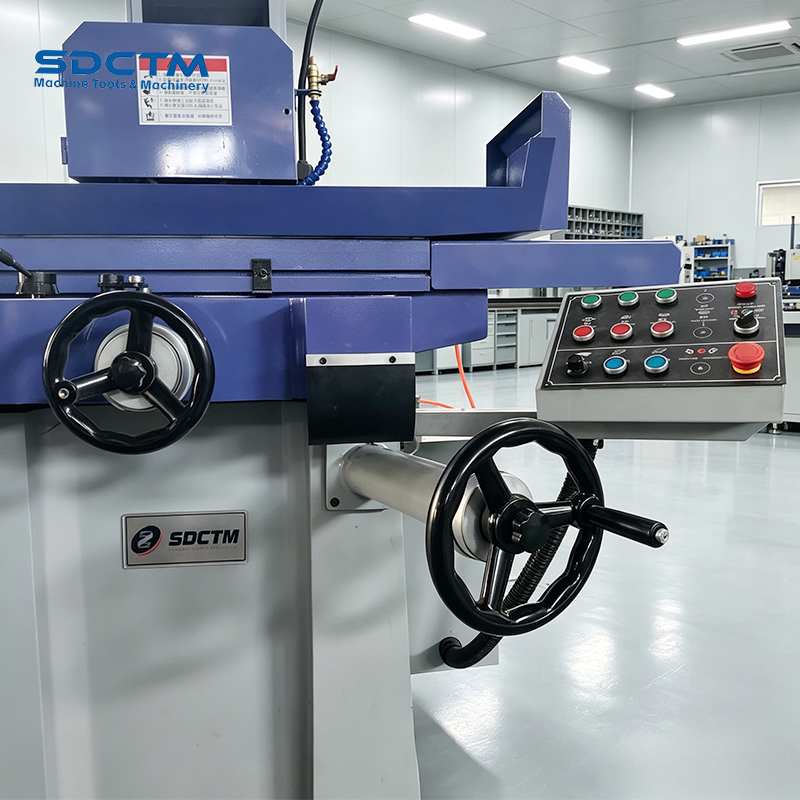

Cross feed on handwheel

0.02/Graduation 4/revolution

Vertical feed on handwheel

0.01/Graduation 2/revolution

Wheer size (outer diameter width inner diameter)

￠350×400×￠127

Spindle motor (kw)

4

Spindle speeds (rpm)

1440

cooling pump (kw)

0.04

Surface roughness (μm)

Ra0.63

The machined surface of the base of
parallelism (MM)

300：0.005

Packing size(L×W×H)

2000*1700*2100

Gross、Net (KG)

1500/1440
