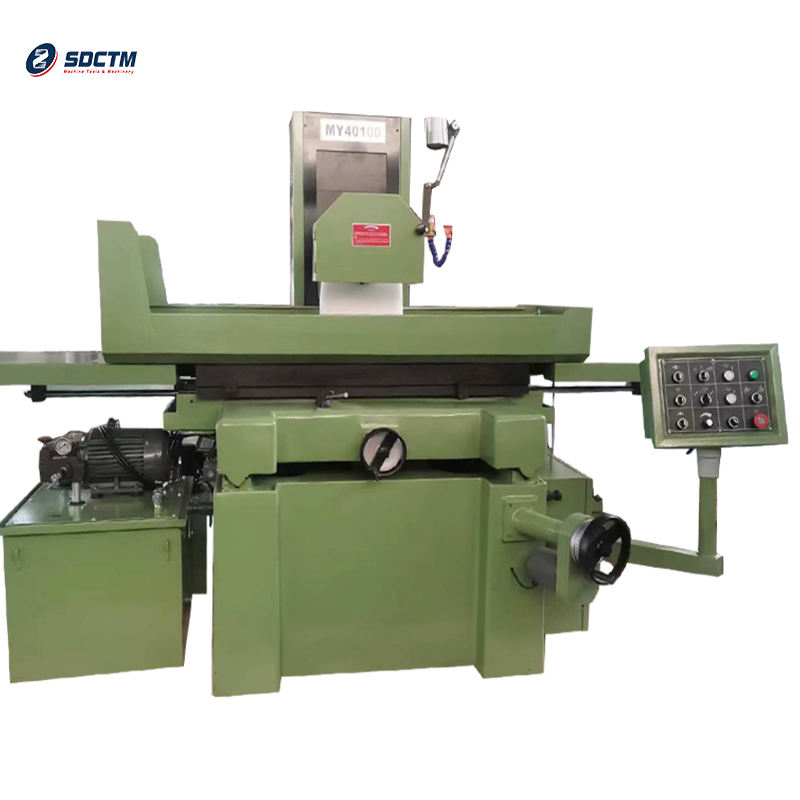

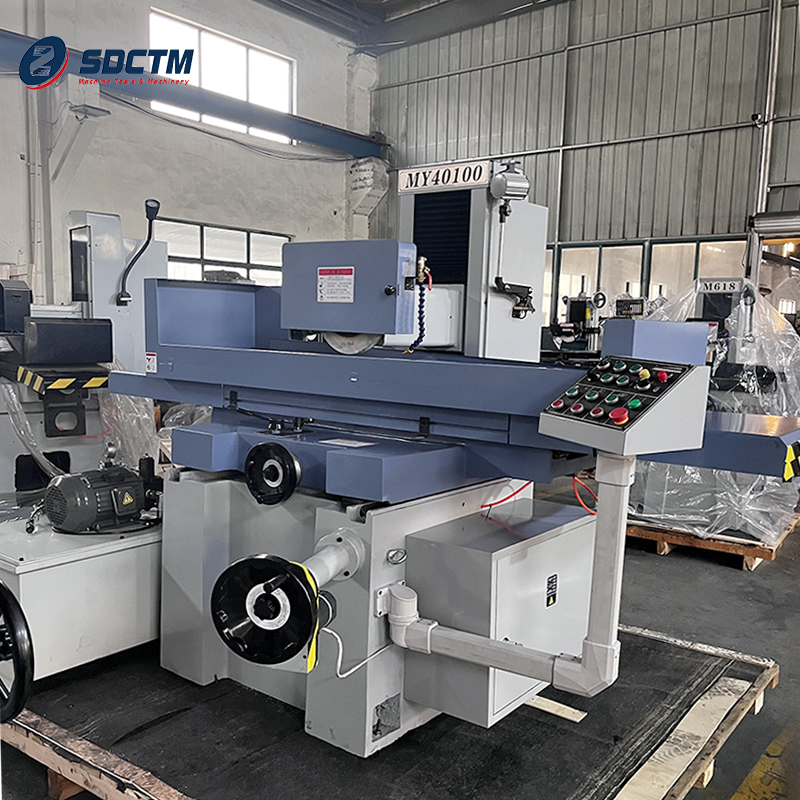

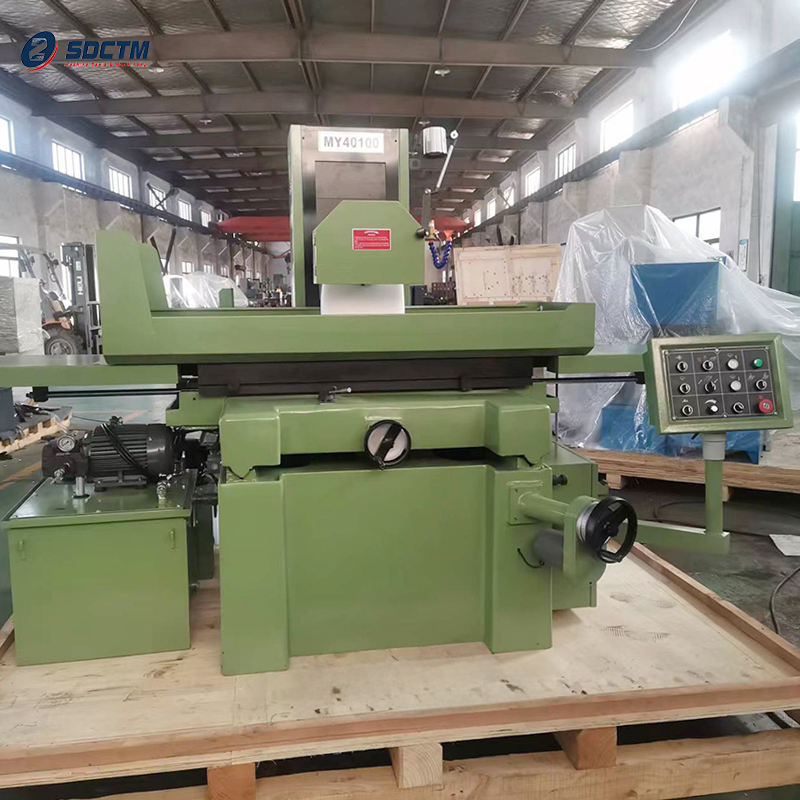

MY40100
Parameters of surface grinding machine
Model | MY40100 surface grinding machine |
Table size(W×L)(mm) | 1000*420 |
Max.Grinding Length(mm) | 1000 |
Max.Grinding width(mm) | 420 |
Max.distance from spindle center to table(mm) | 500 |

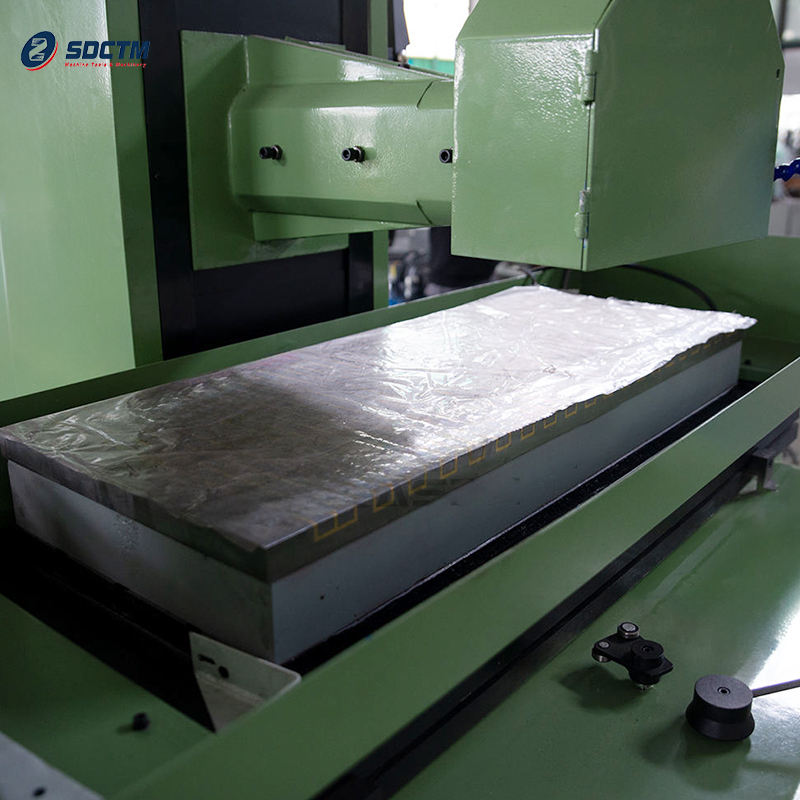

Magnetic chuck size(mm) | 400*1000 |
Table transverse movement auto feed(mm/min) | 4-26 |
Table transverse movement Rapid speed(m/min) | 600 |
Table transverse movement Feed of handwheel(mm/div.) | 0.02 |
Wheelhead vertical movement Rapid speed (mm/min) | 610 |
Wheelhead vertical movement Rapid speedFeed of handwheel (mm/div.) | 0.01 |
Grinding wheel Speed (rpm) | 50Hz 1450 |
Grinding wheel Size(mm) | 300×32×127 |
Surface roughness (um) | ≤Ra0.32-Ra0.63 |
The machined surface of the base of parallelism (MM) | 300：0.005 |
Spindle Motor(kw) | 5.5 |

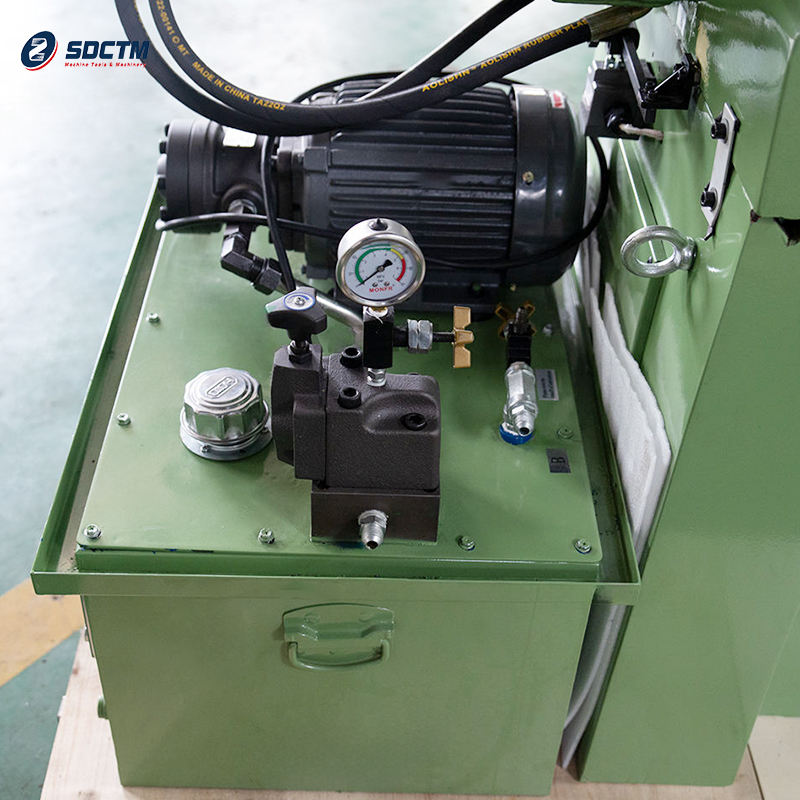

Hydranlic Motor(kw) | 2.2 |
Cooling pump motor(kw) | 0.09 |
Cross feed motor(kw) | 0.06 |
Max.loading capacity of table(include magnetic chuck)(kg) | 100 |
Packing size(L×W×H)(mm) | 2950*2020*2200 |
Gross、Net (KG) | 2800/2600 |
MY40100 Surface grinding machine precision spindle Taiwan integrated spindle.P4 precision bearing with low noise and no vibration at speed, high precision Manual scraping The guide rail is manually and precisely scraped, which can effectively accumulate lubricating oil and ensure accuracy Resin cast iron All castings are produced using resin sand cast iron method, and the natural aging is not less than one year for long-term use Guide rail form Through precise grinding and precise scraping, ensure the accuracy and stability of equipment

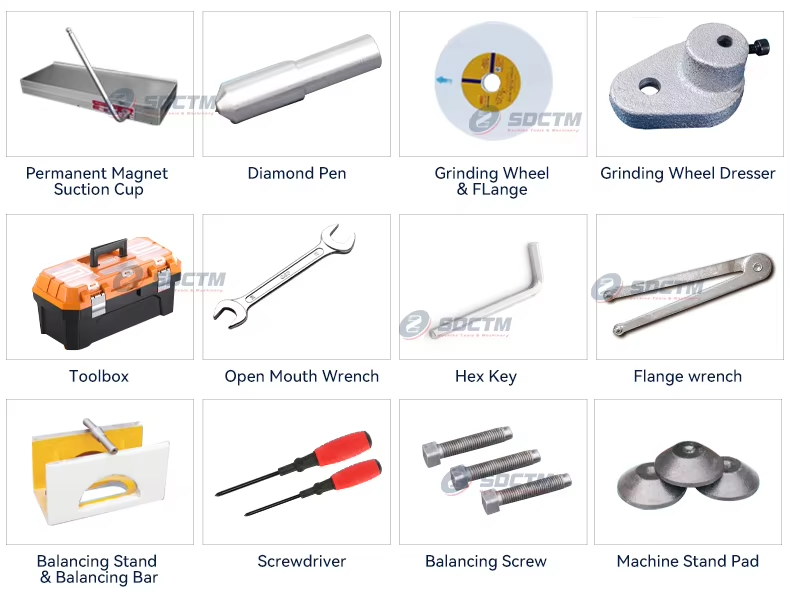

standard configuration of surface grinding machine

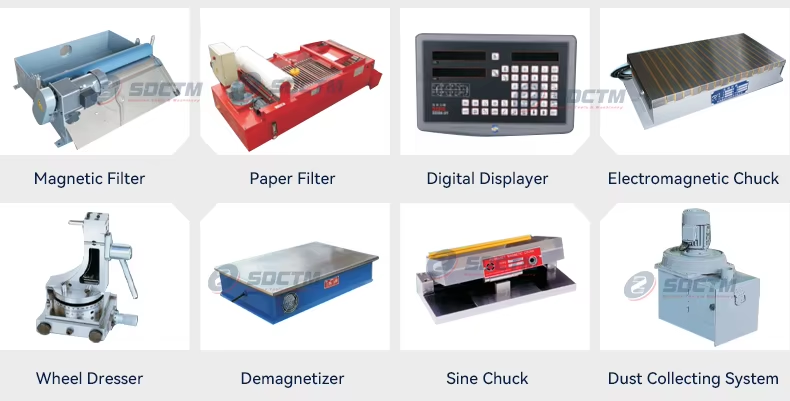

Special accessories for surface grinding machines
