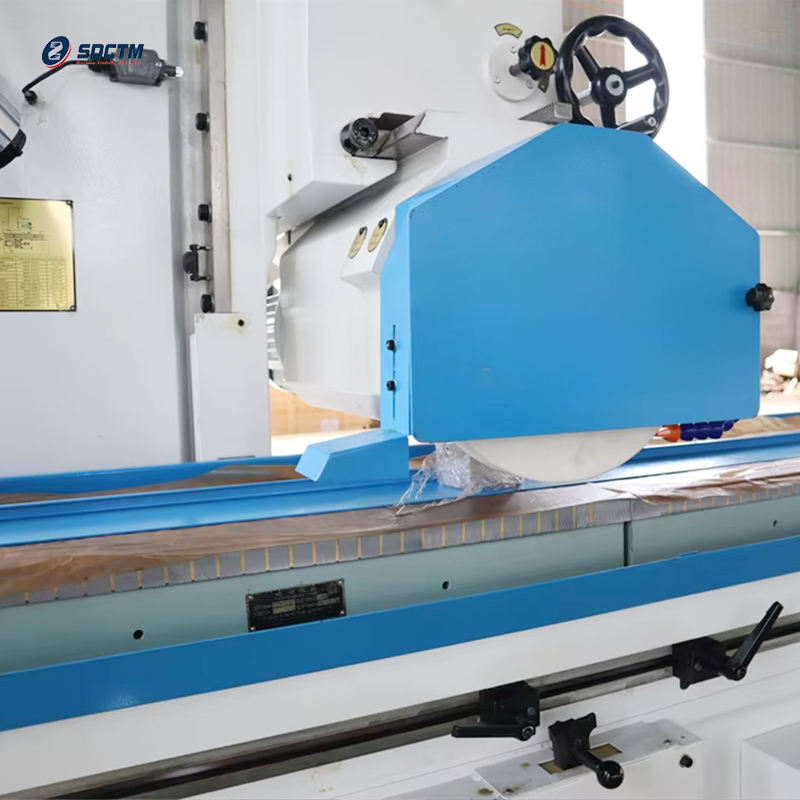

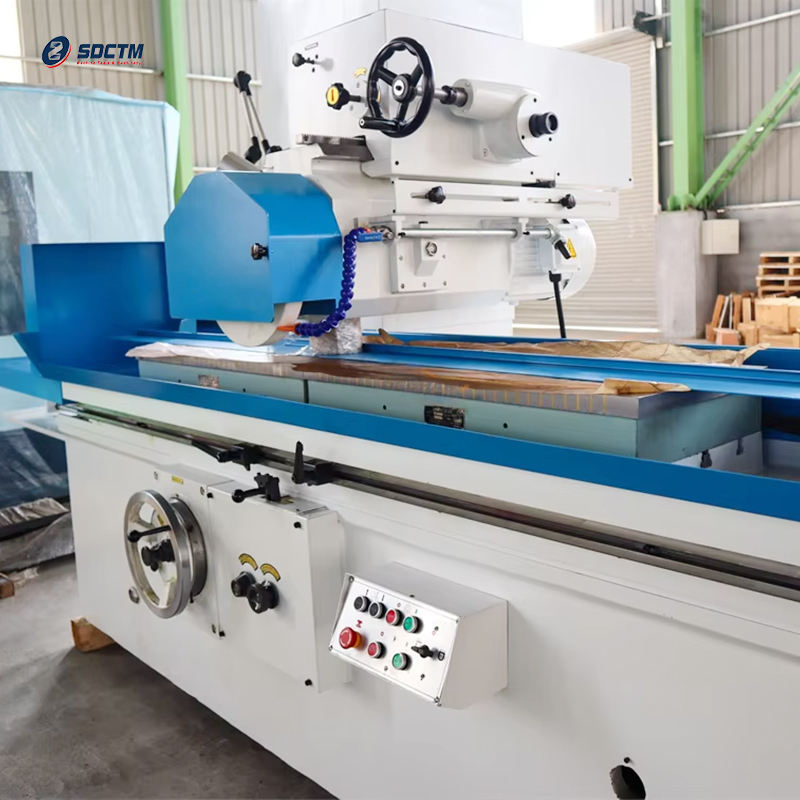

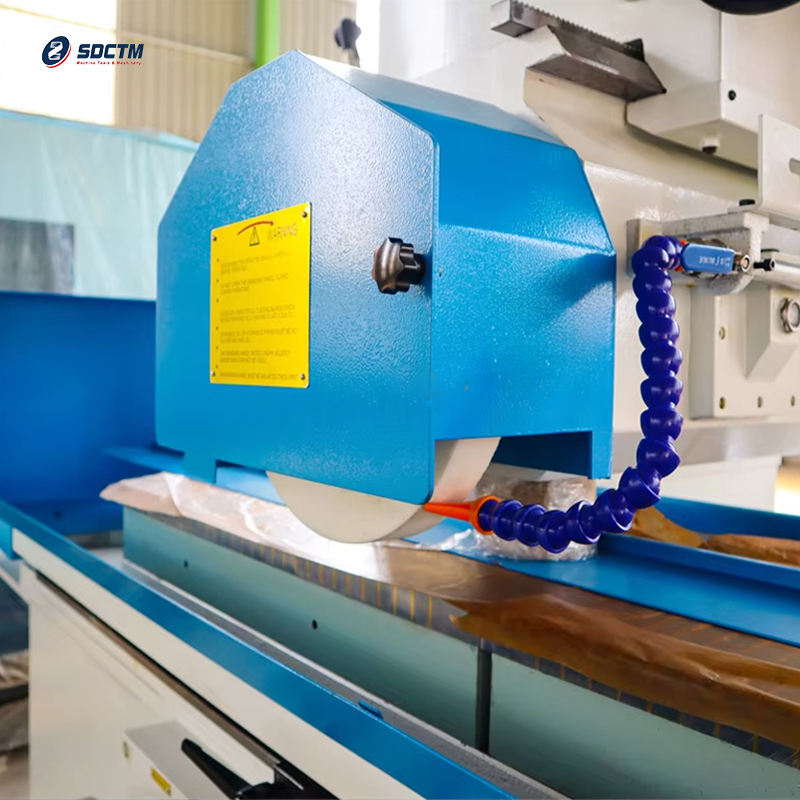

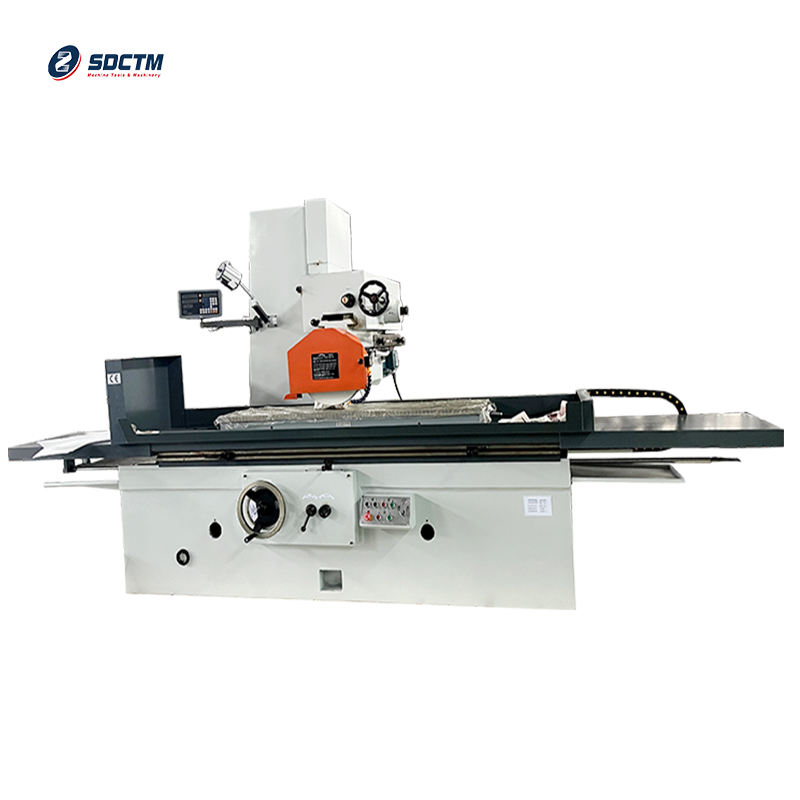

M7150*1600 Universal Industries Surface Grinding Machine Applicable for Motor Engine Gear with PLC Core Components

Share to:

M7150*1600 Universal Industries Surface Grinding Machine Applicable for Motor Engine Gear with PLC Core Components

M7150*1600 Surface Grinder grinds The left and right movements of the machine table and the forward and backward movements of the grinding head are hydraulically driven with infinitely variable speed regulation. The forward and backward movement of the grinding head can also be operated manually. The vertical direction of the grinding head is equipped with a quick lifting mechanism in addition to manual feed, which reduces labour intensity and improves efficiency.

Availability:

Quantity:



Inquire Add to Basket

Model:
M7150*1600

Product Description

Parameters of surface grinding machine

Hydraulic surface grinder machine					M7150*1600
Working table	Table Size (L× W)			mm	1600*500
	Max Longitudinal movement of work table			mm	1700
	T -Slot number×width				5×18
	Speed of work table(stepless)			m/min	3--25
Grinding head	Max distance from spindle center to table surface			mm	800
	Max movement of grinding wheel	Cross movement(Manual and Hydraulic)		mm	580
	Max movement of grinding wheel	Vertical movement(Manual)		mm	500
	Spindle speed			rpm	1440
	Wheel Size(Outer diameter×width×Inner diameter)			mm	φ400×40×φ127
	Scale on the vertical handwheel			mm	0.01
	Vertical movement of wheel head of per handwheel			mm	1
Total power of motor				kw	15
Grinding wheel motor			Power	kw	9
Grinding wheel motor			Speed	r/min	1440
Rapid up-down motor			Power	kw	0.55
Rapid up-down motor			Speed	r/min	1450
Oil pump motor			Power	kw	5.5
Oil pump motor			Speed	r/min	960
Coolant pump motor			Power	kw	0.125
Coolant pump motor			Speed	r/min	2800
Oil pump			Flow	L/min	125
Oil pump			Working pressure	MPa	1.5
Working precision			The parallelism of working surface to base level	mm	1000:0.015
Working precision			Surface roughness	µm	Ra0.63
Weight			N/G	kg	5600/6300
Overall dimension(L×W×H)				mm	4500x2000x2800

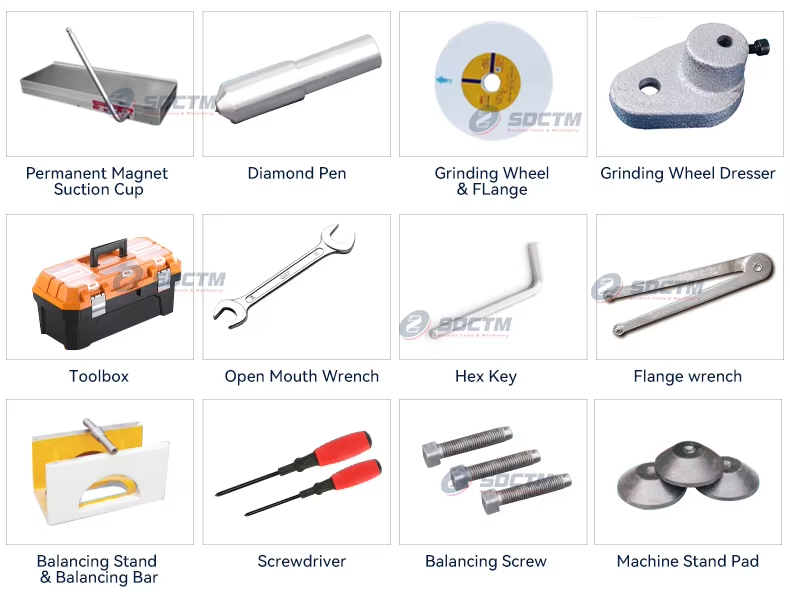

standard configuration of surface grinding machine

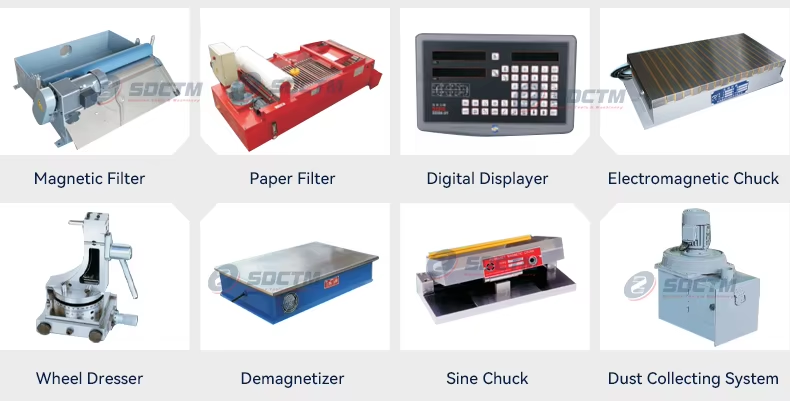

Special accessories for surface grinding machines
