In the fast-paced world of precision manufacturing, efficiency, accuracy, and versatility are the keys to staying competitive. For small to medium-sized machine shops, metal fabricators, and production facilities, the Vertical Machining Center (VMC) has emerged as an indispensable tool—combining ease of use, cost-effectiveness, and high-performance capabilities to handle a wide range of machining tasks. Whether you’re producing automotive components, mold inserts, or custom metal parts, understanding how a VMC works, its key benefits, and how to choose the right model can transform your production workflow and boost your bottom line.

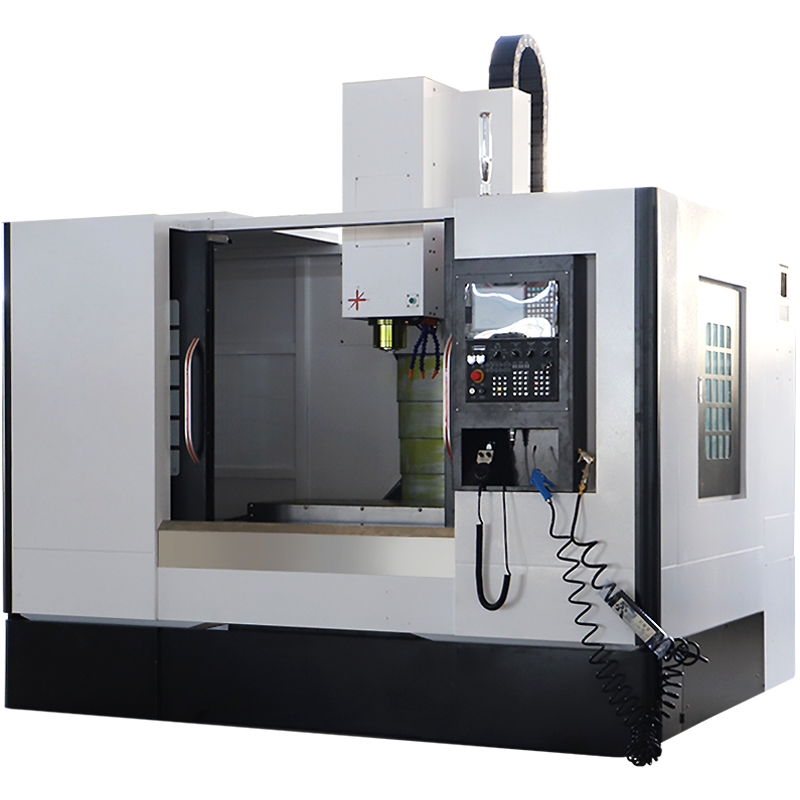

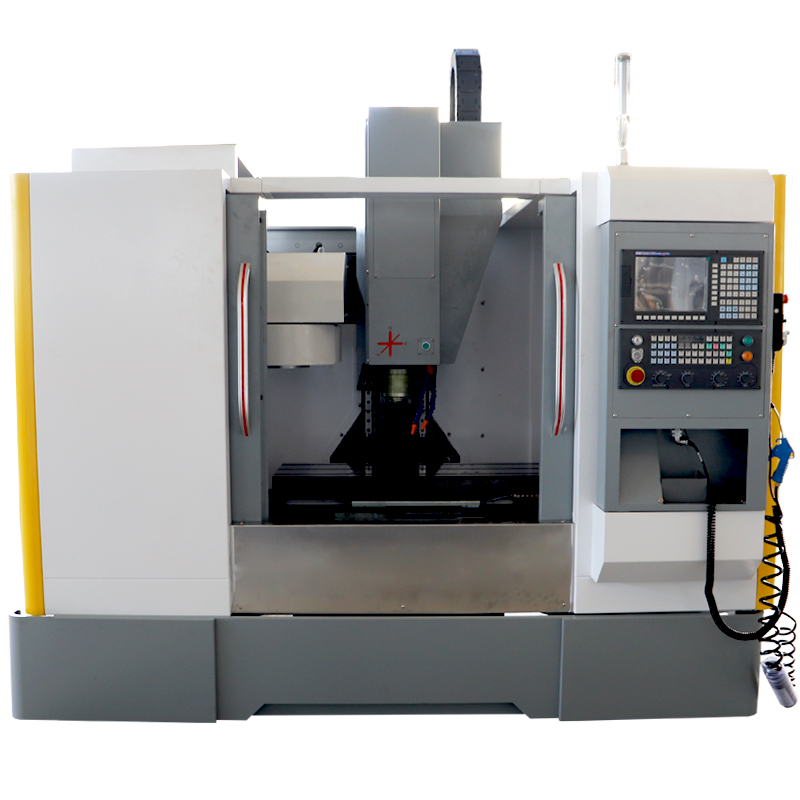

A Vertical Machining Center (VMC) is a type of CNC (Computer Numerical Control) machine tool where the primary cutting spindle is oriented vertically, facing downward toward the workpiece. The workpiece is mounted on a horizontal table, which moves along the X, Y, and Z axes to position the material under the rotating cutting tool. This vertical orientation offers unique advantages, including better visibility of the machining process, easier chip evacuation, and compatibility with a wide range of fixturing options.
Unlike gantry machining centers— which feature a bridge-like structure for heavy-duty, large-part machining—VMCs are compact, flexible, and ideal for small to medium-sized workpieces. They can perform a variety of operations in a single setup, including milling, drilling, tapping, boring, and contouring, making them a versatile solution for diverse manufacturing needs.
For manufacturers looking to improve productivity and part quality, VMCs offer a range of compelling advantages that make them a top choice for modern production lines:
VMCs are engineered for high accuracy, with positioning and repeatability levels reaching micrometer precision (typically ±0.005mm for positioning and ±0.003mm for repeatability). This ensures consistent part quality across batches, reducing waste and rework. The vertical spindle design, combined with high-rigidity cast iron beds and precision linear guides, minimizes vibration and deflection during cutting—critical for maintaining accuracy, especially when working with hard materials like stainless steel or cast iron.
Compared to horizontal machining centers or gantry machines, VMCs are more affordable both in terms of initial purchase and long-term operation. They require less floor space, consume less energy, and have lower maintenance costs—making them accessible for small machine shops, startups, and businesses with limited budgets. Additionally, their versatility eliminates the need for multiple specialized machines, reducing capital expenditure and optimizing workshop space.
VMCs are designed with user-friendliness in mind, even for operators with basic CNC experience. The vertical orientation aligns with standard mechanical drawing perspectives, making programming, tool setup, and workpiece inspection more intuitive. With automatic tool changers (ATCs) and large tool libraries (typically 24–30 tools), VMCs can quickly switch between operations, reducing non-cutting time and improving workflow efficiency. They also support flexible production, allowing manufacturers to easily switch between different part designs by updating the CNC program—perfect for small-batch production and custom orders.
One of the biggest advantages of the vertical spindle design is natural chip evacuation. Gravity helps pull chips away from the cutting area, preventing chip buildup that can damage tools, scratch workpieces, or cause machine jams. This not only improves part quality but also extends tool life and reduces downtime for chip cleaning.
VMCs are highly scalable, with options to add accessories like fourth-axis indexers, coolant systems, or automation solutions (such as robotic loaders) as your business grows. This flexibility allows you to adapt to changing production needs, from prototyping to full-scale mass production. Many modern VMCs also support Industry 4.0 integration, enabling real-time monitoring, remote operation, and data-driven process optimization.
VMCs are used across a wide range of industries, thanks to their versatility and precision. Some of the most common applications include:
Automotive Industry: Machining brackets, engine components, fixtures, and aluminum housings for cars, trucks, and EVs.
Mold and Die Making: Producing mold inserts, small to medium cavities, and electrodes with high precision.
Aerospace and Defense: Manufacturing small precision components, brackets, and structural parts from lightweight materials like aluminum alloys.
General Machining: Creating custom metal parts, hardware, and tooling for small machine shops and fabrication businesses.
Medical Device Manufacturing: Producing intricate, high-precision components for medical implants and equipment.
Selecting the right VMC depends on your specific production needs, budget, and long-term goals. Here are key factors to consider:
Start by identifying your core needs: the size and weight of workpieces (to determine X/Y/Z axis travel), the materials you’ll be machining (soft materials like aluminum require high-speed spindles, while hard materials need high-rigidity spindles), and the precision level required. For example, standard parts may only need basic precision, while medical or aerospace components require full closed-loop grating for enhanced accuracy.
Spindle Speed and Power: Choose a spindle speed (rpm) and power that matches your materials—10,000–15,000 rpm for soft materials, and lower speeds with higher torque for hard materials.
Tool Changer Capacity: A larger tool library (24+ tools) reduces tool change time for complex jobs.
Bed Material and Construction: Look for HT300-grade cast iron beds with double aging treatment for improved rigidity and stability.
CNC System: Opt for reliable systems like Fanuc or Siemens for ease of use and compatibility with automation.
Choose a manufacturer or supplier that offers comprehensive after-sales support, including 24/7 technical assistance, on-site service, and access to spare parts. A reliable service network minimizes downtime and ensures your VMC operates at peak performance for years.
Steer clear of low-cost VMCs with subpar components (e.g., unbranded linear guides or spindles), as they often have higher failure rate and shorter lifespans. Also, don’t overpay for unnecessary features—focus on the configurations that align with your actual production needs.
At Tengzhou Baiqing Machine Tool Co., Ltd., we specialize in high-quality, cost-effective vertical machining centers designed for small to medium-sized manufacturers. Our VMCs are built with premium components—including Taiwanese linear guides, Jianchun spindles, and Fanuc CNC systems—to ensure reliability, precision, and long-term performance.
We understand the unique challenges of small businesses, which is why we offer flexible configurations, competitive pricing, and localized after-sales support. Whether you need a compact VMC for small parts or a larger model for complex machining tasks, we can customize a solution that fits your budget and production goals.
A Vertical Machining Center is more than just a machine—it’s an investment in your business’s efficiency, quality, and growth. By choosing the right VMC, you can streamline your production process, reduce costs, and stay competitive in today’s demanding manufacturing landscape. Whether you’re new to CNC machining or looking to upgrade your existing equipment, a VMC offers the versatility and performance you need to take your operations to the next level.
Ready to find the perfect Vertical Machining Center for your business? Contact us today to discuss your requirements and get a personalized quote.
