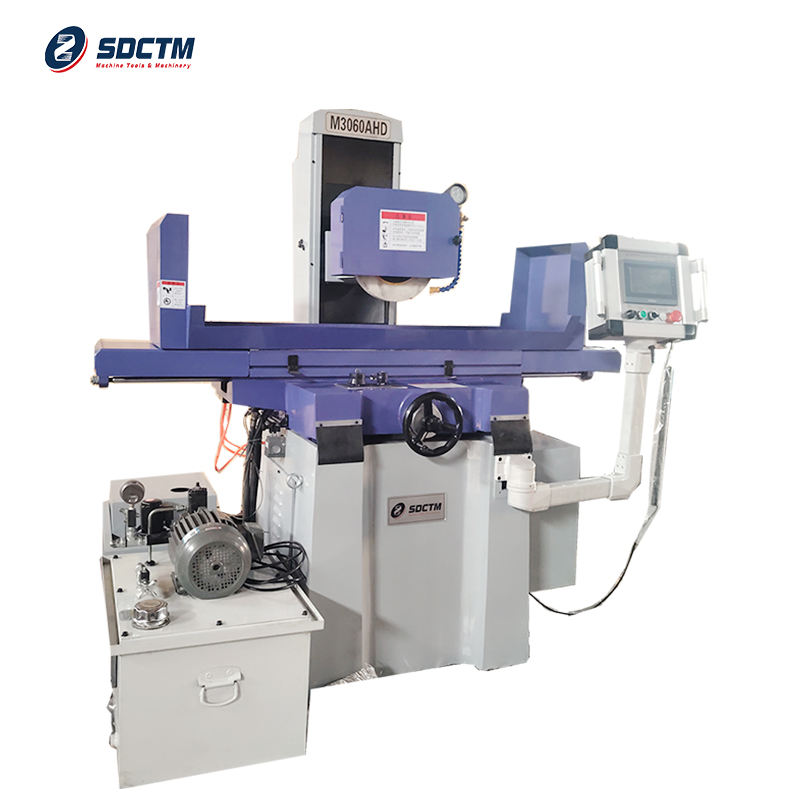

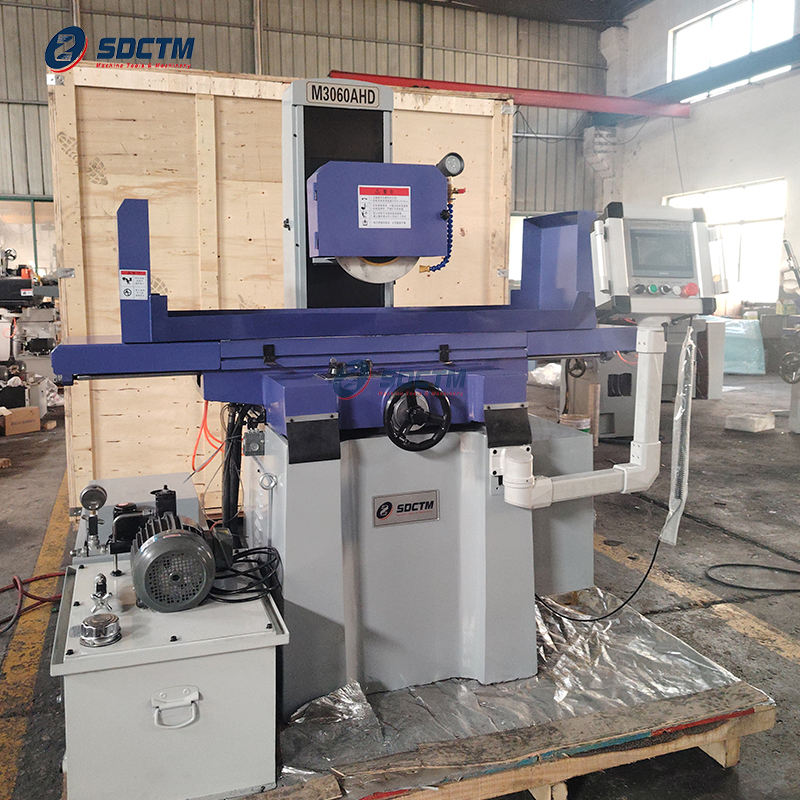

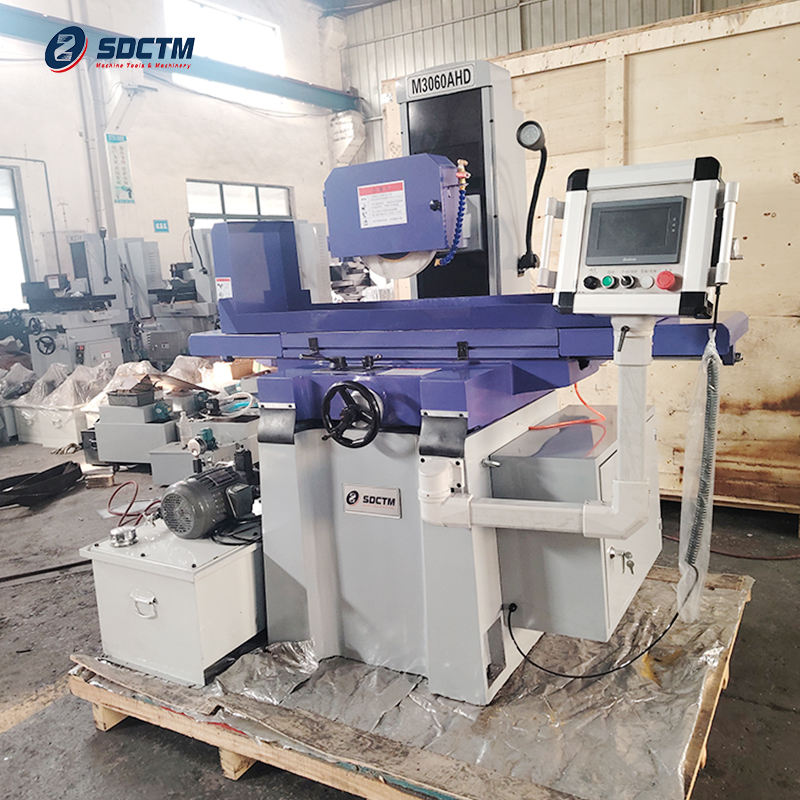

Hot Sales High Precision M3060AHD Cnc Surface Grinding Machine M3060AHD Surface Grinder for Metal

CNC surface grinder M3060AHD surface grinding nachine:

1. Quality castings and precision ball bearing supporting the spindle.
2. Coolant system with nozzle and flow control valve.
3.Cast iron machine body and stand for maximum rigidity and smooth operation available.
4.The grind head perpendicular feed is manual.
5.Can be used to assist in cutting and grinding work-piece.
6.Compact structure.

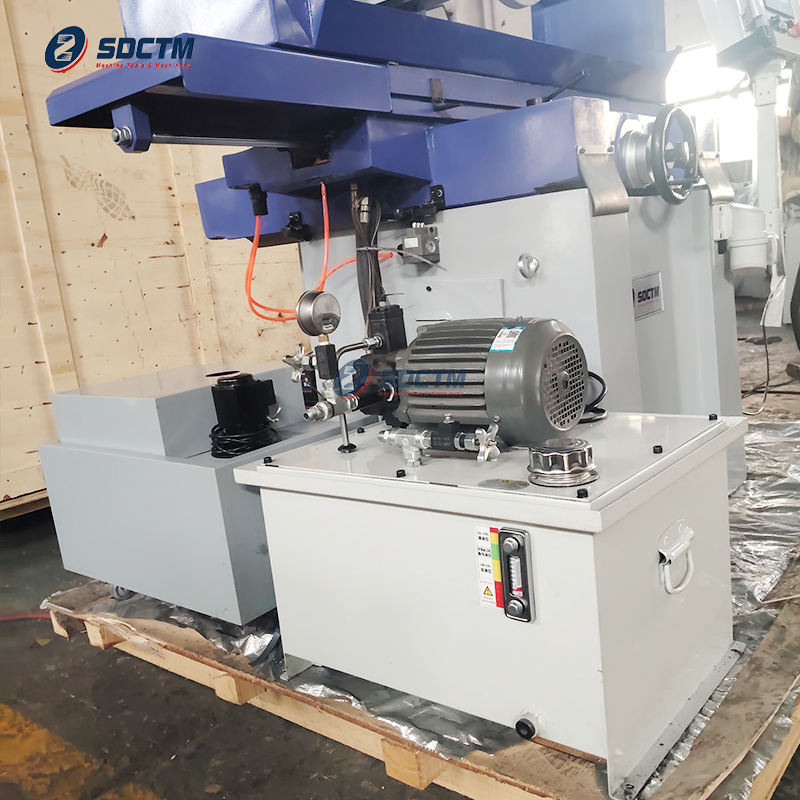

7. Hydraulic transmission on longitudinal.

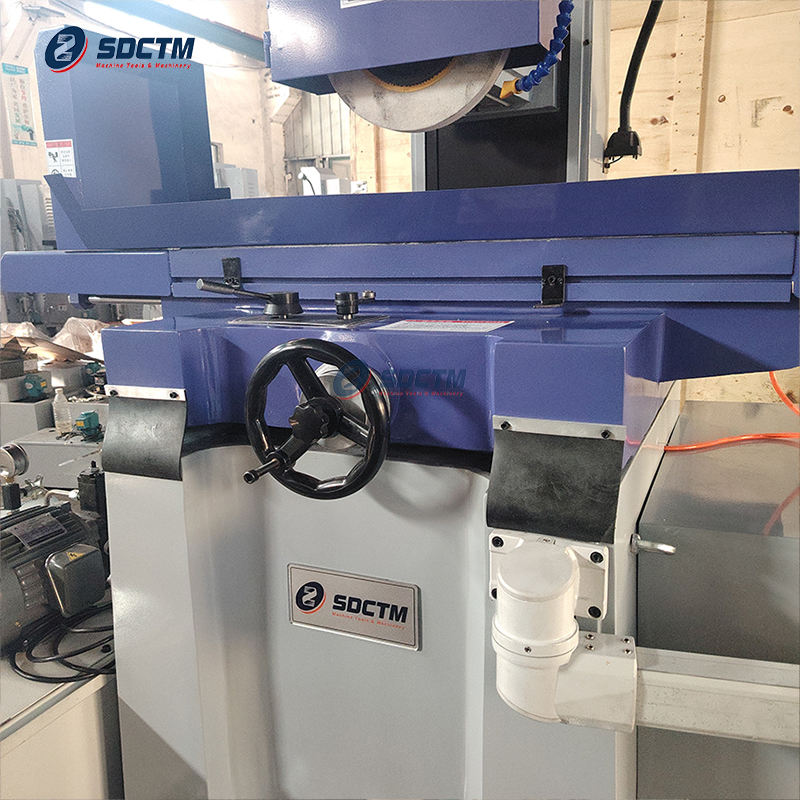

8.Manual and auto feed on transverse.
9.DRO can be selected.
10.L-R hand wheel can be selected.

Specifications

Unit

MY3060AHD

Working table size

mm

300*600

Maximum left and right travel

mm

620

Maximum front and back travel

mm

300

Maximum distance from table surface to spindle center

mm

500

Maximum bearing weight of working table

kg

200(include magnetic chuck)

T slot size

mm*n

14*1

Working table speed

mm/min

4-26

Horizontal feed handwheel feed rate

mm

0.02/Graduation 4/revolution

Vertical (up and down) feed wheel feed

mm

0.01/Graduation 2/revolution

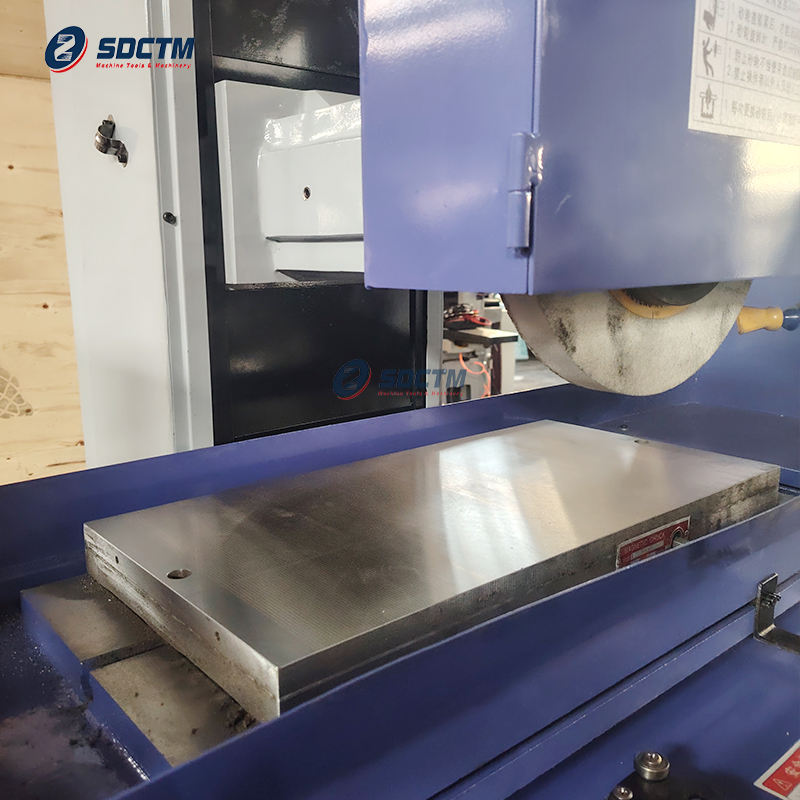

Grinding wheel size

mm

Φ350mm×40×φ127 mm

Spindle speed 50Hz/60Hz

rpm

1440/1580

Spindle motor

kw

4

Cooling pump motor

kw

0.04

Water scouring motor

w

120

Front and rear drive motor

w

80

Machine Size

mm

2000*1700*2100

Package dimensions

mm

2250*1850*2300

Net weight/ Gross weight

kg

1450/1550
