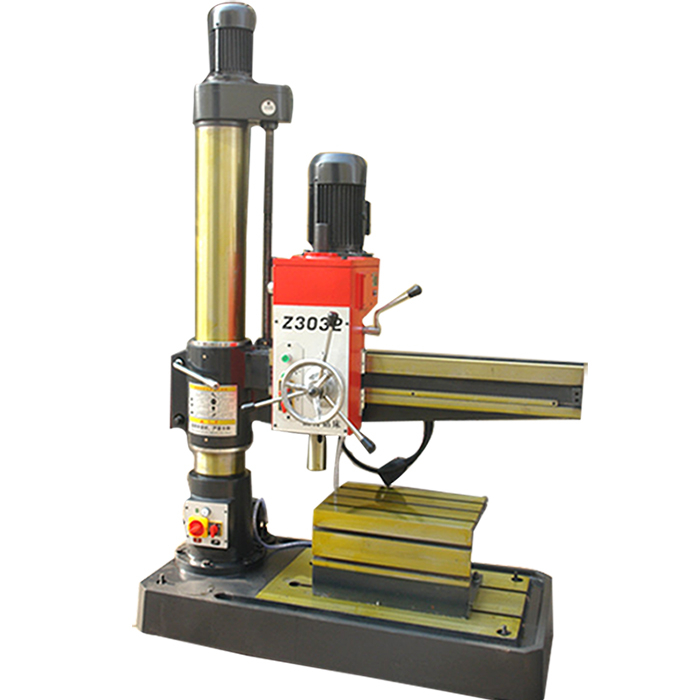

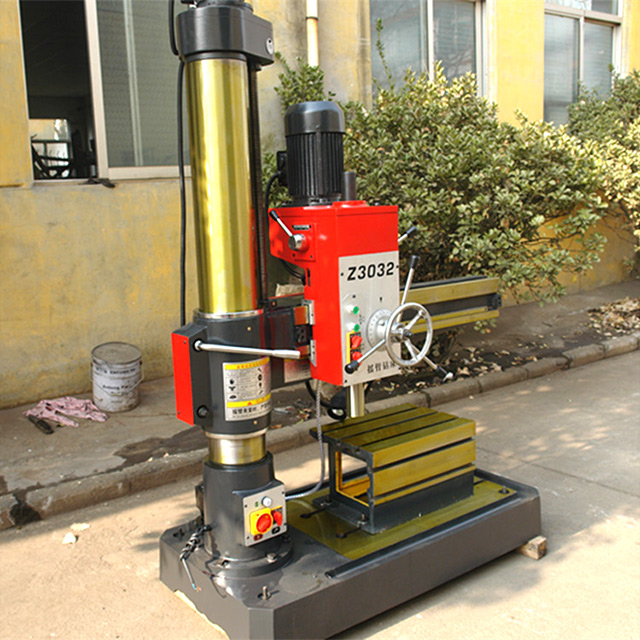

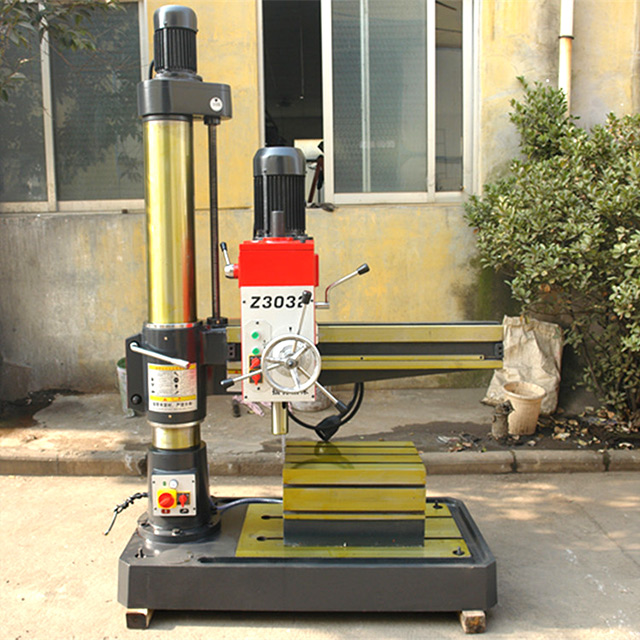

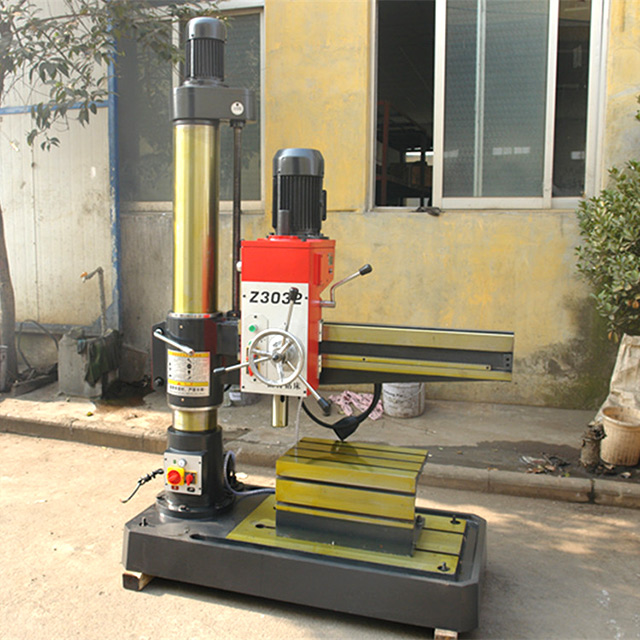

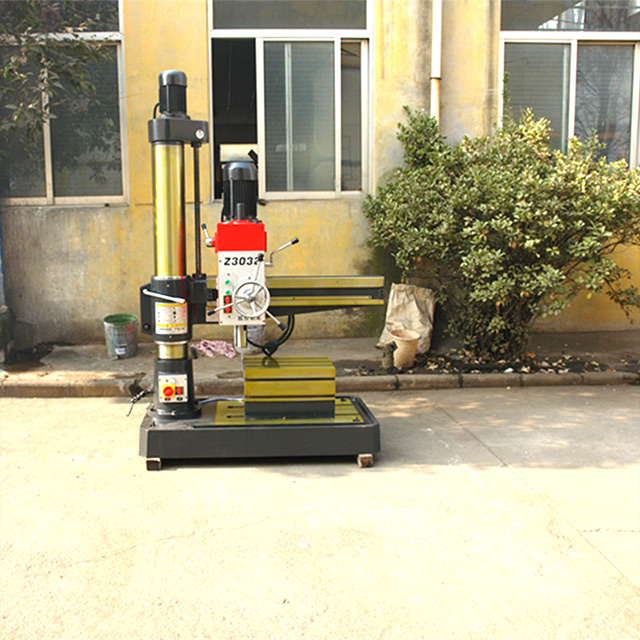

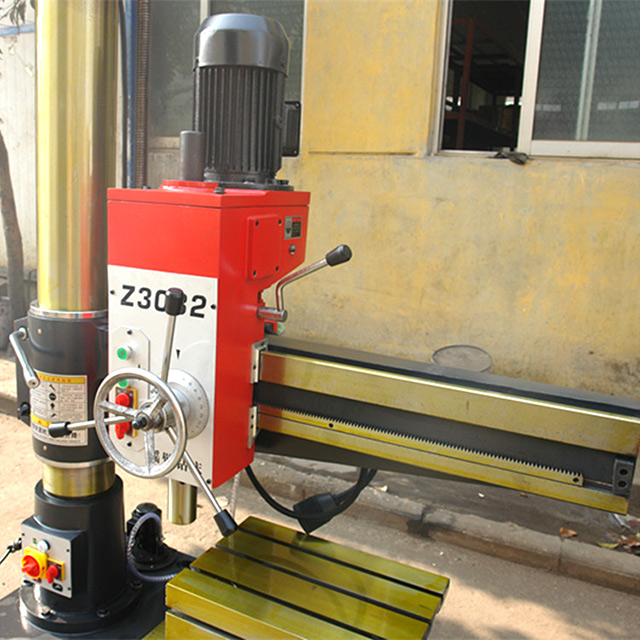

High Precision Z3032 Radial Drilling machine hydraulic drilling machine

Availability:

Quantity:



Inquire Add to Basket

Model:
Z3032

Product Description

Product description:
1. Appearance beautiful appearance, the overall layout of symmetry and coordination.
2. Adopt mechanical drive, mechanical clamping, mechanical speed change operation is simple.
3. Guide rail after ultra high frequency quenching.
4. Reliable structure, excellent manufacturing, to ensure the accuracy of the machine tool.
5. To increase the machining range of drilling, boring, tapping, threading, countersink flat, drilling, reaming and reaming functions.Widely used in large, medium and small enterprises, villages and towns and individual industrial machining.

Specifications	Units	Z3032×10
Max. drilling diameter	mm	Φ32
Column diameter	mm	200
Distance of headstock horizontal movement	mm	710
Distance spindle nose and working surface of base	mm	330-1060
Rocker arm lift distance	mm	730
Spindle travel	mm	120
Spindle taper		MT4
Spindle speeds range	r/min	108 162 262 398 665 1000(6 steps)
Spindle feeding range	mm/r	0.10 0.16 0.25(3 steps)
Max. spindle allows feed resistance	N	5300
Rocker arm lifting speeds	m/min	1.21
Rocker rotary angle	°	+ 90°
Main motor power	kw	1.5/2.2
Lifting motor power	kw	0.55
Cooling pump motor power	kw	0.04
Net weight	kg	1080
Overall dimensions(L×W×H)	mm	1400×660×2060

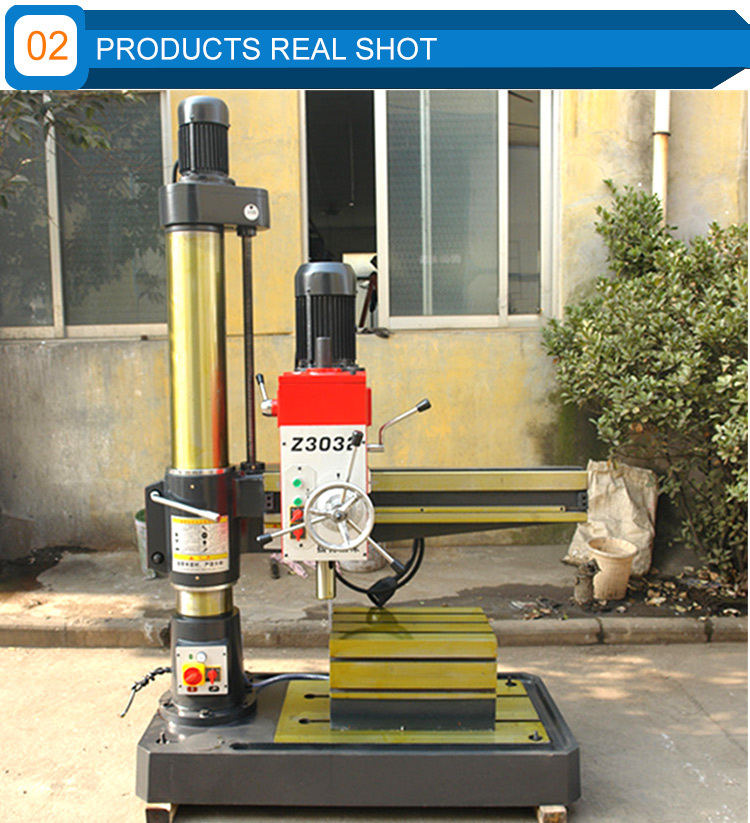

Z3032_05

FAQ

1. How can I choose the most suitable machines?
Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the product drawing, we will choose the most suitable machines for you.
2. What are the main products of your company?
We specialized in CNC Machining Center, Milling Machine, Drilling Machine, Lathe Machine, Sawing Machine, Presses and Shears, Shaping Machine, Slotting Machine, Gear Hobbing Machine, Air Forging Hammer, Surface Grinder, Universal Cylindrical Grinder and so on.
3. Where is our factory located?

Our factory is located in Tengzhou City, Shandong Province, China. You are warmly welcomed to visit us.

4. How long is the delivery time?
For standard machines, it would be around 30 days; For customized machines according to the client’s requirements, it would be a little longer.

5. How can I make the payment?

We can make the deal online platform, you can pay by T/T or Credit card. You can also pay for my company's business bank account. You can also choose L/C or other ways.

6. What's the MOQ?
1 set. (Only some low-cost machines will be more than 1 set )
