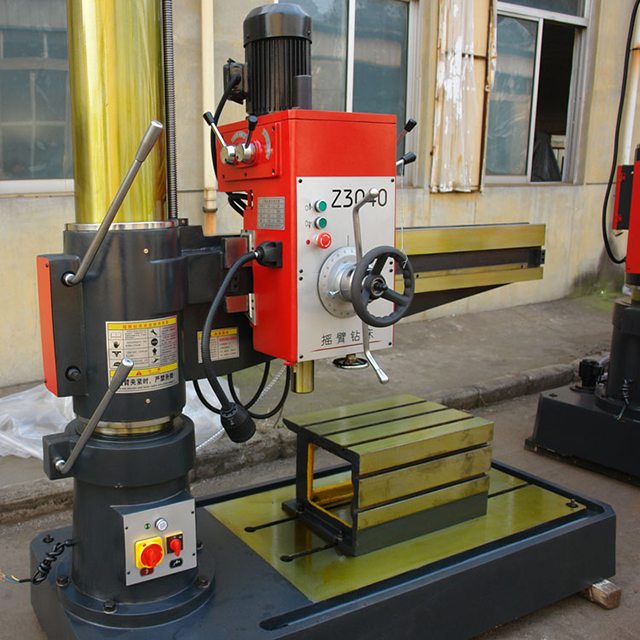

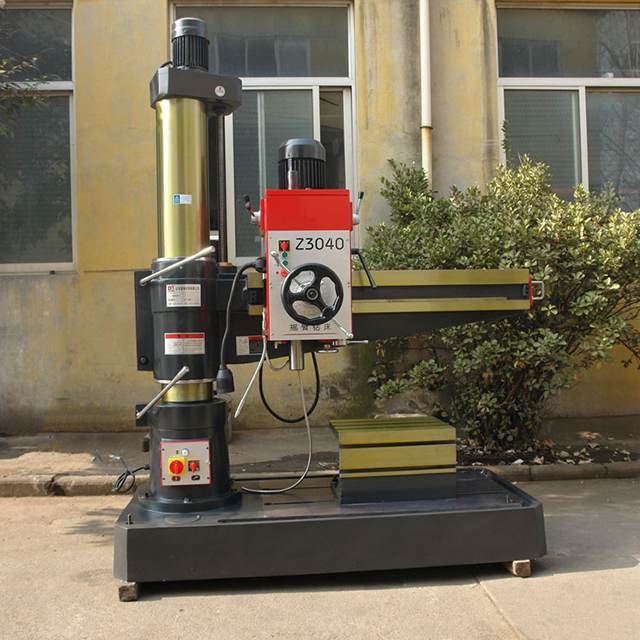

vertical drilling machine Z3040*10 mechanical radial bench drilling machine for metal

Availability:
Quantity:
  • Z3040

Product Description

hydraulic drilling machine for manufacturing Plant Z3040 drilling machine

Z3050_01
Product main technical parameters:
Model
Z3040
Max.drilling dia (mm)
40
Distance from spindle nose to table surface (mm)
330-1050
Distance from spindle axis to column surface (mm)
170-1100
Spindle travel (mm)
315
Spindle taper(MT)
4
Spindle speeds range(r.p.m)
75, 130,240,380,660,1200
Spindle speed steps
6
Spindle feeding range(mm/r)
0.10/0.16/0.25
Spindle feeding steps
3
Rocker rotary angle (°)
±90°
Main motor power (kw)
2.2
Maximum resistance to the spindle(N)
6300
Movements motor power (kw)
0.75
Net weight (kg)
3200
Overall dimensions (mm)
2500*1060*2650


FAQ

1. How can I choose the most suitable machines?
Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the product drawing, we will choose the most suitable machines for you.
2. What are the main products of your company?
We specialized in CNC Machining Center, Milling Machine, Drilling Machine, Lathe Machine, Sawing Machine, Presses and Shears, Shaping Machine, Slotting Machine, Gear Hobbing Machine, Air Forging Hammer, Surface Grinder, Universal Cylindrical Grinder and so on.
3. Where is our factory located?

Our factory is located in Tengzhou City, Shandong Province, China. You are warmly welcomed to visit us.

4. How long is the delivery time?
For standard machines, it would be around 30 days; For customized machines according to the client’s requirements, it would be a little longer.

5. How can I make the payment?

 We can make the deal online platform, you can pay by T/T or Credit card. You can also pay for my company's business bank account. You can also choose L/C or other ways.

6. What's the MOQ?
1 set. (Only some low-cost machines will be more than 1 set )
