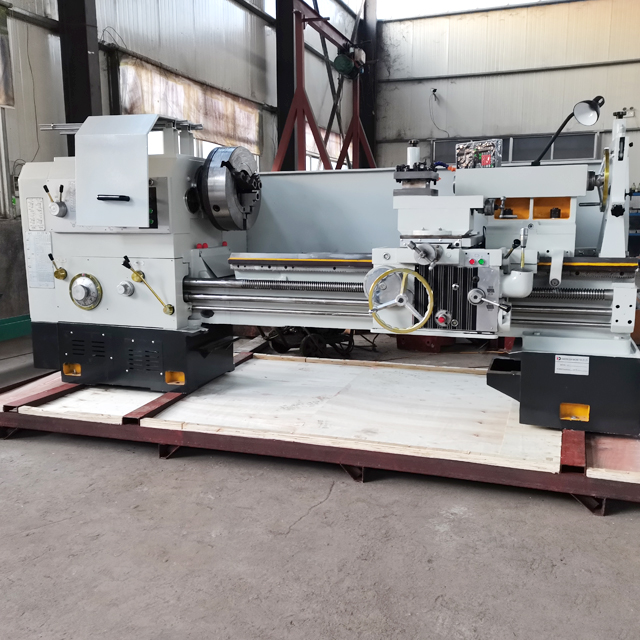

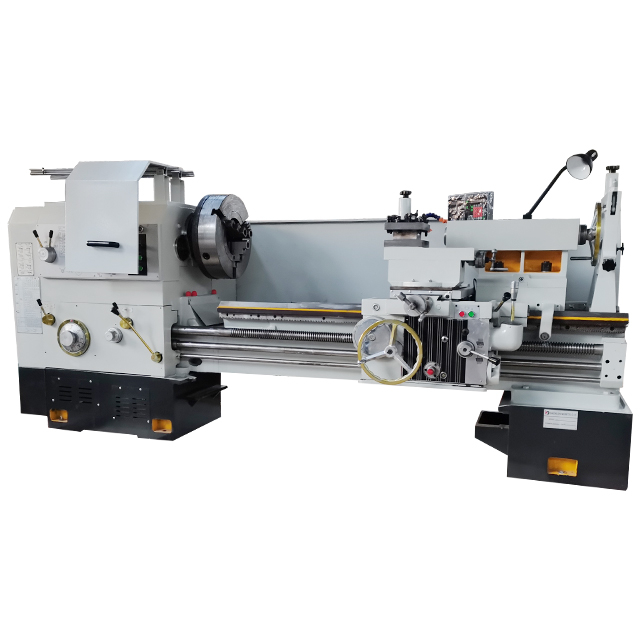

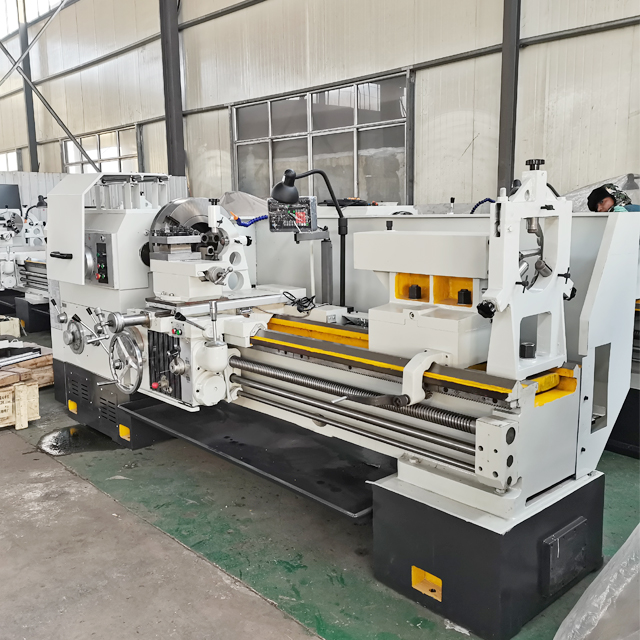

CW6180
FEATURES
1. One-piece bed adopts high strength iron to ensure rigidity and precision

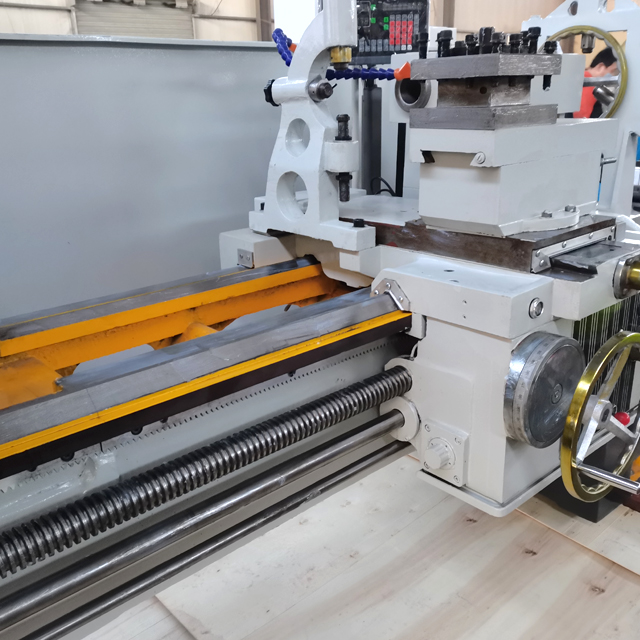

2. Ultrasonic frequency quenched guide-ways ensure good wear-resistance
3. Headstock gears hardened and ground to achieve precision and low noise
Product main technical specification:
| Specification | Unit | CW6180 |
| Swing over bed | mm | 800 |
| Swing over gap | mm | 1000 |
| Swing over cross slide | mm | 520 |
| Distance between centers | mm | 1500/2000/3000/ 4000/5000/6000 |
| Guideway width | mm | 550 |
| Max. load capacity | T | 3 |
| Spindle bore | mm | 104 |
| Spindle bore taper | - | Metric φ120/MT5 |
| Spindle nose type | - | C11 |
| Spindle speed steps | - | FWD. 18 steps |
| Spindle speed range | rpm | 6-800 |

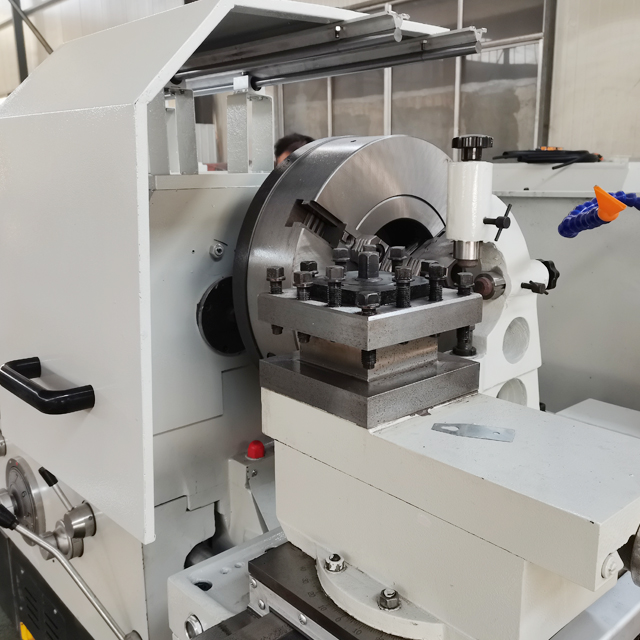

| Chuck | mm | φ315 3-jaw manual |
| Turret/tool post | - | Manual turret 4 position |
| Tool shank size | mm | 30 x 30 |
| X axis travel | mm | 420 |
| Z axis travel | mm | 1350/1850/2850/ 3850/4850/5850 |
| X axis feed grade/range | mm/r | 64/0.05-12.15 |
| Z axis feed grade/range | mm/r | 64/0.1-24.3 |
| X axis rapid traverse | mm/min | 2300 |
| Z axis rapid traverse | mm/min | 4000 |
| Metric thread grade/range | mm | 50/1-240 |
| Inch thread grade/range | T.P.I | 26/14-1 |
| Module thread grade/range | mm | 53/0.5-120 |
| DP thread grade/range | D.P. | 24/28-1 |
| Tailstock quill diameter | mm | φ100 |
| Tailstock quill taper | - | MT5 |
| Tailstock quill travel | mm | 250 |
| Main spindle motor | kW | 11 |
| Rapid traverse motor | kW | 1.1 |
| Coolant pump motor | kW | 0.125 |
| Width x Height | mm | 1500 x 1450 |
1. How can I choose the most suitable machines?
Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the product drawing, we will choose the most suitable machines for you.
2. What are the main products of your company?
We specialized in CNC Machining Center, Milling Machine, Drilling Machine, Lathe Machine, Sawing Machine, Presses and Shears, Shaping Machine, Slotting Machine, Gear Hobbing Machine, Air Forging Hammer, Surface Grinder, Universal Cylindrical Grinder and so on.
3. Where is our factory located?
Our factory is located in Tengzhou City, Shandong Province, China. You are warmly welcomed to visit us.
4. How long is the delivery time?
For standard machines, it would be around 30 days; For customized machines according to the client’s requirements, it would be a little longer.
5. How can I make the payment?
We can make the deal online platform, you can pay by T/T or Credit card. You can also pay for my company's business bank account. You can also choose L/C or other ways.
6. What's the MOQ?
1 set. (Only some low-cost machines will be more than 1 set )
