High Quality Low Price C6140 Horizontal Lathe Machines

Availability:

Quantity:



Inquire Add to Basket

Model:
C6140

Product Description

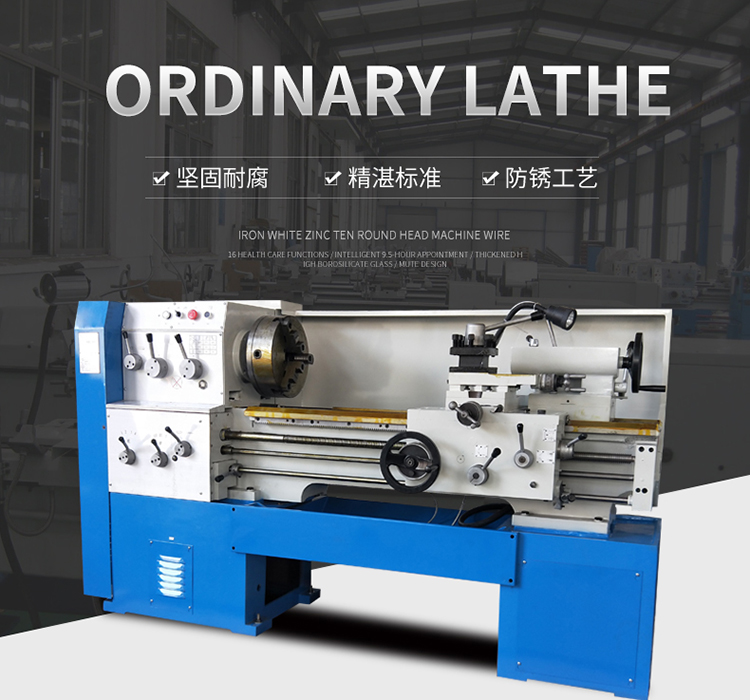

C6140普通车床海报图750

Features :
Rail width is 360mm
Thread processing need to change gears
Tool size is 20x20mm
Gears are steel of precision grinding and hardened

Specifications		C6140
Capacity	Max.Swing over bed	400mm
	Max. rotating diameter	238mm
	Max.swing over gap	630mm
	Center distance	750,1000,1500,2000mm
	Spindle hole	52mm(82mm)
Spindle	Spindle nose	ISO-C6
	Spindle tap	MT6
	Spindle speeds(Number)	36-1600rpm (9 Steps)
Feed	Metric threads range(Kinds)	0.5-14mm (18 Kinds)
	Inch threads range(Kinds)	2-40/inch (28 Kinds)
	Moudle threads range(Kinds)	0.25-3.5mπ (17 Kinds)
	Compound rest travel	150mm
	Cross slide travel	180mm
	Cross-section size of toolshank	20×20mm2
Tailstock	Dia.of tailstock sleeve	75mm
	Taper of tailstock sleeve	MT5
	Travel of tailstock sleeve	160mm
Main motor power		4/5.5KW
Machine size (LWH mm)	Overall dimensions for750mm	2100×1150×1550mm
	Overall dimensions for1000mm	2350×1150×1550mm
	Overall dimensions for1500mm	2850×1150×1550mm
	Overall dimensions for2000mm	3350×1150×1550mm
Weight(kg)	Weight for 750mm	1600kg
	Weight for 1000mm	1700kg
	Weight for 1500mm	1900kg
	Weight for 2000mm	2100kg

普通车床2_04

FAQ:

1. How can I choose the most suitable machines?
Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the product drawing, we will choose the most suitable machines for you.
2. What are the main products of your company?
We specialized in CNC Machining Center, Milling Machine, Drilling Machine, Lathe Machine, Sawing Machine, Presses and Shears, Shaping Machine, Slotting Machine, Gear Hobbing Machine, Air Forging Hammer, Surface Grinder, Universal Cylindrical Grinder and so on.
3. Where is our factory located?

Our factory is located in Tengzhou City, Shandong Province, China. You are warmly welcomed to visit us.

4. How long is the delivery time?
For standard machines, it would be around 30 days; For customized machines according to the client’s requirements, it would be a little longer.

5. How can I make the payment?

We can make the deal online platform, you can pay by T/T or Credit card. You can also pay for my company's business bank account. You can also choose L/C or other ways.

6. What's the MOQ?
1 set. (Only some low-cost machines will be more than 1 set )
