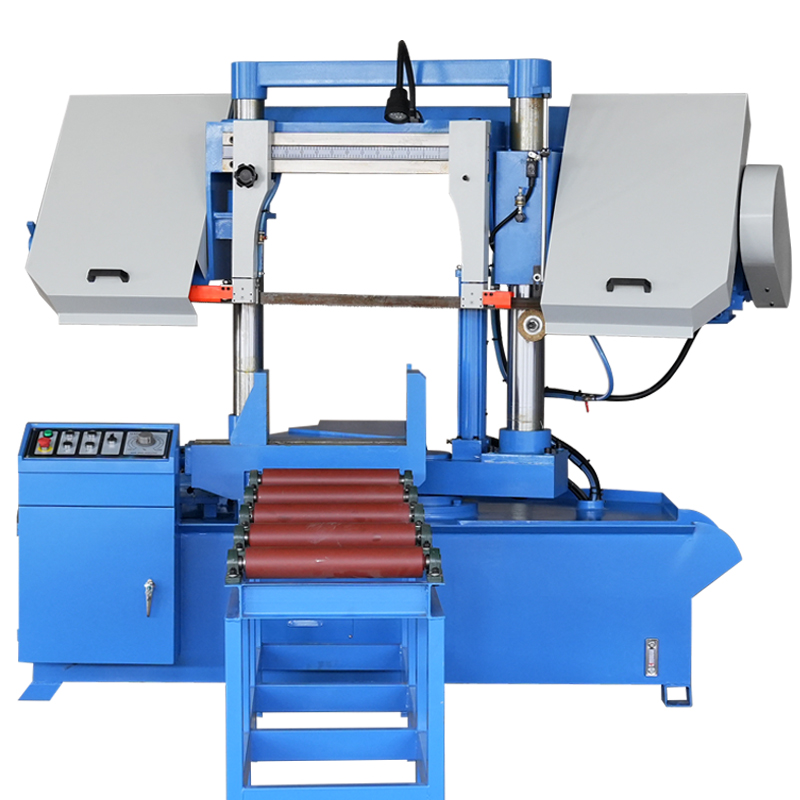

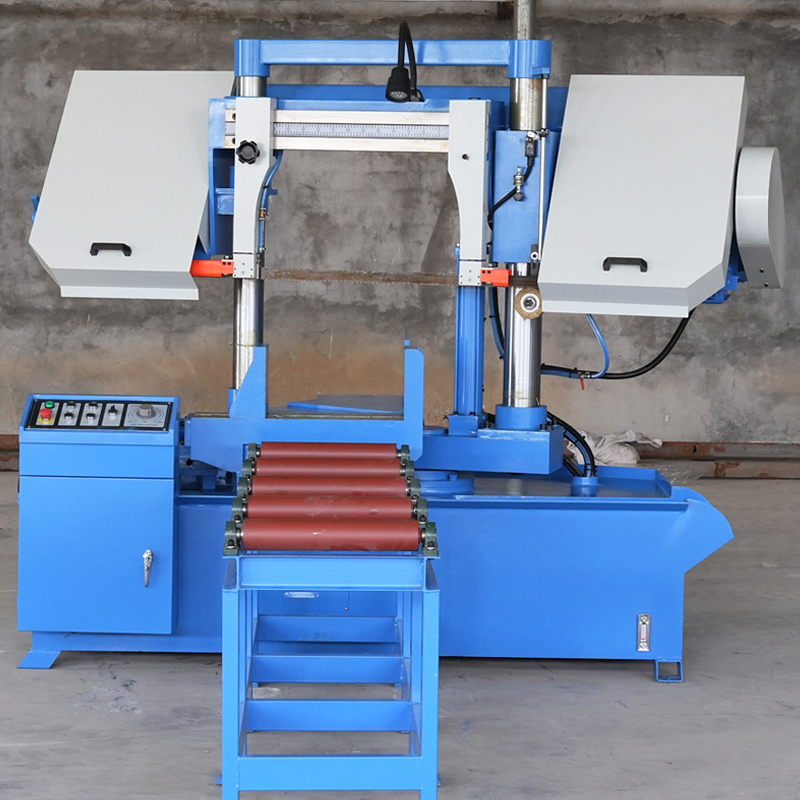

Horizontal Metal Cutting Band Saw Machine GZ4250 with 0-45 Degree Oblique Angle Cutting Feature

Semi-automatic horizontal band saw.
Angle adjustable band saw.
Mitering band saw machine.
Metal cutting band saw.
Swivel head band saw.
0-60 (45) degrees band saw.
Industrial metal band saw.
Hydraulic band saw.
Semi-auto band saw for steel.
Push button band saw.
Saw/cut range:
Availability:
Quantity:
  • GZ4250

  • SDCTM

Product Description

Horizontal Metal Cutting Band Saw Machine GZ4250 with 0-45 Degree Oblique Angle Cutting Feature


Product Parameters

Item

GZ4250

Saw/cut range

0° : 500*600 mm | 45° : 500*400 mm

Saw/cut belt size

5800/6000*41*1.3 mm

Saw/cut belt speed

27,45,69 m/min

Main motor

5.5 kw

Hydraulic motor

1.5 kw

Cooling pump motor

0.09 kw

Machine operation mode

Semi-automatic

Main transmission structure

Worm gear transmission

Machine clamping method

Hydraulic clamping

Overall dimensions

3000*1700*2200 mm

Overall Weight

2100 kg

Product Image


Product Details


1. Operation Panel : Adopting physical buttons, the layout conforms to ergonomics, and the physical buttons are more intuitive.Workers can master it without complex training.

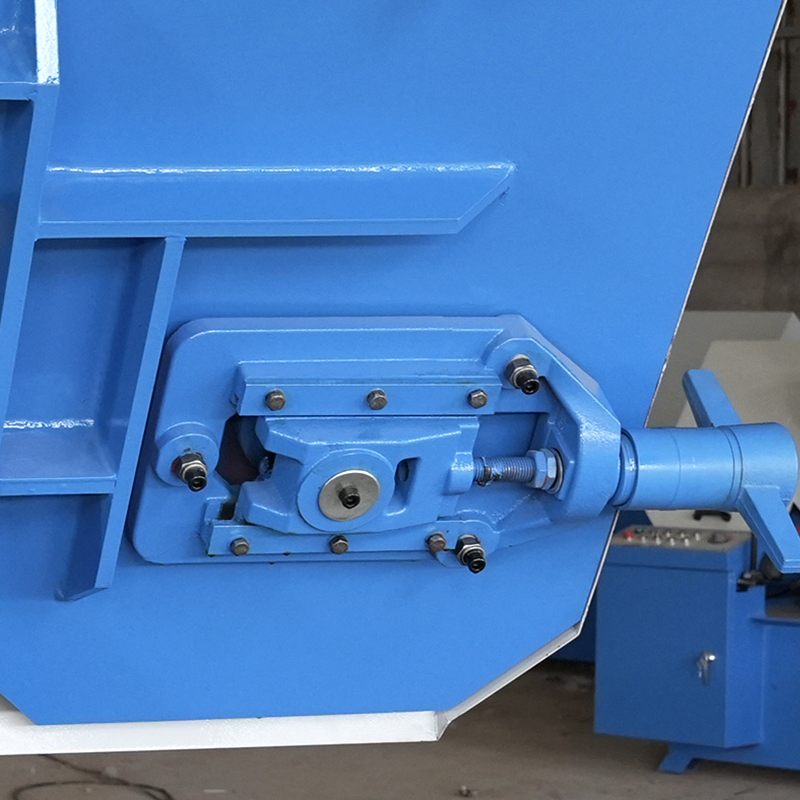

2. Angle Cutting Saw : Achieve a tilt angle of 0-45degrees (or greater)to meet the cutting requirements of workpiece.


3. Hydraulic Vice : Hydraulic clamping.Customizable in height, Option of either a handwheel or an oil cylinder.

4. Graduated Scale : Clearly marked scales, precise measurement and positioning of workpieces, ensuring sawing accuracy.The double column structure makes the machine stable.


5. Double Turbine Disc : It is made of cast iron, with high rigidity, stable operation, and improved sawing ability.

6. Tensioning Device : Adjust the tension of the saw blade, ensuring cutting accuracy and stability. Standard manual, optional hydraulic.
