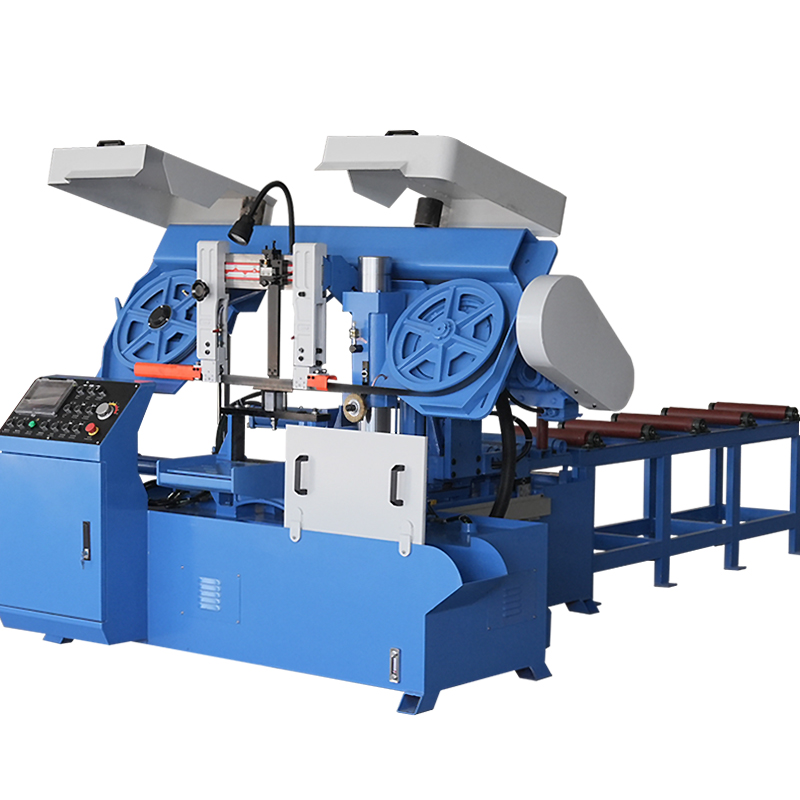

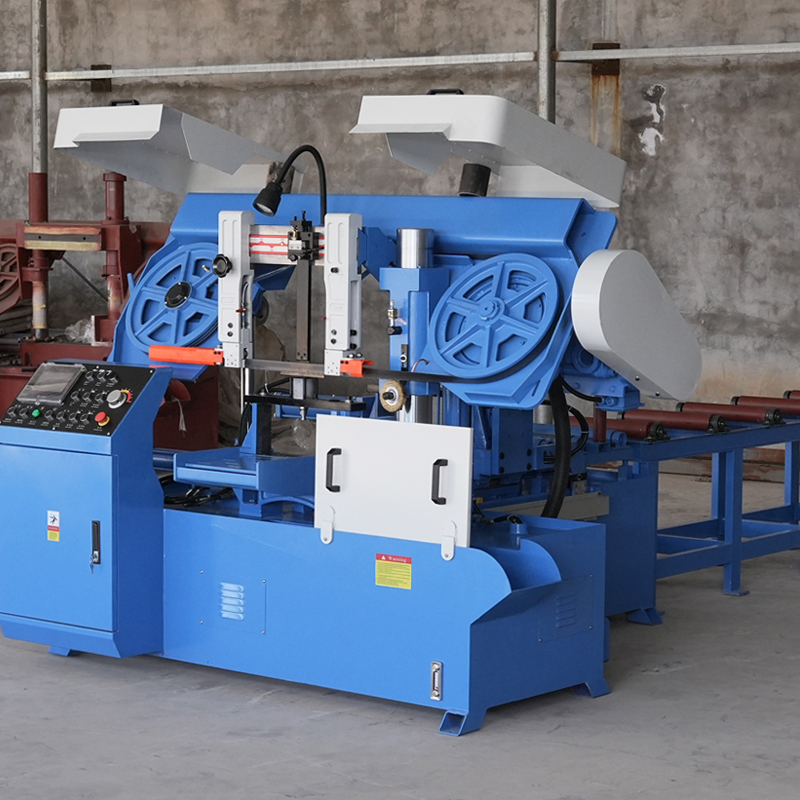

GSK4235 GSK4233 Pipe Cutting Metal Band Saw Horizontal Metal Cutting Band Saw Machine 220V 4kw

Fully automatic, unattended cutting.
High efficiency & fast cutting.
High precision, clean & smooth cuts.
Stable double-column structure, low vibration.
Long blade life, low material waste.
Easy operation & PLC control.
Energy-saving & durable.
Wide material compatibility.
Ideal for mass production.
Saw/cut range:
Availability:
Quantity:
  • GSK4235

  • SDCTM

Product Description

GSK4235 GSK4233 Pipe Cutting Metal Band Saw Horizontal Metal Cutting Band Saw Machine 220V 4kw

Bandsaw Machine11.jpg

Product Parameters

Item

GSK4235

Saw/cut range

350*350 mm

Saw/cut belt size

4115*34*1.1 mm

Saw/cut belt speed

27,45,69 m/min

Main motor

4 kw

Hydraulic motor

0.75 kw

Cooling pump motor

0.04 kw

Machine operation mode

Automatic

Main transmission structure

Worm gear transmission

Machine clamping method

Hydraulic clamping

Overall dimensions

2220*2200*1800 mm

Overall Weight

1450 kg

Product Image

Bandsaw Machine12.jpg
Bandsaw Machine13.jpg
Bandsaw Machine14.jpg

Product Details

Bandsaw Machine15.jpg

1. Intuitive operation:User-friendly control panel with both display screen and push buttons for easy.

2. Workbenches : The countertop is made of m35 material and has undergone high-temperature heat treatment and comprehensive oil immersion treatment; Durable and not easily rusted.

Bandsaw Machine16.jpg

3. Hydraulic Vice : Hydraulic clamping.Customizable in height, Option of either a handwheel or an oil cylinder.

4. Guide Roller & Feeding Roller : The guide roller helps the saw belt run stably, feeding roller assists in conveying workpieces.
