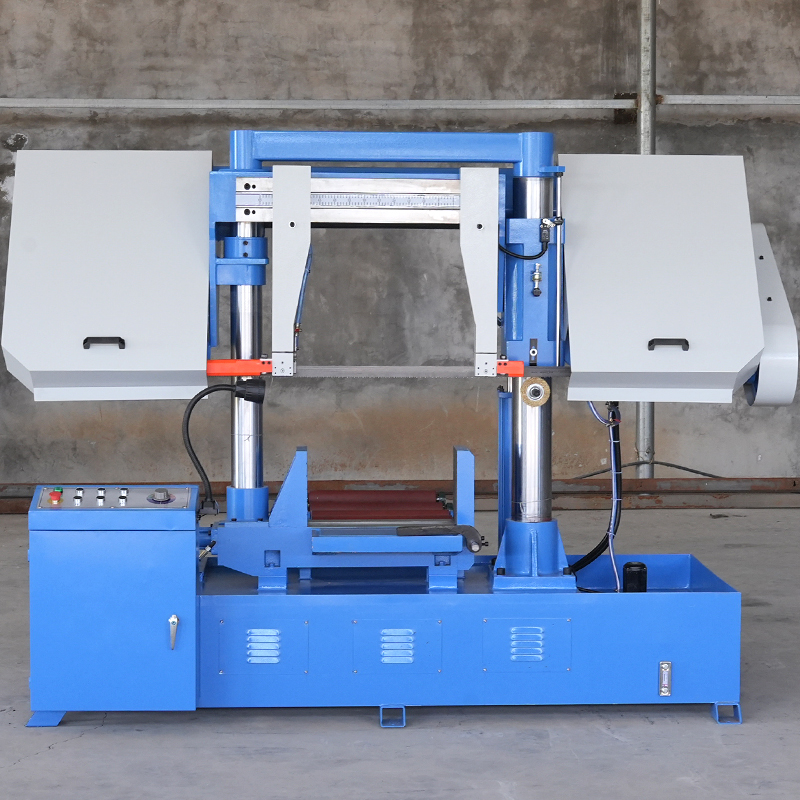

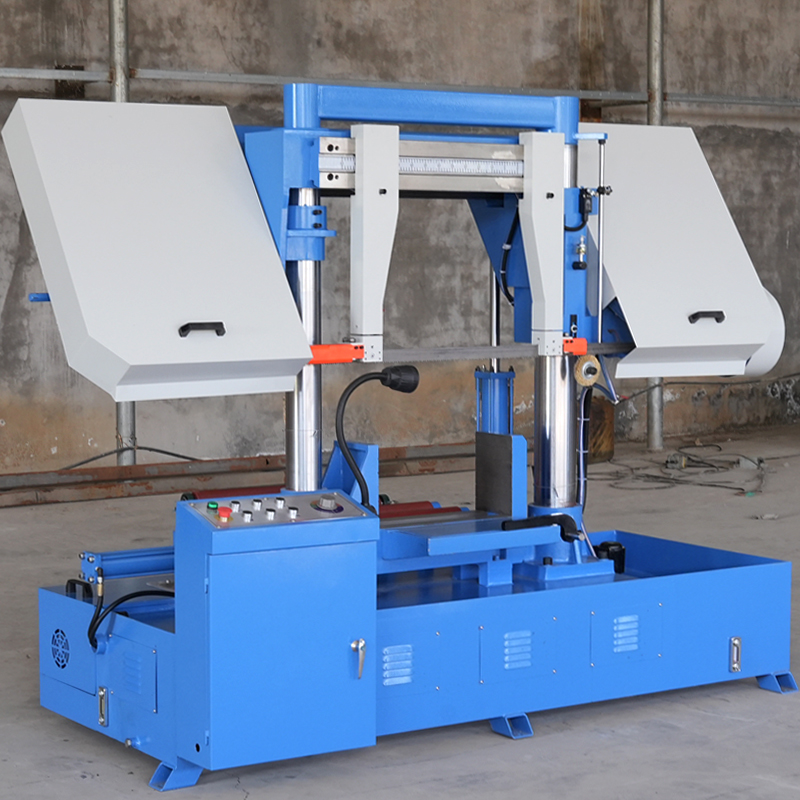

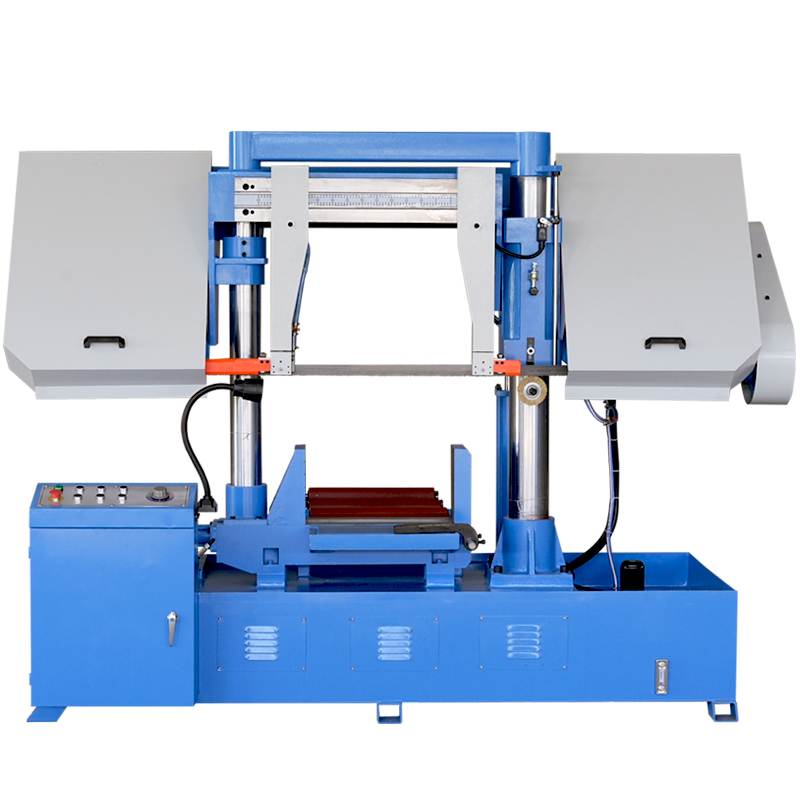

GB4250 500mm Industrial Bandsaw Machine Hydraulic Tension Semi-Automatic Horizontal Cutting Saw for Metal

Multi material compatibility, saving materials and money : Whether it is Q345B square tube, stainless steel special-shaped tube, or bundled threaded steel, they can be efficiently cut; Compared to traditional sawing machines, it reduces material loss and saves annual raw material costs.
Easy to operate and maintain : 1. Button type semi-automatic control, clamping → start → automatic sawing → stop and rebound, no need for complex programming. 2. Side door/quick release design, easy to clean and replace saw belt. 3. Electric chip conveyor (optional) to reduce manual chip cleaning. 4. Modular structure, universal use of vulnerable parts, and low maintenance costs.
Double column gantry structure, stable : adopting a double column+sliding sleeve guiding design, combined with a thickened steel plate body, rigid lifting, stable sawing lifting, and improved end face flatness.
Saw/cut range:
Availability:
Quantity:
  • GB4250

  • SDCTM

Product Description

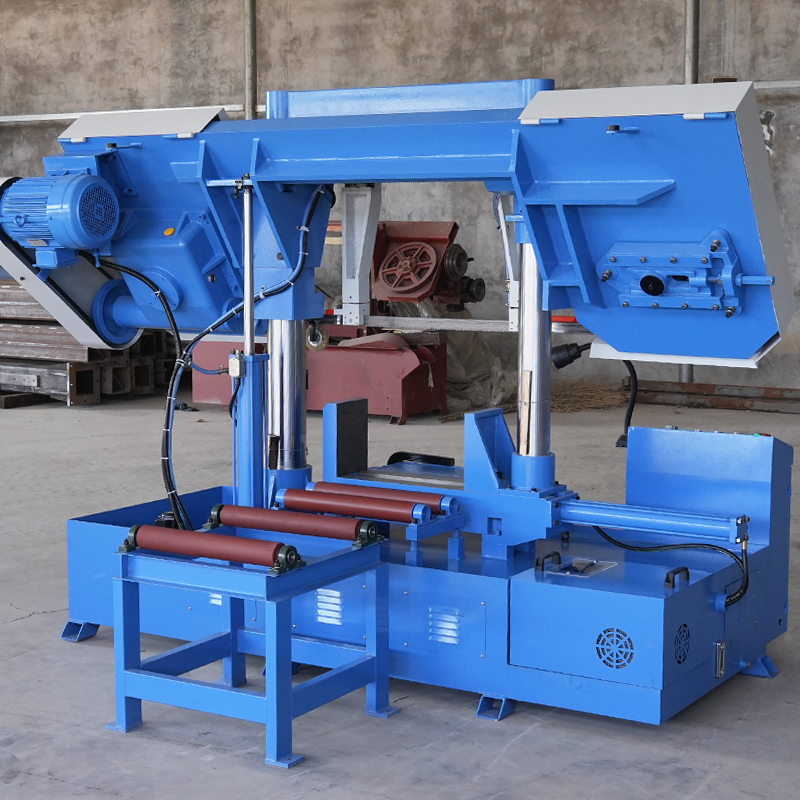

GB4250 500mm Industrial Bandsaw Machine Hydraulic Tension Semi-Automatic Horizontal Cutting Saw for Metal

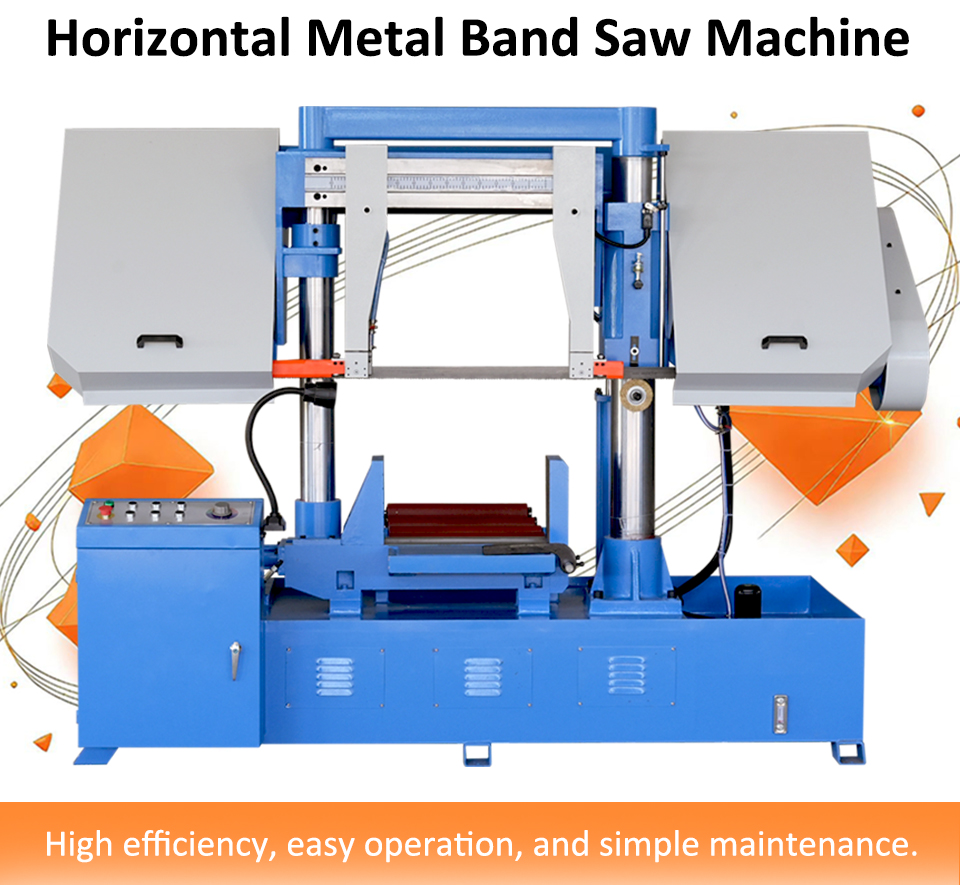

Bandsaw Machine11.jpg

Product Parameters

Item

GB4250

Saw/cut range

500*500 mm

Saw/cut belt size

5650*41*1.3 mm

Saw/cut belt speed

27,45,69 m/min

Main motor

5.5 kw

Hydraulic motor

1.5 kw

Cooling pump motor

0.04 kw

Machine operation mode

Semi-automatic

Main transmission structure

Worm gear transmission

Machine clamping method

Hydraulic clamping

Overall dimensions

2800*1250*2000 mm

Overall Weight

1800 kg

Product Image

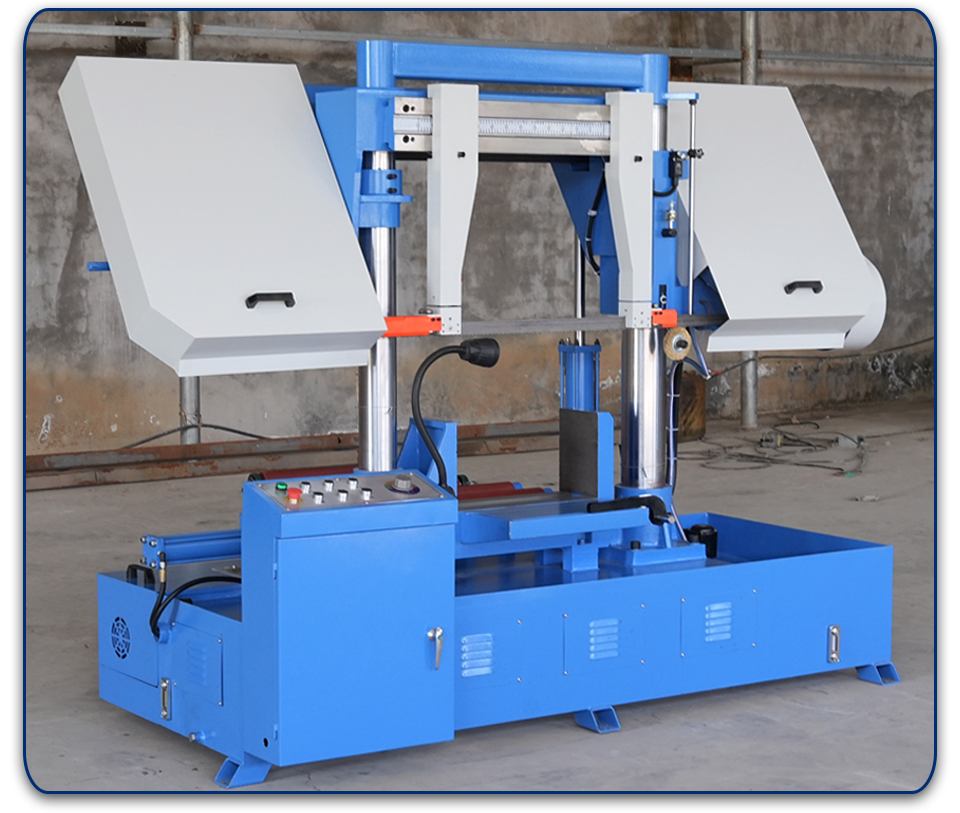

Bandsaw Machine12.jpg

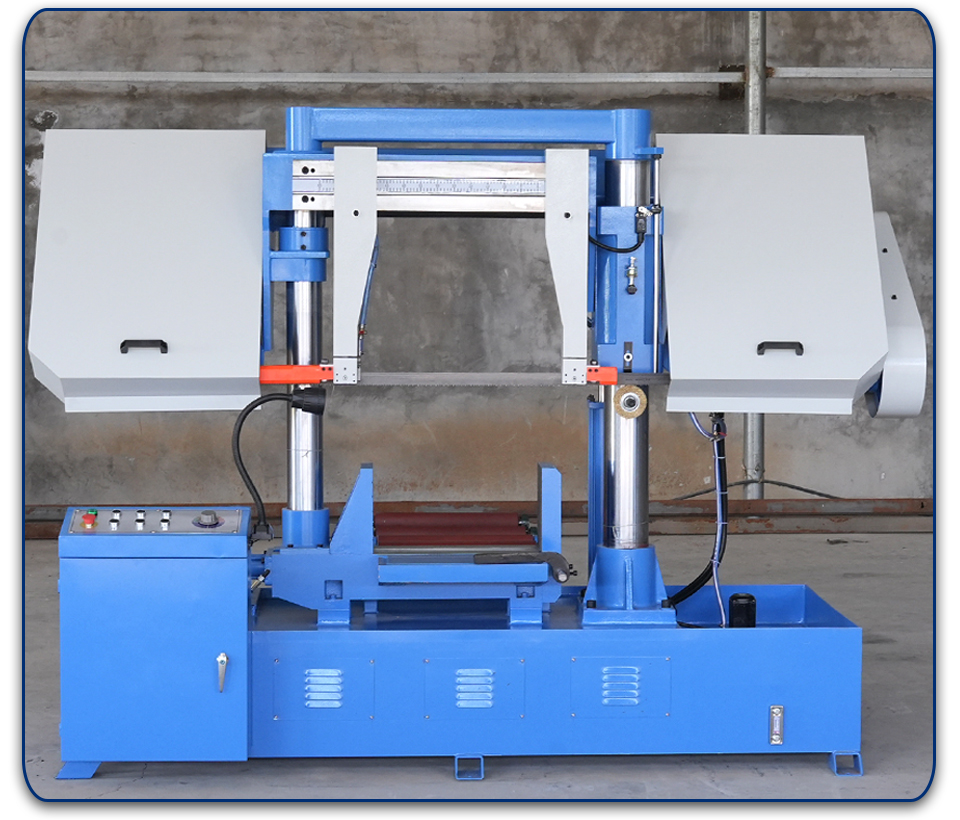

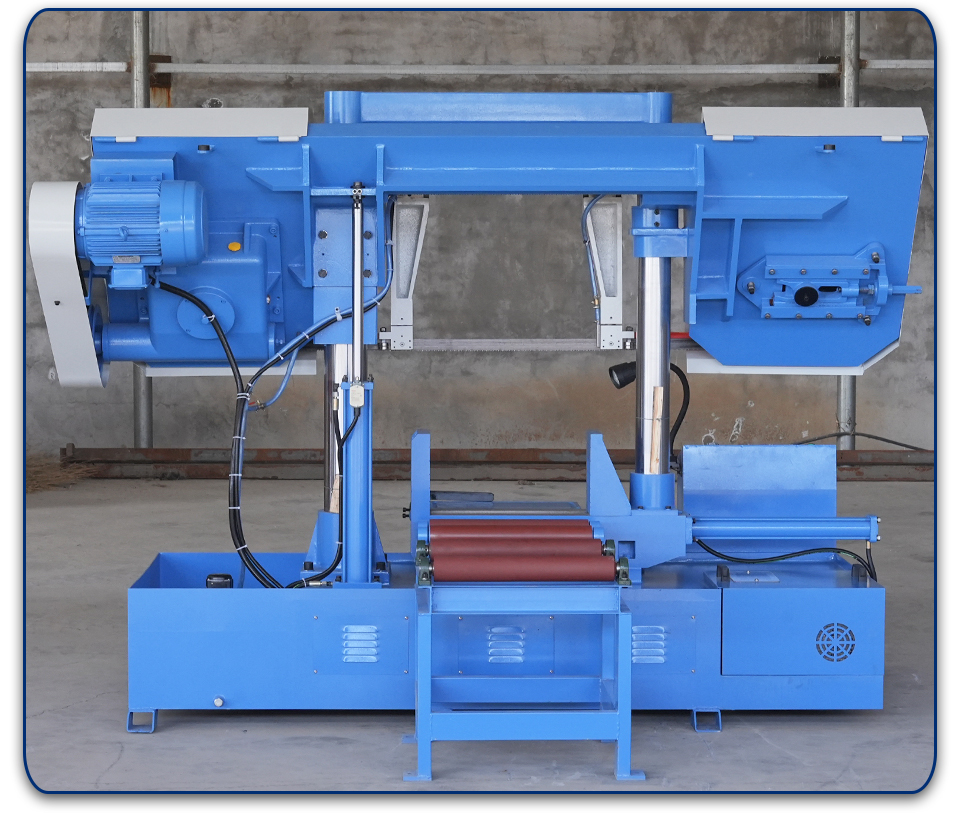

Bandsaw Machine13.jpg

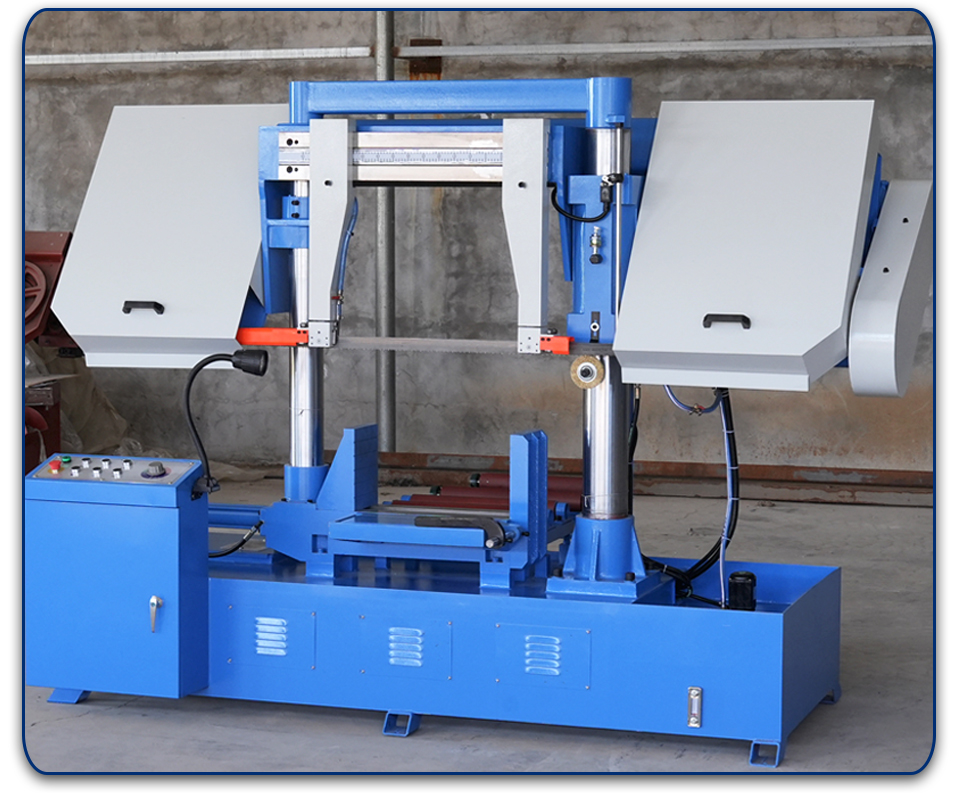

Bandsaw Machine14.jpg

Product Details

Bandsaw Machine15.jpg

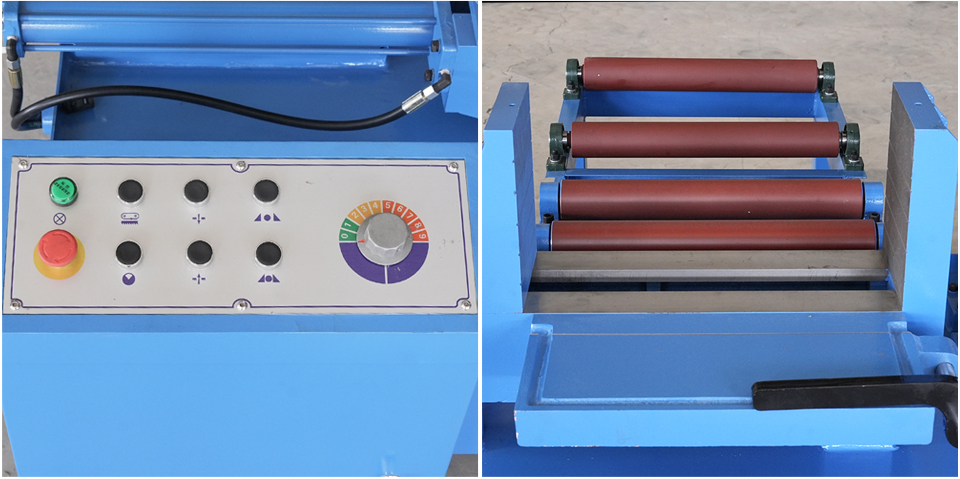

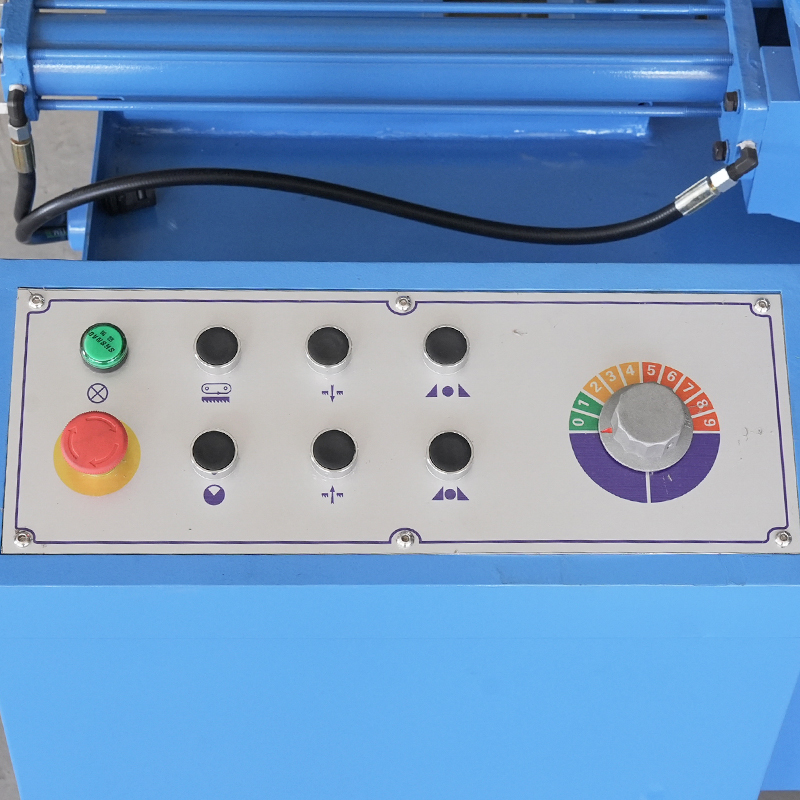

1. Operation Panel : Adopting physical buttons, the layout conforms to ergonomics, and the physical buttons are more intuitive.Workers can master it without complex training.

2. Workbenches : The countertop is made of m35 material and has undergone high-temperature heat treatment and comprehensive oil immersion treatment; Durable and not easily rusted.

Bandsaw Machine16.jpg

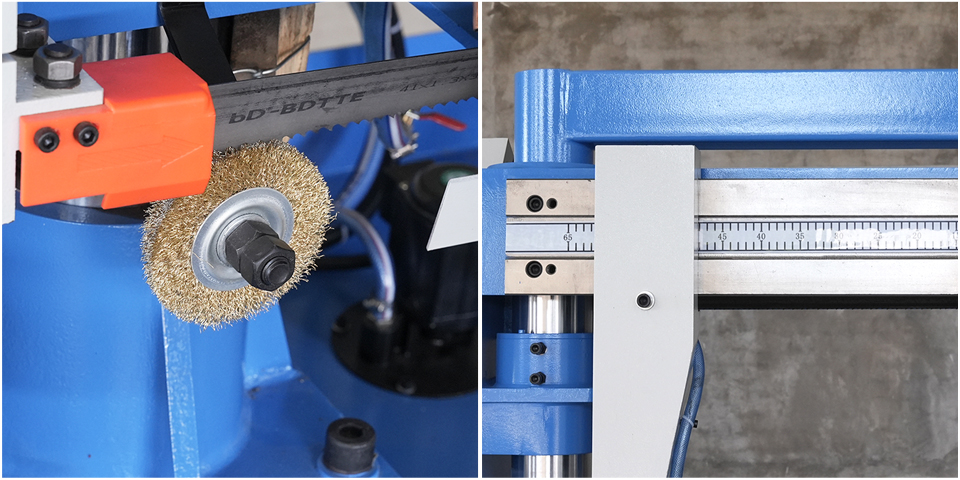

3. Steel Brush : This steel brush effectively cleans chips and debris, protects the saw blade, reduces wear, and extends its service life.

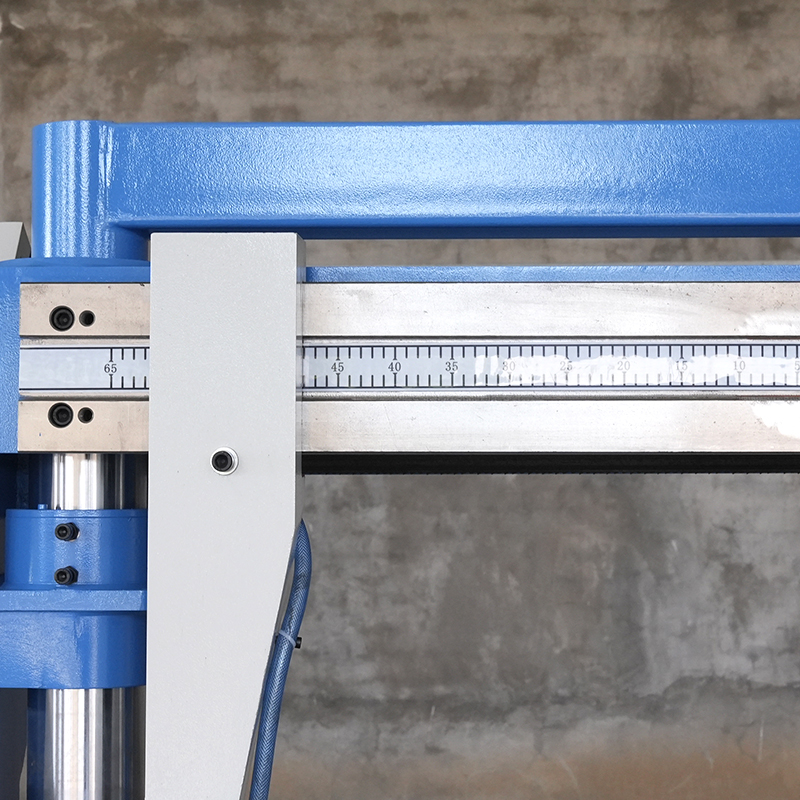

4. Graduated Scale : Clearly marked scales, precise measurement and positioning of workpieces, ensuring sawing accuracy.The double column structure makes the machine stable.
