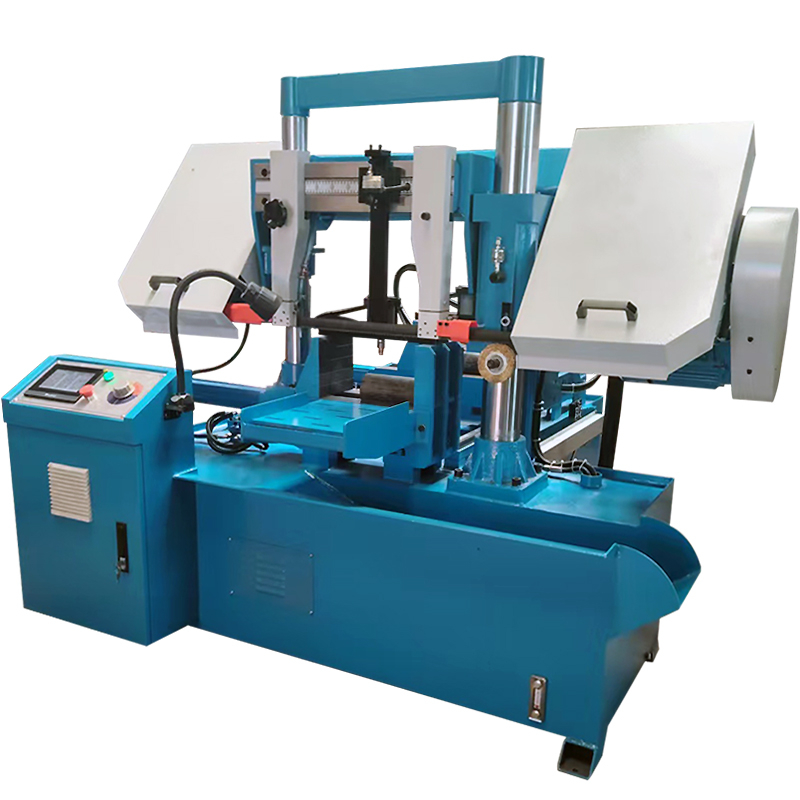

Band Saw Machines GSK4230 Metal Band Saw Band Saw Machine Metal Cutting

Fully automatic, unattended cutting.
High efficiency & fast cutting.
High precision, clean & smooth cuts.
Stable double-column structure, low vibration.
Long blade life, low material waste.
Easy operation & PLC control.
Energy-saving & durable.
Wide material compatibility.
Ideal for mass production.
Saw/cut range:
Availability:
Quantity:
  • GSK4230

  • SDCTM

Product Description

Band Saw Machines GSK4230 Metal Band Saw Band Saw Machine Metal Cutting

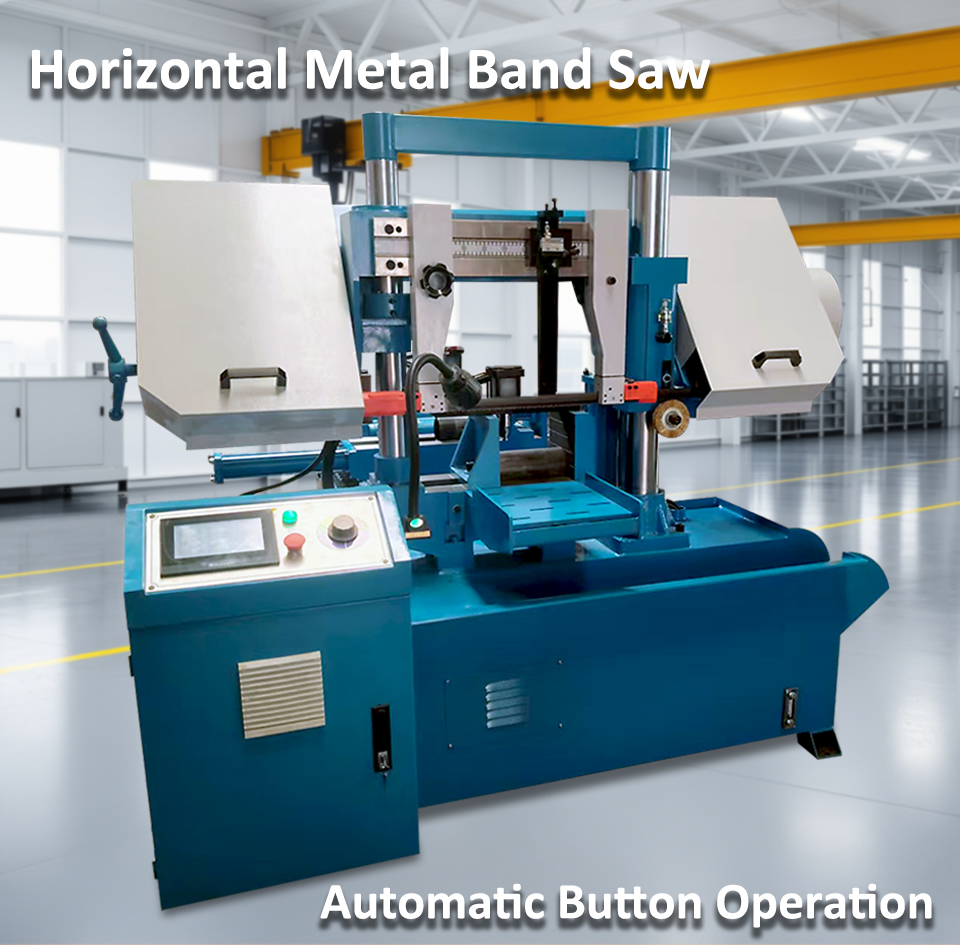

Metal sawing machine18.jpg

Product Parameters

Item

GSK4230

Saw/cut range

300*300 mm

Saw/cut belt size

3505*27*0.9 mm

Saw/cut belt speed

27,45,69 m/min

Main motor

3 kw

Hydraulic motor

0.75 kw

Cooling pump motor

0.04 kw

Machine operation mode

Automatic

Main transmission structure

Worm gear transmission

Machine clamping method

Hydraulic clamping

Overall dimensions

2100*2050*1700 mm

Overall Weight

1300 kg

Product Image

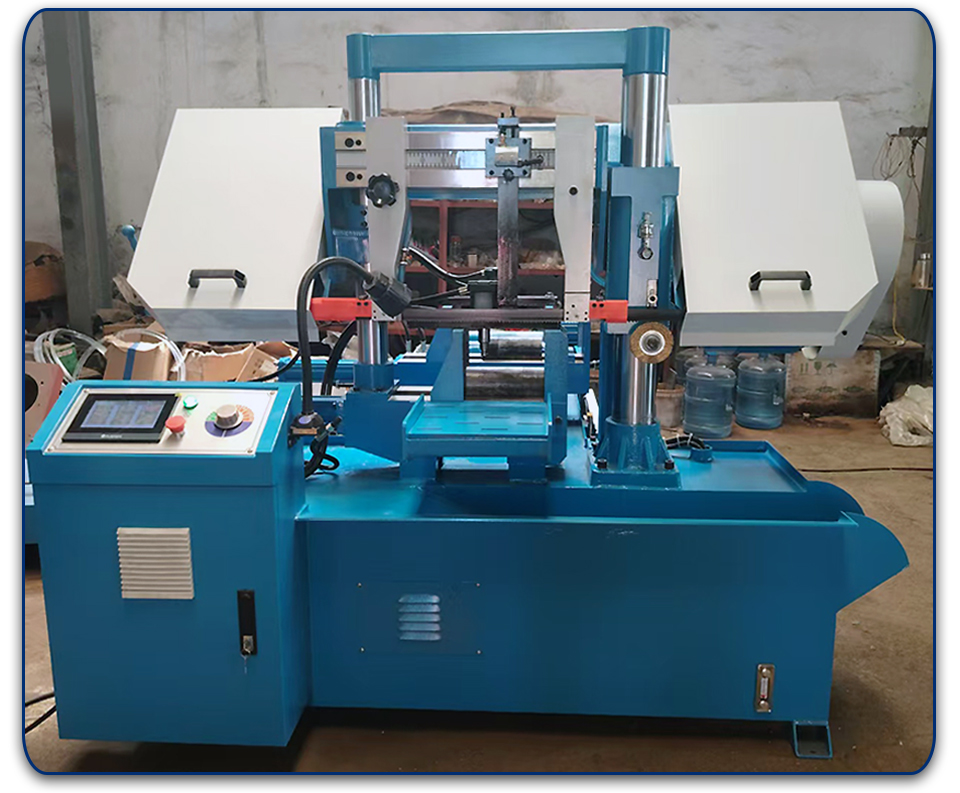

Metal sawing machine19.jpg

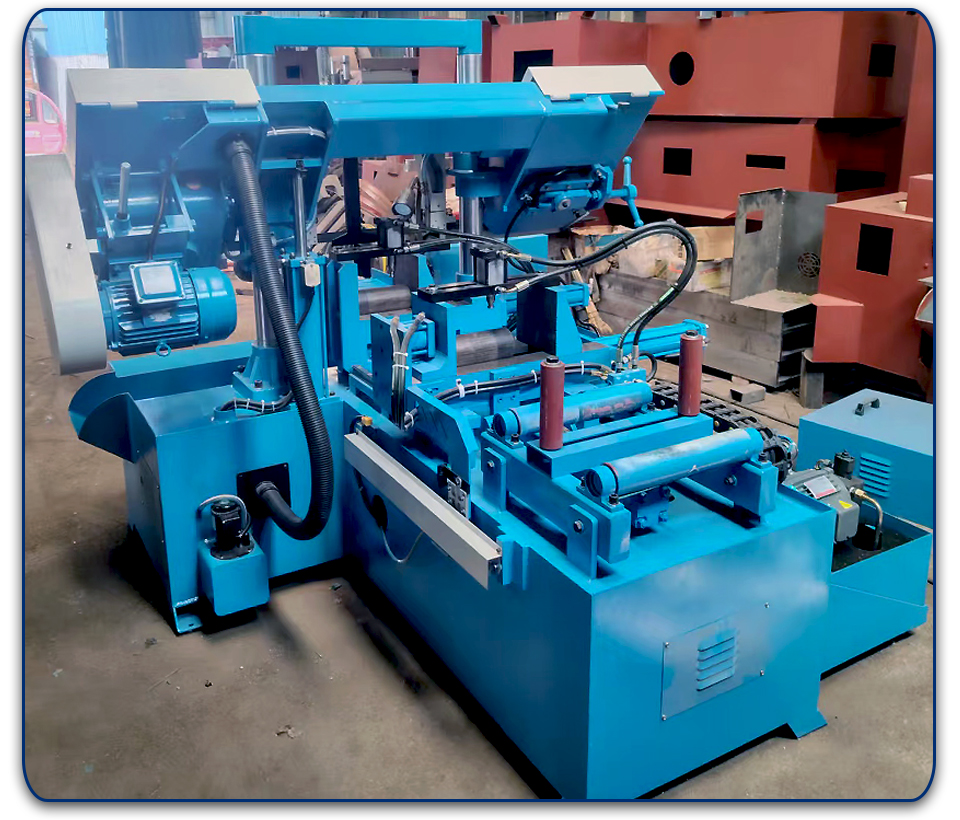

Metal sawing machine20.jpg

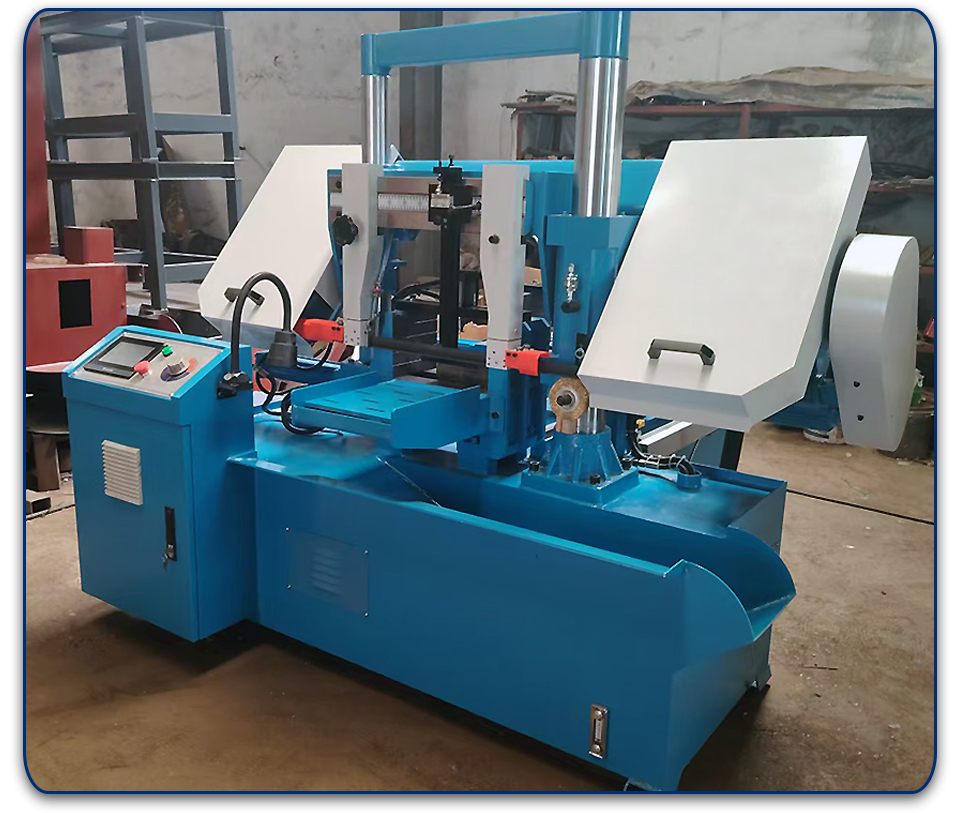

Metal sawing machine21.jpg

Product Details

Metal sawing machine22.jpg

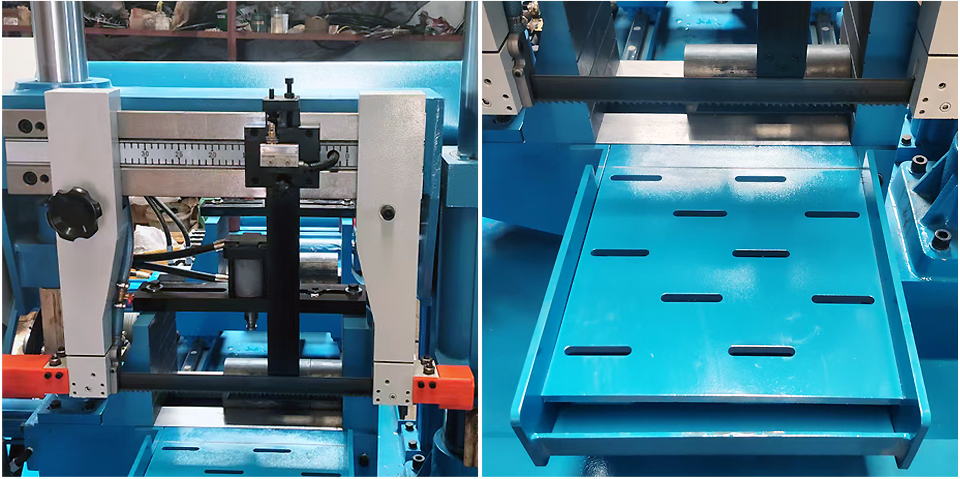

1. Saw Belt Lifting Protection : Absorb impact force to prevent the saw belt from accidentally coming into contact with the workpiece or colliding during the lifting process, resulting in cracking.

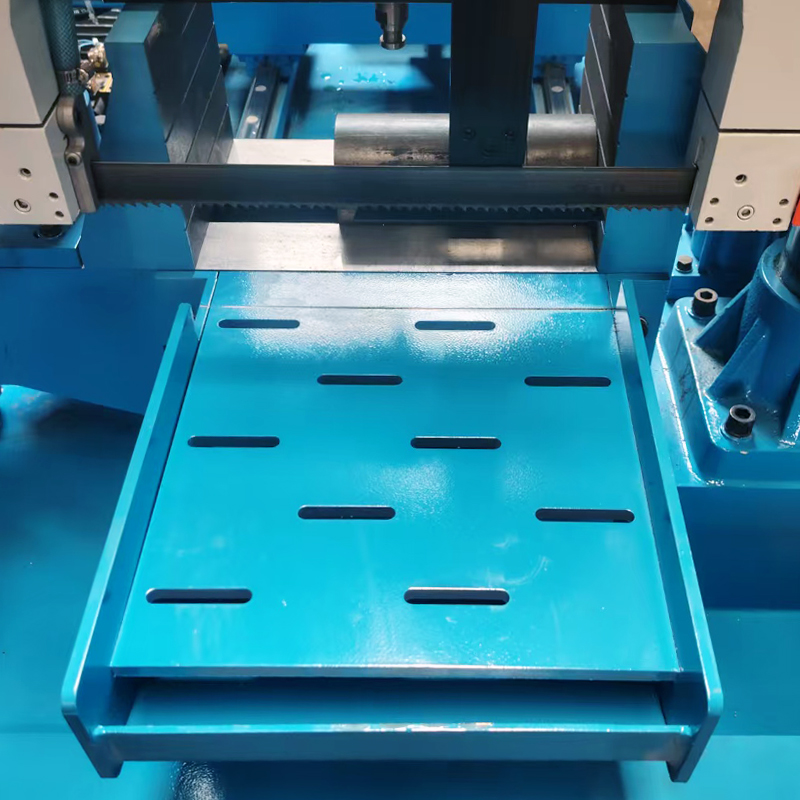

2. Workbenches : The countertop is made of m35 material and has undergone high-temperature heat treatment and comprehensive oil immersion treatment; Durable and not easily rusted.

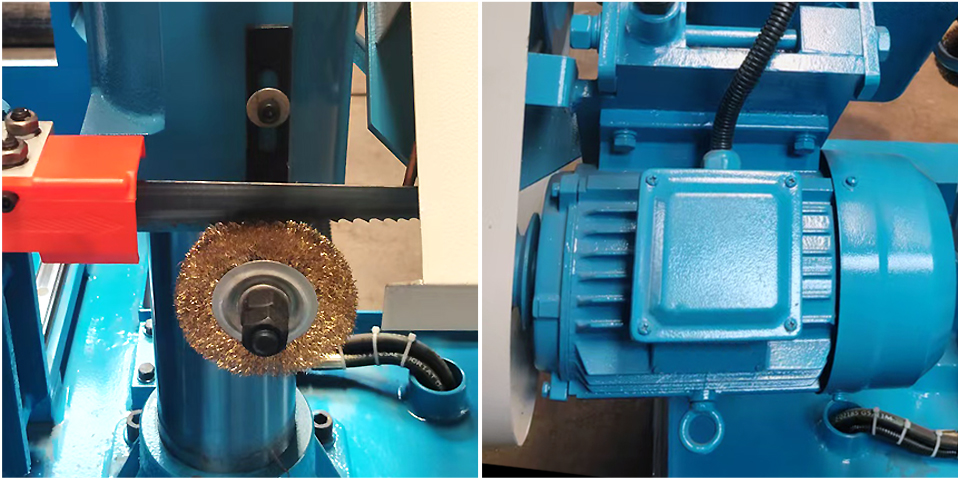

Metal sawing machine23.jpg

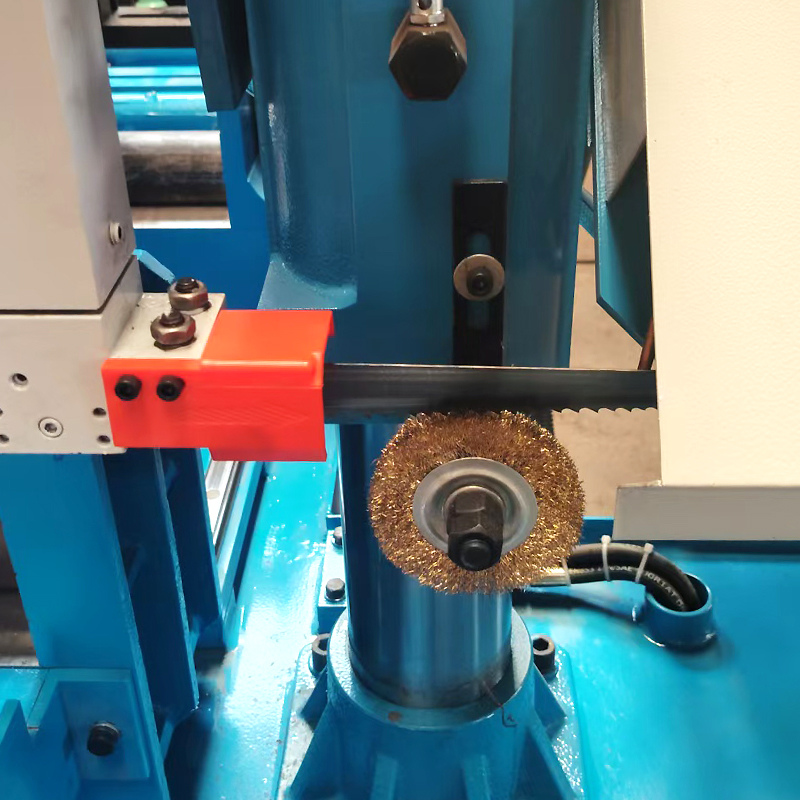

3. Steel Brush : This steel brush effectively cleans chips and debris, protects the saw blade, reduces wear, and extends its service life.

4. Motor : High power turbine reducer.Keep a long-term cutting. Low noise, long life.

Metal sawing machine24.jpg

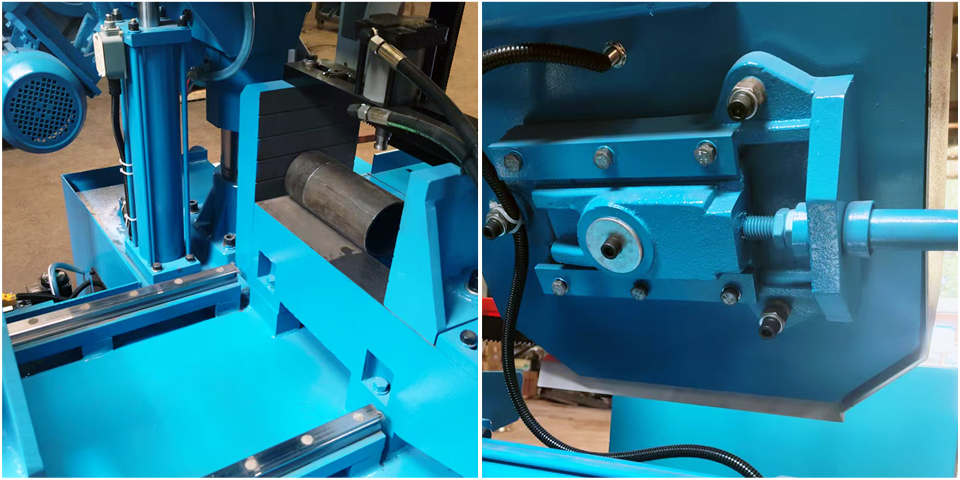

5. Hydraulic Vice : Hydraulic clamping.Customizable in height, Option of either a handwheel or an oil cylinder.

6. Tensioning Device : Adjust the tension of the saw blade, ensuring cutting accuracy and stability. Standard manual, optional hydraulic.
