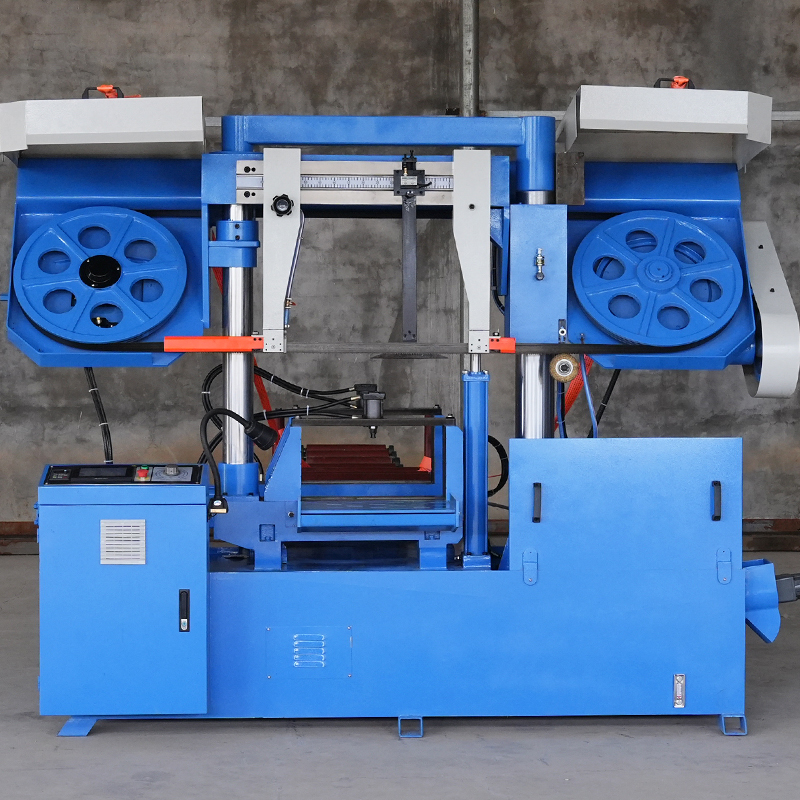

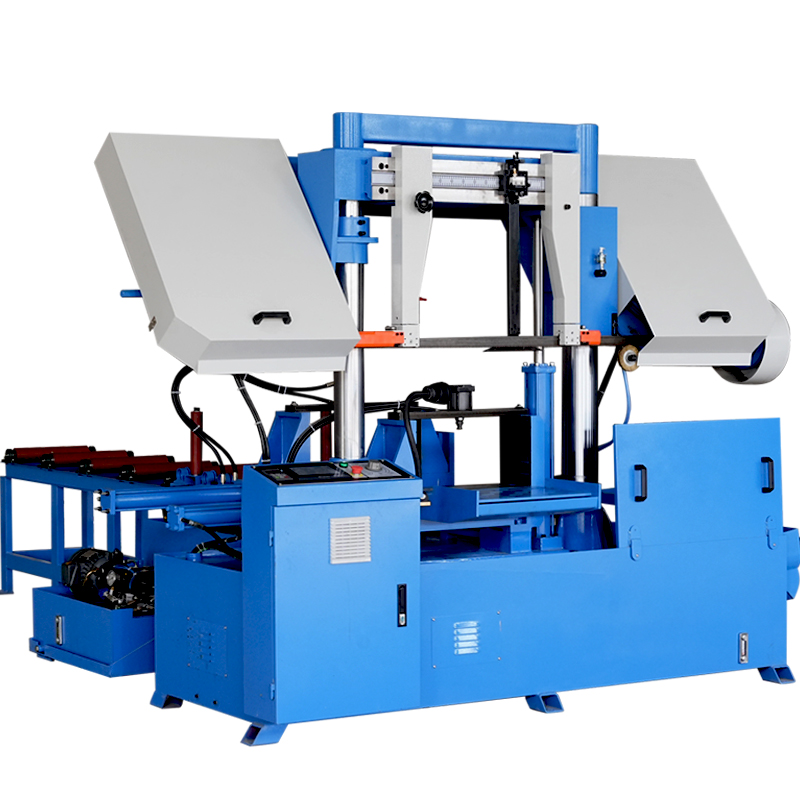

Automatic Metal Band Saw for Industrial Metalworking GSK4250 19.7 Inch 500mm Cut Range 5.5kw

Fully automatic, unattended cutting.
High efficiency & fast cutting.
High precision, clean & smooth cuts.
Stable double-column structure, low vibration.
Long blade life, low material waste.
Easy operation & PLC control.
Energy-saving & durable.
Wide material compatibility.
Ideal for mass production.
Saw/cut range:
Availability:
Quantity:
  • GSK4250

  • SDCTM

Product Description

Automatic Metal Band Saw for Industrial Metalworking GSK4250 19.7 Inch 500mm Cut Range 5.5kw

Industrial Band Saw20.jpg

Product Parameters

Item

GSK4250

Saw/cut range

500*500 mm

Saw/cut belt size

5800*41*1.3 mm

Saw/cut belt speed

27,45,69 m/min

Main motor

5.5 kw

Hydraulic motor

1.5 kw

Cooling pump motor

0.09 kw

Machine operation mode

Automatic

Main transmission structure

Worm gear transmission

Machine clamping method

Hydraulic clamping

Overall dimensions

2900*2250*2100 mm

Overall Weight

2300 kg

Product Image

Industrial Band Saw21.jpg
Industrial Band Saw22.jpg
Industrial Band Saw23.jpg

Product Details

Industrial Band Saw24.jpg

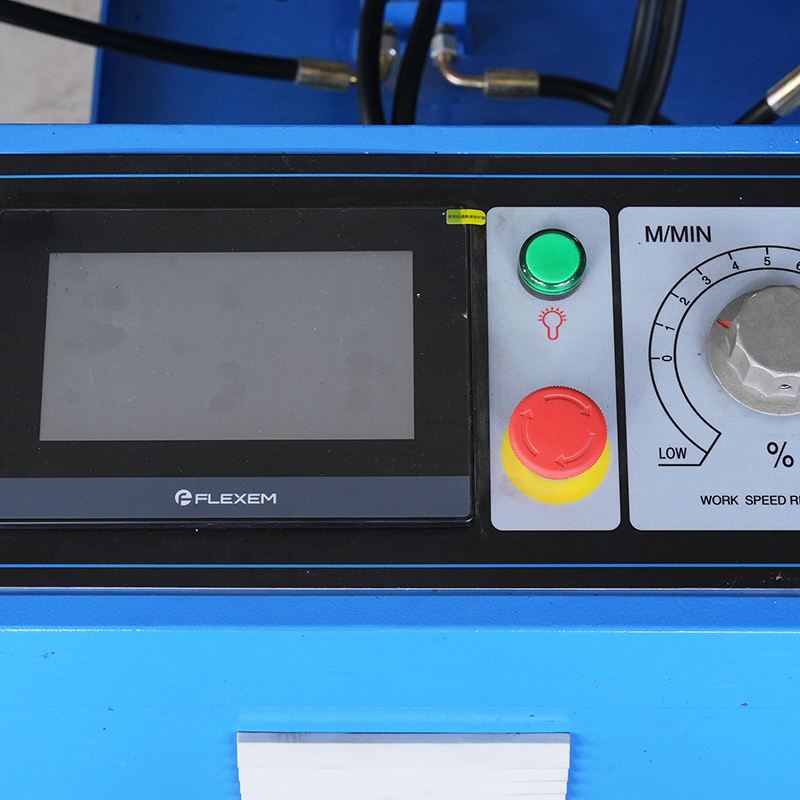

1. Intuitive operation:User-friendly control panel with both display screen and push buttons for easy.

2. Graduated Scale : Clearly marked scales, precise measurement and positioning of workpieces, ensuring sawing accuracy.The double column structure makes the machine stable.

Industrial Band Saw25.jpg

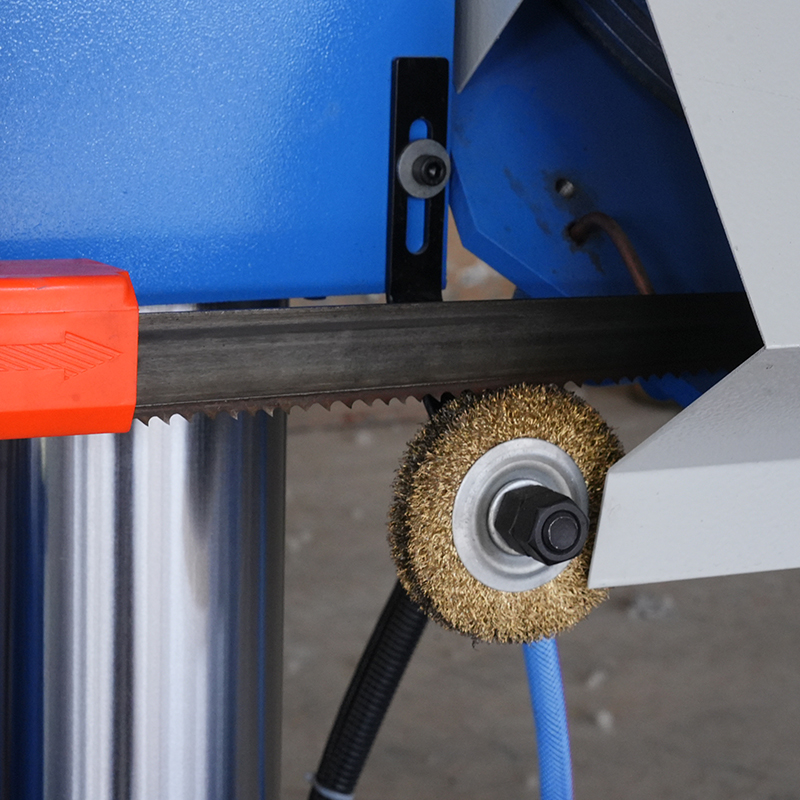

3. Steel Brush : This steel brush effectively cleans chips and debris, protects the saw blade, reduces wear, and extends its service life.

4. Workbenches : The countertop is made of m35 material and has undergone high-temperature heat treatment and comprehensive oil immersion treatment; Durable and not easily rusted.

Industrial Band Saw26.jpg

5. Tensioning Device : Adjust the tension of the saw blade, ensuring cutting accuracy and stability. Standard manual, optional hydraulic.

6. Hydraulic Vice : Hydraulic clamping.Customizable in height, Option of either a handwheel or an oil cylinder.

About Us

Our company is located in the southern economic development zone of Tengzhou and is a high-tech enterprise engaged in machine tool production, research and development, and foreign trade sales. At present, our main products include CNC vertical and horizontal machining centers, CNC lathes, ordinary lathes, ordinary milling machines, CNC milling machines, ordinary slotting machines, CNC slotting machines, metal band sawing machines, etc. Our products are sold throughout Europe, America, Asia, and Africa. The company has strong technical strength and has introduced manufacturing technology for machine tools from countries such as Taiwan, Japan, Germany, and Italy. In terms of structural design, it draws on the strengths of other countries in order to achieve international advanced levels. Our company has technical personnel with years of experience in research and development. Since the establishment of the company, we have always adhered to the integrated development of enterprise products, services, and efficiency, and become a manufacturer with attitude and quality.

Our company is eager to work with peers from various countries to promote China's high-tech manufacturing industry. We do not pursue quantity, only quality, market-oriented, and customer-centric. We welcome new and old customers from all walks of life to visit and join hands to create a better tomorrow!

FAQs

1. Are you a factory or a trading company?

We are an independent factory producing and also have a trading company. If we need diversified products, we can provide one-stop services as a trading company.

2.Does your factory accept OEM?

Yes, OEM production is one of our advantages.

3.Can you provide customized machines, yes or no?

Yes, it is. We can provide customized machines for customers.

4.Can we visit your factory before placing an order?

Of course. Welcome new and old friends to visit the factory. Additionally, if needed, we can pick you up at the station.

5.What are the requirements for becoming a distributor?

Please feel free to contact us and we will answer your questions. We sincerely welcome your joining!
