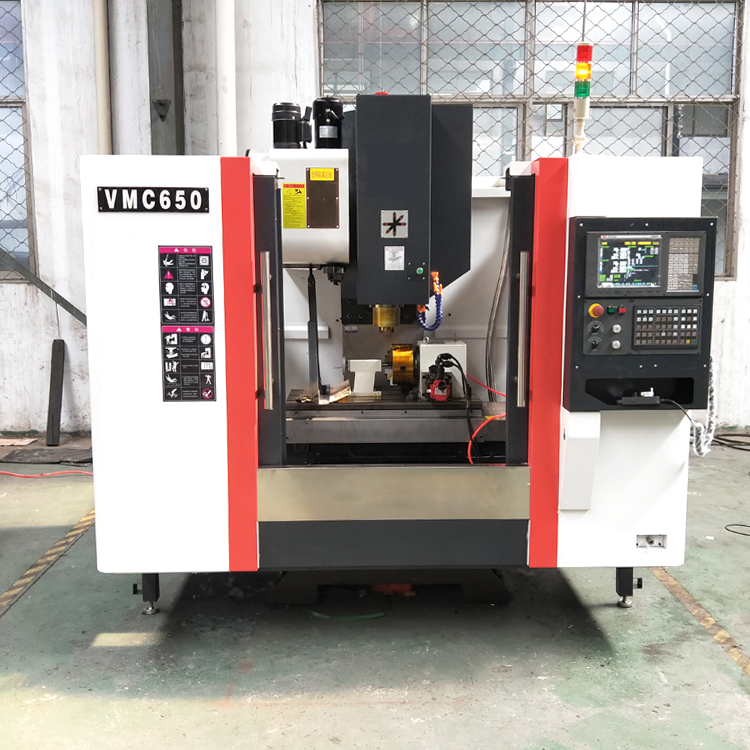

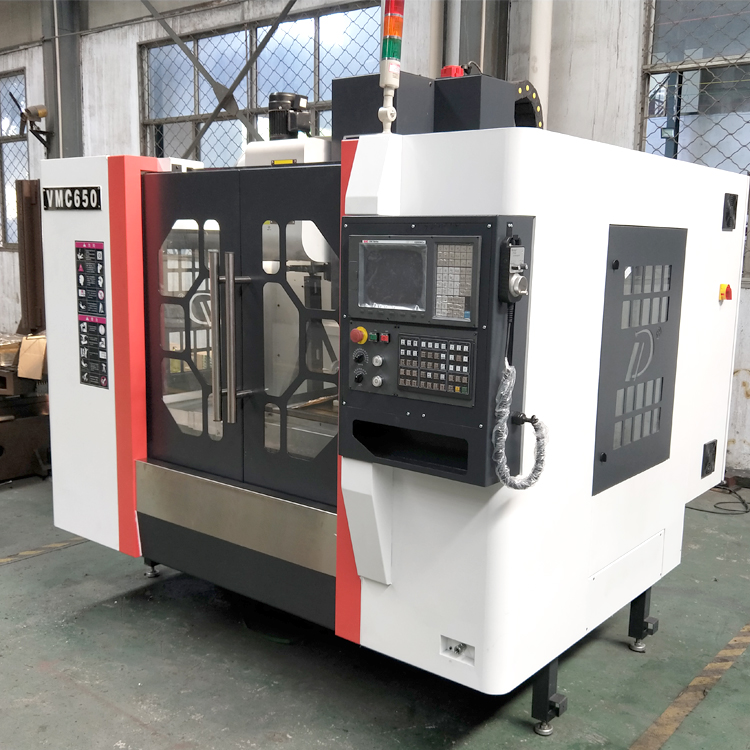

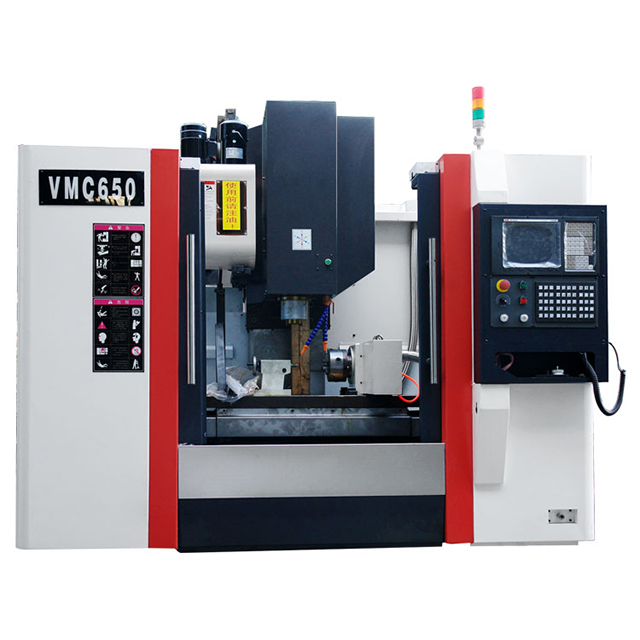

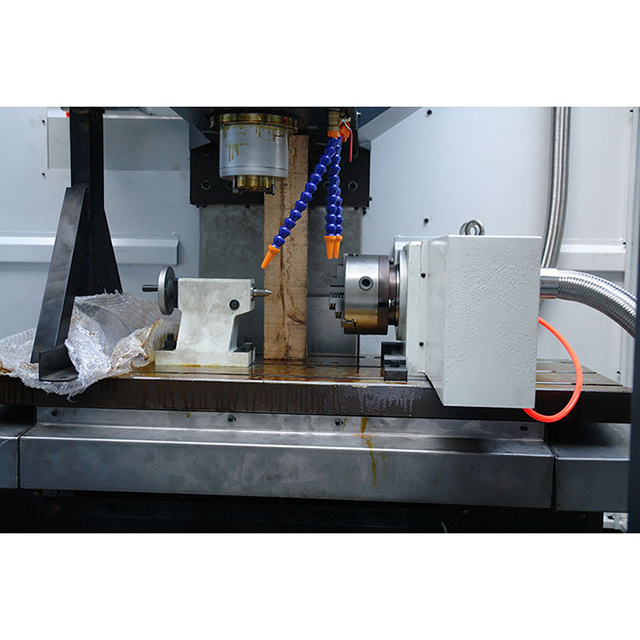

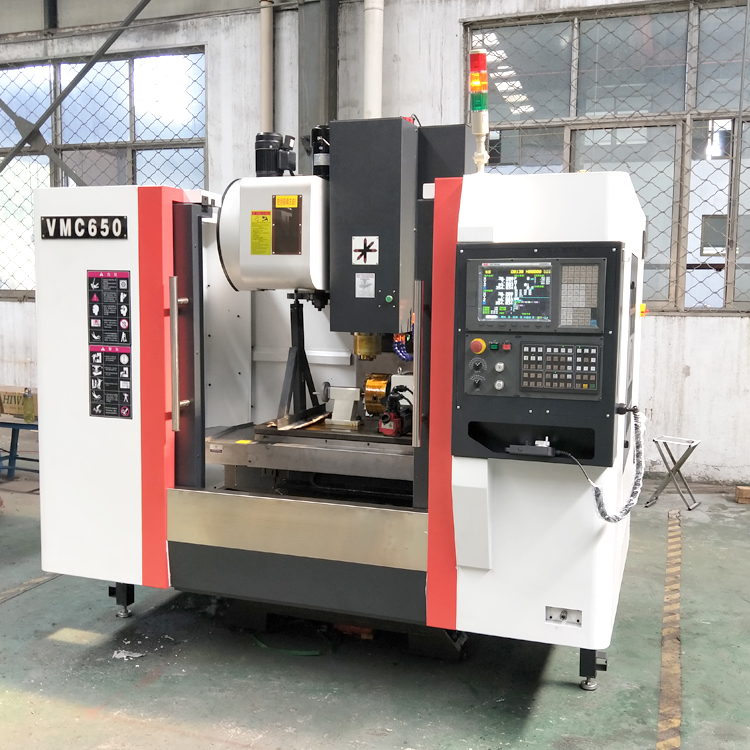

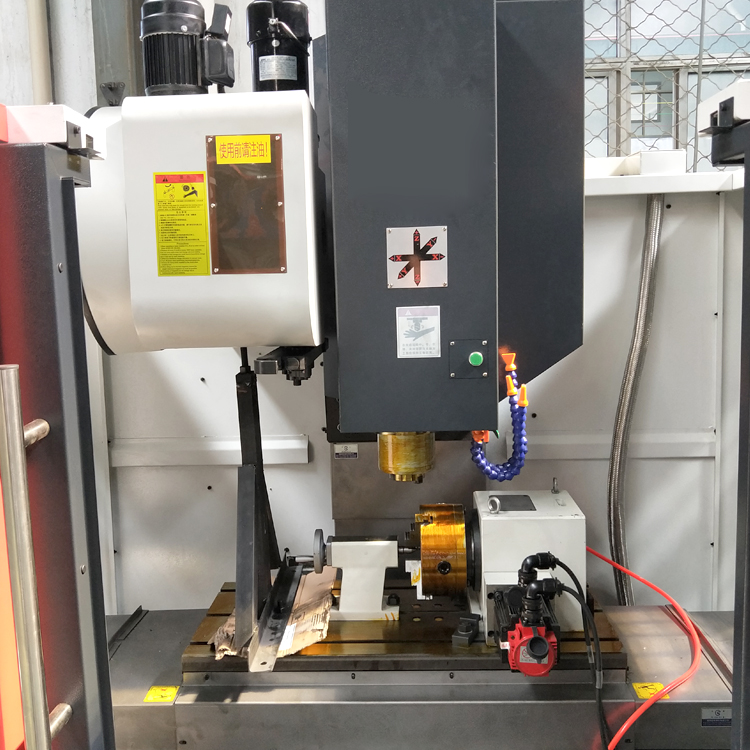

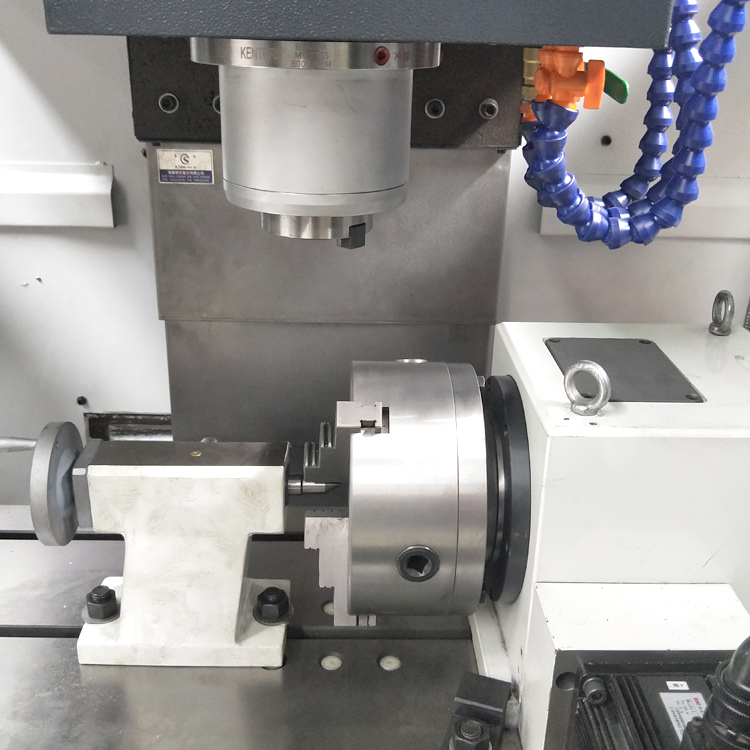

cnc machining center VMC650 5 axis cnc machining center

Availability:

Quantity:



Inquire Add to Basket

Model:
VMC650

Product Description

650加工中心海报图

 Application:
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing
requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling
,tapping,boring ,etc.

main technical data	units	VMC650
X-axis travel	mm	650
Y-axis travel	mm	400
Z-axis travel	mm	500
table size	mm	900*400
maximum table load	kg	400
spindle taper		BT40
T-slot (slot numberwidthpitch)	mm	3-18-130
spindle power	kw	5.5/7.5
maximum spindle speed	rpm	8000
rapid traverse (X/Y/Z)	m/min	24/24/20
cutting feed	m/min	1-10
spindle nose to table	mm	120-620
Distance from spindle center to column guide surface	mm	481
maximum tool diameter	mm	φ90
maximum tool weight	kg	8
positioning accuracy	mm	±0.008
repeat accuracy	mm	±0.005
machine weight	kg	4000
dimensions	mm	230019502450
