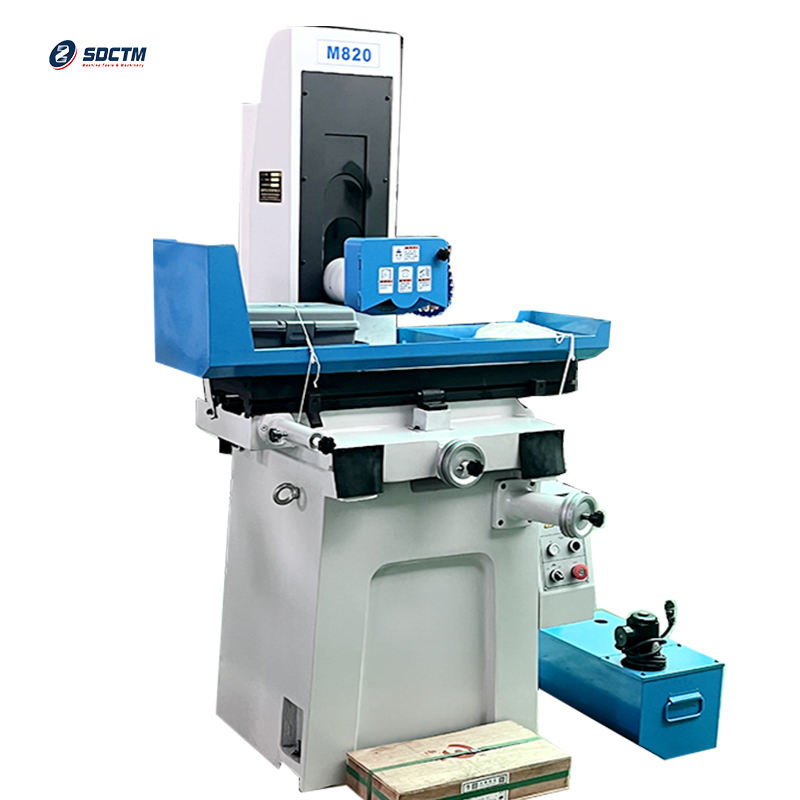

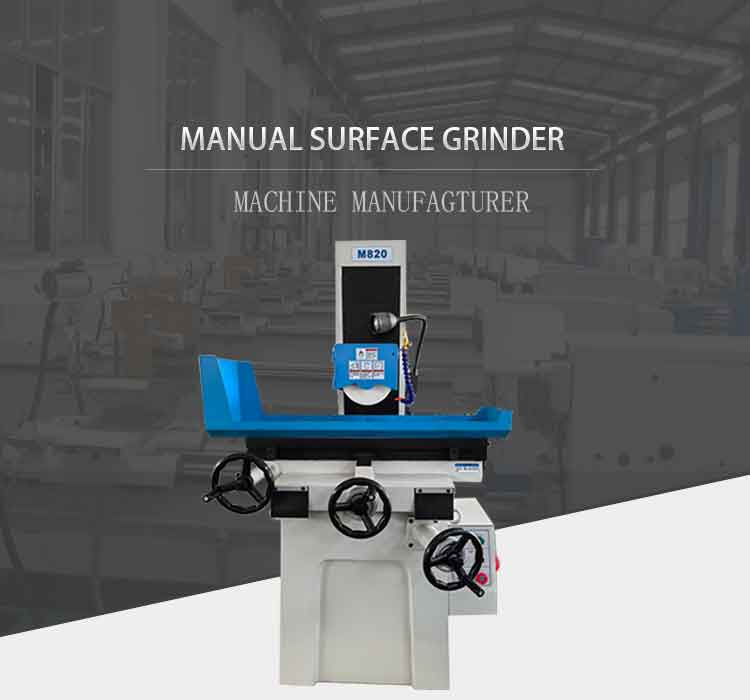

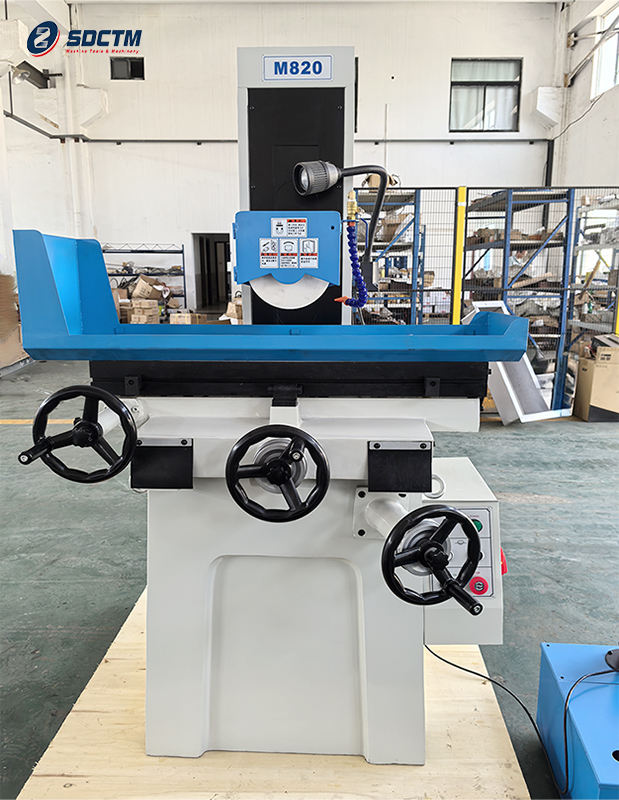

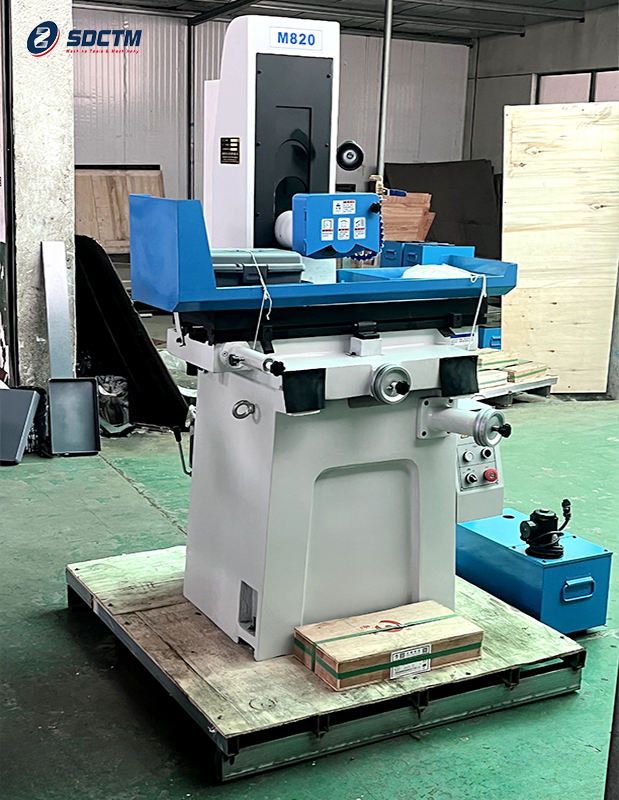

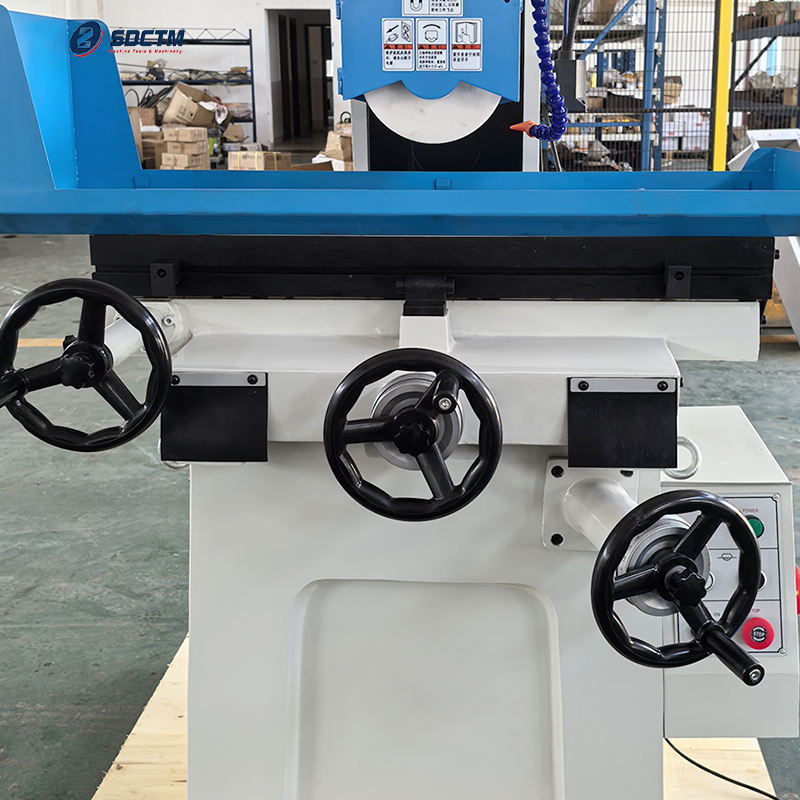

Small Flat Grinding Machines M820 Factory-Made Manual Surface Grinder Surface Grinding Machine

Share to:

Small Flat Grinding Machines M820 Factory-Made Manual Surface Grinder Surface Grinding Machine

The Functional Features of M820
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. The working table adopts ballscrew and synchronous belt which can achieve stable running,high productivity.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker. Application Field:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry. The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

M820:	480*200mm
Availability:

Quantity:



Inquire Add to Basket

Model:
M820

Product Description

The Functional Features of M8201. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.

2. The working table adopts ballscrew and synchronous belt which can achieve stable running,high productivity.

3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.

4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.

5. No vibration, low noise motor spindle.

6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker. Application Field:

Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry. The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

Product Paramenters

Model	M820
Table Size (Lx W) (mm)	480*200
Max movement of working table(Lx W) (mm)	530*220
Max distance from spindlecenter to table surface (mm)	440
Wheel speed 50HZ/60HZ (r/min)	2850/3440
Workbench T-type groove(mm×n)	14*1
Cross feed on handwheel Per revolution (mm)	5
Cross feed onhandwheel Per graduation (mm)	0.02
Vertical feed onhandwheel Per revolution (mm)	1.25
Vertical feed onhandwheel Per graduation (mm)	0.01
Wheer size (outer diameter width inner diameter)	￠200×20×￠31.75
The parallelism of workingsurface to base level (mm)	300:0.005
Surface roughness (μm)	Ra0.32
Spindle motor (kw)	1.1
Chuck size(permanent magnetic chuck ) (mm)	200*400
cooling pump (kw)	0.04
Net/Gross (kg)	750/850
Overall dimension(LxWxH) mm	1680x1140x1760
Package dimension(LxWxH)	1140x1250x1940
OPTIONAL Minimum of numercial display (mm)	0.001/0.005
