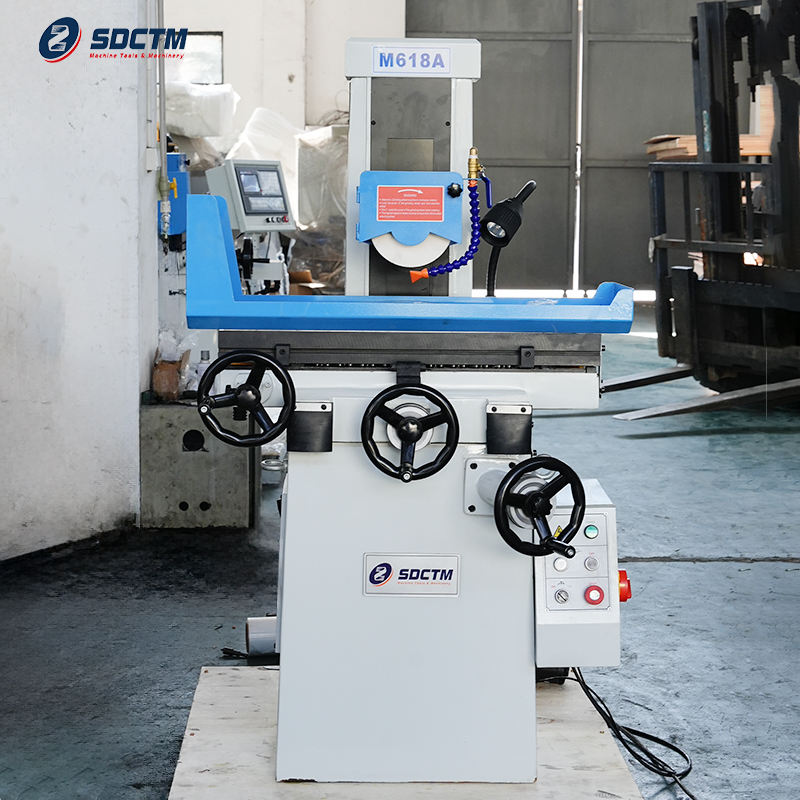

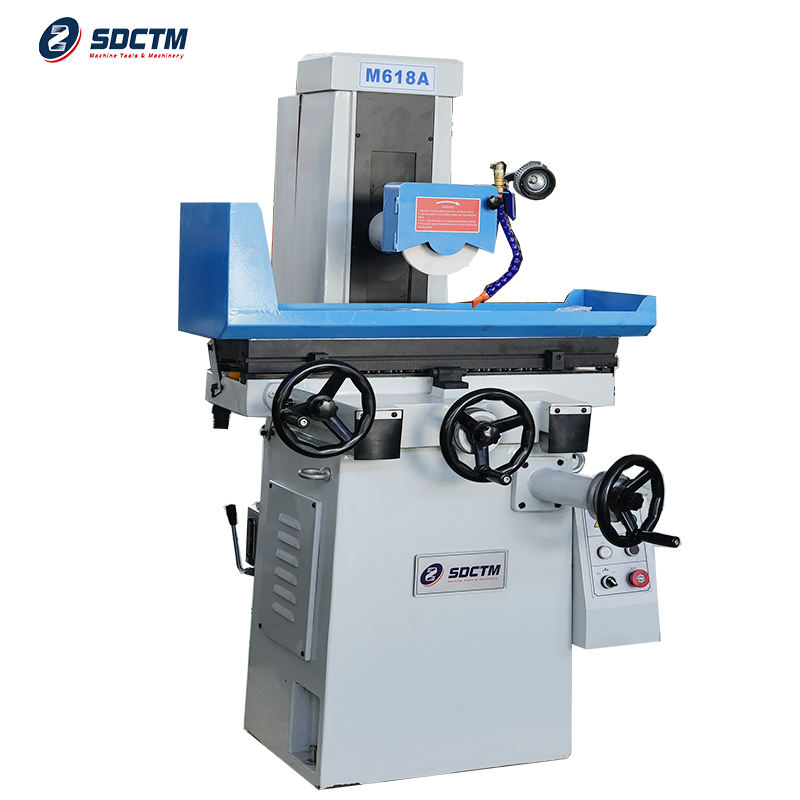

Hot Sales Surface Grinder M618A Cheap High Quality Manual Surface Grinding Machine

The main performance characteristics：
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. The transverse motion of the working table can be used to realize the mechanical transmission and the manual transmission.
3. The longitudinal movement of the working table can achieve mechanical drive and manual drive.
4. Can grinding a variety of flat and complex shape, suitable for grinding without motorized feed. according to the user needs to be equipped with permanent magnetic sucker or electromagnetic sucker.

Specifications

Units

M618A

workbench

Worktable size (L * W)

mm

460×180

Max. travel of table (L * W)

mm

500×190

Table T slot (slot number x slot width)

mm

1×14

Grinding head

The grinding wheel size (o. d w i. d.)

mm

φ180×13×Φ31.75

Distance spindle center line to working table

mm

335

Grinding wheel speed

50HZ

r/min

2850

60HZ

r/min

3440

The amount of feed

The vertical (up and down) feed handwheel feed

Handwheel per turn

mm

1.25

Handwheel per lattice

mm

0.01

Transverse (front and rear) feed handwheel feed

Handwheel per turn

mm

2.5

Handwheel per lattice

mm

0.02

Motor power

Spindle motor

kw

1.1

Cooling motor

W

40

working accuracy

The process surface of the base level of the parallel degree

mm

300:0.005

Surface roughness

μm

Ra0.32

Machine weight

Net weight

kg

650

Gross weight

kg

750

External size (L w h)

mm

1550x1150x1590

Packing size (L w h)

mm

1000x1150x1760
