Portable CZ1440-1 Bench Lathe DIY Metal Working Lathe Machine Wholesale

Variable Speed Control: Offers adjustable speeds from 84 to 1850 RPM for versatile machining needs.
Large Work Area: Swing over bed up to 355mm and swing over carriage up to 220mm for extensive workpiece handling.
High Precision Chuck: Fast clamping speed and high centering accuracy for precise workpiece clamping.
Digital Display: High-resolution CRT or LCD screen for real-time spindle speed and feed rate adjustment.

Availability:

Quantity:



Inquire Add to Basket

Model:
CZ1440-1

Product Description

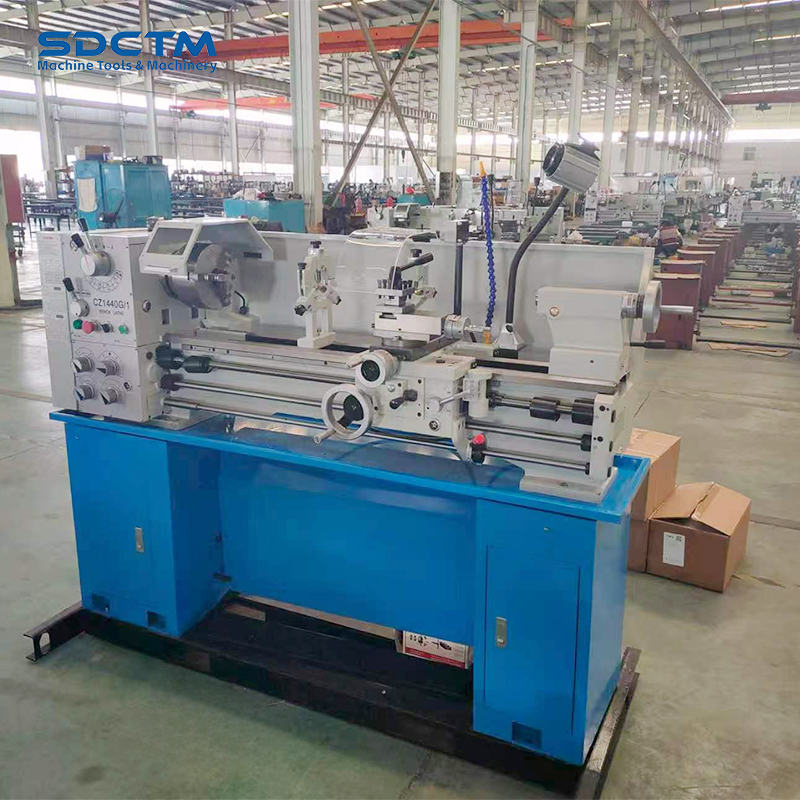

CZ1440G-1-0

CZ1440G-1-1

CZ1440G-1-2

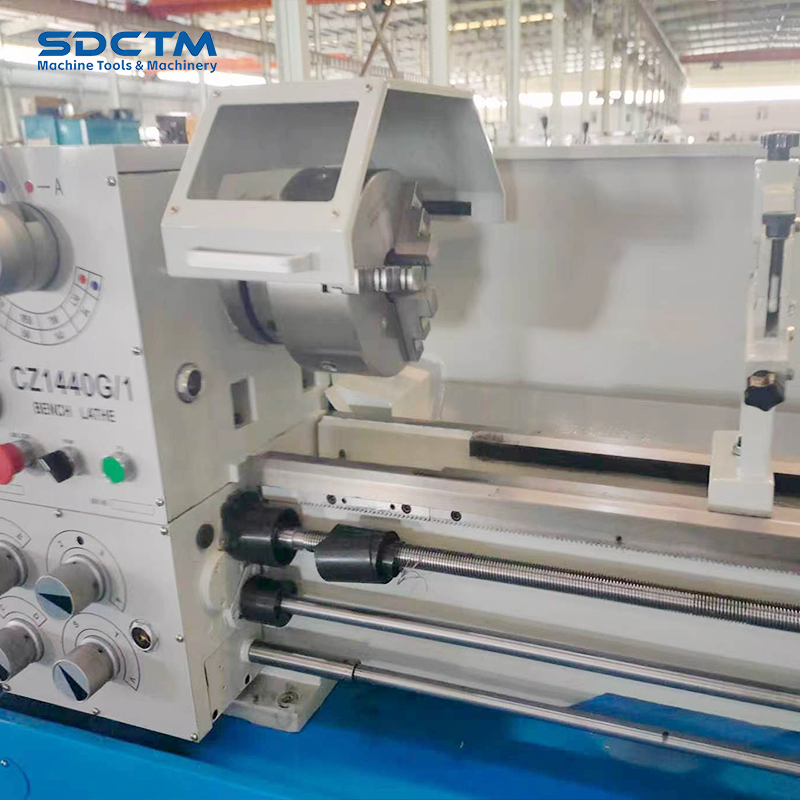

CZ1440G-1-3

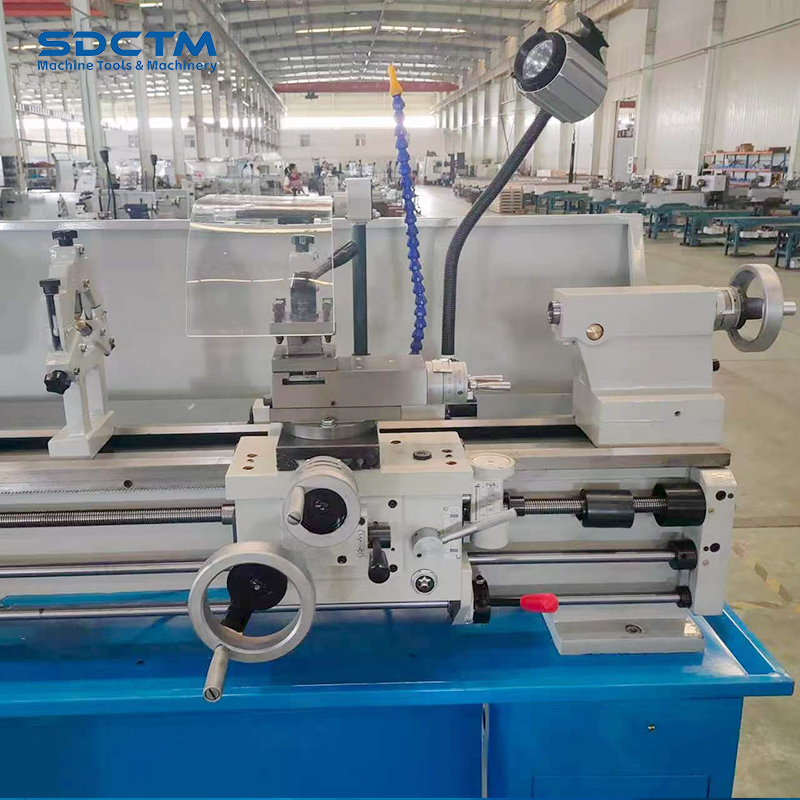

CZ1440G-1-5

MODEL	CZ1340G-1	CZ1440G/1
Swing over bed	φ330mm	φ355mm
Swing over carriage	φ195mm	φ220mm
Swing over gap	φ476mm	φ500mm
Width of bed-way	186mm
Distance between centers	1000mm
Taper of spindle	M.T.5
Spindle diameter	φ38mm(φ51mm)
Step of speed	8
Range of speed	70~2000(84~1850)
Head nose	D1-4 (D5 with D5' Chuck when Spindle Dia.51mm)
Metric thread	26kinds (0.4~7mm)
Inch thread	34kinds(4~56T.P.I)
Module thread	16 kinds(0.35~5M.P)
Diametral thread	36 kinds(6~104D.P)
Longitudinal feeds	0.052~1.392 (0.002”~0.0548”)
Cross feeds	0.014~0.38 (0.00055”~0.015”)
Diameter of lead screw	φ22mm(7/8”)	φ22mm(7/8”)
Pitch of lead screw	3mm or 8T.P.I
Saddle trave	1000mm
Cross travel	160mm
Compound travel	70mm
Barrel travel	95mm
Barrel diameter	φ32mm
Taper of center	M.T.3
Motor power	1.5(2HP)
Coolant motor	0.04(0.055HP
Packing size	1920x750x760mm
Machine stand(left)	440x410x700mm
Stand(right)	370x410x700mm
Main machine weight	500/560kg	505/565kg
Stand weight	70/75kg
Loading qty./20"	22pcs/20’container

FAQ:

1. How can I choose the most suitable machines?
Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the product drawing, we will choose the most suitable machines for you.
2. What are the main products of your company?
We specialized in CNC Machining Center, Milling Machine, Drilling Machine, Lathe Machine, Sawing Machine, Presses and Shears, Shaping Machine, Slotting Machine, Gear Hobbing Machine, Air Forging Hammer, Surface Grinder, Universal Cylindrical Grinder and so on.
3. Where is our factory located?

Our factory is located in Tengzhou City, Shandong Province, China. You are warmly welcomed to visit us.

4. How long is the delivery time?
For standard machines, it would be around 30 days; For customized machines according to the client’s requirements, it would be a little longer.

5. How can I make the payment?

We can make the deal online platform, you can pay by T/T or Credit card. You can also pay for my company's business bank account. You can also choose L/C or other ways.

6. What's the MOQ?
1 set. (Only some low-cost machines will be more than 1 set )
