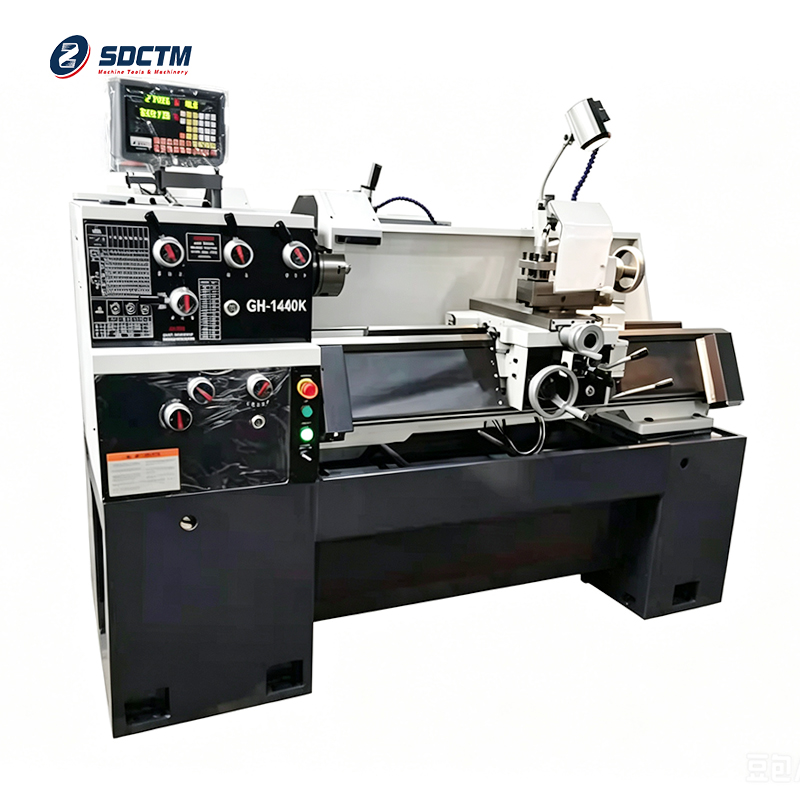

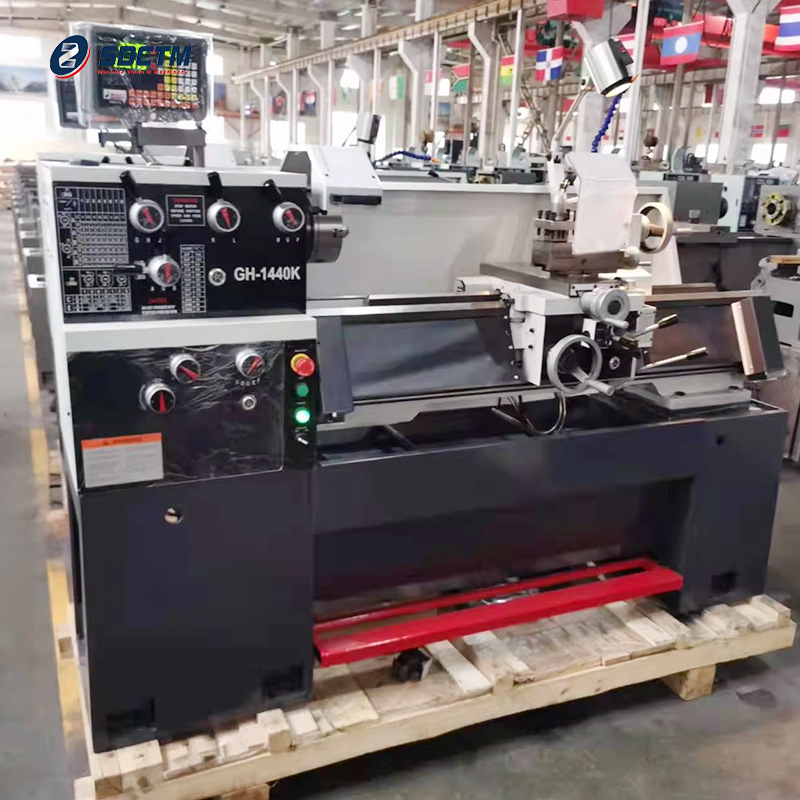

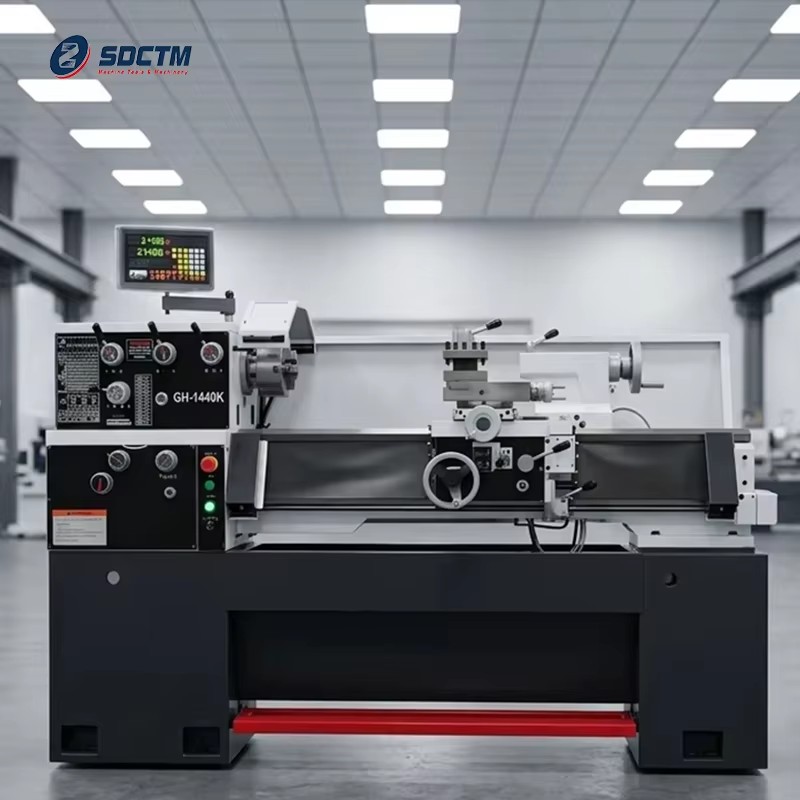

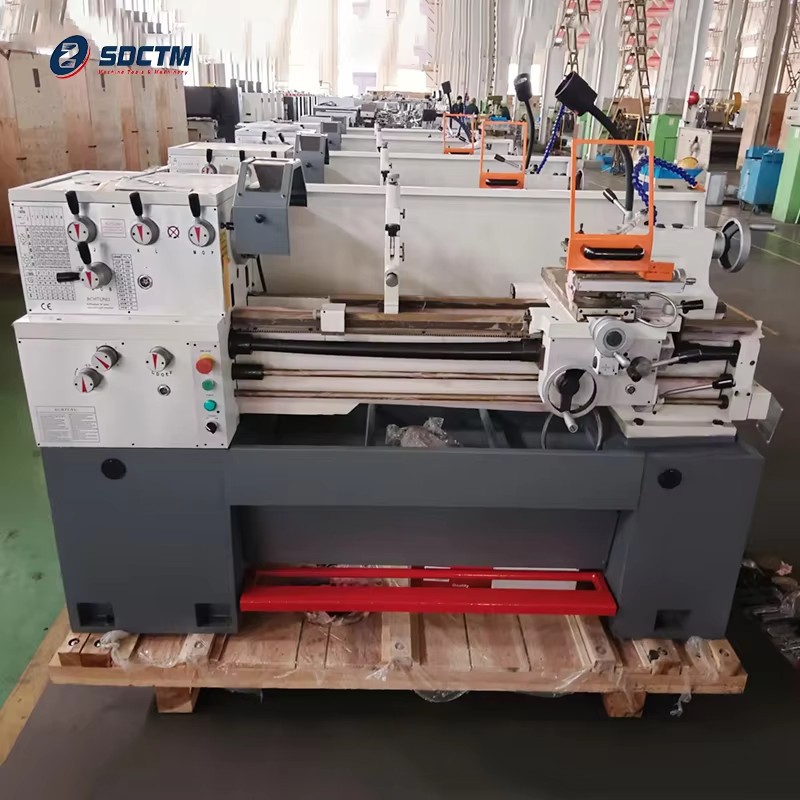

GH1440K
| MODELS | GH-1440K | |
| Processing | ||
| Max. swing over bed | Ø356mm | |
| Max. swing Dia. over slide | Ø210mm | |
| Max. swing Dia. in gap | Ø508mm | |
| Width of bed | 260mm | |
| Max.length of workpiece | 1000mm | |
| Spindle | ||
| Spindle nose | D4 | |
| Spindle bore | Ø40mm | |
| Taper bore of spindle | M.T.No.5 | |
| Steps of spindle speed | 12 Steps | |
| Range of spindle speed | 40~1800rpm | |
| Thread cutting | ||
| Inch thread range & No. | 4~56T.P.I/28 | |
| Metric thread range & No. | 0.4~7mm/37 | |
| Feed | ||
| Range of longitudinal feed | 0.043~0.653mm/r | |
| Range of cross feed | 0.024~0.359mm/r | |

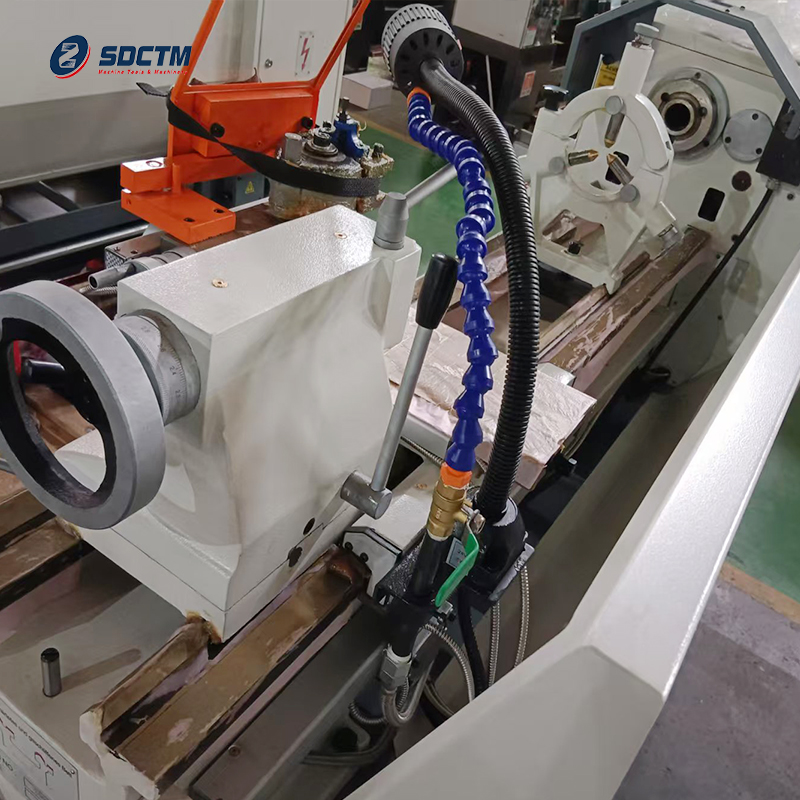

| Tailstock | ||
| Max travel of tailstock quill | 120mm | |
| Dia. of tailstock quill | Ø45mm | |
| Taper of tailstock quill | M.T.No.3 | |
| Others | ||
| Power of main motor | 2.2kW | |
| Net weight | 1250kg | |
| Overall dimensions (L×W×H) | 1900×765×1185mm | |
| Coolant pump motor power | 0.04kW | |
| Net weight | 1250kg | |
FAQ:
1. How can I choose the most suitable machines?
Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the product drawing, we will choose the most suitable machines for you.
2. What are the main products of your company?
We specialized in CNC Machining Center, Milling Machine, Drilling Machine, Lathe Machine, Sawing Machine, Presses and Shears, Shaping Machine, Slotting Machine, Gear Hobbing Machine, Air Forging Hammer, Surface Grinder, Universal Cylindrical Grinder and so on.
3. Where is our factory located?
Our factory is located in Tengzhou City, Shandong Province, China. You are warmly welcomed to visit us.
4. How long is the delivery time?
For standard machines, it would be around 30 days; For customized machines according to the client’s requirements, it would be a little longer.
5. How can I make the payment?
We can make the deal online platform, you can pay by T/T or Credit card. You can also pay for my company's business bank account. You can also choose L/C or other ways.
6. What's the MOQ?
1 set. (Only some low-cost machines will be more than 1 set )
