| Processing length range: | |
|---|---|
| Milling diameter range: | |
| Quantity: | |

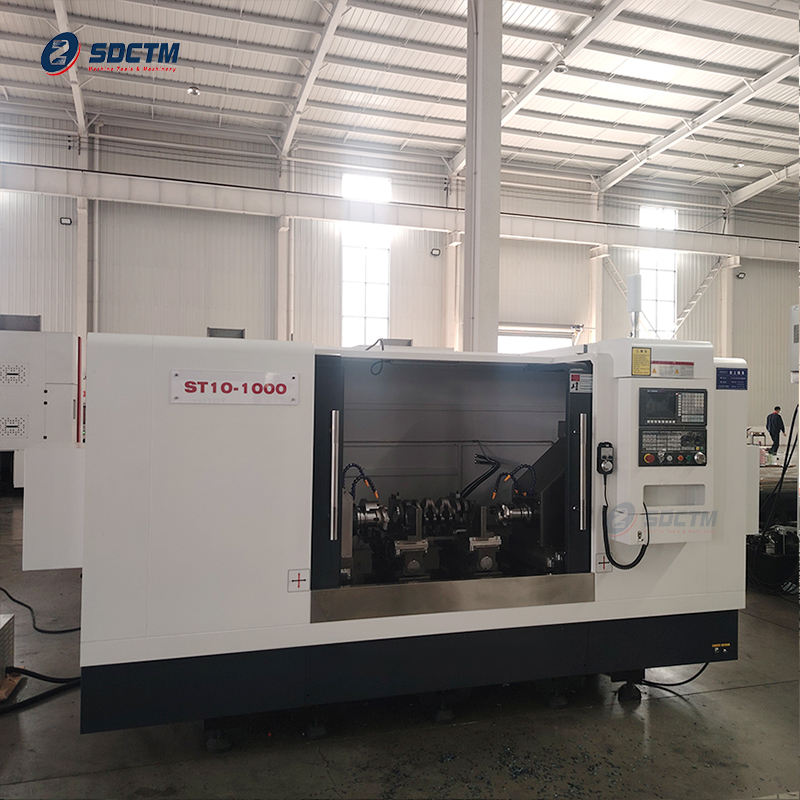

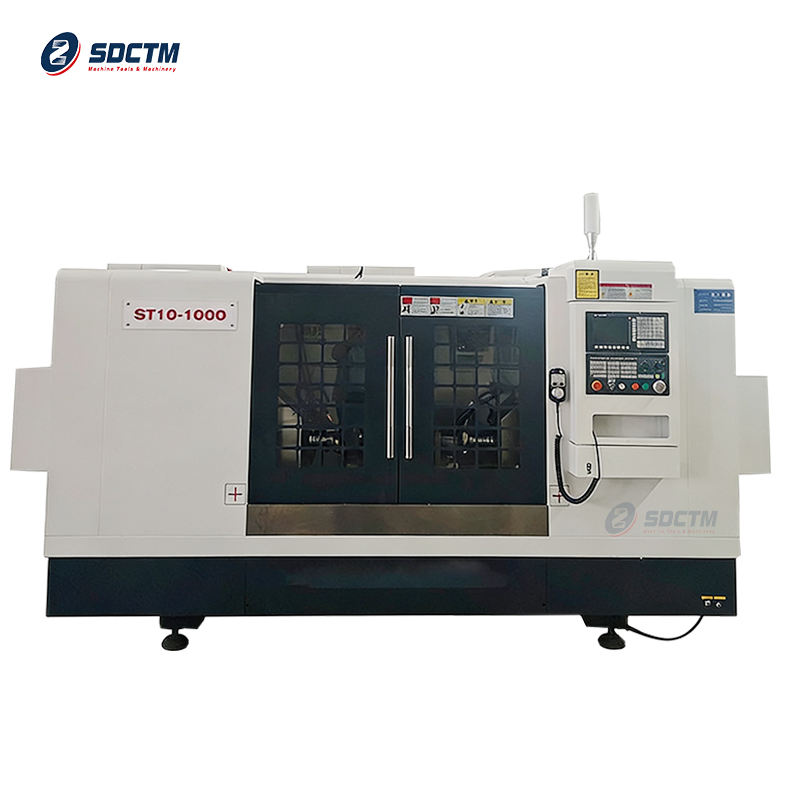

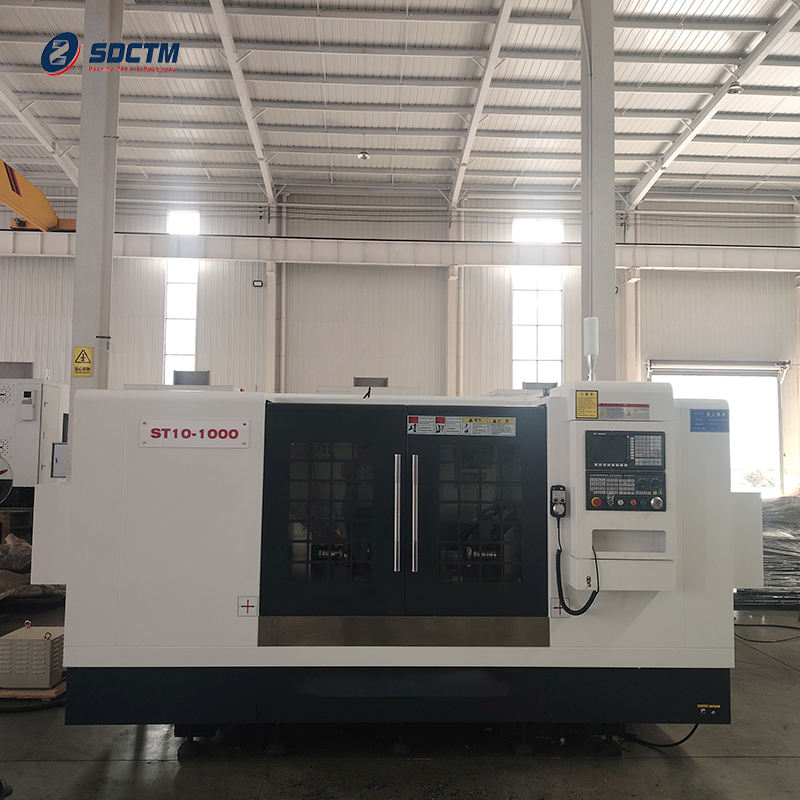

ST10-1000

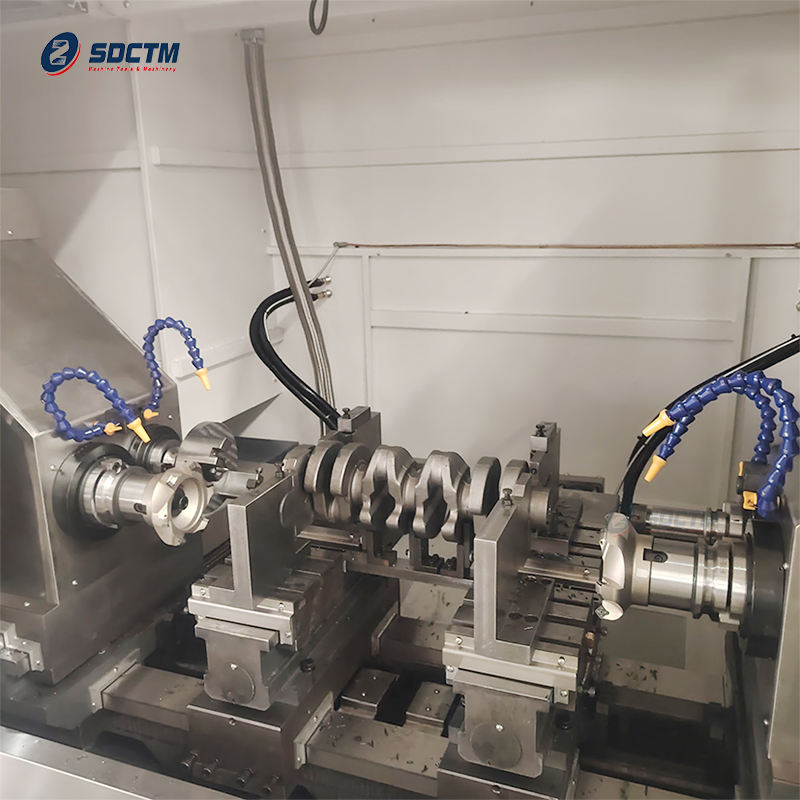

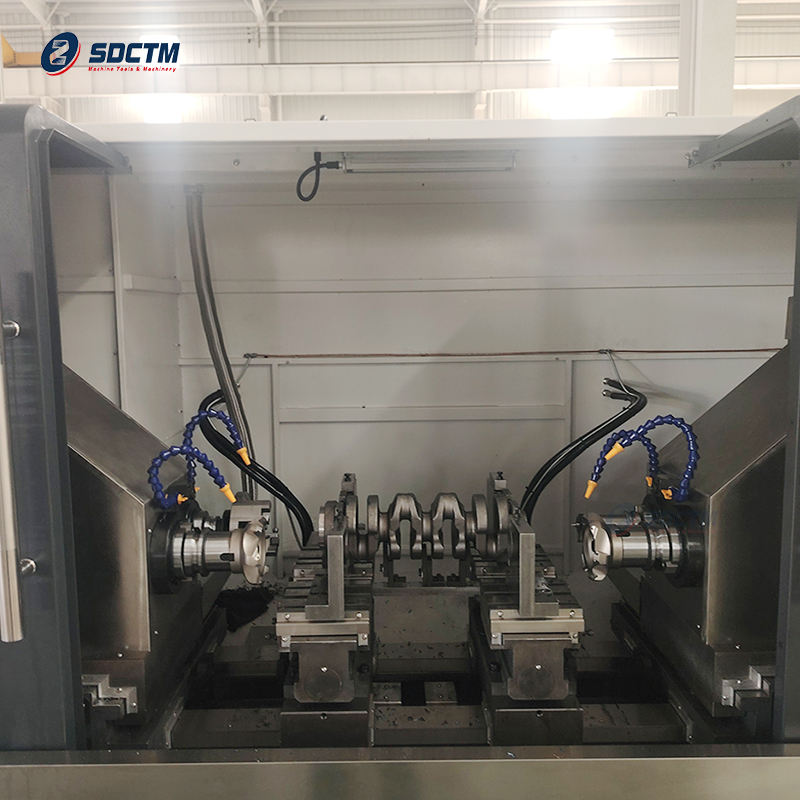

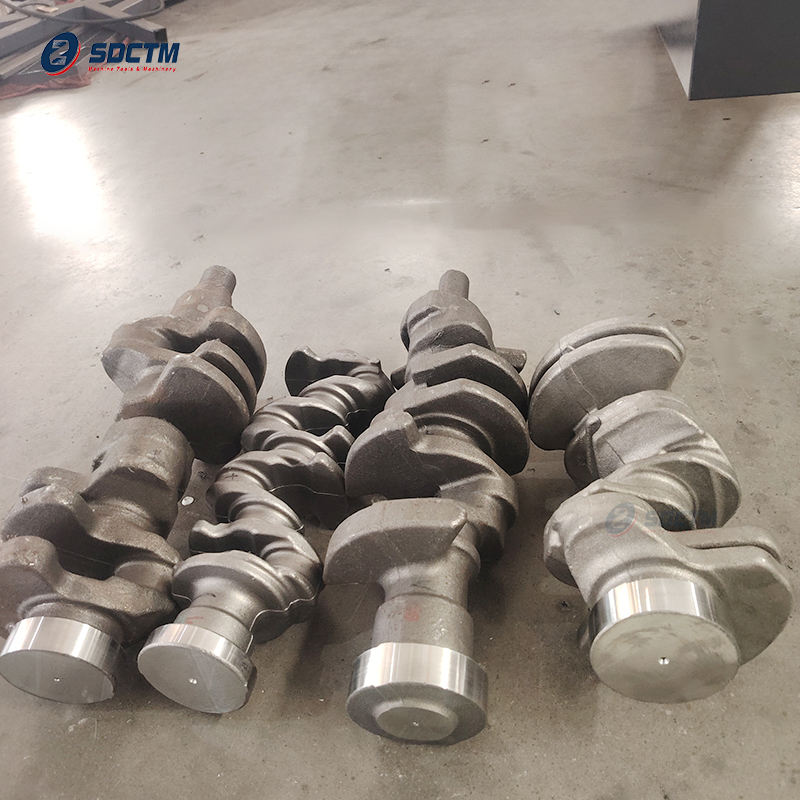

1. Specialized processing design: suitable for processing heavy shaft parts with a diameter of 20-200mm.
2. Four axis structure design: suitable for machining workpieces with long and short spans.
3. Super rigid power head: milling and drilling separation, convenient replacement of the center drill.
4. Bidirectional self centering hydraulic vise: No adjustment is required when changing the type.
5. Super large slide guide: Good rigidity, higher accuracy than screw guide.
roject | Unit | ST10-1000 |
Processing length range | mm | 200-1000 |
Milling diameter range | mm | 20-90 |
Single side milling amount | mm | 5 |
Drilling diameter | mm | 26 |
Spindle speed | rpm | 200-1500 |
Three-axis repeatable positioning | mm | 0.006 |
Consistency of overall milling length | mm | ±0.05 |
Center hole depth consistency | mm | 0.05 |
Both ends face the center hole and run out | mm | 0.03/p50 |
End surface roughness | Ra | 3.2 |
Center hole roughness | Ra | 1.6 |
Optional function parameters | ||
Outer circle diameter of the set car | mm | 100 |
Rigid tapping | mm | M20 |
High speed U drill | mm | 40 |
About this supplier
At Shandong China Trade Machinery Co. Ltd. we dont just build machines we engineer the future of manufacturing. Our machines are built using only high quality components and advanced control systems all subjected to rigorous quality control measures. When you choose Shandong China Trade Machinery you are choosing a partner dedicated to minimizing downtime and maximizing your operational output. By utilizing our advanced machining centers manufacturers gain the confidence that every part produced is a masterpiece of precision. We enable you to streamline production processes reduce waste and ensure the absolute reliability of your components. Whether your focus is on automotive drivetrains precision motor shafts or any application requiring high tolerance machining Shandong China Trade Machinery provides the competitive edge you need. We offer more than just machinery we provide complete tailored solutions. Our team of experienced engineers and technicians works closely with you to understand your unique challenges ensuring that you have access to everything required to optimize your operations. From comprehensive after sales support to customized advice we are with you every step of the way. Choosing Shandong China Trade Machinery means gaining access to state of the art equipment that enhances productivity ensures precision and delivers consistent superior results. We invite you to experience the difference that true engineering excellence can make. Join us in shaping the future of manufacturing where efficiency automation and superior surface finish are not just promises but guarantees.
Packaging & shipping specifications
1.Does your factory accept OEM?
Yes, OEM production is one of our advantages.
2.Can you provide customized machines, yes or no?
Yes, it is. We can provide customized machines for customers.
3.Can we visit your factory before placing an order?
Of course. Welcome new and old friends to visit the factory. Additionally, if needed, we can pick you up at the station.
4.What are the requirements for becoming a distributor?
Please feel free to contact us and we will answer your questions. We sincerely welcome your joining!
