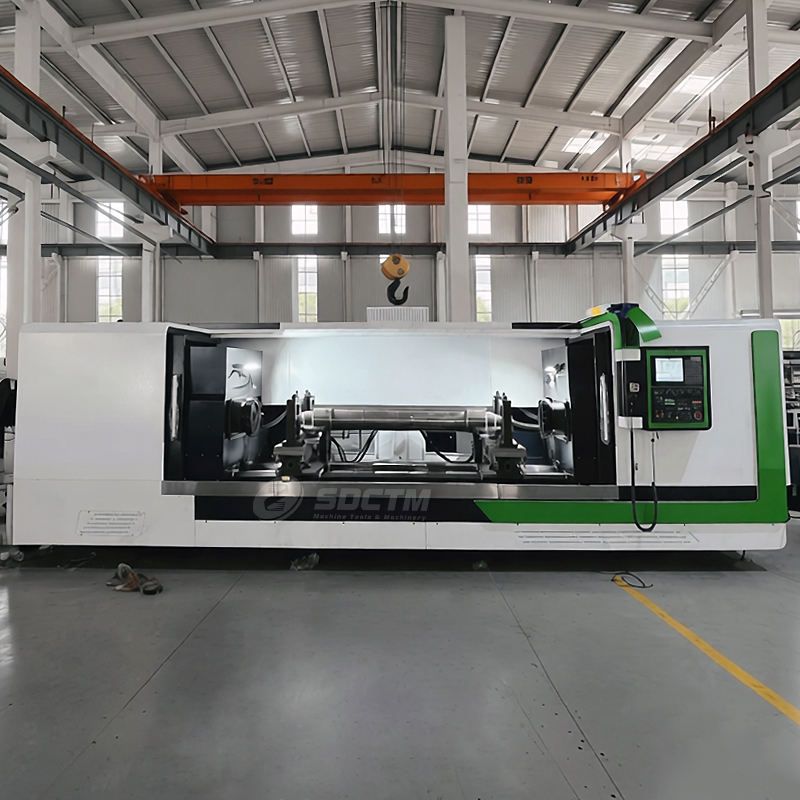

ST2500-2000

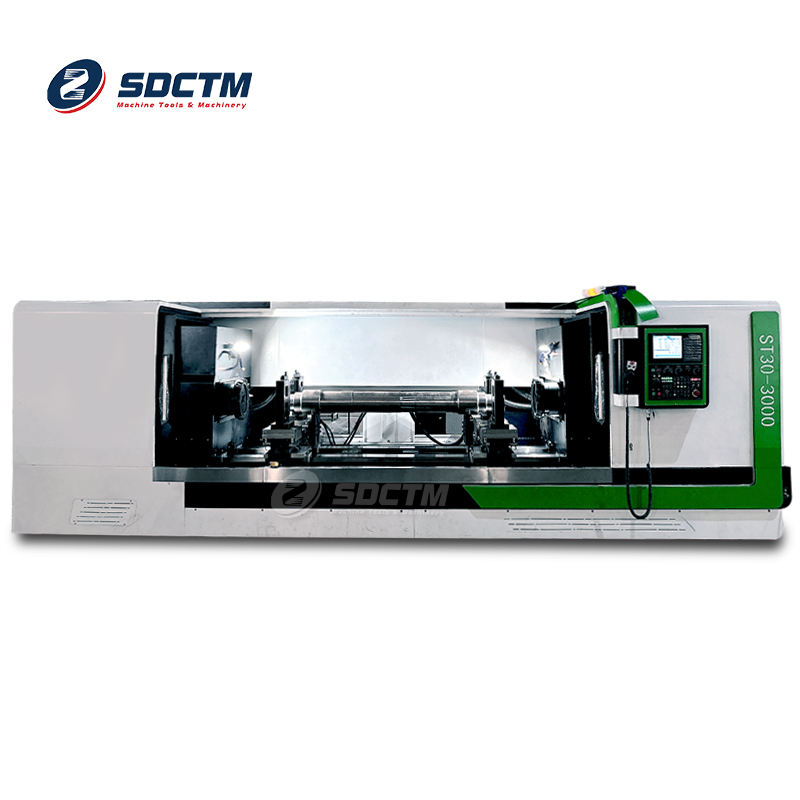

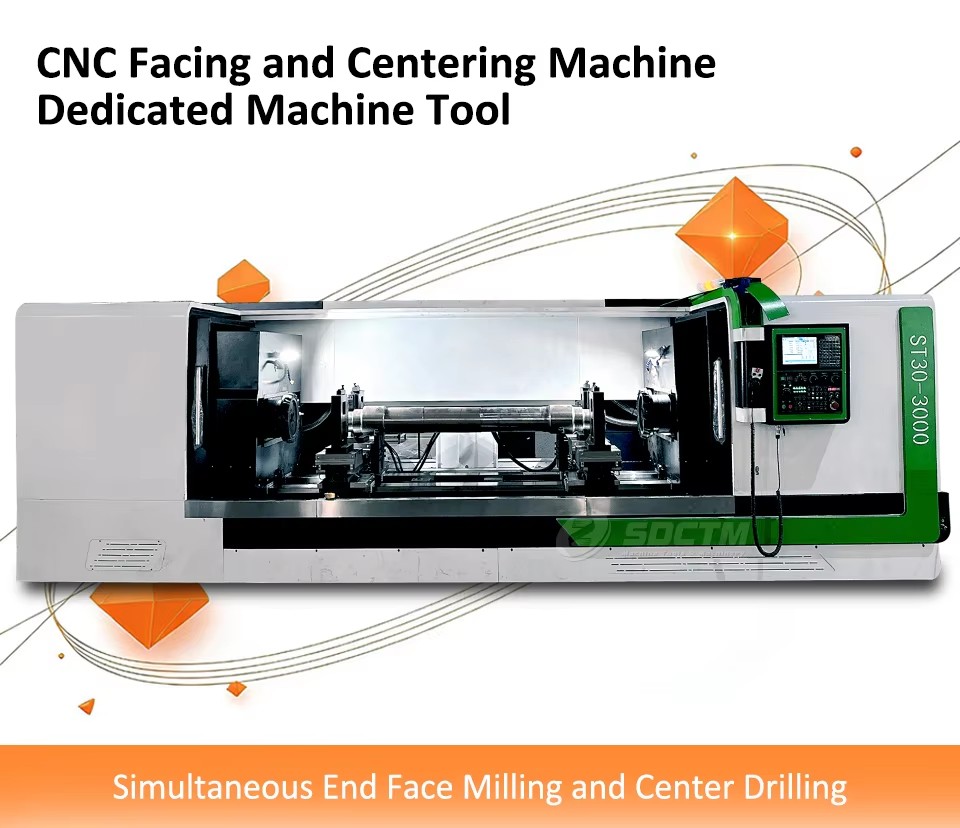

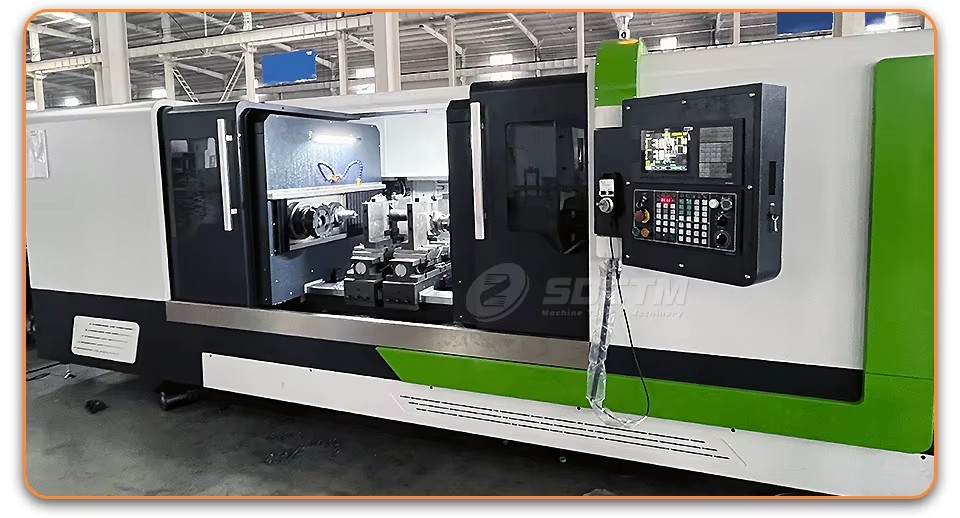

CNC Facing and Centering MachineDedicated Machine Tool
| Item | ||
| Bed form | Horizontal flat bed form | |
| Processing length range | mm | 200-2000/3000 |
| Milling diameter range | mm | Φ30-300 |
| Max. unilateral milling | mm | 5 |
| Max. drilling capacity | mm | |
| Spindle speed | r.p.m | |
| Three axis repeat positioning accuracy | mm | |
| Consistency of milling total length | mm | ±0.03 |
| Consistency of center hole depth | mm | 0.03 |
| Both ends face center hole beating | mm | 0.03/Φ50 |
| Roughness of end face | Ra | 3.2 |
| Roughness of center hole | Ra | 1.6 |
| Optional configurations | Unit | |
| Rigid Tapping | mm | Φ90/Φ120/Φ250 Can be changed |
| U Drill | mm | M20/M24/M36 Can be changed |
| Chip Conveyor | mm | Φ40/Φ60 |
| Automatic Tool | Chain Plate Can be changed |
| 1. Specialized processing design: suitable for processing heavy shaft parts with a diameter of 20-200mm. |

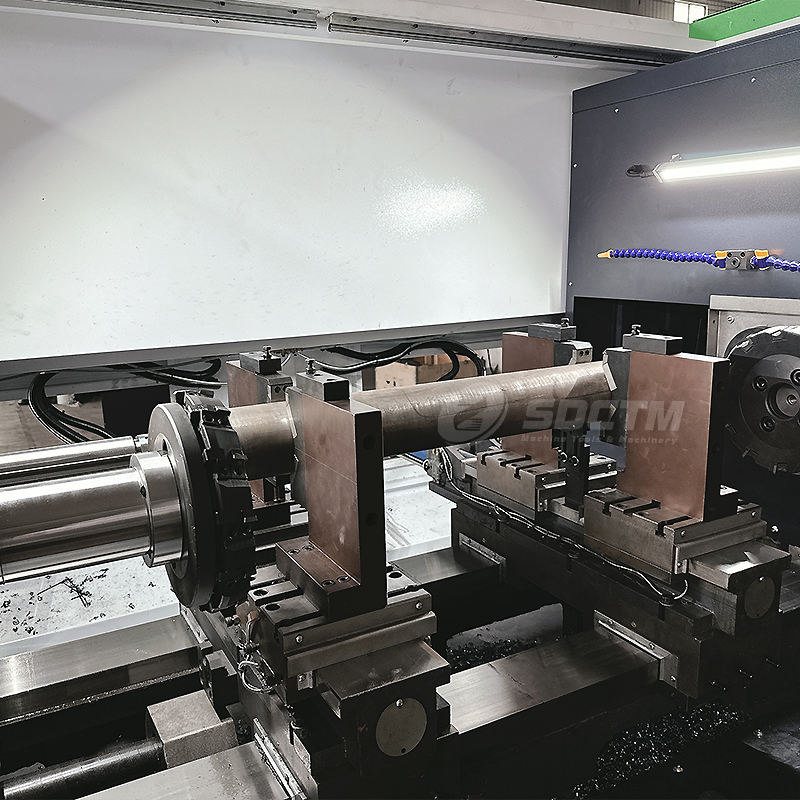

2.Four axis structure design: suitable for machining workpieces with long and short spans. 3.Super rigid power head: milling and drilling separation, convenient replacement of the center drill. 4.Bidirectional self centering hydraulic vise: No adjustment is required when changing the type. 5. Super large slide guide: Good rigidity, higher accuracy than screw guide. |
