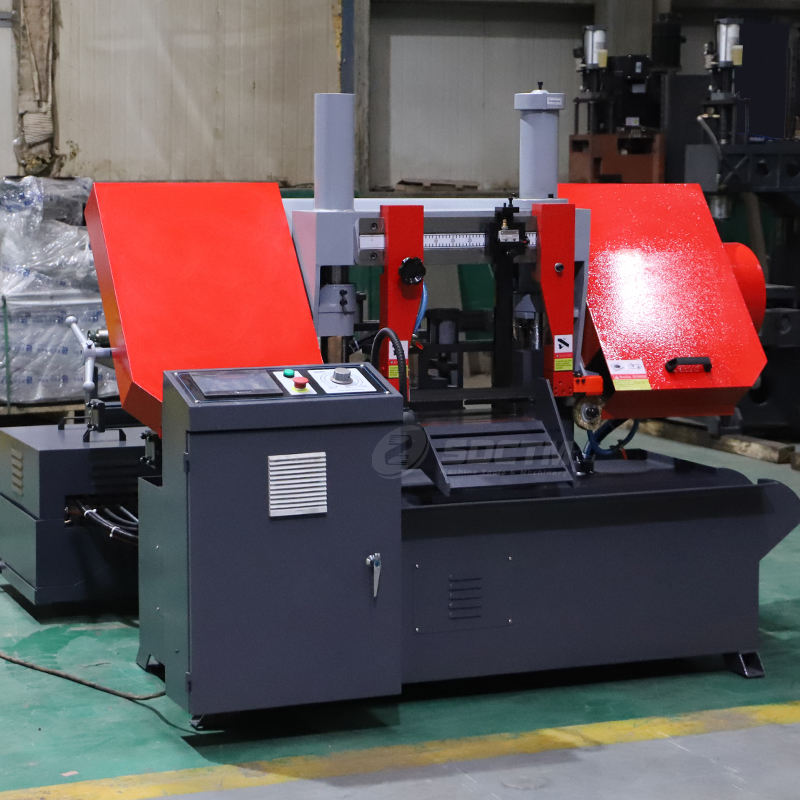

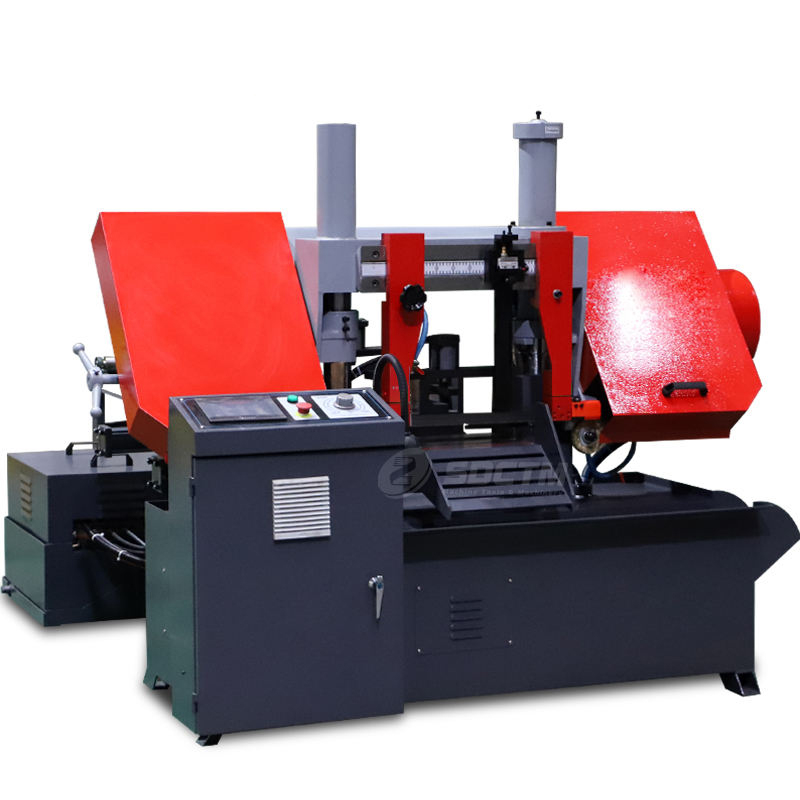

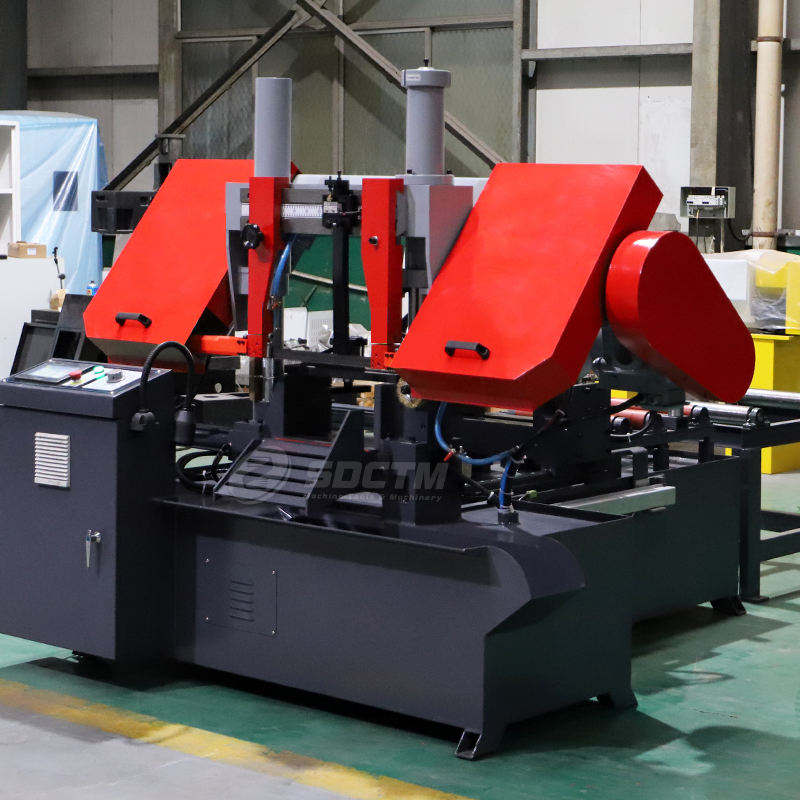

GSK4235 Hot Selling China Automatic Band Saw Machine Horizontal Metal Band Saw Machine for Metal Cutting

Share to:

GSK4235 Hot Selling China Automatic Band Saw Machine Horizontal Metal Band Saw Machine for Metal Cutting

Fully automatic, unattended cutting.
High efficiency & fast cutting.
High precision, clean & smooth cuts.
Stable double-column structure, low vibration.
Long blade life, low material waste.
Easy operation & PLC control.
Energy-saving & durable.
Wide material compatibility.
Ideal for mass production.

Fully automatic metal band sawing machine:	GSK4235
Availability:

Quantity:



Inquire Add to Basket

Model:
GSK4235

Product Description

H4cfb40a9a0664bcc81027b8437e6efdcB

tem	GSK4235
Saw/cut range	350*350 mm
Saw/cut belt size	4115341.1 mm
Saw/cut belt speed	27,45,69 m/min
Main motor	4 kw
Hydraulic motor	0.75 kw
Cooling pump motor	0.04 kw
Machine operation mode	Automatic
Main transmission structure	Worm gear transmission
Machine clamping method	Hydraulic clamping
Overall dimensions	222022001800 mm
Overall Weight	1450 kg

1779091838 1779091847 1779091843

DETAIL SHOT

H69975e2402844649b8d92ac6757aeb19A

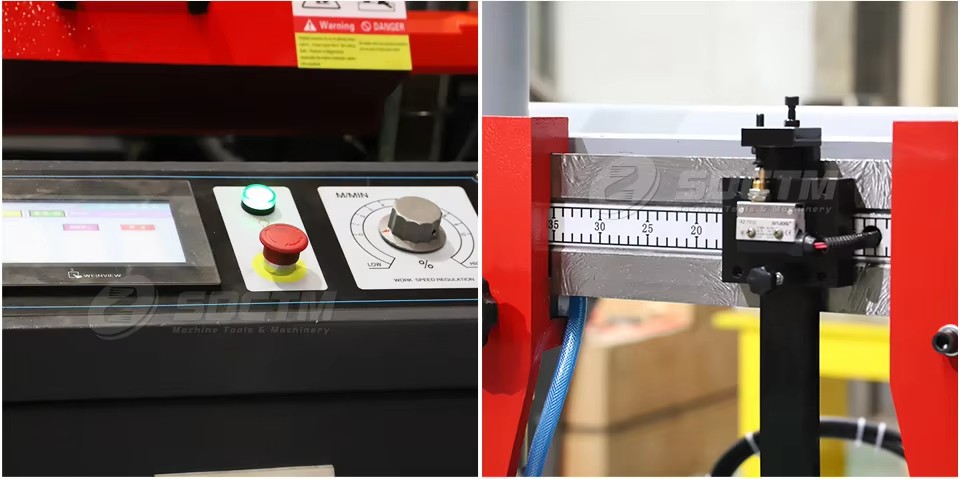

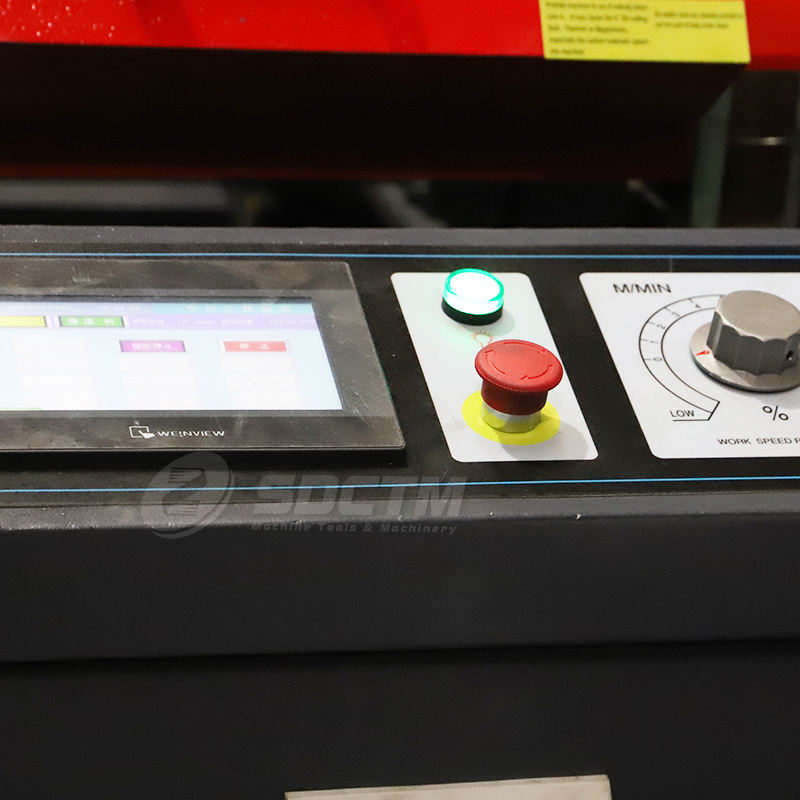

Intuitive operation：User-friendly control panel with both display screen and push buttons for easy.

Graduated Scale : Clearly marked scales, precise measurement and positioning of workpieces, ensuring sawing accuracy.The double column structure makes the machine stable.

Hc669d436e84c4ddabde79fd01a4ad7a4l

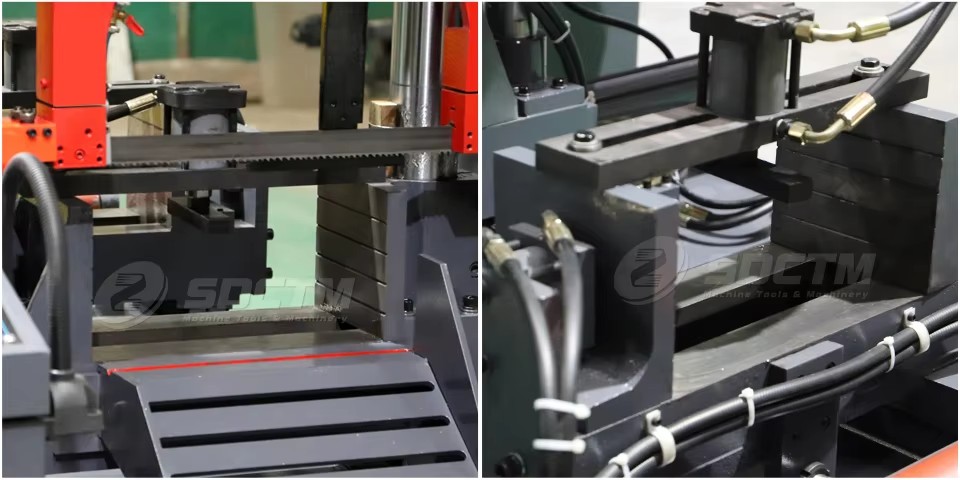

Workbenches : The countertop is made of m35 material and has undergone high-temperature heat treatment and comprehensive oil immersion treatment; Durable and not easily rusted.

Hydraulic Vice : Hydraulic clamping.Customizable in height, Option of either a handwheel or an oil cylinder.

fcdca8e5-5303-4d2b-96bf-04ce6e296b6c

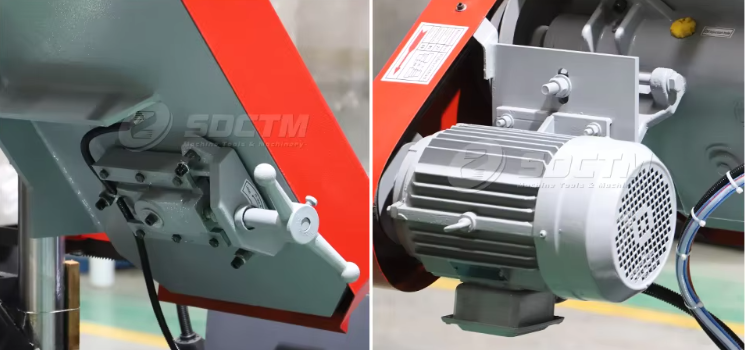

Tensioning Device : Adjust the tension of the saw blade, ensuring cutting accuracy and stability. Standard manual, optional hydraulic.

Motor : Motors transmit kinetic energy to machine tools, providing powerful and surging power. Durable and long-lasting, with optional intelligent speed regulation function.
