| Fully automatic Wire Gauge metal band sawing : | |
|---|---|
| Quantity: | |

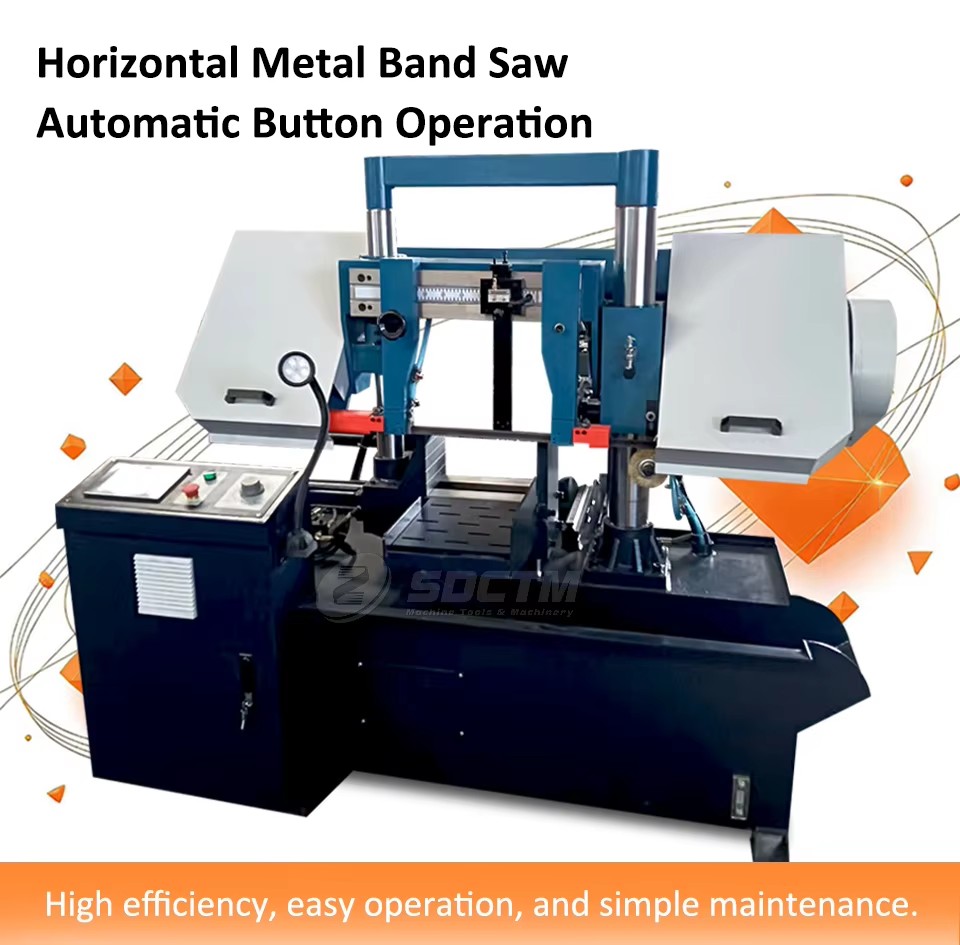

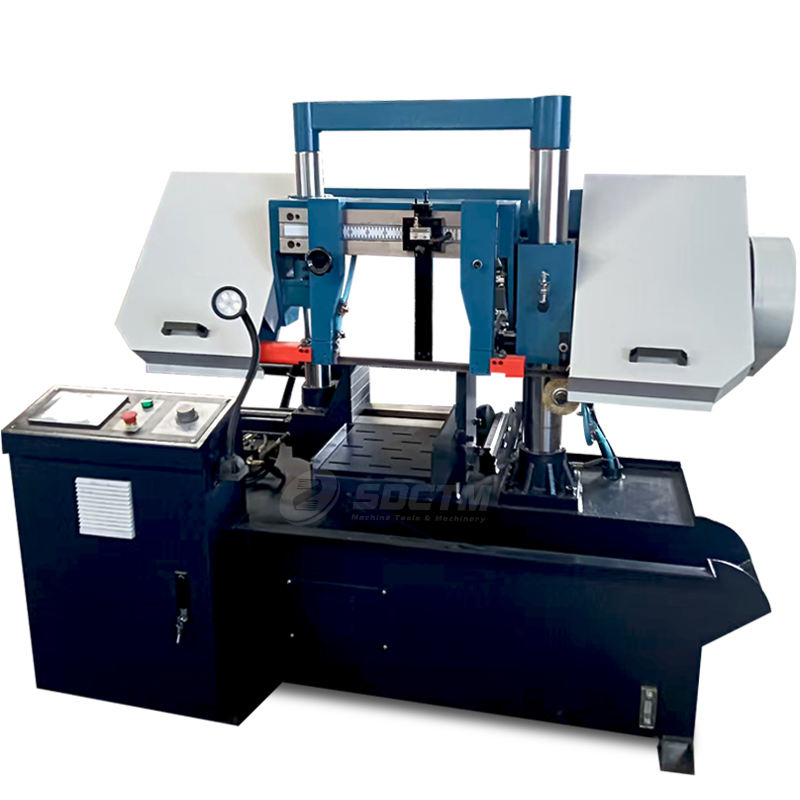

GSK4230
Fully automatic, unattended cutting.
High efficiency & fast cutting.
High precision, clean & smooth cuts.
Stable double-column structure, low vibration.
Long blade life, low material waste.
Easy operation & PLC control.
Energy-saving & durable.
Wide material compatibility.
Ideal for mass production.

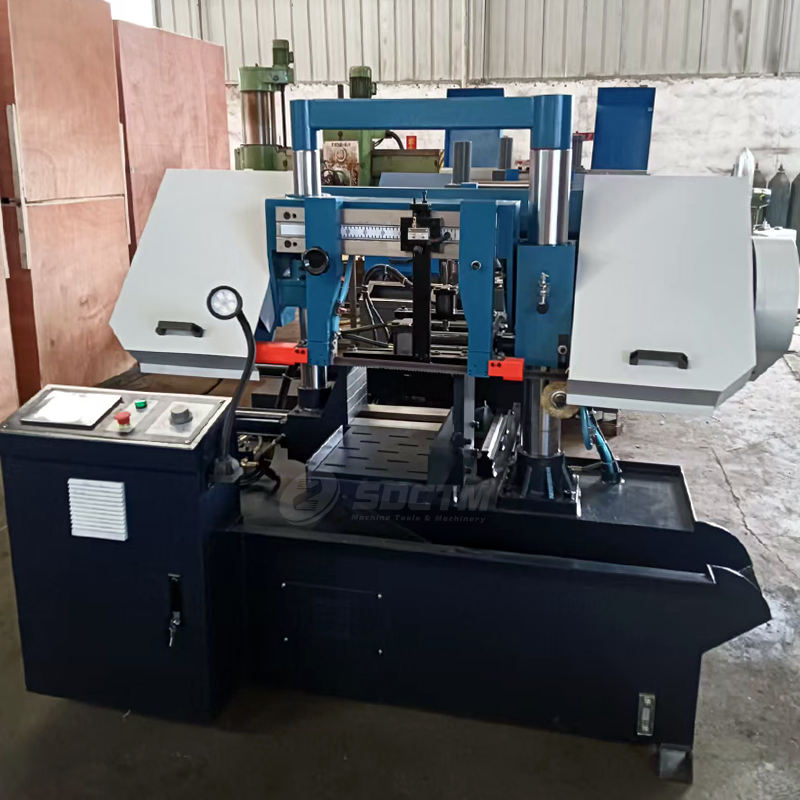

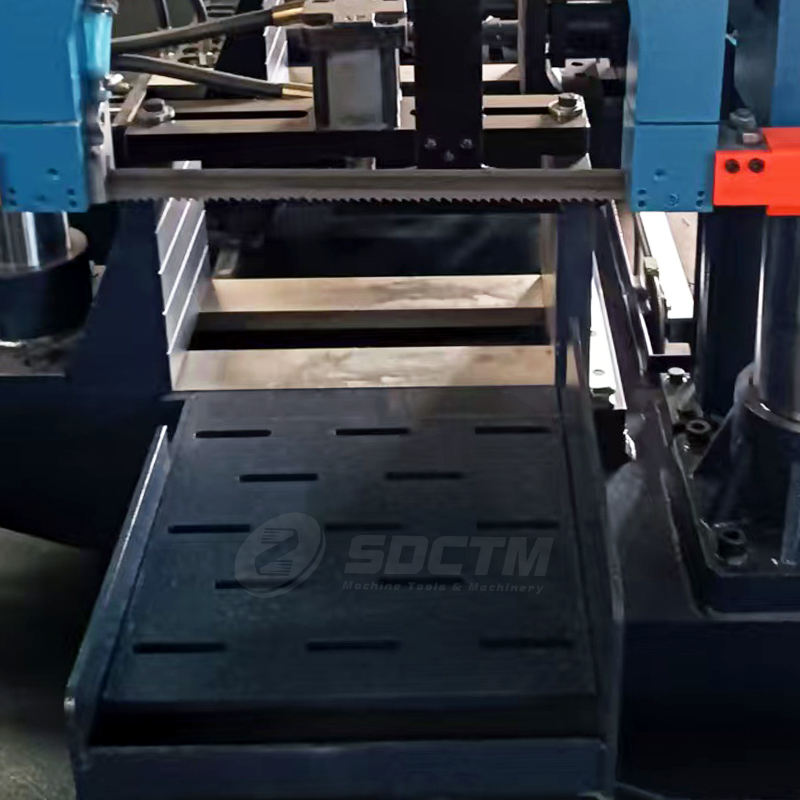

SCENE IMAGE
| tem | GSK4230 |
| Saw/cut range | 300*300 mm |
| Saw/cut belt size | 3505*27*0.9 mm |
| Saw/cut belt speed | 27,45,69 m/min |
| Main motor | 3 kw |
| Hydraulic motor | 0.75 kw |
| Cooling pump motor | 0.04 kw |
| Machine operation mode | Automatic |
| Main transmission structure | Worm gear transmission |
| Machine clamping method | Hydraulic clamping |
| Overall dimensions | 2100*2050*1700 mm |
| Overall Weight | 1350 kg |

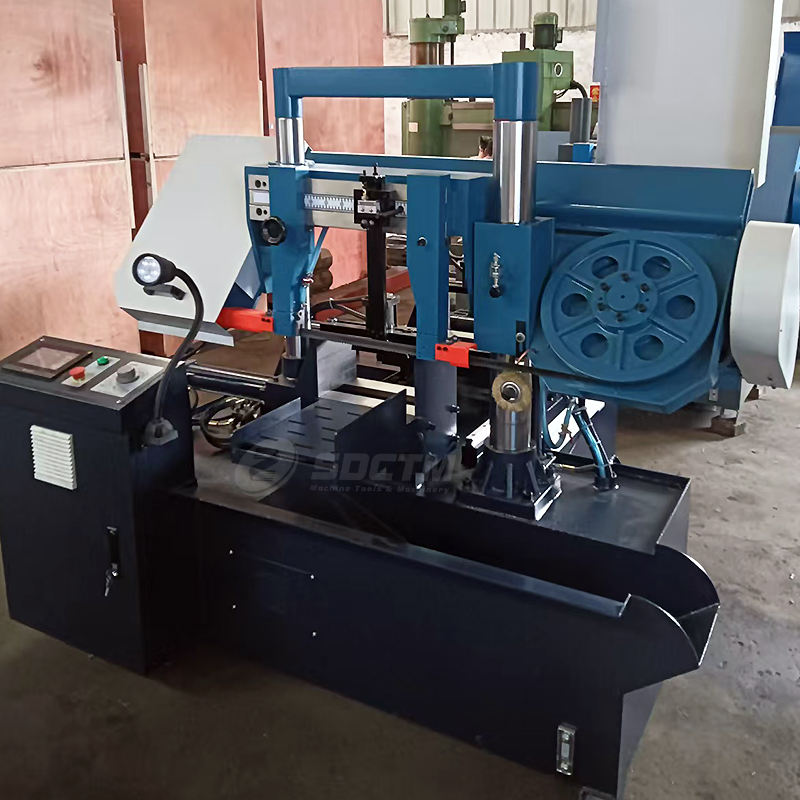

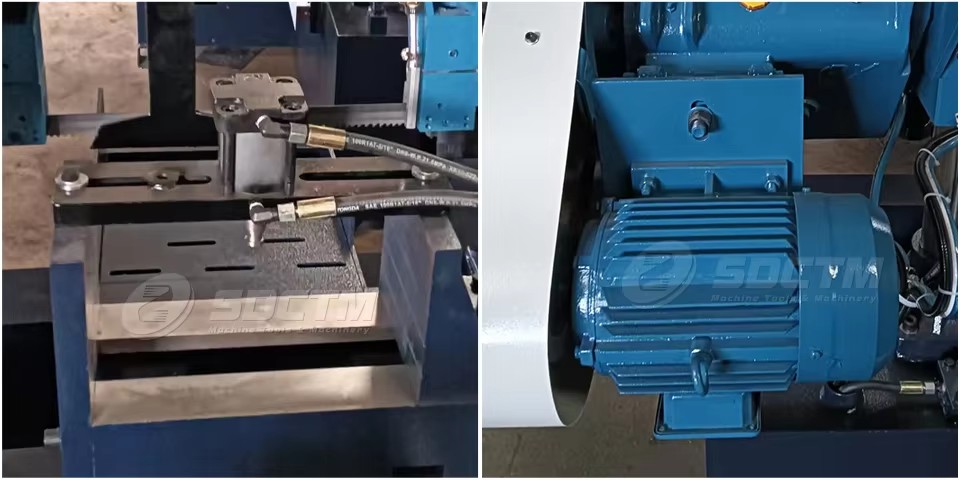

DETAIL SHOT

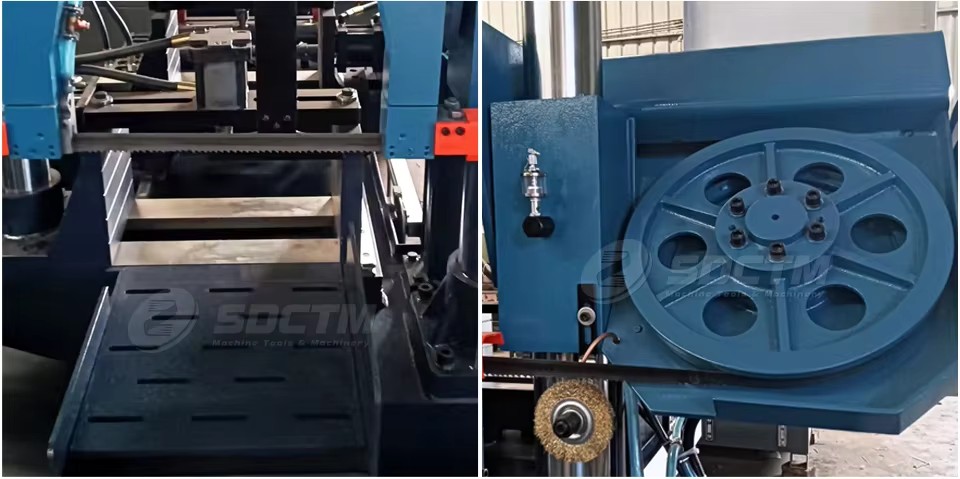

Workbenches : The countertop is made of m35 material and has undergone high-temperature heat treatment and comprehensive oil immersion treatment; Durable and not easily rusted.Double Turbine Disc : It is made of cast iron, with high rigidity, stable operation, and improved sawing ability.

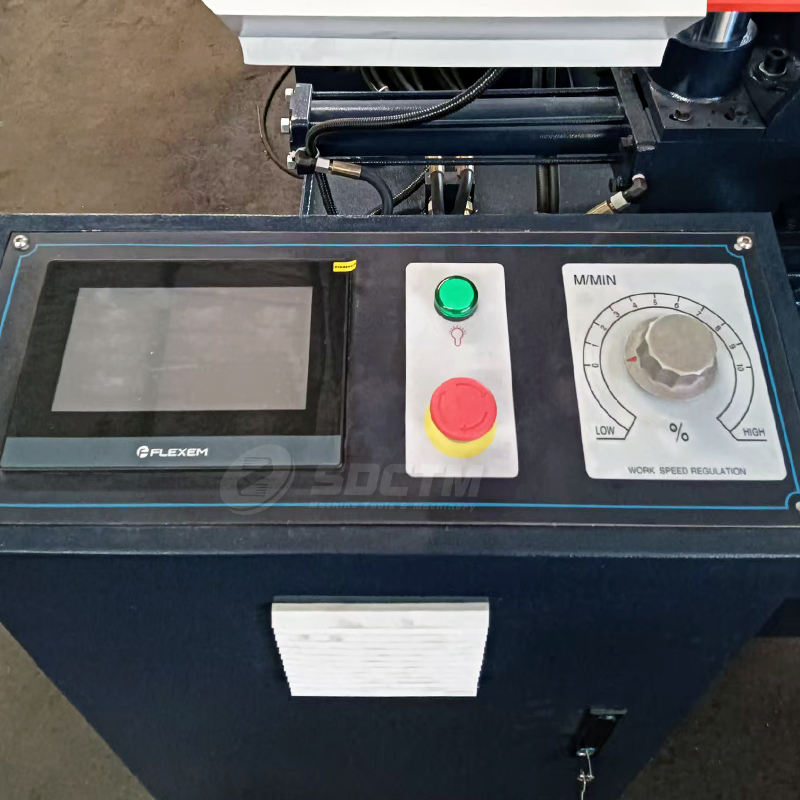

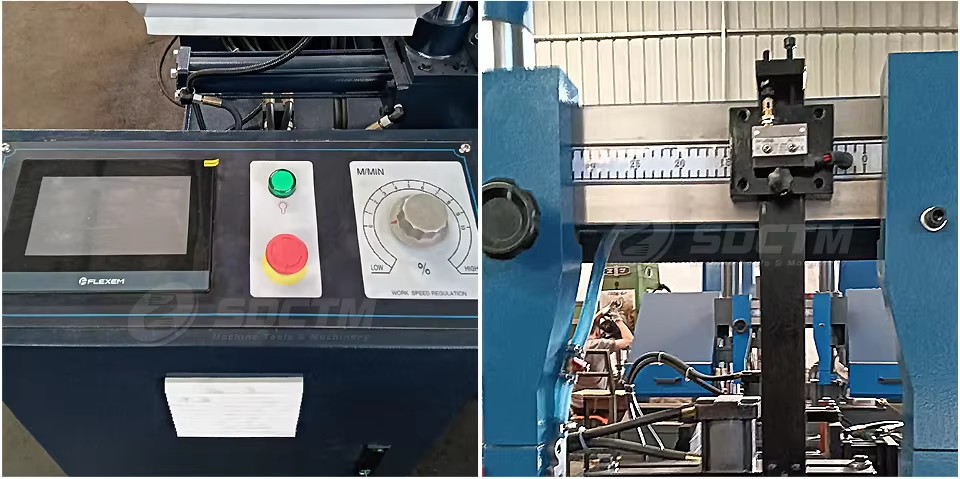

Intuitive operation : User-friendly control panel with both display screen and push buttons for easy.Graduated Scale : Clearly marked scales, precise measurement and positioning of workpieces, ensuring sawing accuracy.The double column structure makes the machine stable.
