G4025B
SDCTM
PRODUCT HIGHLIGHTS

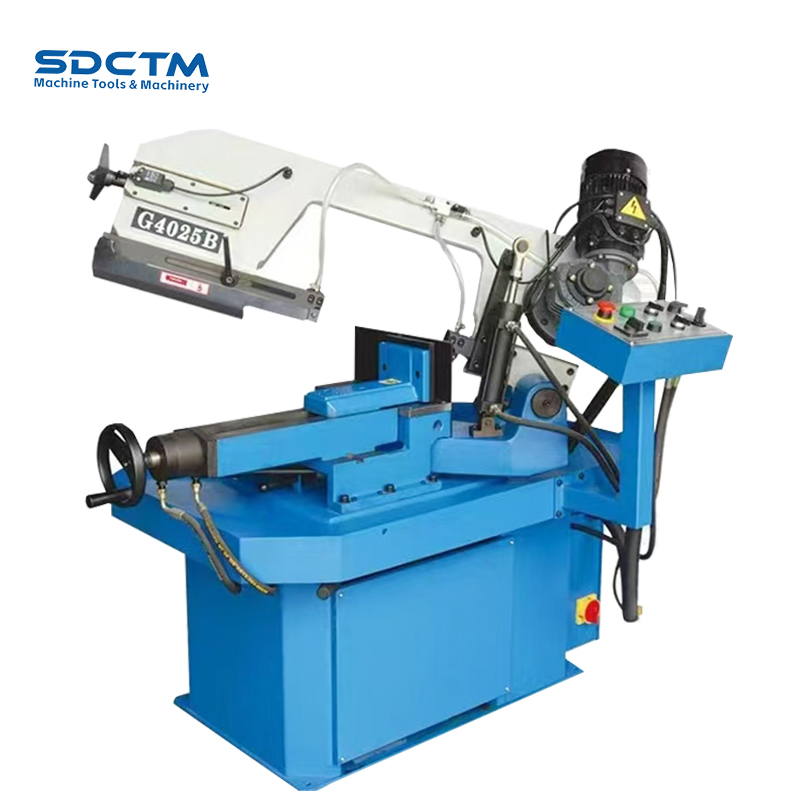

G4025B Miter Saw
1.Coolant pump ensures longer service life of saw blade
2.Scale on the vise allows easy adjustments for angle cuts between 0°-60° and 0°--45
3.Quick adjusting vise for angular cuts- the saw frame swivels, not the material
4.G4025B adopts hydraulic stepless speed regulation.
MODEL | G-4025B | ||
Cutting Capacity | 0° | round | Φ250mm |
0° | rectangular | 280mm( W) x 230mm( H) | |
-45°or+45° | round | Φ190mm | |
-45°or+45° | rectangular | 180mm (W )x 230mm( H) | |
60° | round | Φ120mm | |
60° | rectangular | 115mm (W )x 230mm( H) | |
Cutting angle | 0°~ -45°~ 60° | ||
Drive Capacity | Main Motor | 1.1KW | |
Hydraulic Motor | 0.85KW | ||
Coolant Pump | 0.04KW | ||
Blade Speed | 53/79m/min by cone pulley | ||
Blade Size | 2750x27x0.9mm | ||
Work piece Clamping | Hand operated jaws | ||
Blade Tension | Manual | ||
Material feeding type | Manual | ||
Main Drive | Worm gear | ||
Machine Size (LxWxH) | 1500x900x1300mm | ||
Weight (kg) | 450 | ||
