| Processing length range: | |
|---|---|
| Milling diameter range: | |
| Quantity: | |

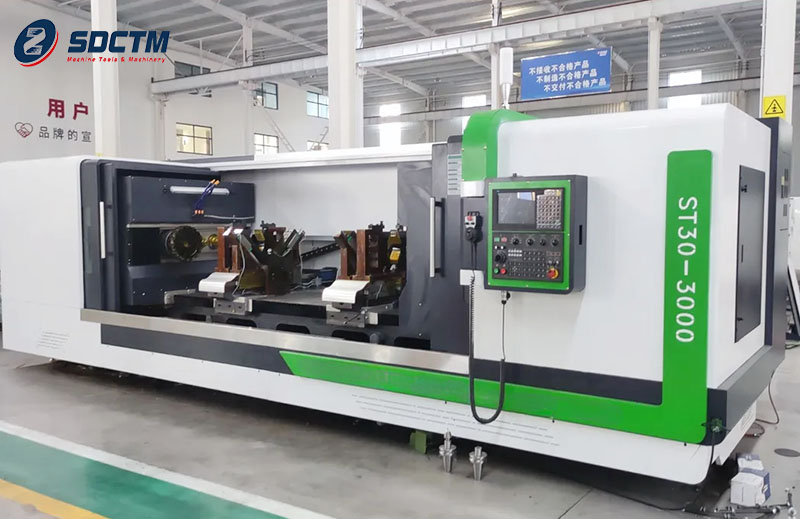

ST30-3000
PRODUCT HIGHLIGHTS

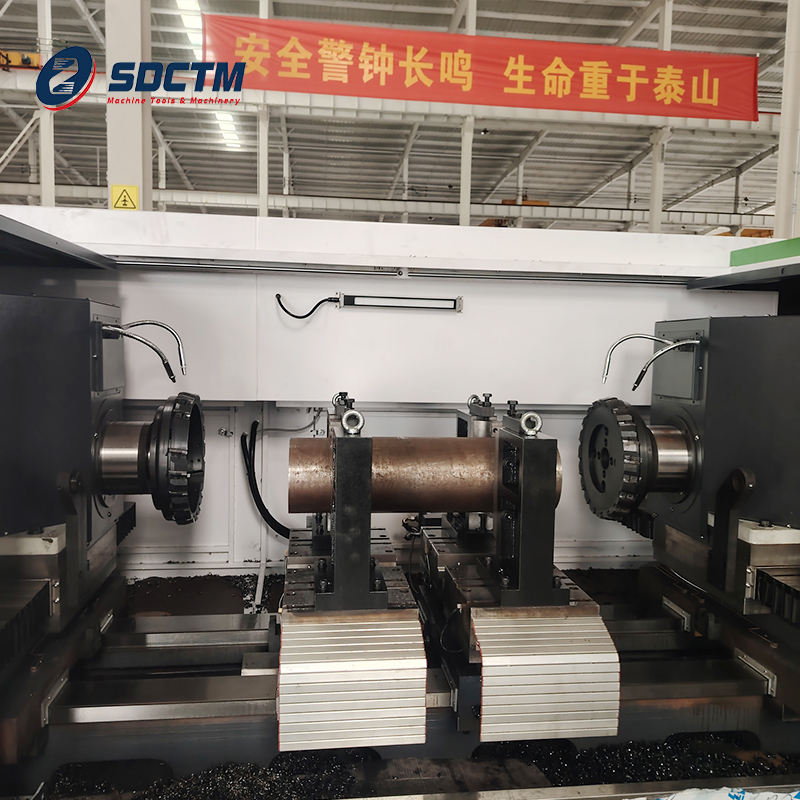

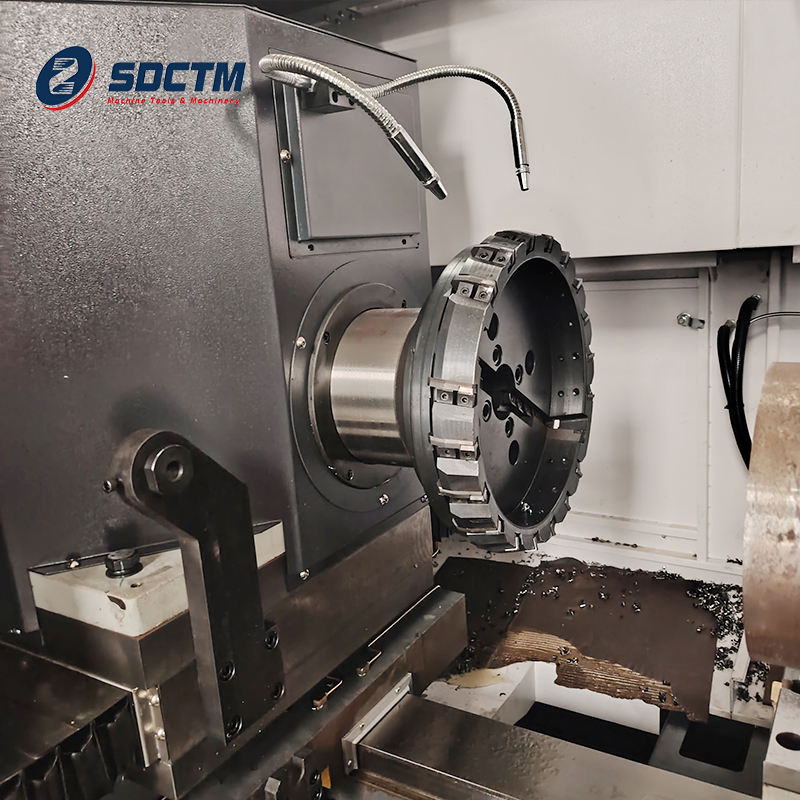

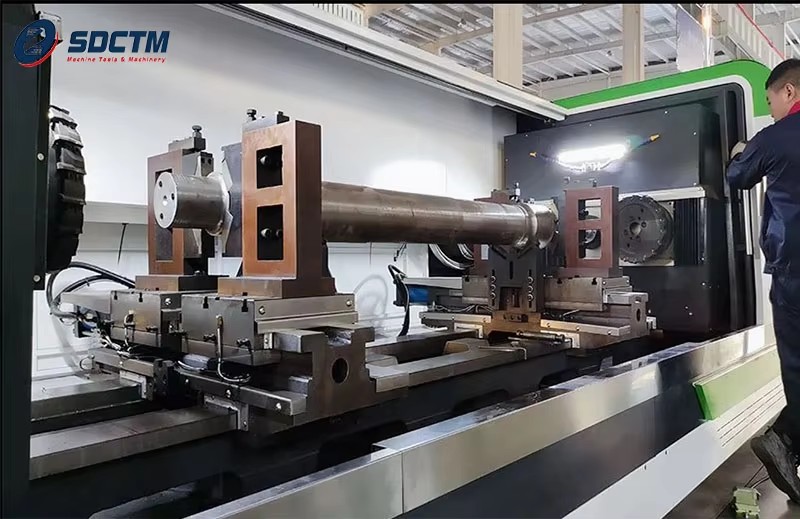

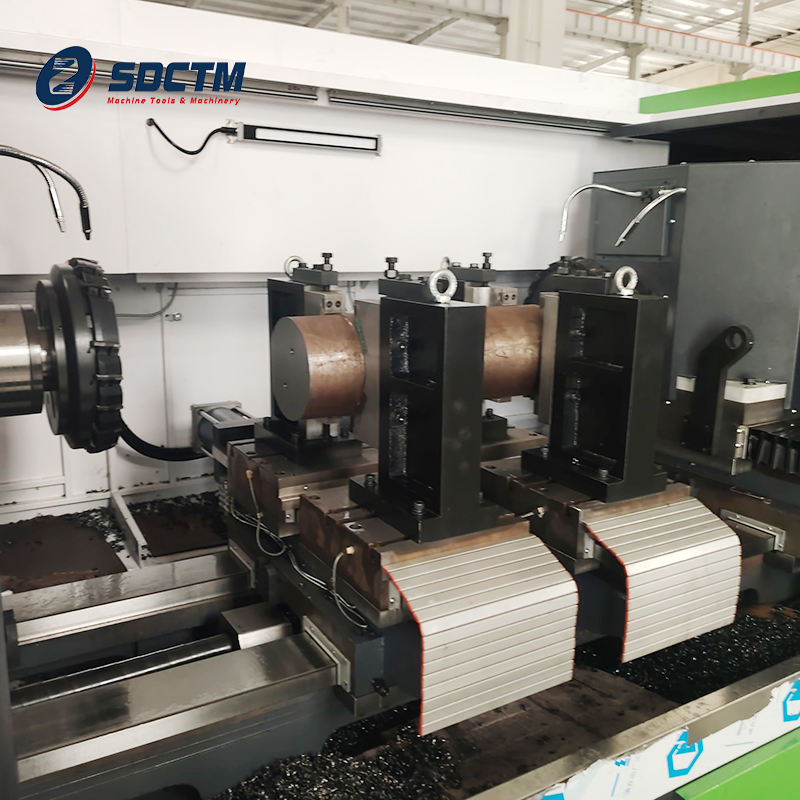

4 axis design - Self-centering fixture, one-time clamping to complete processing The double-end centering machine is a special CNC machine tool mainly used for processing the end face and center hole of shaft parts. It can be clamped at one time and complete milling, drilling, tapping, chamfering and other processes on both ends of the workpiece at the same time, improving processing efficiency and accuracy. Multi-spindle centering machines can be divided into three types: flat bed, inclined bed and vertical according to the form of the bed. According to the number of spindles, it can be divided into single head, double head and multi-head.
Equipment accuracy | ||
The diameter of the spindle cone jumps in the direction | mm | 0.008 |
Parallelism of XZ running trajectory | mm | 0.02/300 |
Verticality of longitudinal and transverse guide rails | mm | 0.02/300 |
Coaxiality of the left and right main axes of the drill shaft | mm | 0.03/300 |
Processing accuracy (based on the product drawings provided by the buyer) | ||
Consistency of central hole depth | mm | ≤0.05 |
Total length dimension error | mm | ≤±0.05 |
The two ends face the center hole and bounce | mm | ≤±0.05 |
Surface roughness of central hole | Ra | ≤3.2 |
Equipment parameters | ||
Range of workpiece length | mm | 2000-2600 |
workpiece diameter | mm | 150-250 |
Maximum center drilling diameter | mm | 24 |
Maximum tapping | / | M24 |
Surface roughness of central hole | Ra | 3.2-6.3 |
Surface roughness of end face | Ra | 3.2-6.3 |
Range of milling shaft speed | rpm | 10-600 |
Range of drilling shaft speed | rpm | 10-600 |
Maximum clamping force of hydraulic self centering vise | Kn | 25 |
Y、 4-way itinerary | mm | ≥320 |
X. Z-direction travel | mm | ≥750 |
Power | ||
spindle power | kw | 15kw |
Servo power | kw | 2.3*4 |
Pump station power | kw | 2.2 |
pump power | kw | 0.2 |
