GZ4250

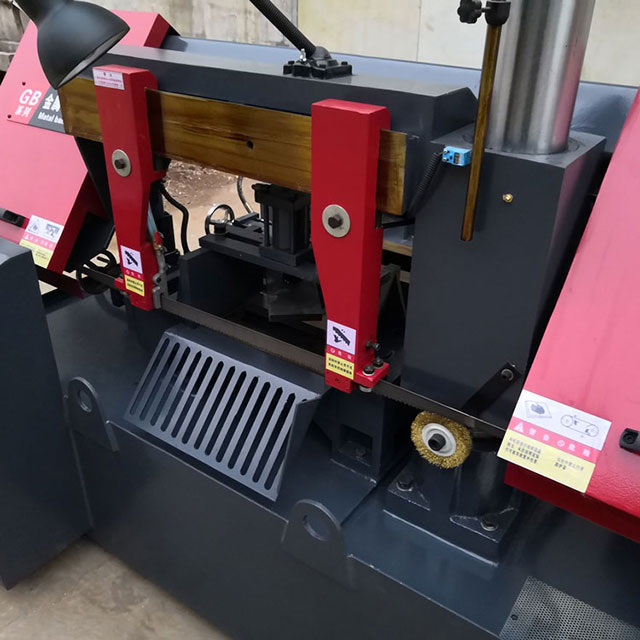

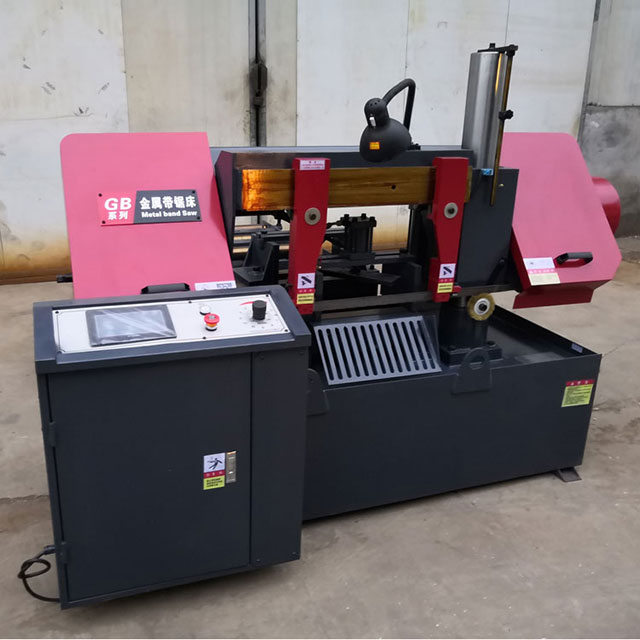

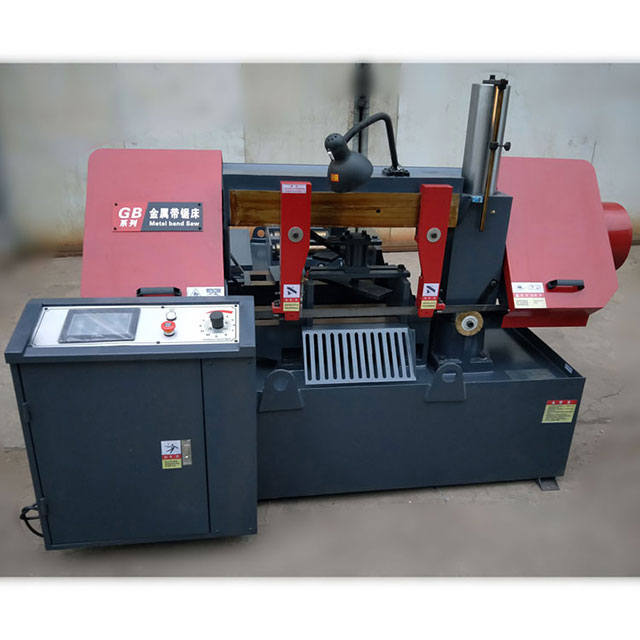

CNC sawing machine GZ4250 fully automatic metal band saw machine for metal cutting
Product Descriptions:
| specifications | GZ4250 |
| Maximum sawing range (mm) | 500 |
| Sawing speed (three gears) | 27/45/69m/min (optional variable frequency motor) |
| Band saw blade specifications (length * width * thickness) | 5700*41*1.3 mm |
| Feed rate | Hydraulic stepless speed regulation |

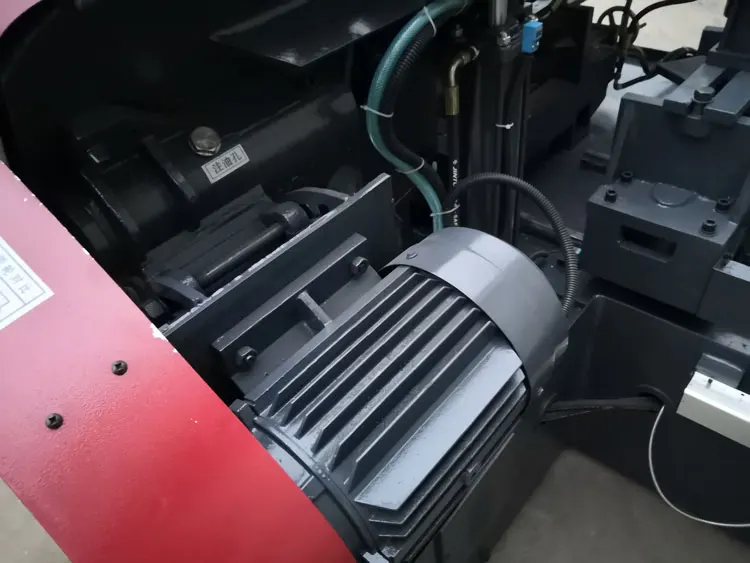

| Main motor power | 5.5kw |
| Hydraulic motor power | 1.5kw |
| Cooling motor power | 0.06kw |
| Single feeding stroke | 500mm |
| Feeding accuracy | 0.2mm |
| Main drive mode | Worm gear |

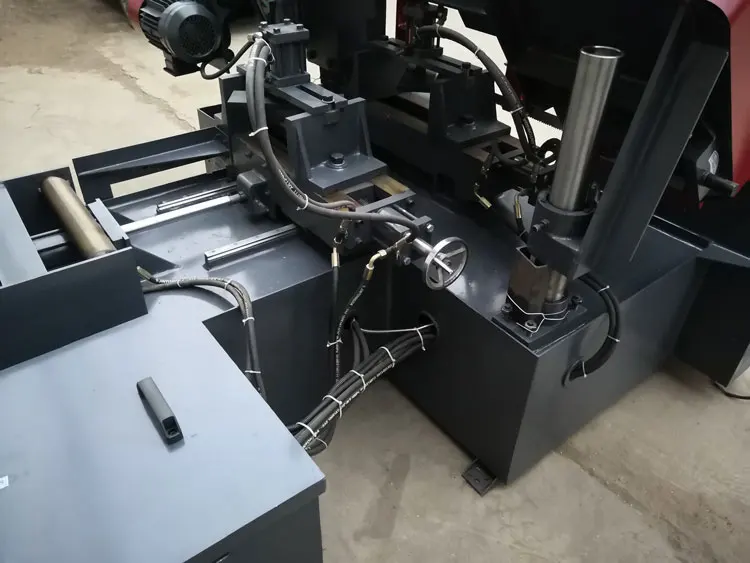

| Clamping method | Hydraulic clamping |
| Saw band tensioning method | Manual tensioning (optional hydraulic) |
| Sawdust cleaning method | Wire brush |
| Length of feeding frame | 1.5 metres |
| Dimensions | 2660×2700×2150 mm |
| Machine weight | 2800kg |

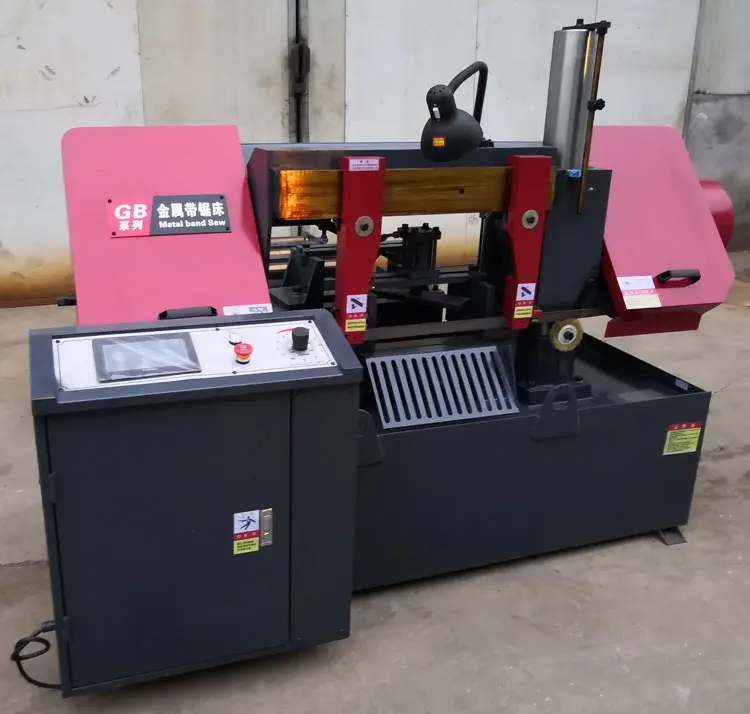

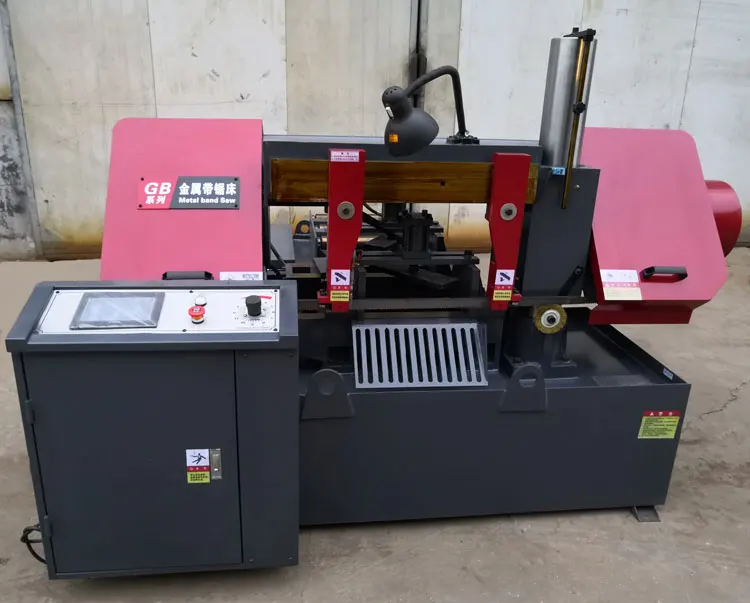

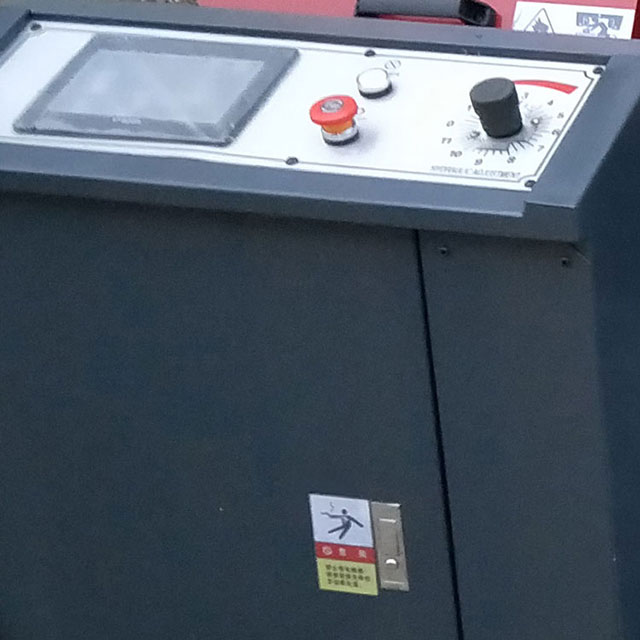

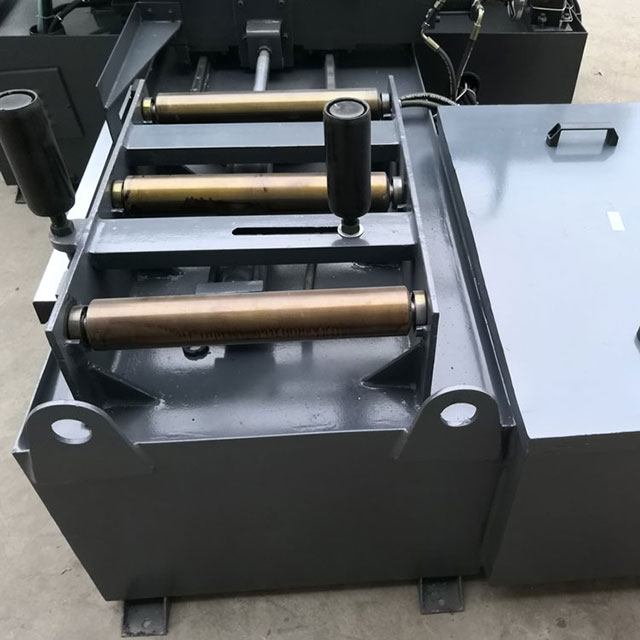

Details Display:
1. How can I choose the most suitable machines?
Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the product drawing, we will choose the most suitable machines for you.
2. What are the main products of your company?
We specialized in CNC Machining Center, Milling Machine, Drilling Machine, Lathe Machine, Sawing Machine, Presses and Shears, Shaping Machine, Slotting Machine, Gear Hobbing Machine, Air Forging Hammer, Surface Grinder, Universal Cylindrical Grinder and so on.
3. Where is our factory located?
Our factory is located in Tengzhou City, Shandong Province, China. You are warmly welcomed to visit us.
4. How long is the delivery time?
For standard machines, it would be around 30 days; For customized machines according to the client’s requirements, it would be a little longer.
5. How can I make the payment?
We can make the deal online platform, you can pay by T/T or Credit card. You can also pay for my company's business bank account. You can also choose L/C or other ways.
6. What's the MOQ?
1 set. (Only some low-cost machines will be more than 1 set )
