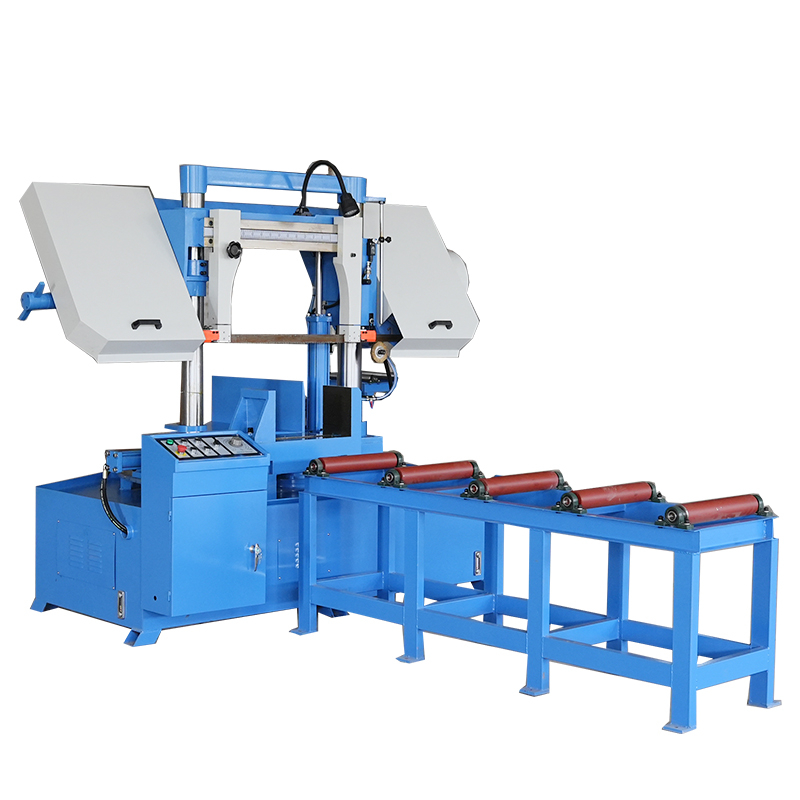

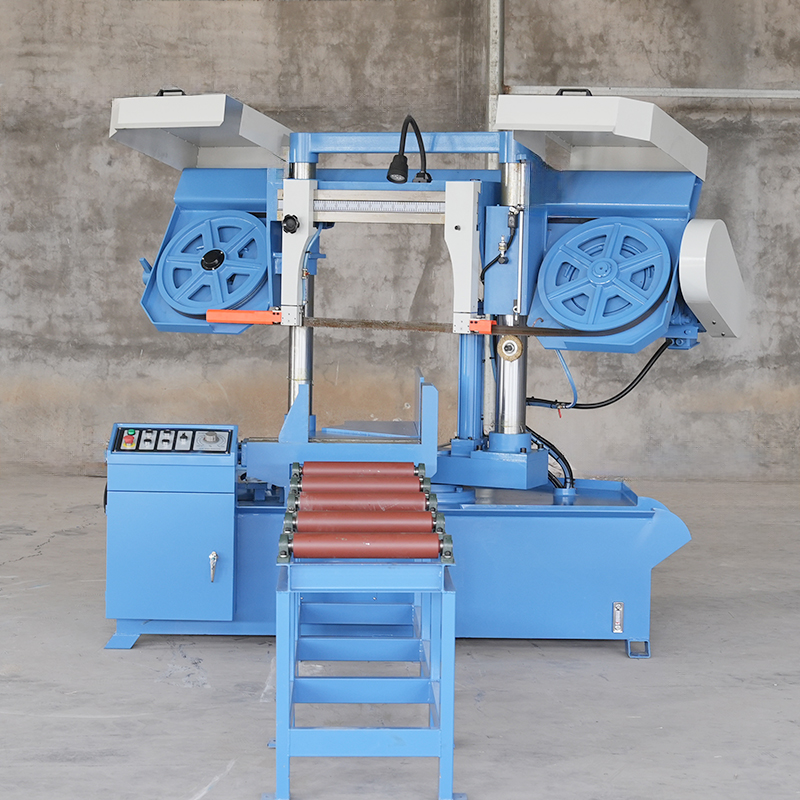

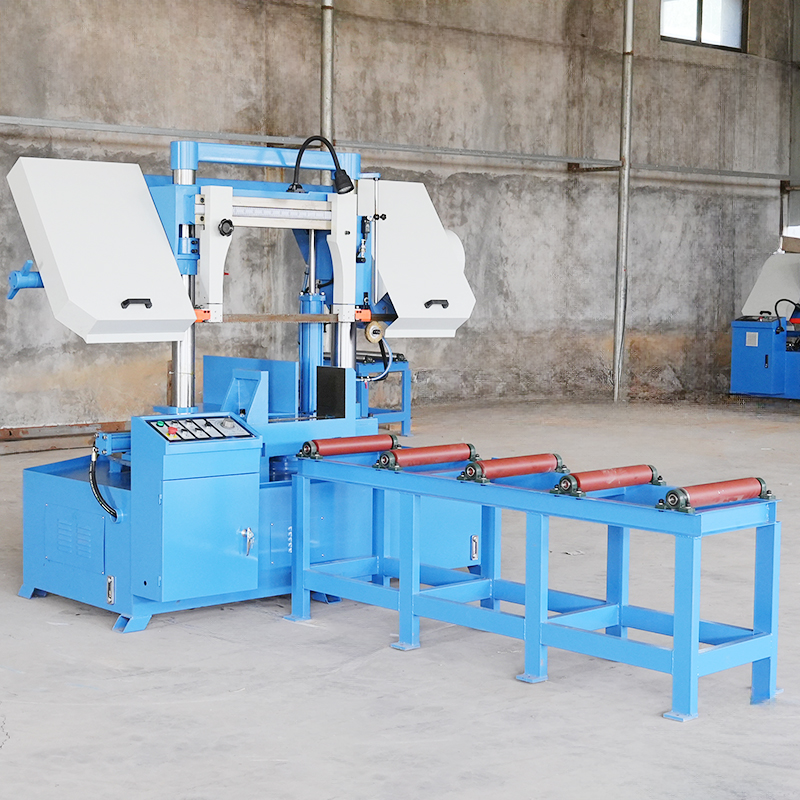

| Semi-auto Angle Band Saw: | |
|---|---|
| Quantity: | |
GSK4250（ Wire Gauge）
Multi material compatibility, saving materials and money: Whether it is Q345B square tube, stainless steel special-shaped tube, or bundled threaded steel, they can be efficiently cut; Compared to traditional sawing machines, it reduces material loss and saves annual raw material costs.

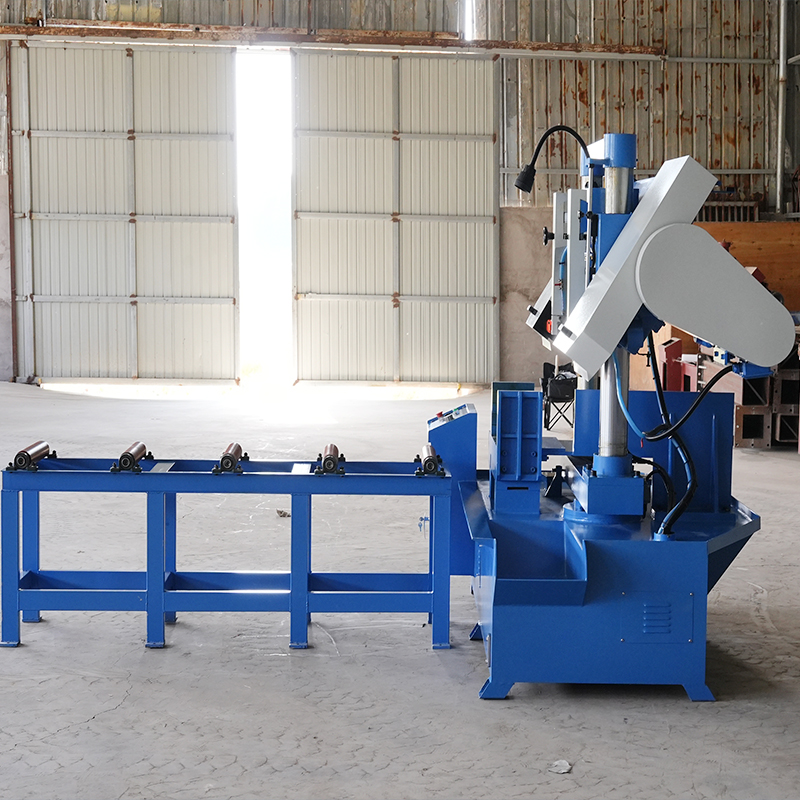

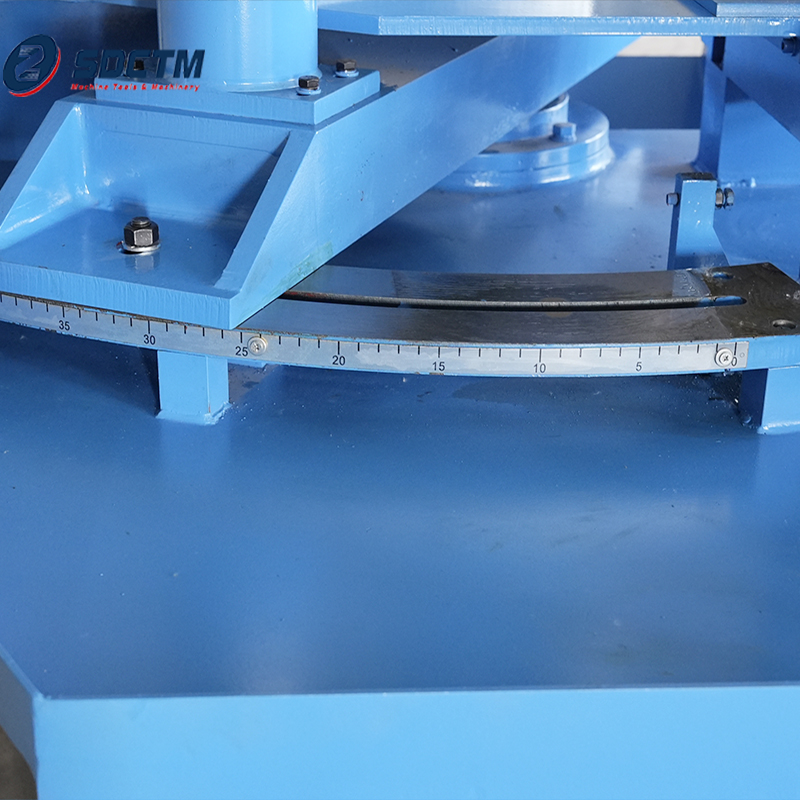

Angle cutting, flexible and efficient: The workbench or saw frame supports 0-45 degrees (some models can reach ± 60 degrees) stepless rotation, completing multi angle oblique cutting with one clamping, eliminating the need for repeated positioning processes, especially suitable for complex angle processing of H-shaped steel, aluminum alloy profiles and other shaped workpieces, with an efficiency increase.
Double column gantry structure, stable: adopting a double column+sliding sleeve guiding design, combined with a thickened steel plate body, rigid lifting, stable sawing lifting, and improved end face flatness.
SCENE IMAGE
| Item | GZ4250 |
| Saw/cut range | 0° : 500*600 mm | 45° : 500*400 mm |
| Saw/cut belt size | 5800/6000*41*1.3 mm |
| Saw/cut belt speed | 27,45,69 m/min |
| Main motor | 5.5 kw |
| Hydraulic motor | 1.5 kw |
| Cooling pump motor | 0.09 kw |

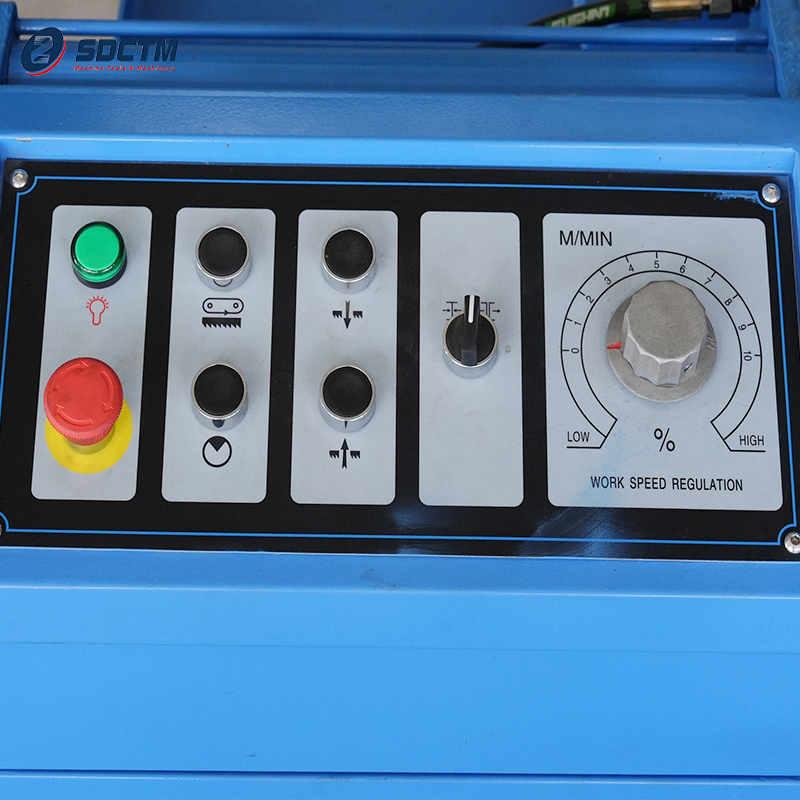

| Machine operation mode | Semi-automatic |
| Main transmission structure | Worm gear transmission |

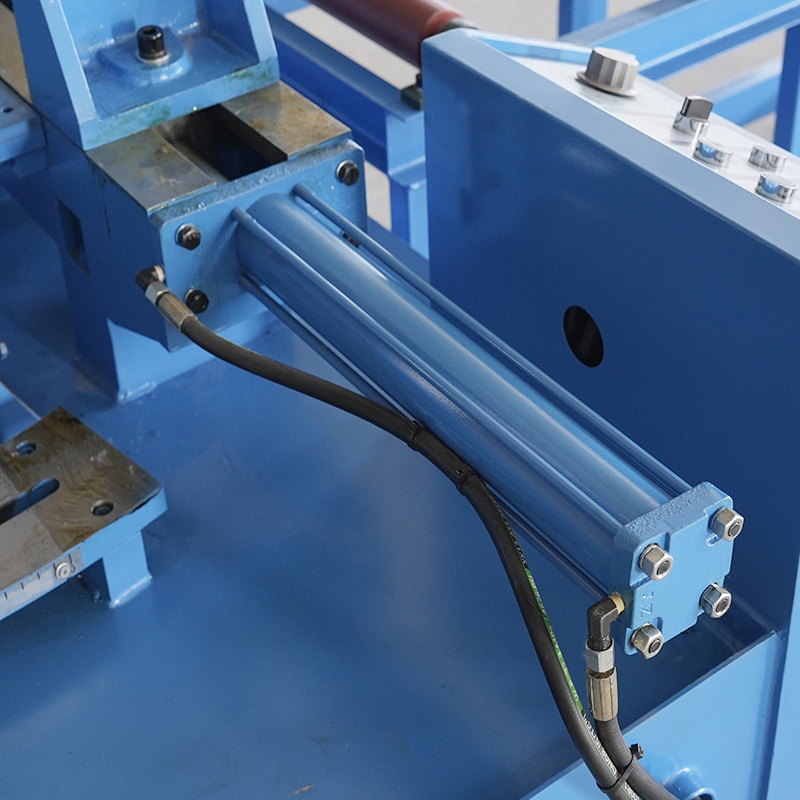

| Machine clamping method | Hydraulic clamping |
| Overall dimensions | 3000*1700*2200 mm |
| Weight | 2100 kg |
