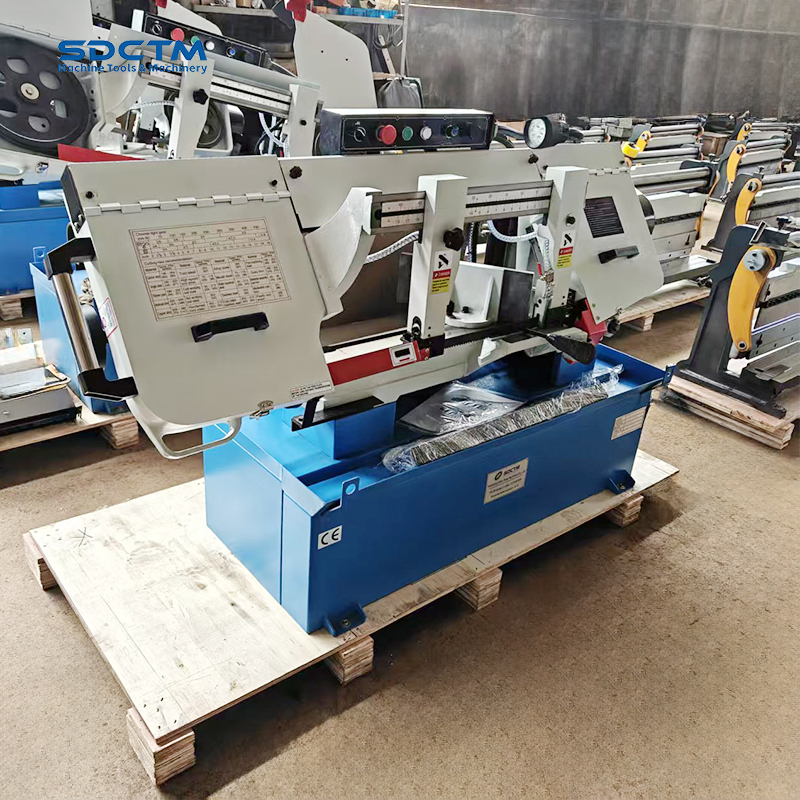

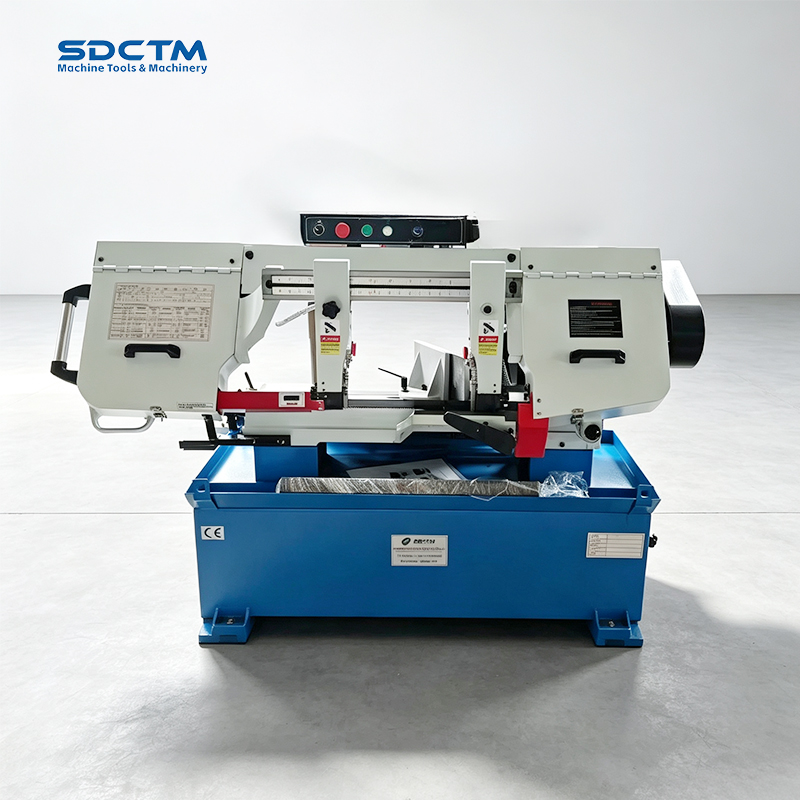

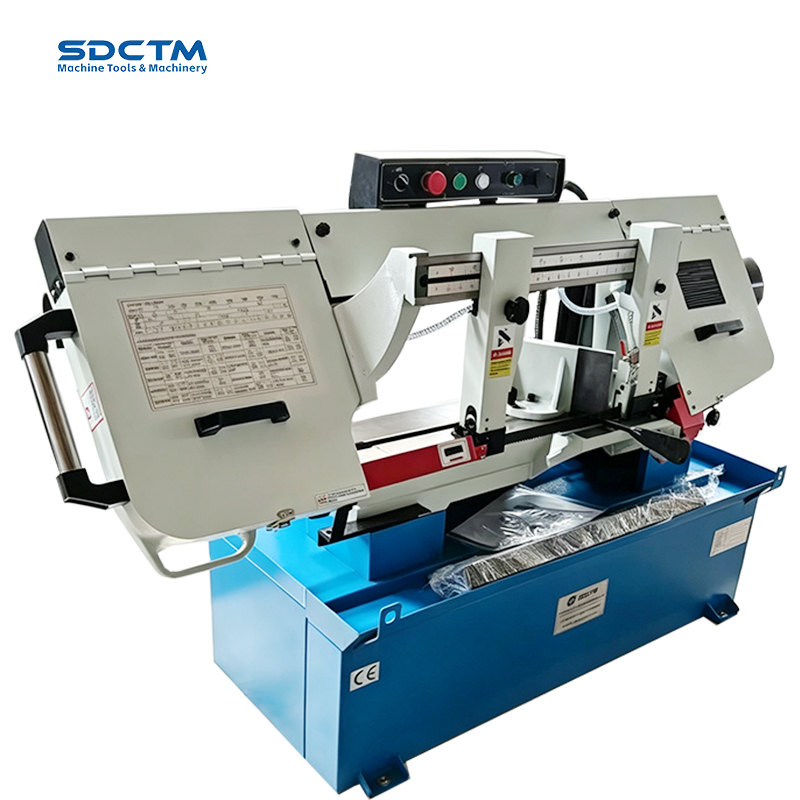

BS-1018B
SDCTM
PRODUCT HIGHLIGHTS
The band saw features High-capacity due to controlled by motor Can rotate from 0° to 45° has the advantage of quickly clamp
1. The maximum processing capability of BAND SAW BS-1018 is 10"/254mm .
2. High-capacity due to controlled by motor .
3. Can rotate from 0° to 45° .

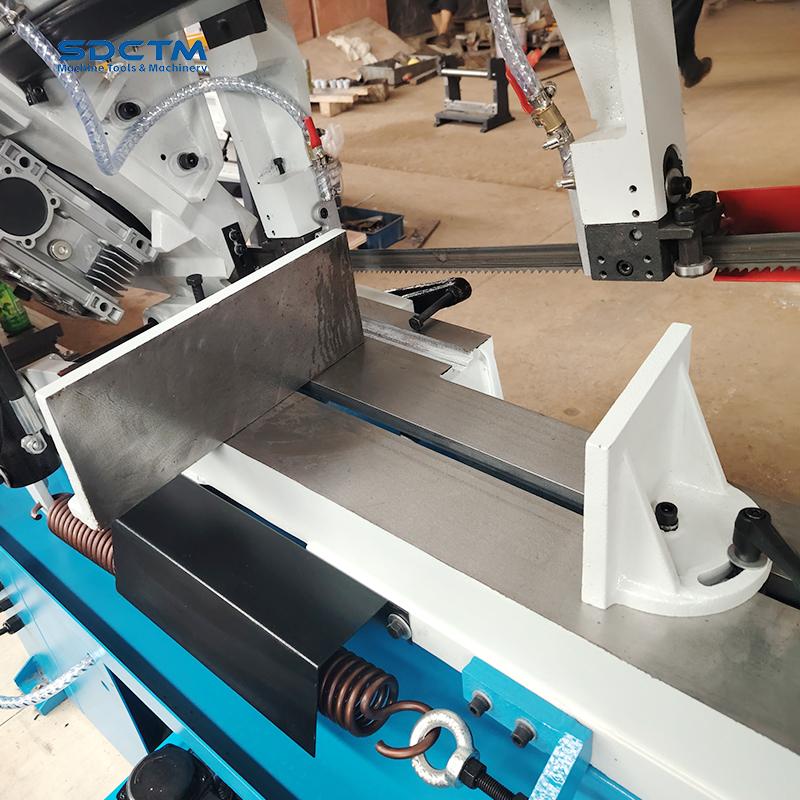

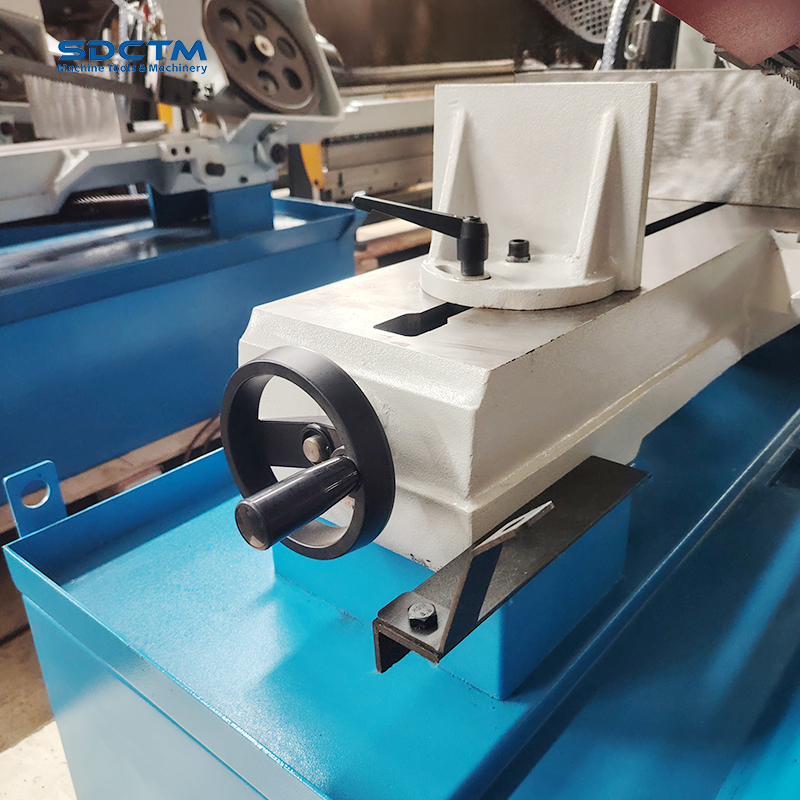

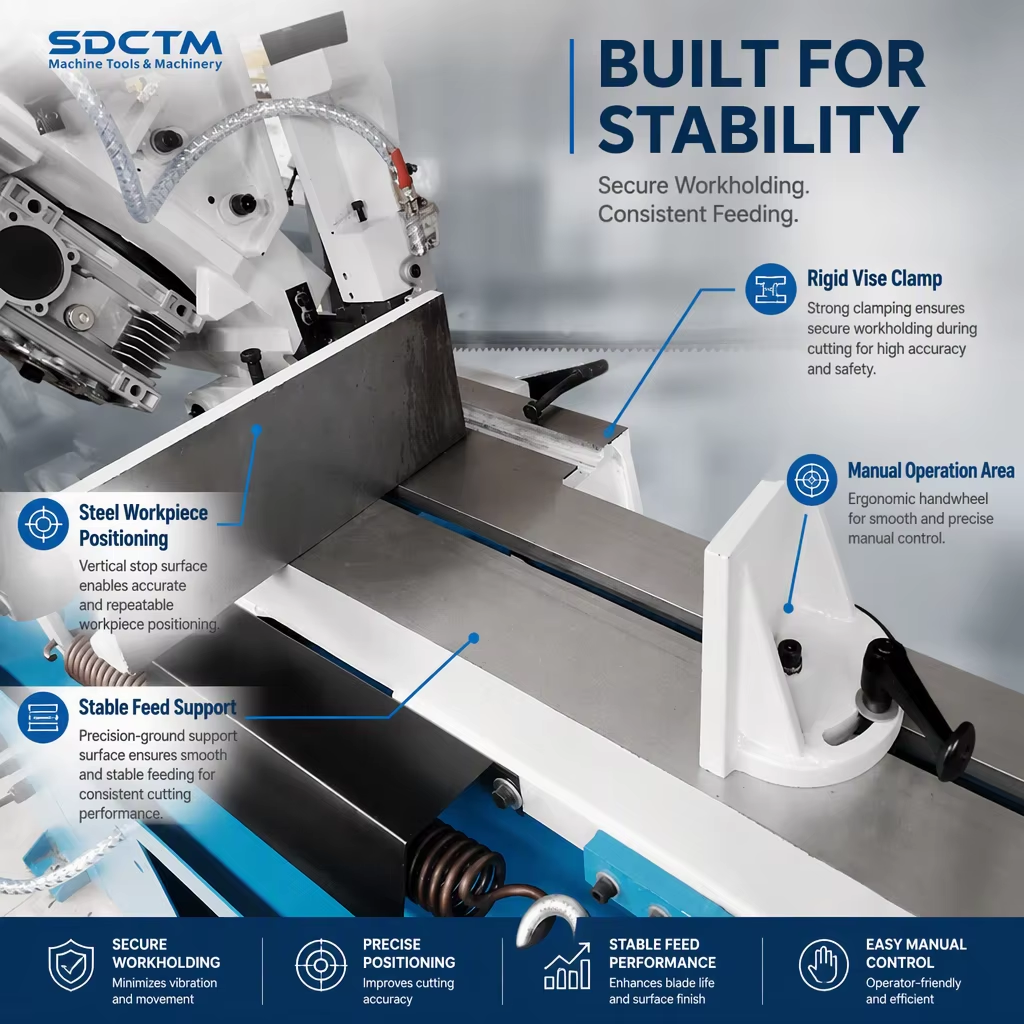

4. has the advantage of quickly clamping.

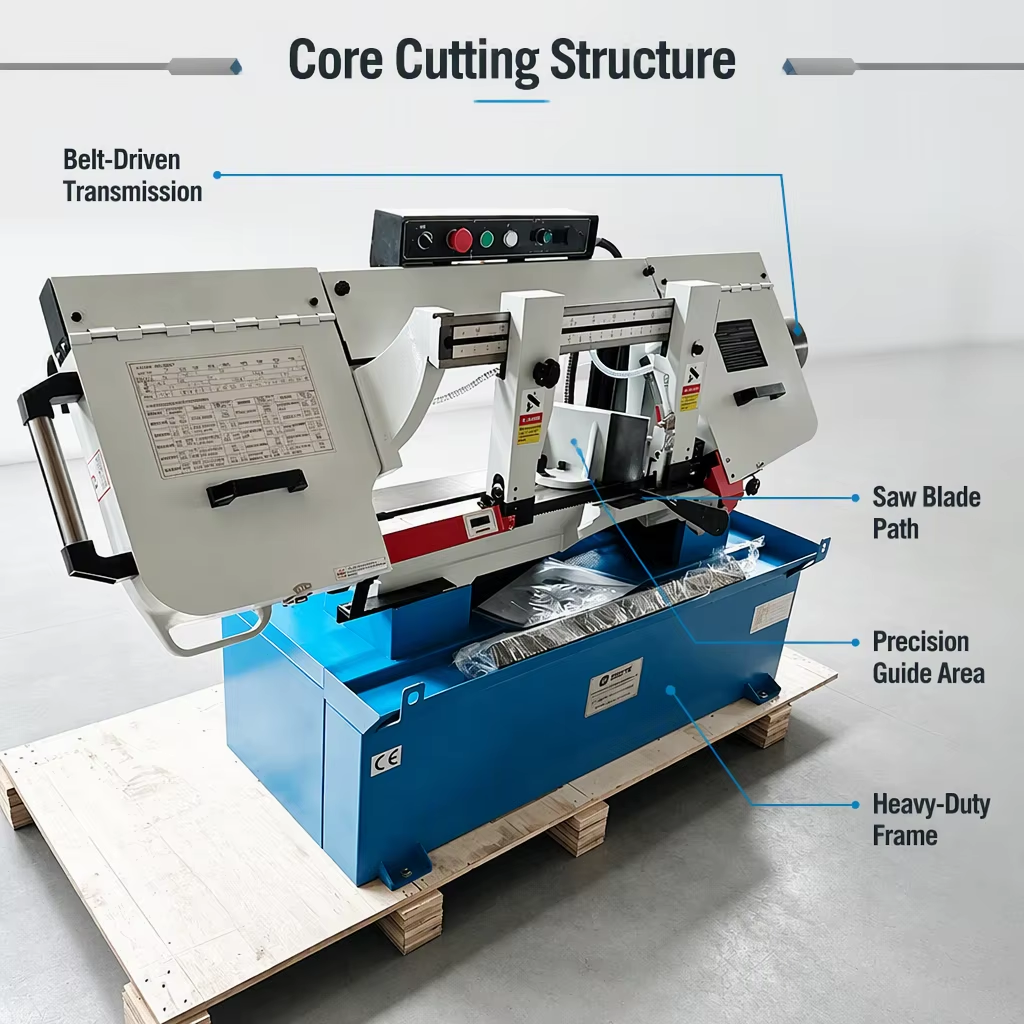

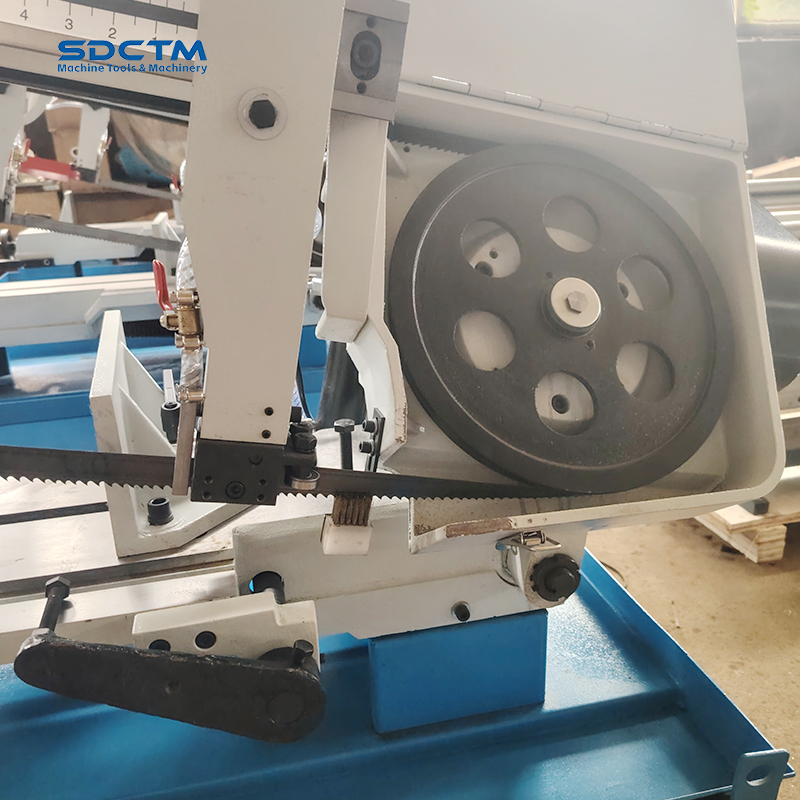

5. features a belt driven and has four cutting speed.
6. The falling speed of saw bow is controlled by hydraulic cylinder .
7. With a sizing device, machine will stop automatically after sawing materials.
8. With power break protection device, machine will power off automatically when the rear protective cover is opened .
9. With coolant system, can prolong the service life of saw blade and improve the precision of work piece 10. has a block feeder
(with fixedsawing length).
Machine tool type | BS-1018B |
Saw/cut range | 229x200mm |

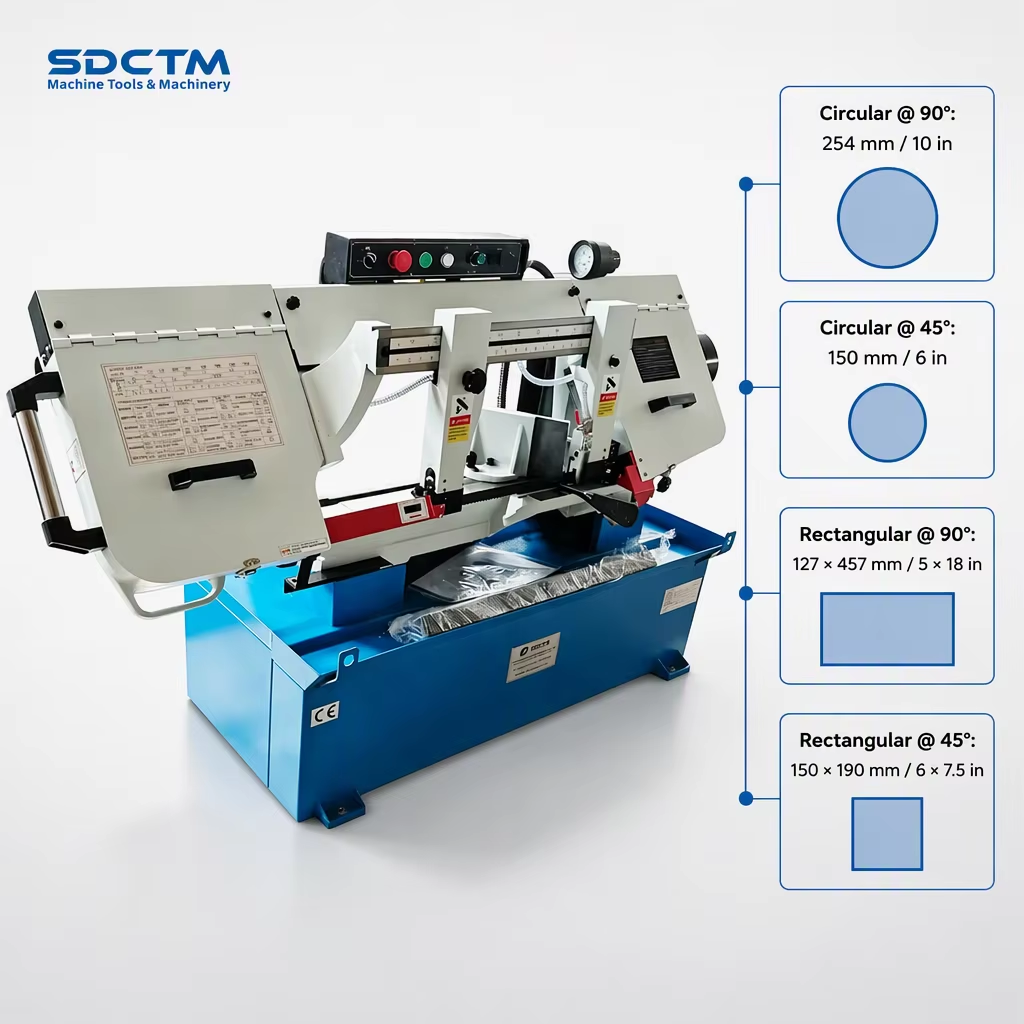

Circular @ 90° | 254mm(10”) |
Rectangular @90° | 127X457mm(5”x18”) |
Circular @45° | 150mm(6”) |
Rectangular @45° | 150x190mm(6”x7.5”) |
Blade speed @60HZ | 35,60,88,115MPM |
Blade speed @50Hz | 26,50,73,95MPM |
Blade size | 27X0.9X3280mm |
Motor power | 1.5kw 2HP(3HP) |
Drive | V-Belt |
Weight(kg) | 310/385 kg |
Package Size(cm) | 183x83x115cm |
FAQs
1. What trade methods does your company offer?
EXW, FOB, CIF, DDP, and more can all be provided.
2. Does your factory accept OEM?
Yes, OEM production is one of our advantages.
3. Can you provide customized machines, yes or no?
Yes, it is. We can provide customized machines for customers.
4. Can we visit your factory before placing an order?
Of course. Welcome new and old friends to visit the factory. Additionally, if needed, we can pick you up at the station.
5. What are the requirements for becoming a distributor?
Please feel free to contact us and we will answer your questions. We sincerely welcome your joining!
