Specification

unit

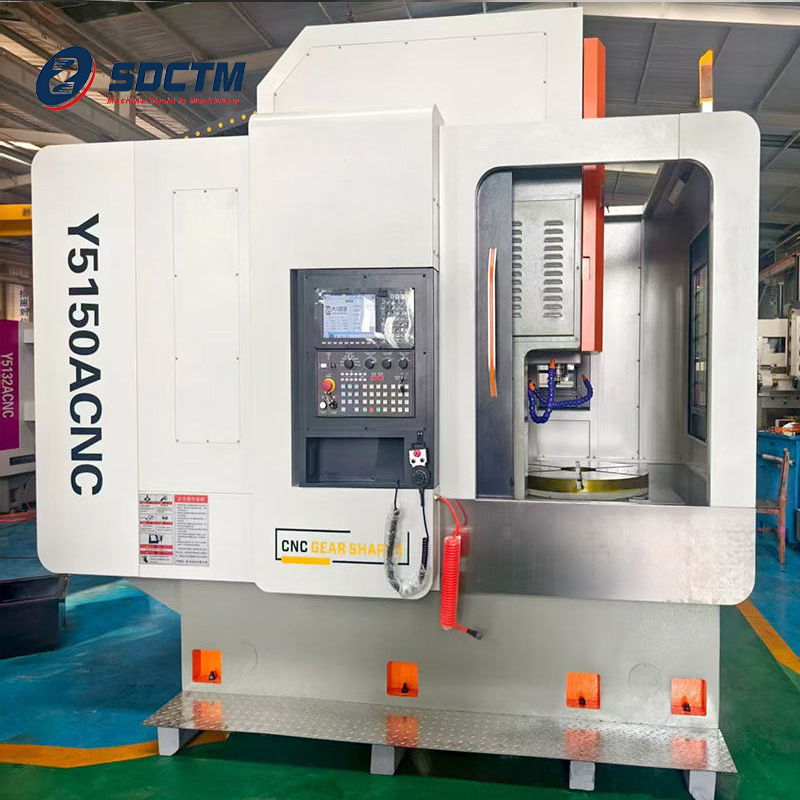

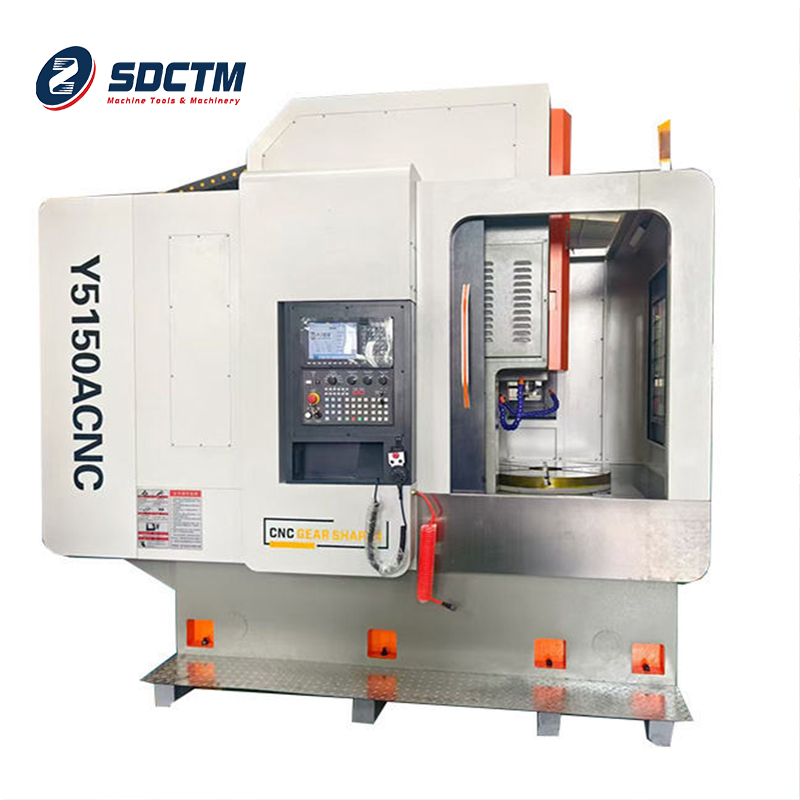

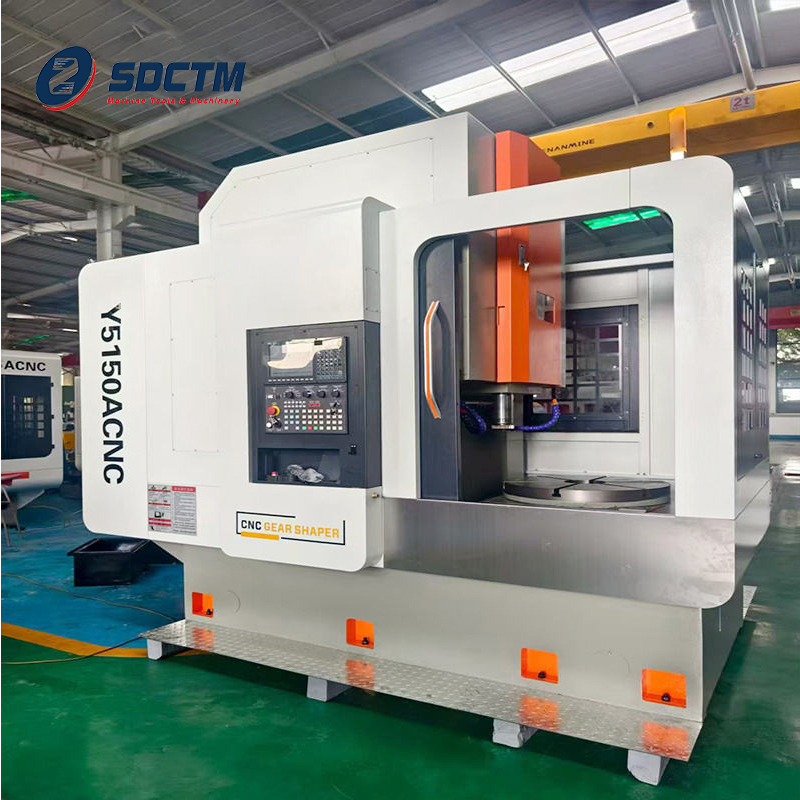

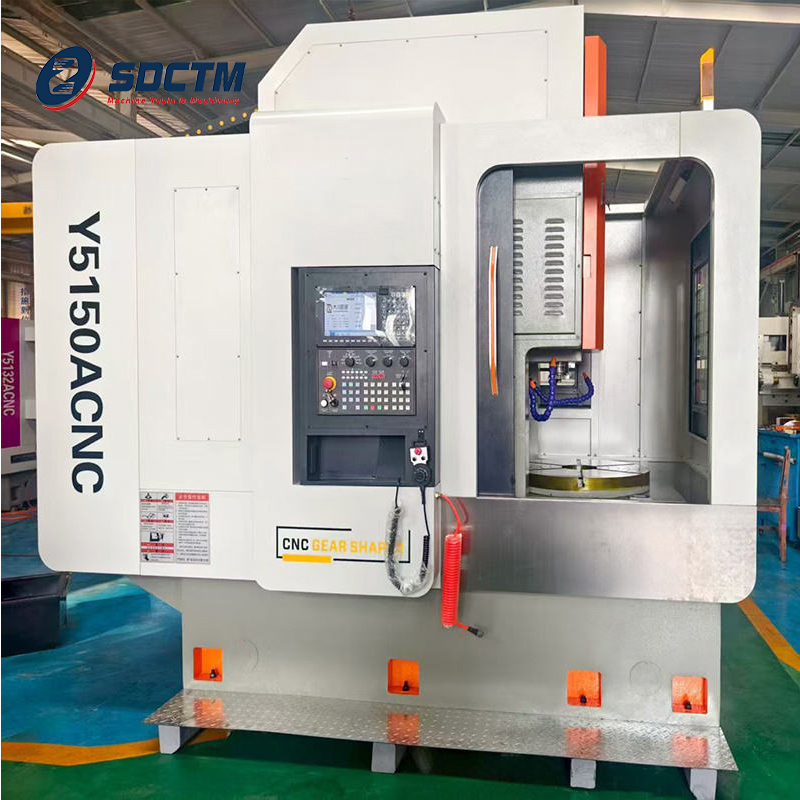

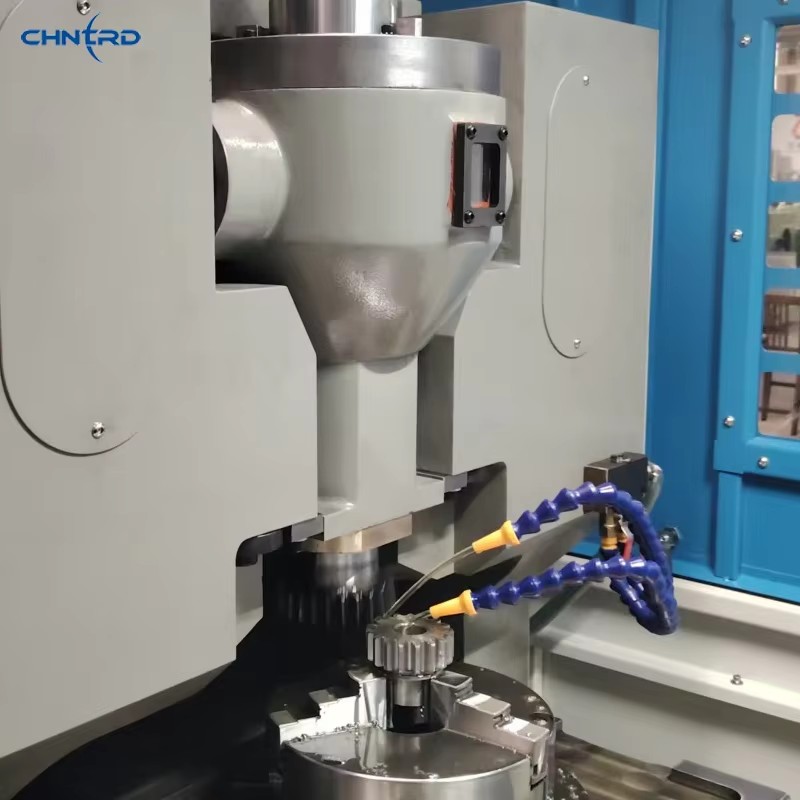

Y5150A CNC

Maximum diameter of workpiece external teeth

mm

500

Maximum internal tooth diameter of the workpiece

mm

500+D 刀

Maximum modulus/tooth width

mm

10/110

Maximum travel length of gear shaper cutter

mm

130

Maximum number of spindle strokes of gear shaper cutter

str/min

60-700(无极)

Spindle cutter shaft diameter

mm

Φ90

Gear shaper mounting journal diameter

31.743

The amount of gear shaper cutter allowed

mm

≥0.5

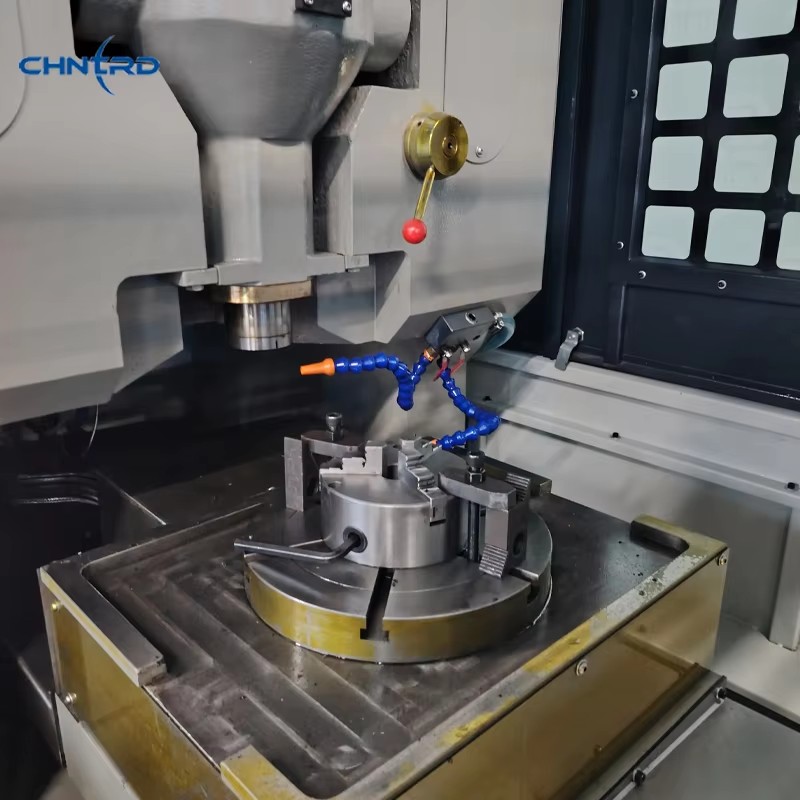

Table diameter

mm

Φ550

Table aperture

mm

Φ120

Gear shaper tool stroke position adjustment amount

mm

10-40

Distance from spindle line of gear shaper cutter to spindle line of table

mm

0~340

Distance from tool mounting face to work surface

mm

100~245

Circular feed of shaper cutter (shaper cutter diameter 100mm)

mm/str

0.01~2.5

Gear shaper radial feed

mm/min

0.001~1000

Tatal machine power

kw

25

Total machine power

kw

11

Approximate weight

kg

10000
