| Saw/cut range: | |
|---|---|
| Quantity: | |

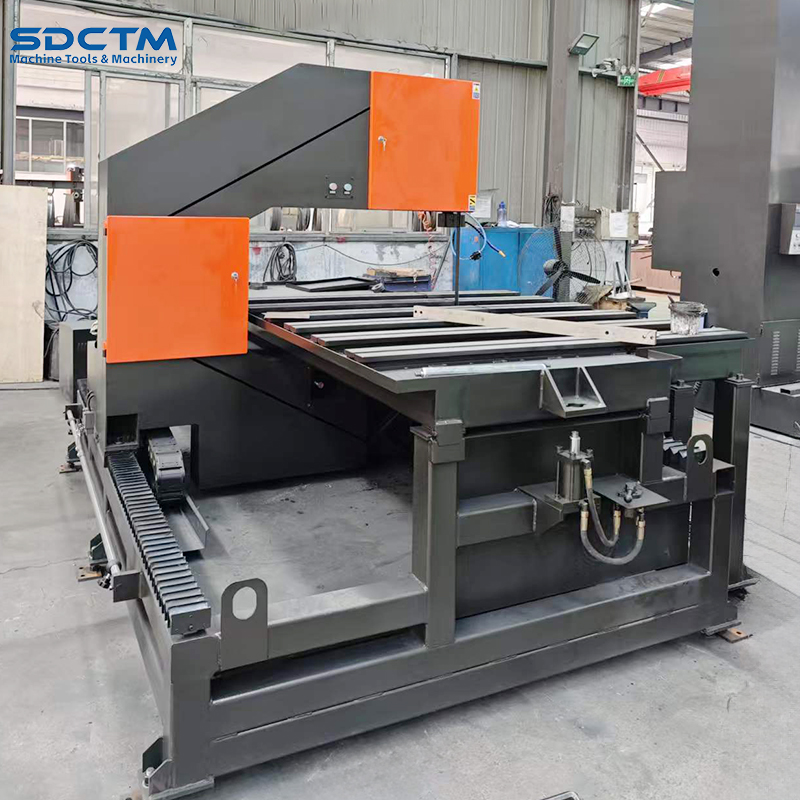

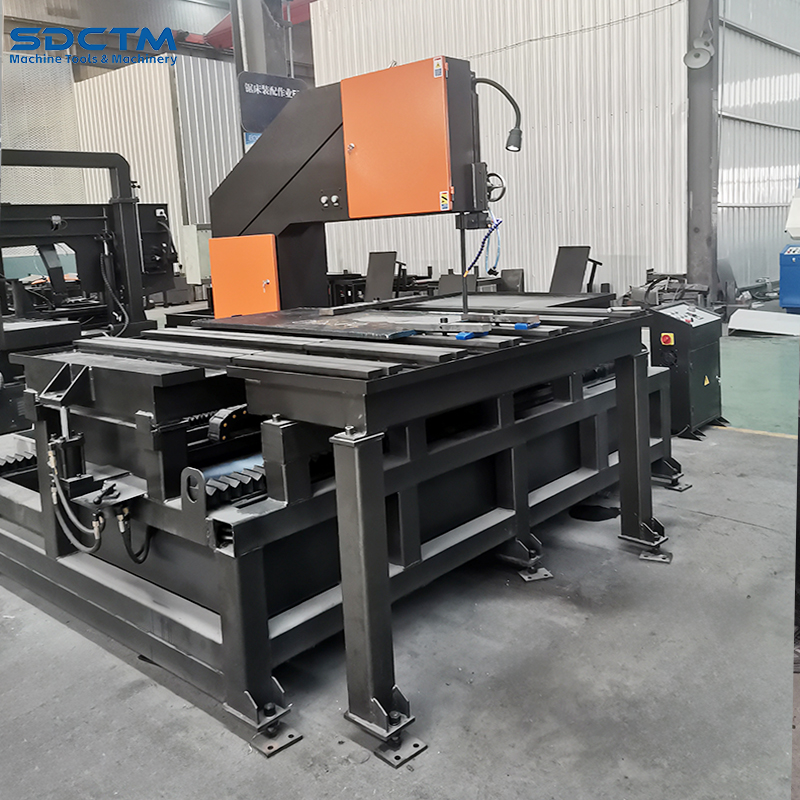

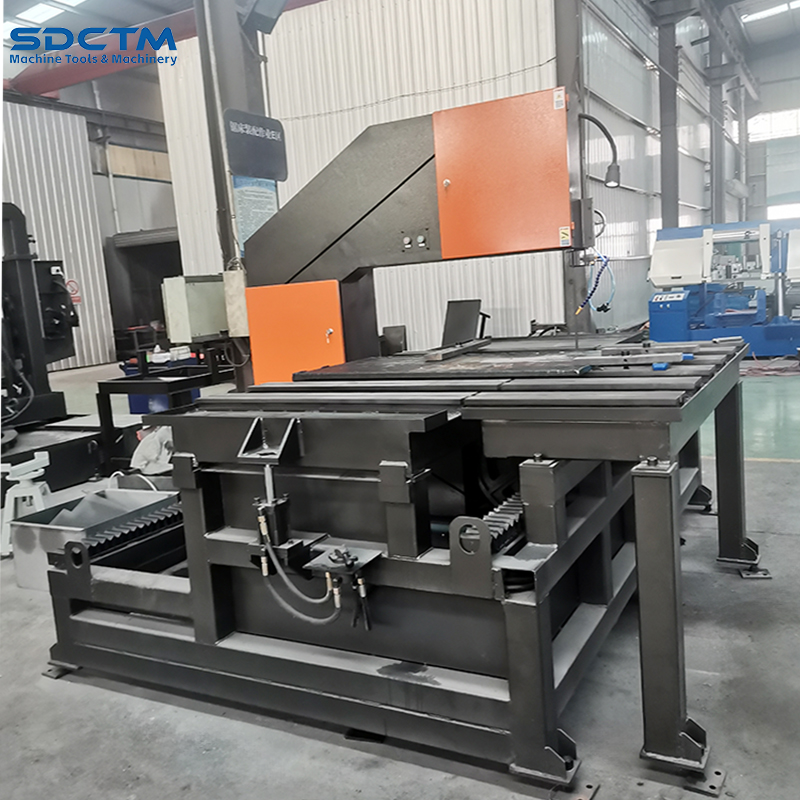

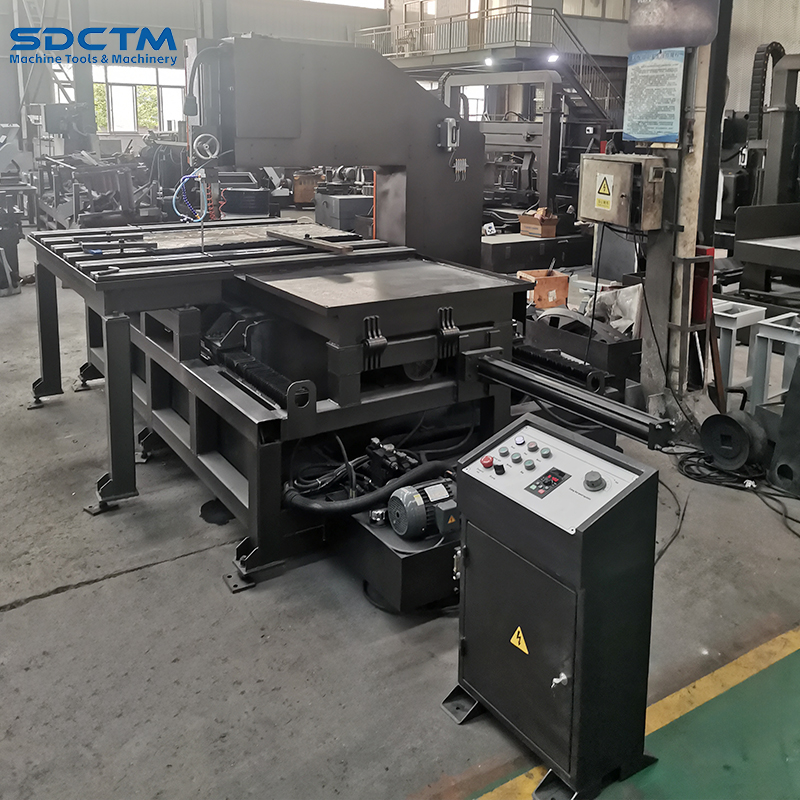

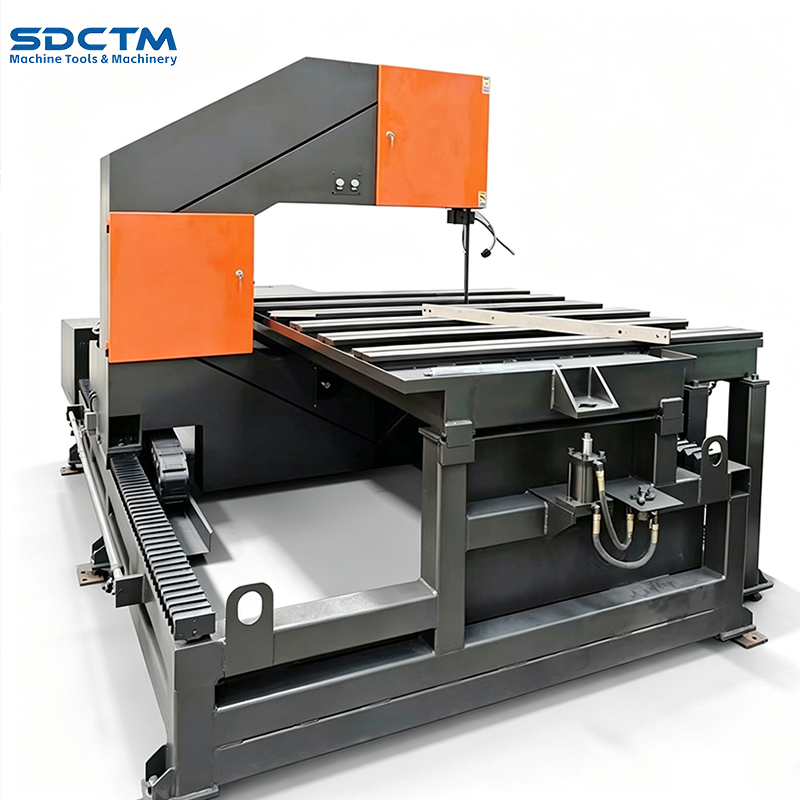

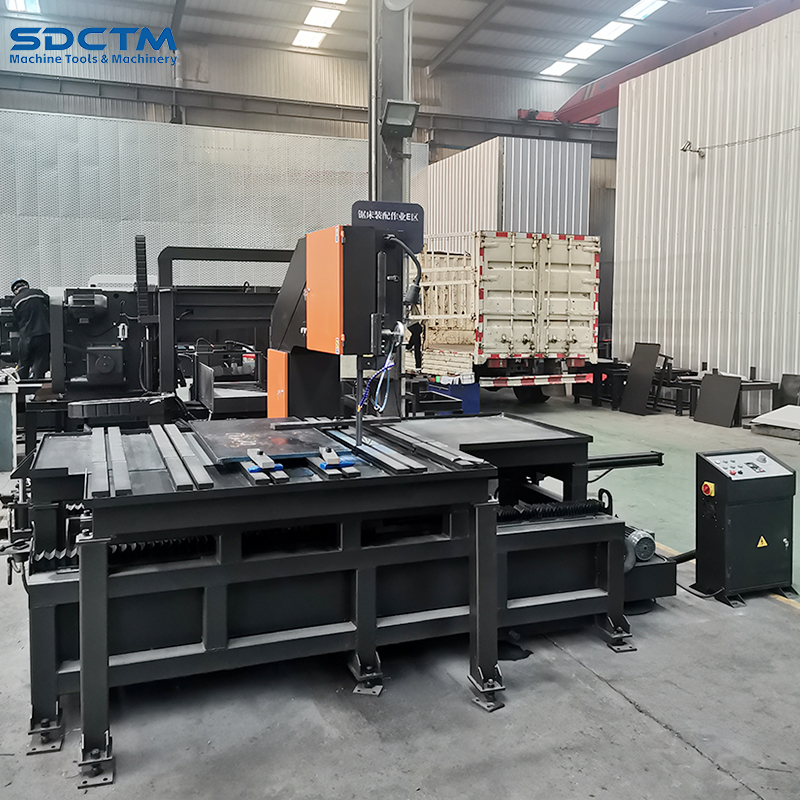

G5035
SDCTM
Item | G5335-105-106 |
Max. saw height | 350 mm |
Max. saw width (throat depth) | 1050 mm |
Max. saw length (stroke) | 1600 mm |
Saw blade line speed | 200-700 m/min |
Band saw blade specification | 5450*34*1.1 mm |
Band sawing machine feed: | hydraulic cylinder |
Internal workbench size | 1050*1600 mm |
Dimensions of external workbench | 600*1600 mm |
Main motor power | 7.5 KW |
Hydraulic motor power | 0.42KW |
Hydraulic tank capacity | 40L |
Cooling box capacity | 80L |
Control mode | semi-automatic button control |
Workpiece fixing method | manual pressure rod compression |
Machine dimensions | 2500*4150*2250 mm |
machine weight | 3000KG |
ABOUT THE SUPPLIER
Shandong China Trade Machinery Co., Ltd - Provides precision sawing solutions
At Shandong China Trade Machinery Co., Ltd., we are not just manufacturers; We are an engineering partner dedicated to redefining metal cutting efficiency. For many years, we have focused on the research, development, and production of high-performance angle metal band saws.
Excellent engineering and manufacturing capabilities
From the initial casting of the bed frame to final assembly and calibration, each process is carried out under quality management standards. Unlike competitors who rely on welded steel plates, our machine is built on a high-grade cast iron bed that has undergone secondary aging treatment. This process ensures that our machines have excellent damping characteristics and rigidity, and can withstand long-term continuous heavy load operation without deformation. Our core components, such as the double column guide structure and worm gear reducer, are made of alloy to ensure a service life exceeding industry standards.
Customer centered service and support
Our technical team is capable of remote diagnosis. Here, we can provide trial cutting services for new materials, enabling you to optimize processes and validate performance before full-scale production begins.
Sustainability and Future
Shandong China Trade Machinery Co., Ltd. is committed to sustainable manufacturing. Our machine is designed to be energy-efficient, with lower power consumption per cut compared to previous generations. By minimizing the incision width and optimizing cutting parameters, we help our customers reduce their carbon footprint by reducing scrap metal production. We are constantly researching new methods to make metal cutting cleaner, smarter, and more efficient.
Choose Shandong China Trade Machinery Co., Ltd. to transform your metal cutting business from a necessary cost to a competitive advantage.
FAQs
1.Can we visit your company? Where is your company's factory located?
We warmly welcome all customers to visit and inspect our factory. We are located at 988 Economic Development Zone, Tengzhou City,Shandong Province, China
2. Does your factory accept OEM?
Yes, OEM production is one of our advantages.
3. Can you provide customized machines, yes or no?
Yes, it is. We can provide customized machines for customers.
4. Can we visit your factory before placing an order?
Of course. Welcome new and old friends to visit the factory. Additionally, if needed, we can pick you up at the station.
5. What are the requirements for becoming a distributor?
Please feel free to contact us and we will answer your questions. We sincerely welcome your joining!
