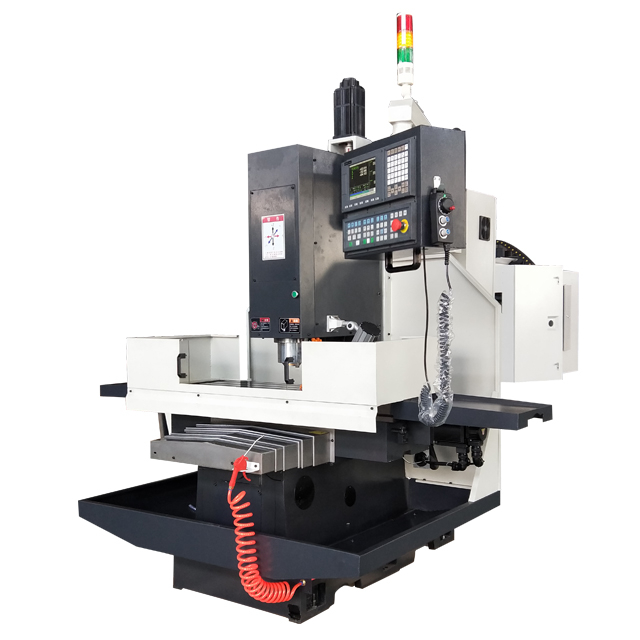

Milling Machine XK7136 cnc vertical milling machine center

Availability:
Quantity:
  • XK7136

Product Description
Product Description

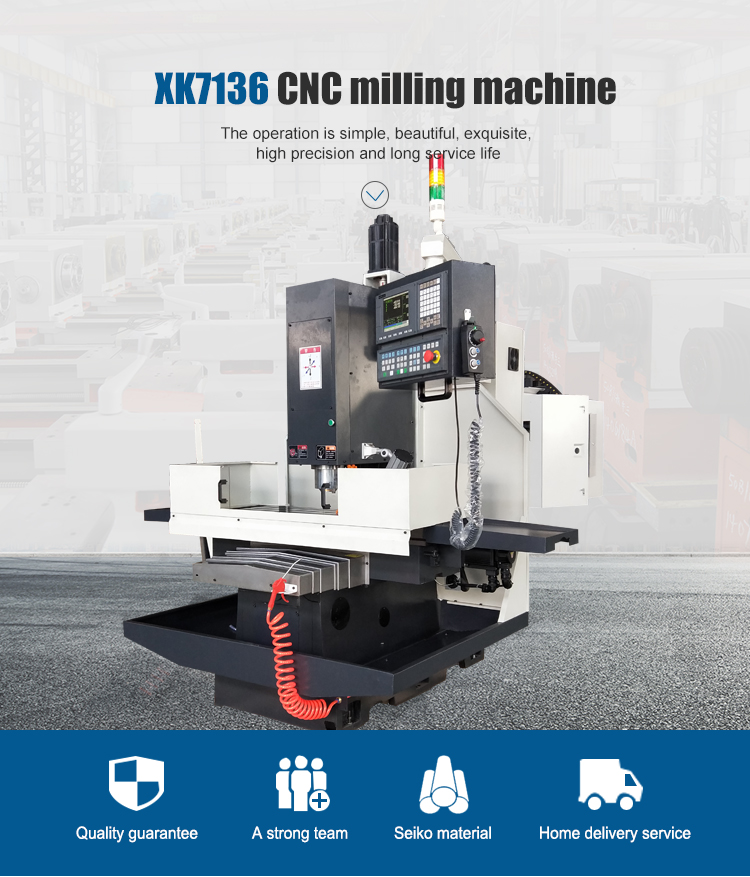

XK7136数控铣床海报图

Application:
The vertical machining center can be applied to many fields such as mechanical processing and mold manufacturing, can adapt from  roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widely used in  aerospace, military industry, mold, automobile, internal combustion engines, textile machinery, chemical machinery processing,  oil, electronics and other industries.

Product main technical parameters:

Specifications
Unit
XK7136
Table size
mm
1250×360
Table maximum load
kg
300
T slot(number-width-pitch)

3-18-80
X axis travel
mm
900
Y axis travel
mm
350
Z axis travel
mm
500
Distance from spindle axis to column surface
mm
460
Distance between spindle nose and worktable
mm
100-600
X/Y rapid traverse
m/min
10
Z rapid traverse
m/min
8
Cutting feed
Mm/min
1-2000
Max.spindle speed
rpm
8000
Spindle taper

BT40
Main motor power
kw
5.5
Tools type

Armless type
Machine dimension
mm
2220x1850x2350
Machine weight
kg
2200

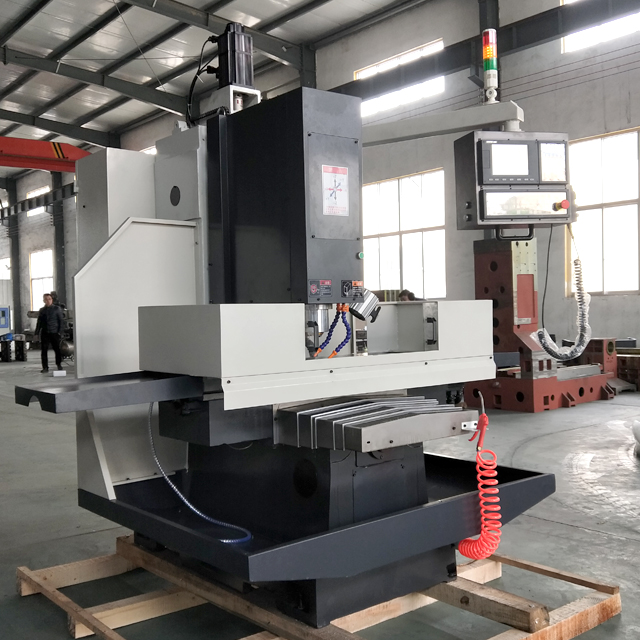

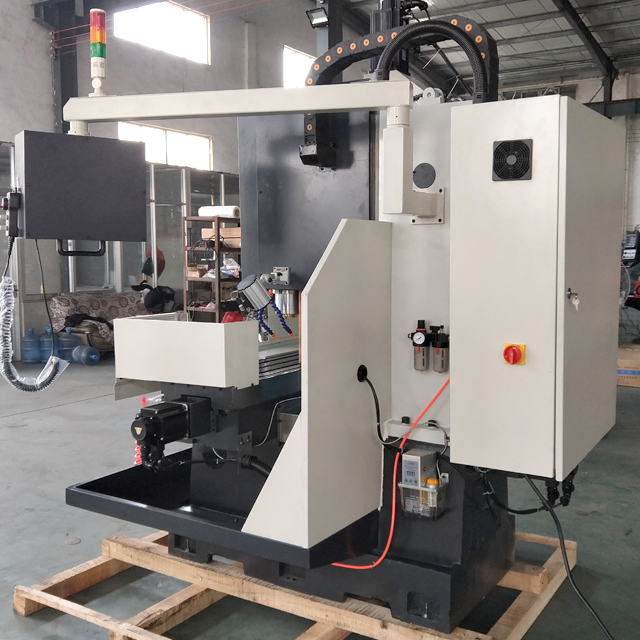

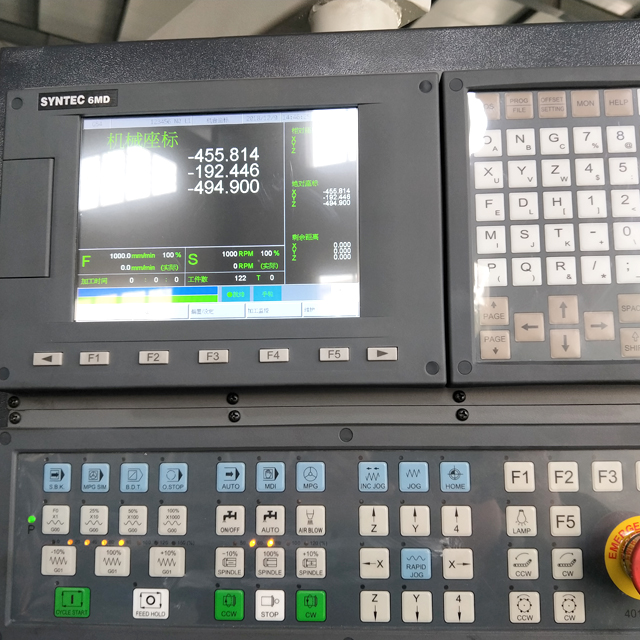

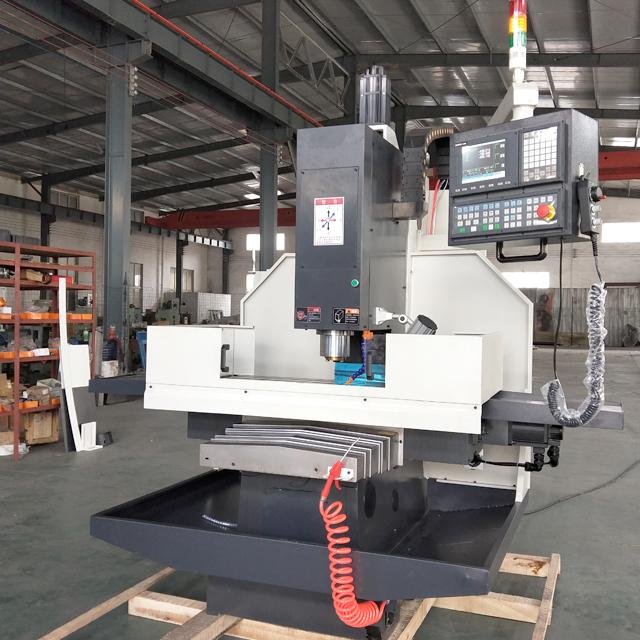

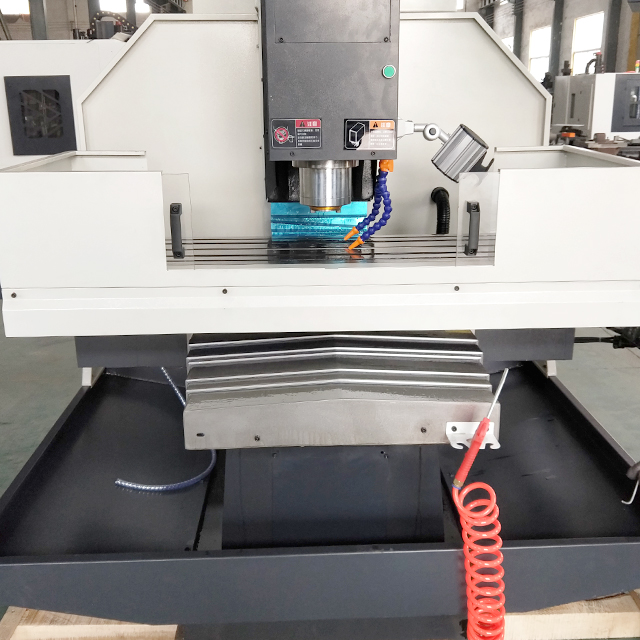

Detailed Images


Packaging & Shipping


Our Services


FAQ

1. How can I choose the most suitable machines?
Please tell me your specifications, we can choose the best model for you, or you can choose the exact model.
You can also send us the product drawing, we will choose the most suitable machines for you.
2. What are the main products of your company?
We specialized in CNC Machining Center, Milling Machine, Drilling Machine, Lathe Machine, Sawing Machine, Presses and Shears, Shaping Machine, Slotting Machine, Gear Hobbing Machine, Air Forging Hammer, Surface Grinder, Universal Cylindrical Grinder and so on.
3. Where is our factory located?

Our factory is located in Tengzhou City, Shandong Province, China. You are warmly welcomed to visit us.

4. How long is the delivery time?
For standard machines, it would be around 30 days; For customized machines according to the client’s requirements, it would be a little longer.

5. How can I make the payment?

 We can make the deal online platform, you can pay by T/T or Credit card. You can also pay for my company's business bank account. You can also choose L/C or other ways.

6. What's the MOQ?
1 set. (Only some low-cost machines will be more than 1 set )
