Parameters of surface grinding machine
Technical Specifications | MY820 | |||
| Table surface size (length * width) | mm | 480*200 | |
Maximum grinding area of Table (length * width) | mm | 530*220 | ||
Table T-shaped slot (number of slots * slot width) | mm | 1*14 | ||
| Distance from the centerline of the grinding wheel shaft to the table | mm | 450 | |
Grinding wheel speed (50Hz) | R/min | 2850 | ||
Grinding wheel size | mm | 200*20*31.75 | ||
| Vertical (left and right) speed of workbench | m/min | 3-20 | |
| Continuous (infinite speed regulation) | mm/min | 150 | |
Intermittent (infinite speed regulation) | Mm/time | 5 | ||
Handwheel rotates every time | mm | 4 | ||
Handwheel per grid | mm | 0.02 | ||
Vertical (up and down) feed handwheel feed rate | Handwheel rotates every time | mm | 1.25 | |
Handwheel per grid | mm | 0.01 | ||
| Hydraulic motor | KW | 1.5 | |
work pressure | Mpa | 3 | ||
Fuel tank capacity | L | 80 | ||
maximum flow | L/min | 18 | ||
Motor power | spindle motor | KW | 1.1 | |
cooling motor | W | 40 | ||
Motor power | Parallelism of the machined surface to the base surface | mm | 300:0.005 | |
surface roughness | um | Ra0.32 | ||
Machine weight Net weight | Machine weight Net weight | kg | 850 | |
gross weight | kg | 950 | ||
Dimensions (length width height) | Dimensions (length width height) | 1630*1170*1940 | ||
Minimum of numercial display | mm | 0.001/0.005 | ||

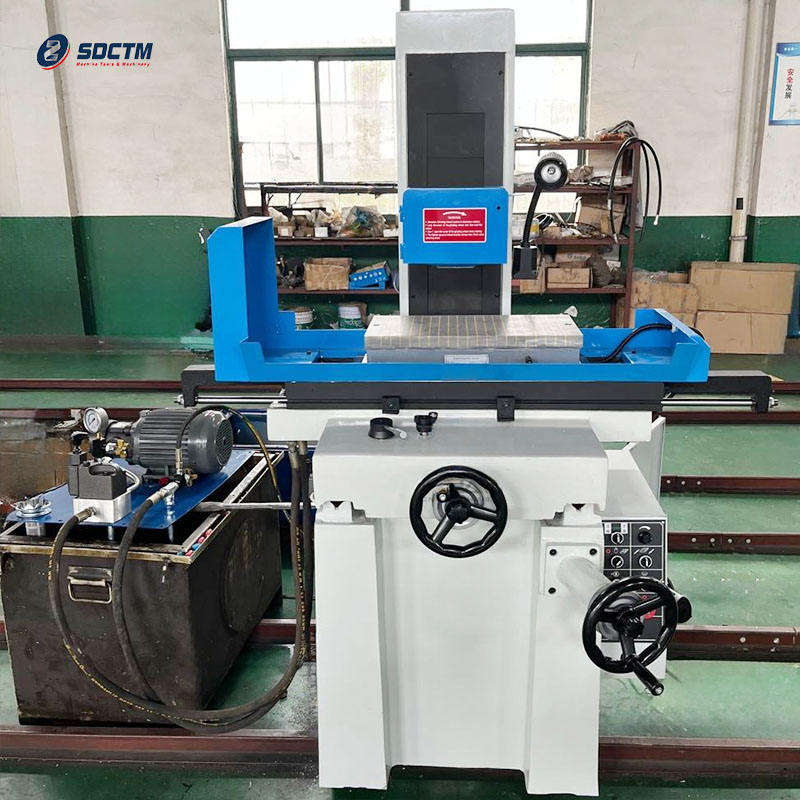

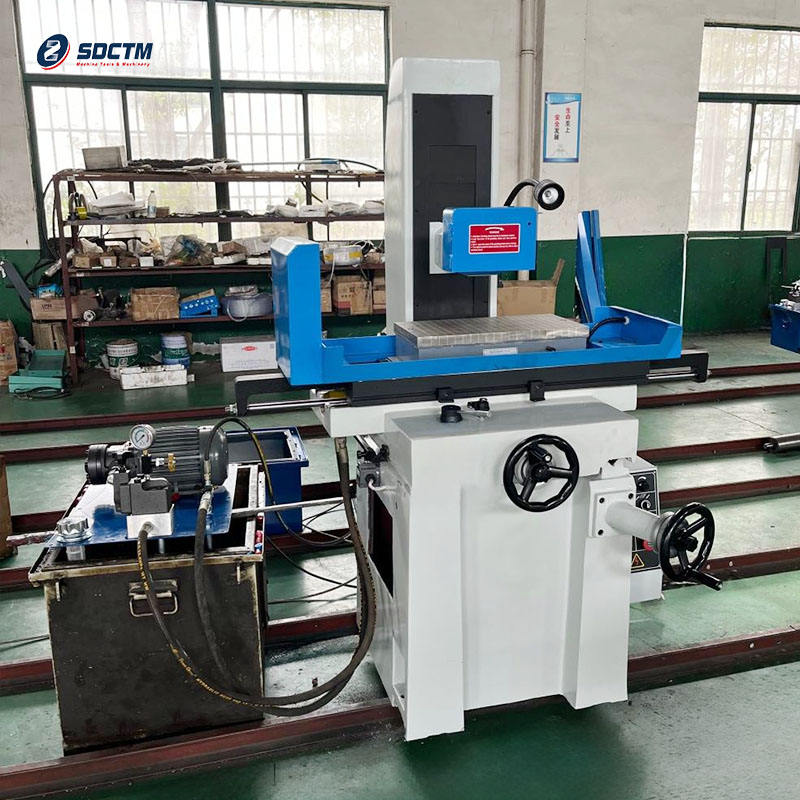

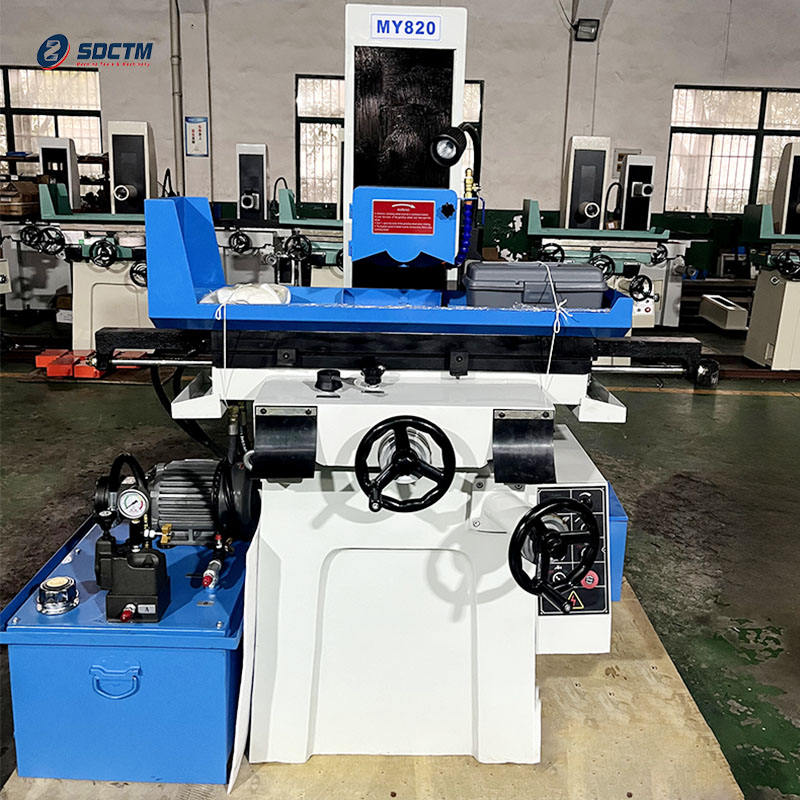

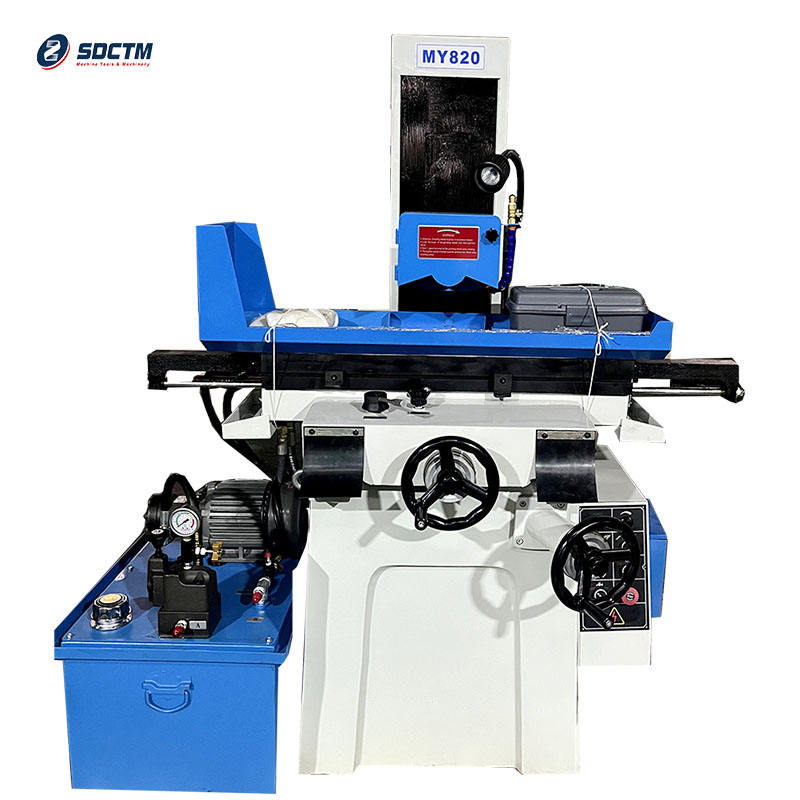

1,High Precision Grinding: The MY820 Hydraulic Surface Grinder Vertical Surface Grinding Machine is designed for high precision grinding, ensuring accurate results and minimizing errors. Its precision surface grinder machine features a surface roughness of 0.32 μm, making it ideal for various applications.
2, The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
3, Longitudinal movement (left and right) adopts V shaped -flat slideway,hydraulic transmissionand artificial precision scraping which can achieve stable running.
4.Hydraulic system adopts advanced vane pump and valve from Taiwan, including mechanicalcommutation and throttle governing.
Throttle governing has unfloding function,it can control the startand stop of the table.
5. The machine can grind surface and molding surface.
6.This model can be equipped with digital readout system,electromagnetic chuck, rapidifting motor and hand micro feed according to the customer's demands.

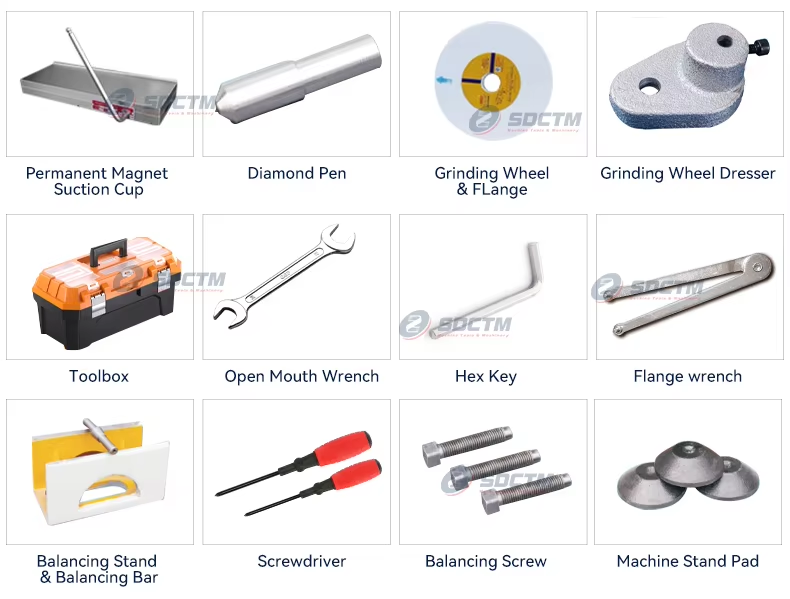

standard configuration of surface grinding machine

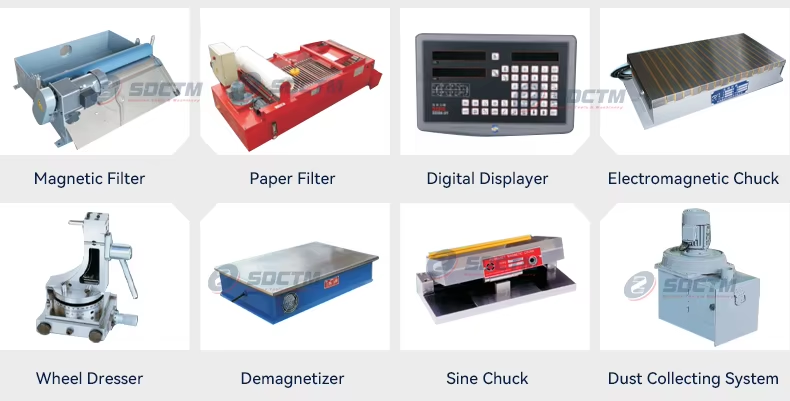

Special accessories for surface grinding machines
