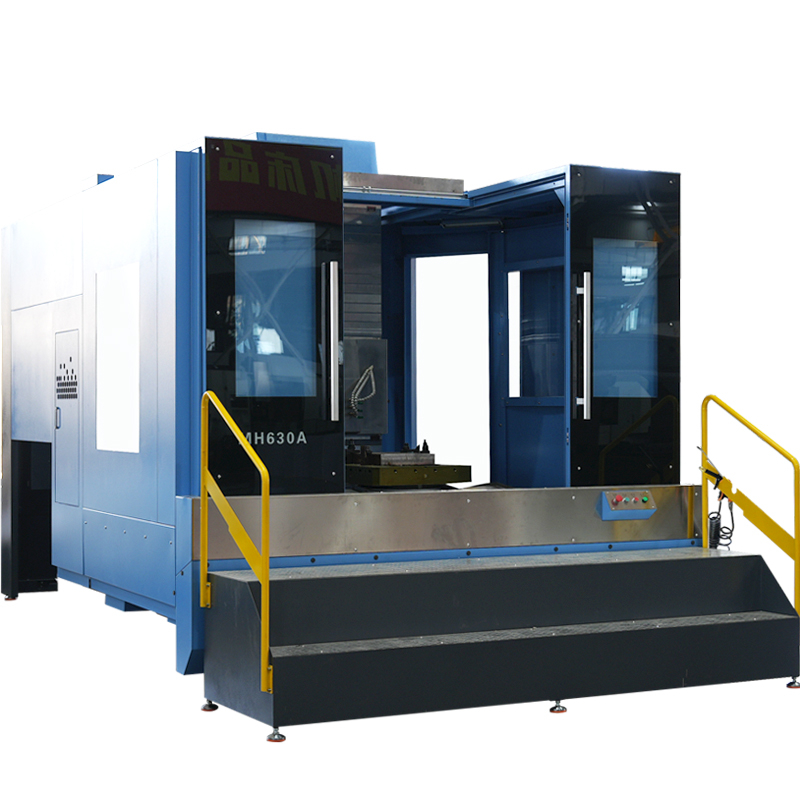

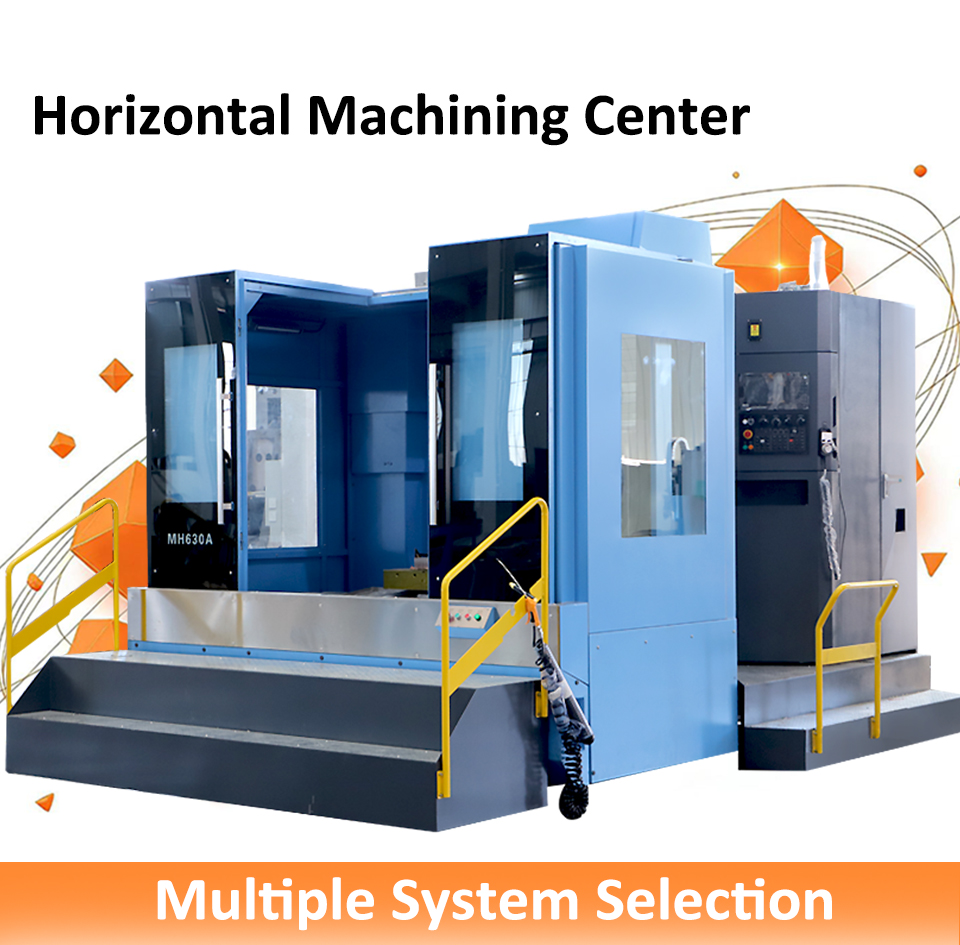

HMC630 CNC Milling Machine Horizontal Machining Center

HMC630 horizontal machining center is a high-performance CNC machine tool designed for heavy-duty, high-precision machining and mass production.
It adopts a horizontal sliding bed and box type enclosed base structure, with thin-walled and multi rib arrangement, ensuring excellent rigidity, stability, and vibration reduction.
This machine is equipped with imported high load roller linear guides and preloaded double nut ball screws, which can maintain accuracy and high dynamic response for a long time. The high-speed and high rigidity BT50 spindle has an air curtain protection function to prevent coolant and dust from entering, ensuring consistent rotational accuracy.
HMC630 is compatible with FANUC, SIEMENS, or Mitsubishi CNC systems and can automatically complete milling, drilling, boring, expanding, and tapping with cutting tools.
It is widely used in the mold, automotive, aerospace, and general machinery industries for processing box type parts, complex cavities, and high-precision holes.
X/Y/Z-axis travel:
Availability:
Quantity:
  • HMC630

  • SDCTM

  • 8457109000

Product Description

HMC630 CNC Milling Machine Horizontal Machining Center


Product Parameters

Technical Parameters

Units

HMC630

X/Y/Z axis travel

mm

1100/950/1100

Spindle center to worktable surface

mm

-15-950

Spindle nose to worktable center

mm

150-1250

Worktable area

mm

630*630

Maximum workpiece size

mm

1600

Worktable load distribution

kg

2500

Maximum workpiece height

mm

900

Minimum worktable split angle

°

1

T-slot (number of slots x slot width x spacing)

mm

5*18*100

Three-axis rapid displacement speed (x/y/z)

m/min

6000

Maximum processing size (rotation diameter)

mm

1600

Spindle taper

BT

BT50-210

Maximum spindle cutting torque (standard)

N-m

143

Spindle motor power (rated/maximum)

kw

15-22.5

Three-axis rapid displacement speed (x/y/z)

mm/min

20/20/20

Minimum setting unit of machine tool

/

0.001

Tool holder type

BT

BT50

Number of tools

/

30

Maximum tool extension diameter/length/weight

/

φ112mm / 350mm / 25kg

Maximum tool diameter (no adjacent tools)

mm

200

Tool selection method

/

/

Tool change time

s

4.75

Positioning accuracy (X/Y/Z)

mm

VDI 0.008

Repeat positioning accuracy (X/Y/Z)

mm

VDI 0.005

Rotary table indexing accuracy

±4“ sec3

Repeat indexing accuracy of rotary work

±3“ sec1

Air pressure

kg/bar

6-8

Cutting fluid tank volume

L

300

Power demand

KVA

55

Four-axis motor model

N

28N*28N*28N*18N

Three-axis lead screw/wire gauge model

/

R4010/R4012/5012;RGH45/45/55

Machine tool weight

kg

12500

Product Image


Product Details

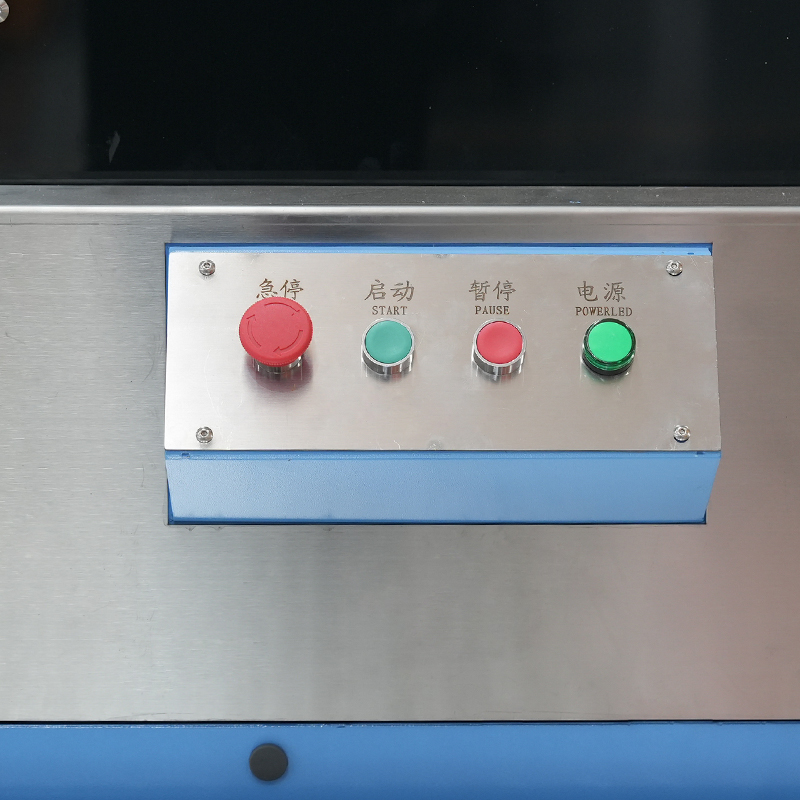

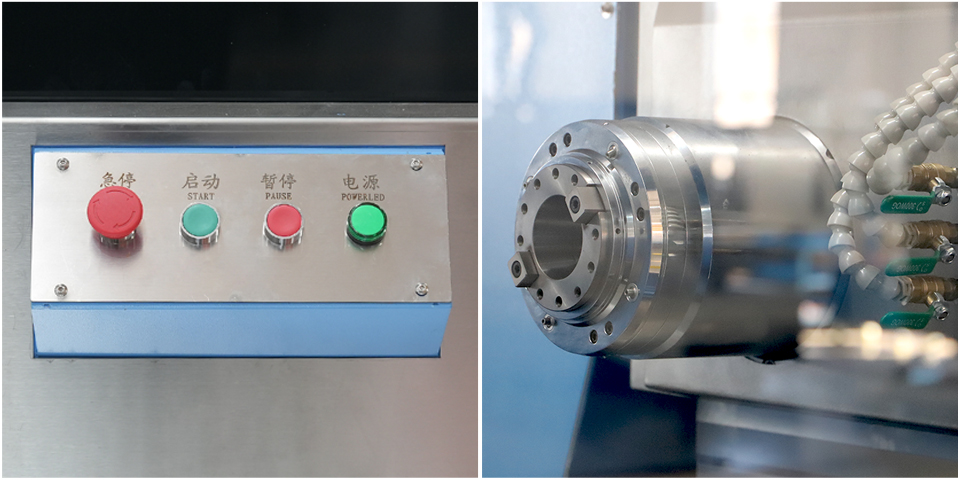

1. Security and operation interface:Independent operation station with emergency stop, start/pause, and power indicator lights, in compliance with safety standards.

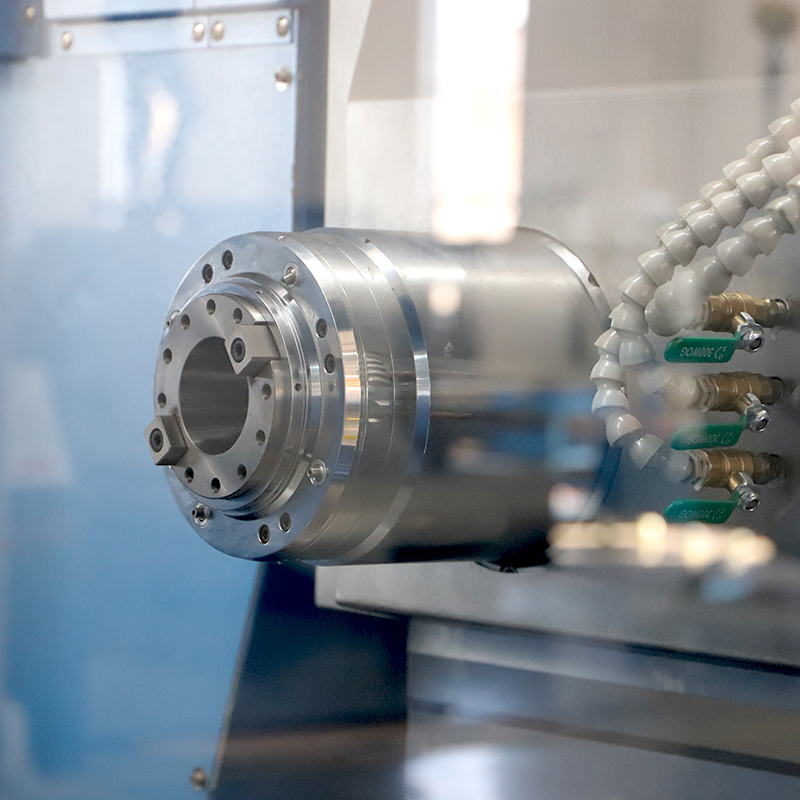

2. Spindle Unit:BT50 taper spindle with high-rigidity bearing configuration and air curtain protection, offering high torque and dust-free operation.

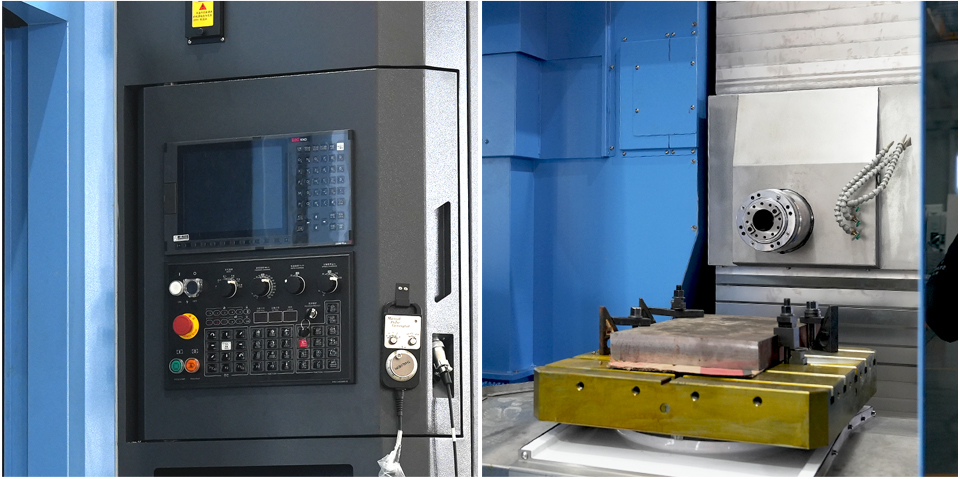

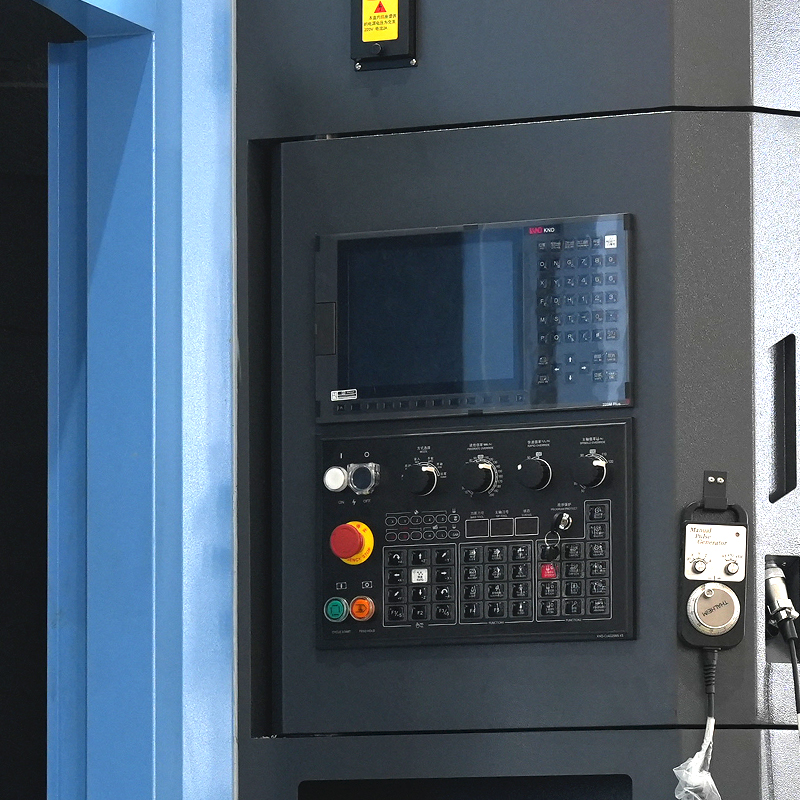

3. Control System:Industrial CNC system with a large display and dedicated operation panel, providing comprehensive control over machining processes.

4. High-Performance Spindle Unit:High-rigidity spindle with optimized cooling and protection, delivering consistent performance for high-precision cutting.
