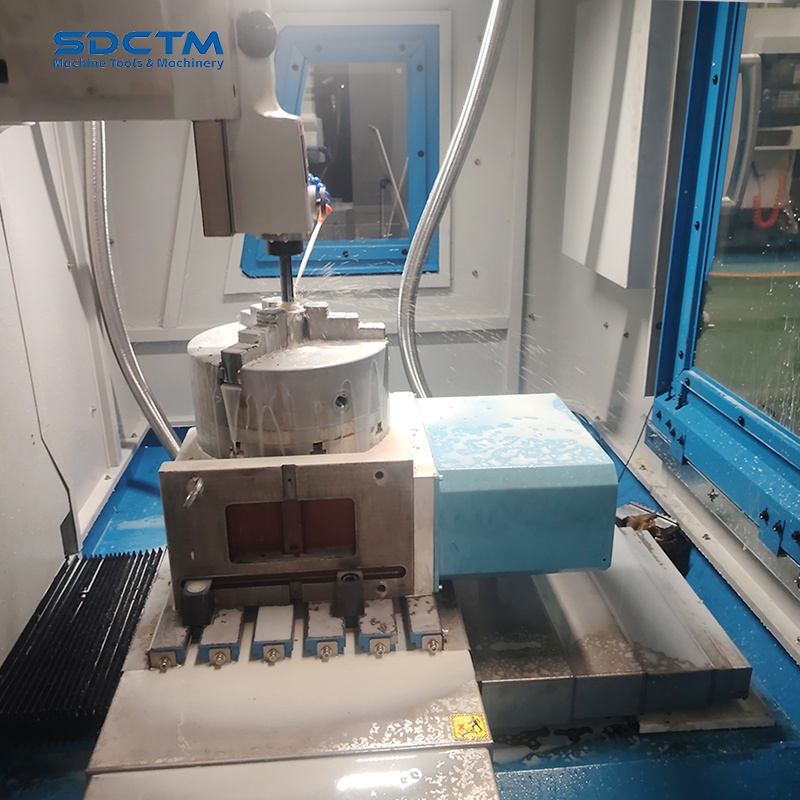

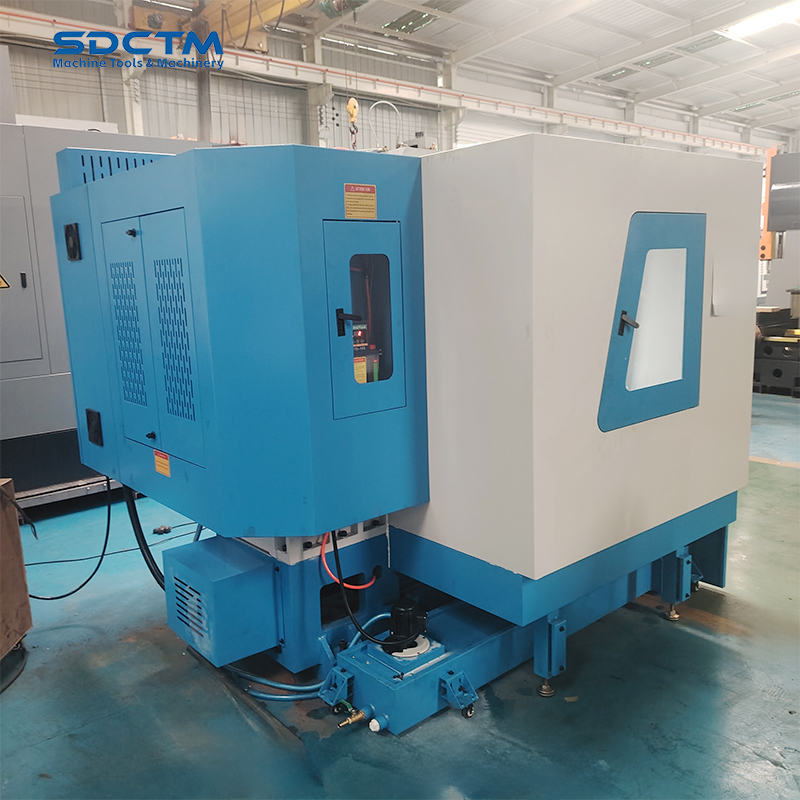

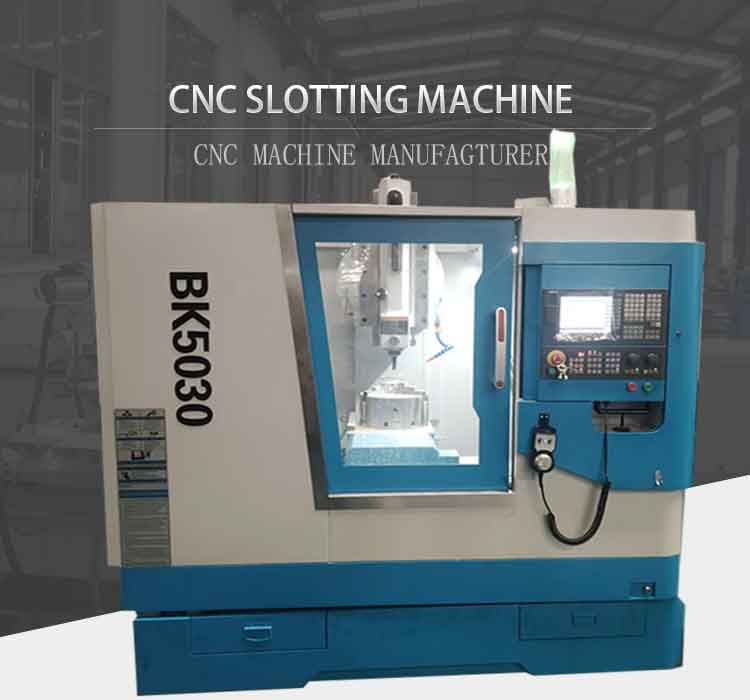

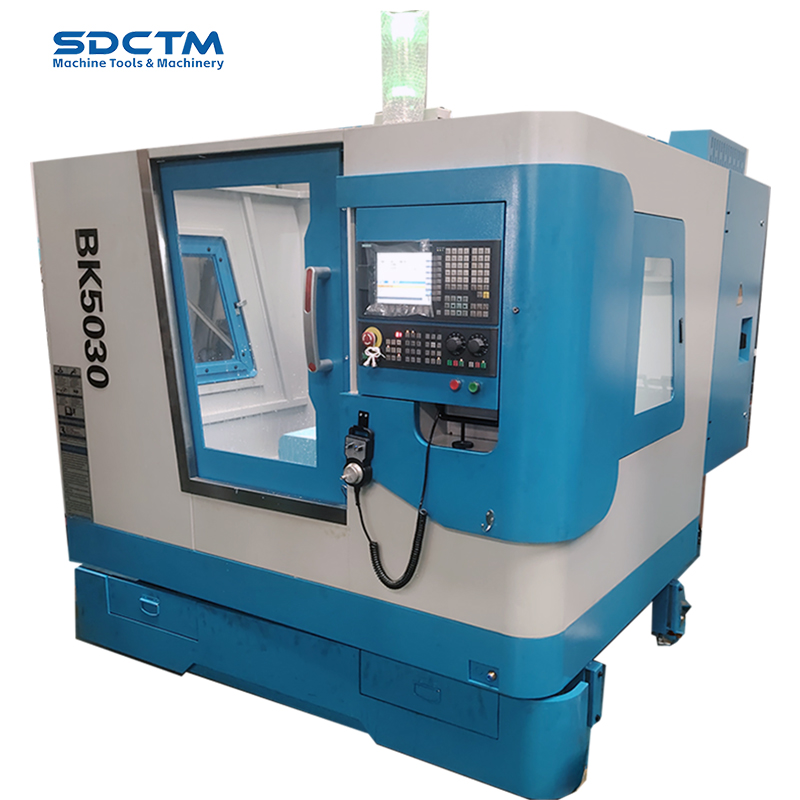

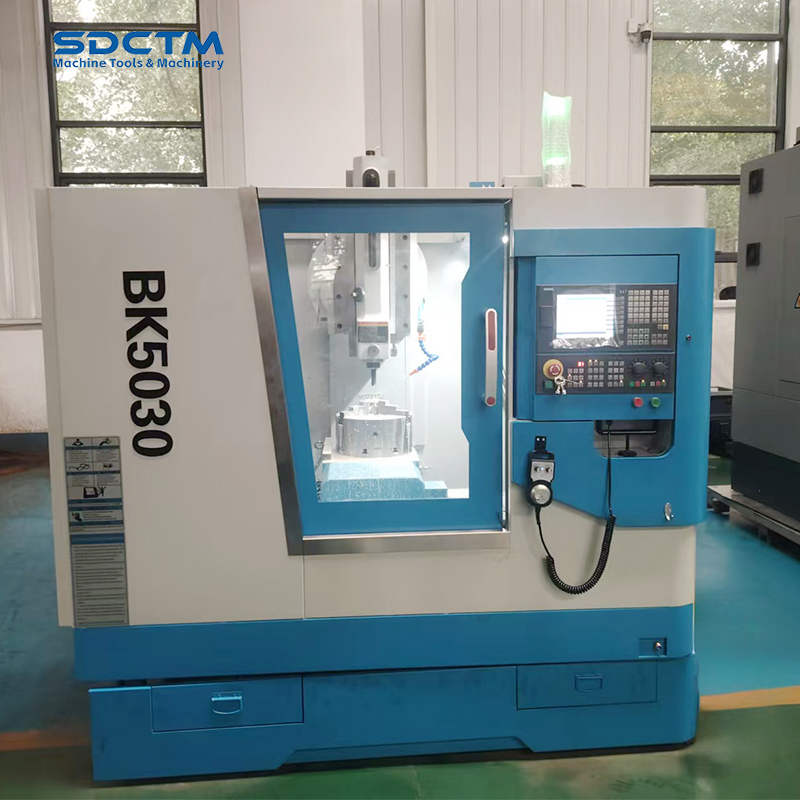

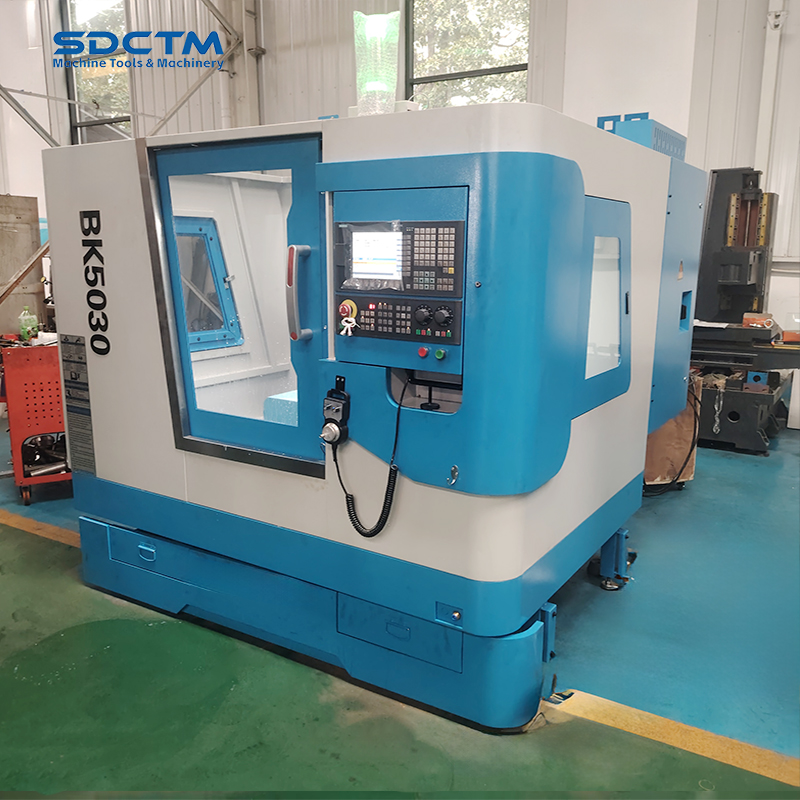

BK5030
Specification | BK5030 |
Max.Slotting Length(mm) | 300 |
Ram adjusiment stroke | 260 |
Number of ram movements | 30~120 |
working desk size | 550*410 |
Table travel(X.Y) | 250*300 |
The Distance berween the axis of the tool head supporting hole and the forearm of the column mm | 485 |
The distance form the bottom surface of the slide to the worktable mm | 540(690) |
X direction motor torque Nm | 6 |
Y direction motor torque Nm | 6 |
Fast-moving (X Y) m/min | 5 |
Ball screw (X ) | FFZD3205-3/P4 |
Ball screw(Y) | FFZD3205-3/P4 |
main motor power kw | 3.7 |
Machine werght kg | 2500 |
Package dimensions mm | 2300*2300*2250 |
ABOUT THE SUPPLIERShandong china trade Machinery Co., Ltd is located in the Economic and Technological Development Zone of Tengzhou City, Shandong Province, China. The factory covers an area of 14000 square meters and has more than 60 employees, including 8 senior mechanical technicians. The series of machine tool products produced by the company strictly follow the ISO9001 quality standard and have CE certification. The production technology level and product quality standards have received unanimous praise from customers; At present, we have trade relations with more than 100 countries around the world. Our company supports ODM OEM and provides long-term remote technical guidance and after-sales service. China Trade Machinery embraces exchanges and welcomes customers from all directions!
FAQs
How should I choose the appropriate model of machine?
Please tell me your specifications and other required configuration parameters so that we can choose the best model for you.You can also send us the product drawings, and we will choose the most suitable machine for you.
What is your trade terms?
EXW,FOB,DDP,EXW,CFR and CIF all acceptable.
What's your main products of your company?
We specialized in all kinds of machines ,such as CNC SLOTTING MACHINE CNC SHAPER MACHINE SURFACE GRINDER CNC LATHE SAWING MACHINE ,SHA[ER MACHINE and so on
What are the requirements for becoming a distributor?
Please feel free to contact us and we will answer your questions. We sincerely welcome your joining!
Where is your factory located? Can we visit the area?
Our factory is located in Tengzhou City, Shandong Province, China. We welcome customers from all over the world to visit us for guidance and research. We will pick up and drop off at the high-speed railway station
